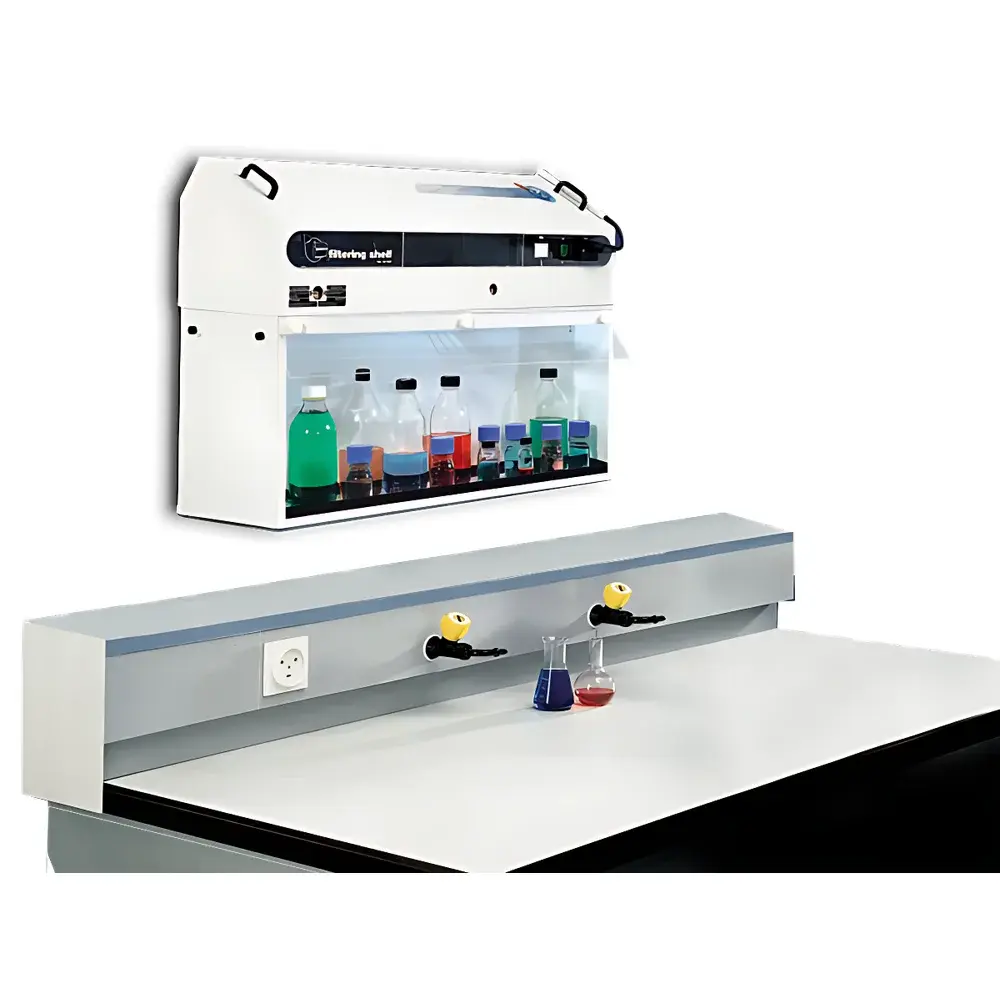

Erlab Shelf 812C Wall-Mounted Chemical Storage Cabinet

Overview

The Erlab Shelf 812C is a wall-mounted, recirculating chemical storage cabinet engineered for safe, localized containment and filtration of volatile organic compounds (VOCs) and low-concentration hazardous vapors emitted from stored reagents and pharmaceutical intermediates. Unlike traditional ventilated cabinets that exhaust air externally, the Shelf 812C employs an active, closed-loop airflow architecture: ambient air is drawn horizontally across the open front plane, passes through a high-efficiency molecular filter module, and is returned—cleaned and particle-free—to the laboratory environment. This design eliminates ductwork requirements, reduces HVAC load, and supports flexible deployment in QC labs, formulation development areas, and GMP-compliant pharmaceutical support spaces where intermittent or low-volume chemical handling occurs. Its operational principle relies on laminar face velocity (≥0.3 m/s at the access plane), optimized filter residence time, and validated adsorption kinetics for common solvents including acetone, ethanol, methanol, dichloromethane, and ethyl acetate.

Key Features

• Wall-mounted, space-saving form factor (650 × 551 × 760 mm) designed for integration above lab benches or alongside analytical instrumentation
• Open-front configuration with no physical barrier—enabling unobstructed visual monitoring and rapid access to 16 standard 0.5 L glass or HDPE containers
• Integrated low-noise axial fan (≤45 dB[A] at 1 m) delivering consistent airflow without pressure fluctuations or turbulence-induced bypass
• Molecular filter cartridge containing dual-layer media: granular activated carbon (GAC) for broad-spectrum VOC adsorption, plus chemically impregnated alumina for targeted capture of acidic, basic, or sulfur-containing species
• Filter saturation indicator (optional LED status light) aligned with Erlab’s Filter Life Monitoring Protocol—calibrated to typical usage profiles (e.g., 8 hrs/day, 5 days/week)
• CE-marked power supply (230 V AC, 50 Hz); no hardwiring or dedicated circuit required—compliant with IEC 61000-6-3 (EMC) and IEC 60335-1 (safety)

Sample Compatibility & Compliance

The Shelf 812C is intended for short-term storage (<72 h) of stable, non-pyrophoric, non-peroxide-forming liquid reagents commonly used in pharmaceutical quality control—such as HPLC mobile phase components, reference standards dilutions, and excipient solutions. It is not rated for flammable liquids exceeding Class IIIB (flash point ≥93°C), corrosive acids/bases above 10% w/w concentration, or reactive inorganics (e.g., sodium metal, phosphorus chlorides). The cabinet meets functional equivalence to key elements of EN 14175-3 (performance testing for fume cupboards), particularly in face velocity uniformity and containment efficiency under static conditions. While not a full GMP-grade storage solution per EU Annex 15 or USP , it supports ALCOA+ data integrity principles when deployed within documented laboratory procedures and maintained per Erlab’s Preventive Maintenance Schedule (PMS-812C Rev. 2.1).

Software & Data Management

The Shelf 812C operates as a standalone hardware unit without embedded firmware or network connectivity. However, its filter service history—including installation date, cumulative runtime (tracked via optional mechanical hour meter), and replacement records—can be integrated into laboratory asset management systems (e.g., LabVantage, STARLIMS) via manual entry or barcode-scanned log sheets. Erlab provides a digital Filter Replacement Certificate (FRC) template compliant with ISO/IEC 17025 clause 7.7 (reporting of results) and FDA 21 CFR Part 11 Annex A (audit trail documentation for maintenance actions). No electronic signature or biometric authentication is supported; all records must be manually signed and archived per institutional GLP/GMP document retention policies.

Applications

• Temporary staging of HPLC solvents and calibration standards prior to instrument use in QC release testing
• Secure holding of opened vials of pharmacopoeial reference materials (e.g., USP, EP, JP) during multi-day assay campaigns
• Vapor mitigation in analytical prep rooms where solvent evaporation from open containers poses inhalation risk but full fume hood use is impractical
• Complementary containment in cleanroom-adjacent areas where external ducting violates ISO 14644-1 air pressure differentials
• Educational labs and pilot-scale formulation suites requiring scalable, modular vapor control without infrastructure modification

FAQ

Is the Shelf 812C suitable for storing flammable solvents like ether or hexane?

No. It is not certified for Class I flammables (flash point <37.8°C) and lacks explosion-proof components or spark-resistant motor construction.
How often must the molecular filter be replaced?

Under typical pharmaceutical lab usage (≤40 hrs/week, moderate solvent volatility), replacement is recommended every 6–9 months—or sooner if odor breakthrough is detected or fan pressure drop exceeds 15% of baseline.
Can this cabinet be used in a biosafety level 2 (BSL-2) laboratory?

Yes, provided it is not used for biohazardous aerosols or infectious agents; its filtration is chemical-specific and does not address biological particulates or viruses.
Does the unit require annual third-party certification?

Not mandated by regulation, but Erlab recommends annual verification of face velocity and filter integrity per ISO 15255 Annex B—performed by an accredited ventilation technician.
Is wall mounting mandatory?

Yes. Structural anchoring to load-bearing masonry or steel stud framing is required; freestanding or shelf-top placement voids safety compliance and invalidates warranty.
