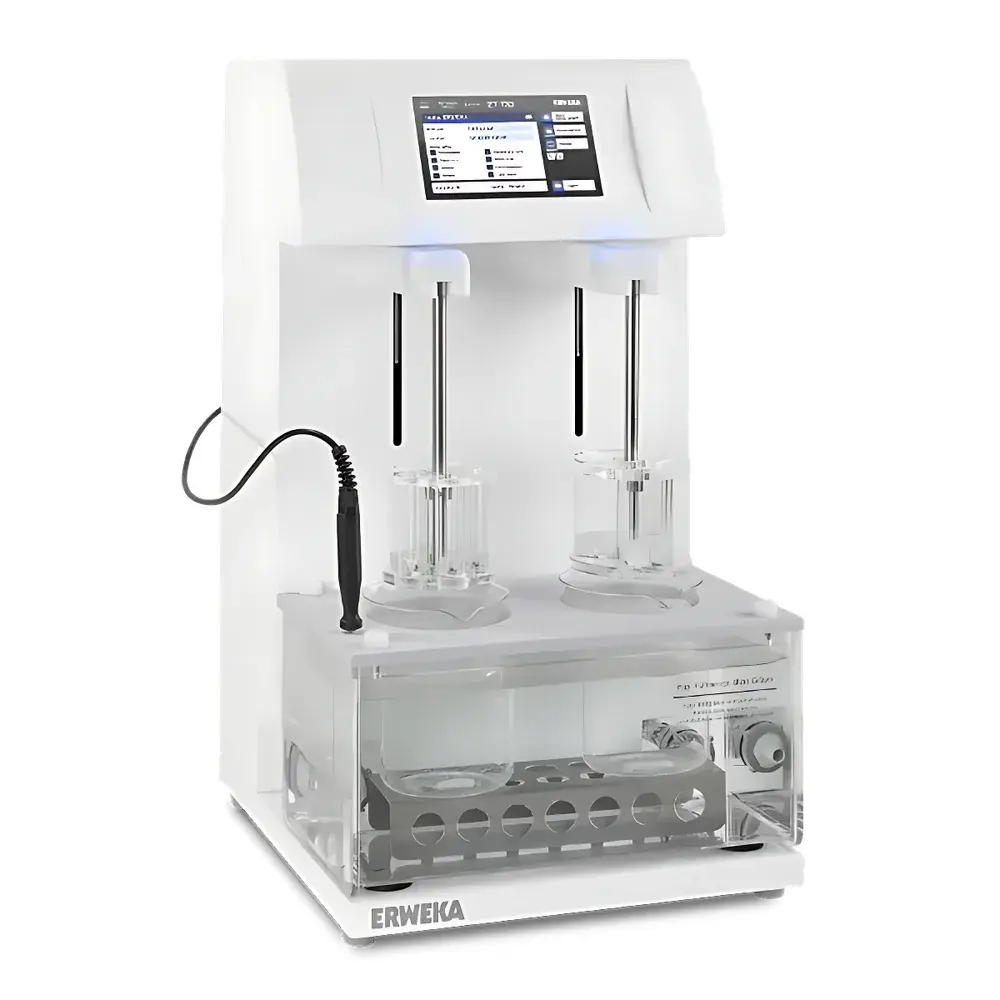

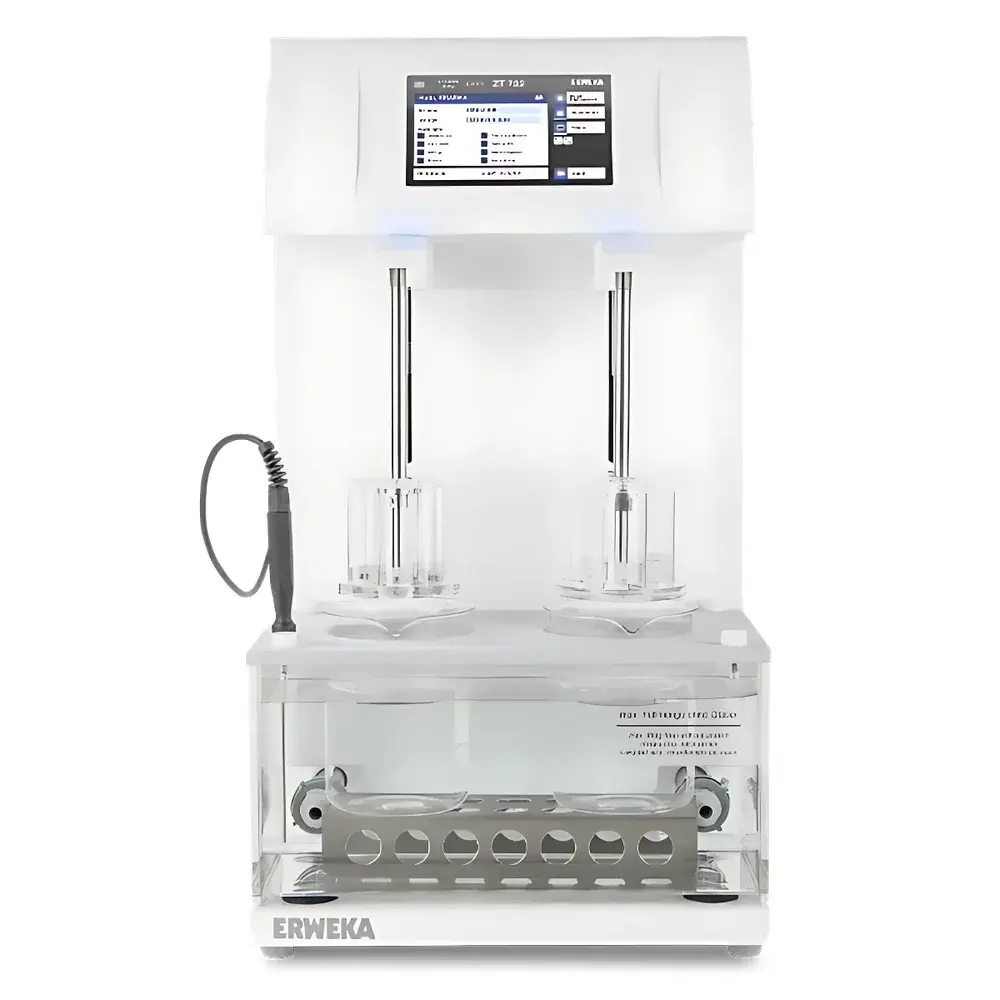

ERWEKA ZT730 Automated Disintegration Tester

Overview

The ERWEKA ZT730 Automated Disintegration Tester is a CE-marked, GMP-aligned instrument engineered for precise, reproducible disintegration testing of solid oral dosage forms—including tablets, capsules, and suppositories—in accordance with United States Pharmacopeia (USP <701>), European Pharmacopoeia (Ph. Eur. 2.9.1), and Japanese Pharmacopoeia (JP 6.07) requirements. Unlike conventional mechanical timers or manually monitored systems, the ZT730 employs a proprietary magnetic-sensor detection architecture integrated into its wireless AirBasket assembly to objectively determine endpoint disintegration—defined as the moment all particulate matter passes through the specified mesh aperture under standardized immersion conditions. This eliminates subjective visual assessment and inter-operator variability. The system utilizes a thermally stable water bath with high thermal inertia, actively regulated via a calibrated PT100 sensor and an integrated flow-through heating module, ensuring continuous compliance with the required 37.0 ± 0.5 °C test medium temperature throughout the full duration of each assay.

Key Features

• Wireless AirBasket technology: Tool-free, cable-free installation in seconds; available in Type A (6-tube configuration) and Type B (3-tube + disc holder for coated or layered dosage forms)
• Dual independent test stations (ZT732) or single-station (ZT731) configurations—each with synchronized but individually controllable stroke motion and real-time endpoint detection
• Sealed, dishwasher-safe electronics compartment—designed for routine cleaning without compromising IP-rated integrity or calibration stability
• 7-inch industrial-grade capacitive touchscreen with intuitive icon-driven interface; supports multi-language operation (English, German, French, Spanish, Chinese)
• Stepper motor-driven vertical motion system delivering consistent 30 ± 1 mm/min descent speed and 55 ± 2 mm stroke height per USP/Ph. Eur. specifications
• Onboard audit trail and user management system compliant with FDA 21 CFR Part 11 requirements when configured with electronic signatures and role-based access control

Sample Compatibility & Compliance

The ZT730 accommodates standard USP-compliant baskets (18–22 mm diameter), as well as extended-length or custom-diameter holders via optional adapters. Its AirBasket design maintains strict dimensional conformity to pharmacopoeial basket geometry while enabling automated endpoint recognition—eliminating reliance on manual observation or stopwatch timing. All thermal and mechanical parameters are traceably validated against NIST-traceable references. The device meets IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emissions) standards. Full documentation packages—including IQ/OQ/PQ protocols, calibration certificates, and 21 CFR Part 11 readiness reports—are available upon request for regulated environments operating under GLP or GMP frameworks.

Software & Data Management

Embedded firmware supports local storage of up to 200 pre-programmed product/method profiles—including dissolution media type, temperature setpoint, cycle count, and pass/fail criteria. Over 1 million discrete test records (timestamped, operator-ID tagged, and instrument-event logged) are retained in internal flash memory (~4 GB). Data export is supported via USB-A (to FAT32-formatted drives), USB-B (for PC tethering), or Ethernet (TCP/IP) using ERWEKA’s proprietary CSV/XML schema compatible with LIMS and ELN platforms. Optional ERWEKA LabLink software enables remote monitoring, centralized method distribution, and automated report generation aligned with ALCOA+ data integrity principles.

Applications

The ZT730 is routinely deployed in QC laboratories for batch release testing of immediate-release and modified-release formulations; in R&D for formulation screening and excipient interaction studies; and in stability programs assessing disintegration performance across accelerated and long-term storage conditions. Its precision thermal control and deterministic endpoint detection make it particularly valuable for evaluating enteric-coated tablets, film-coated capsules, and rapidly disintegrating tablets (RDTs) where subtle variations in polymer hydration kinetics directly impact clinical performance. Regulatory submissions referencing ZT730-generated data have been accepted by EMA, PMDA, Health Canada, and the U.S. FDA.

FAQ

Does the ZT730 require external calibration equipment?
No—the built-in PT100 sensor is factory-calibrated and verified annually during service; users perform daily temperature verification using a certified reference thermometer.
Can the AirBasket be sterilized?
Yes—Type A and Type B AirBaskets are autoclavable at 121 °C for 20 minutes; all seals and sensors retain functionality after ≥50 cycles.
Is network time synchronization supported?
Yes—via NTP over Ethernet, ensuring timestamp consistency across multi-instrument lab networks.
What happens if power fails mid-test?
The system retains all active test state data in non-volatile memory and resumes operation from the last valid measurement point upon power restoration.
Are validation documents included with shipment?
Yes—Factory Acceptance Test (FAT) report, electrical safety certificate, and EU Declaration of Conformity are supplied; IQ/OQ kits and vendor-supported PQ execution are available as add-on services.
