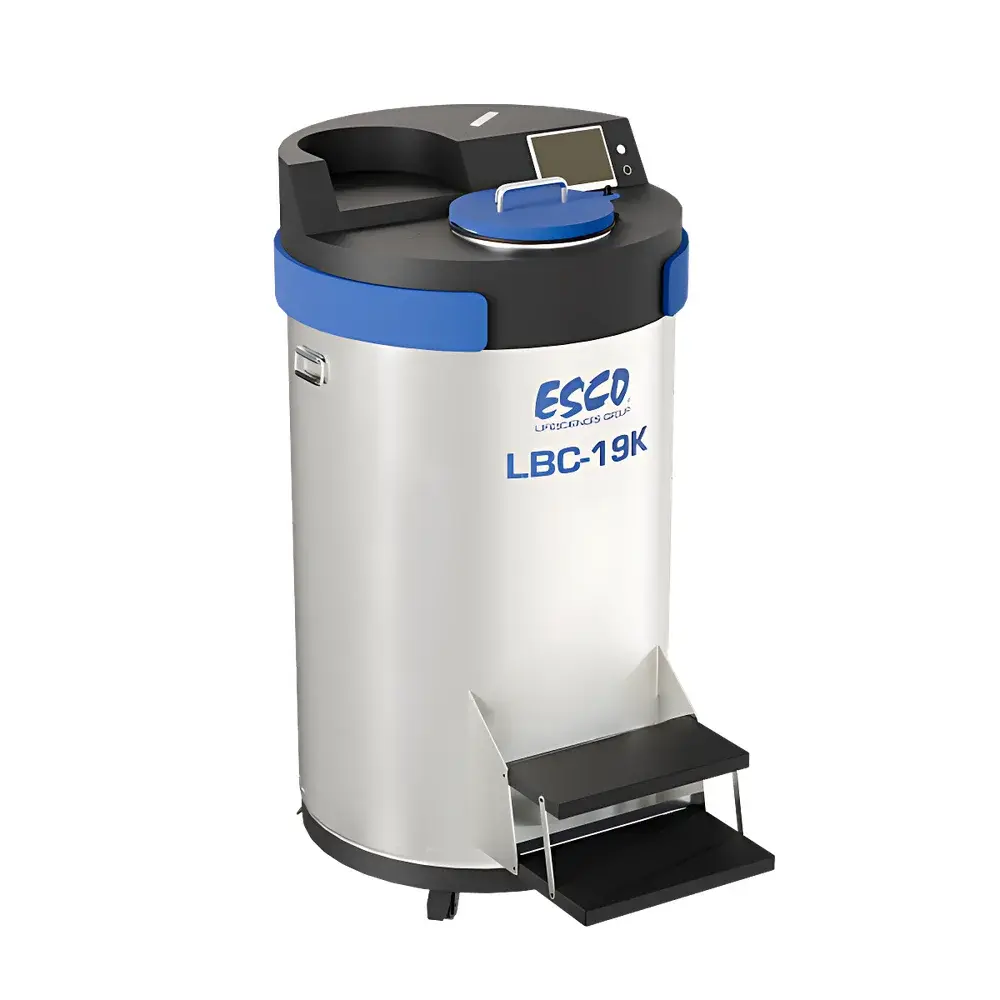

Esco LBC Large-Aperture Stainless Steel Liquid Nitrogen Biological Storage Container
| Brand | ESCO |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | Esco LBC |
| Pricing | Available Upon Request |
Overview
The Esco LBC Large-Aperture Stainless Steel Liquid Nitrogen Biological Storage Container is an engineered solution for long-term, ultra-low-temperature preservation of high-value biological specimens—including human tissues, primary cells, stem cells, cord blood units, and cryopreserved embryos. Designed around a dual-phase (liquid-phase and vapor-phase) storage architecture, the system maintains stable thermal environments without direct sample immersion in liquid nitrogen—minimizing contamination risk while preserving viability. Its core thermal management relies on high-efficiency vacuum insulation, optimized heat-shield geometry, and controlled vapor-phase convection dynamics to achieve uniform temperature distribution across the storage chamber. In vapor-phase mode, the unit sustains a maximum temperature gradient of ≤10 °C throughout the entire storage volume, with rack-top temperatures reaching as low as −190 °C—well within the required range for vitrification-grade stability per ISO 20387:2018 (Biobanking—General requirements for biobank operations) and AABB standards.
Key Features
- Large-diameter stainless steel neck opening (≥200 mm) enabling rapid, ergonomic access to internal racks and minimizing frost ingress during frequent retrieval
- Dual-mode operation: seamless switching between liquid-phase (direct immersion) and vapor-phase (cryogenic gas-phase) storage configurations
- Integrated intelligent liquid nitrogen monitoring system with real-time level sensing via capacitive or ultrasonic transducers
- Automated refilling capability via external vacuum transfer lines or self-pressurized supply dewars—eliminating manual handling and operator exposure risk
- Modular internal partitioning into four or six labeled, rotatable sector zones; each segment indexed for precise positional tracking and audit-ready inventory management
- Pre-fill purge sequence that evacuates ambient-temperature nitrogen from delivery tubing prior to LN₂ introduction—reducing thermal shock and optimizing hold time efficiency
- Industrial-grade 7-inch capacitive touchscreen HMI with multi-level password protection (admin/operator/user), event logging, and configurable alarm thresholds (low level, high temp, door open, communication failure)
Sample Compatibility & Compliance
The Esco LBC accommodates standard cryovial formats—including 2 mL externally threaded tubes—across scalable storage capacities ranging from 15,000 to 94,000 vials depending on rack configuration. All internal components are fabricated from medical-grade 304/316L stainless steel and certified non-pyrogenic per USP . The container meets structural integrity requirements outlined in EN 13407:2005 (Cryogenic vessels—Static vacuum insulated vessels) and complies with pressure relief provisions per PED 2014/68/EU. Vapor-phase operation supports GLP-compliant workflows by eliminating cross-contamination pathways inherent to liquid-phase storage. Full audit trail functionality—including timestamped temperature logs, user authentication records, and alarm history—is enabled for FDA 21 CFR Part 11–aligned environments when integrated with Esco’s optional cloud-based BiobankIQ platform.
Software & Data Management
The embedded controller supports local data retention for ≥30 days of continuous temperature and level readings at 1-minute intervals. Remote monitoring is available via secure HTTPS web interface and authenticated WeChat Mini Program integration—providing push notifications for critical events. Data export adheres to CSV and PDF report templates compliant with ISO/IEC 17025 documentation protocols. Optional BiobankIQ software enables centralized fleet management across multiple LBC units, including predictive maintenance alerts based on fill-cycle frequency and evaporation rate trends. All firmware updates are digitally signed and validated to ensure system integrity.
Applications
- Population-scale biobanks requiring ISO 20387-certified infrastructure
- Hematopoietic stem cell banking and cord blood repositories
- Academic and clinical research labs managing longitudinal specimen cohorts
- Cell therapy manufacturing suites operating under cGMP Annex 1 (2022) environmental control guidelines
- Veterinary biorepositories preserving genetic material from endangered species
- Pharmaceutical stability studies involving cryopreserved reference standards
FAQ
What is the maximum storage capacity in vapor-phase mode?
Vapor-phase capacity is identical to liquid-phase configuration—up to 94,000 × 2 mL vials—though optimal thermal uniformity is maintained only within specified rack-loading limits per Esco’s validated load map.
Does the system support 21 CFR Part 11 compliance out of the box?
Electronic signature, audit trail, and role-based access control are built-in; full Part 11 compliance requires deployment of BiobankIQ with validated electronic record archiving and change-control procedures.
Can the unit operate autonomously during extended power outages?
While the control system requires AC power, passive thermal performance ensures ≥120 hours of hold time at −150 °C (vapor phase) without replenishment—verified per ASTM F2658-20 test protocol.
Is third-party calibration certification available?
Yes—NIST-traceable temperature mapping reports and LN₂ consumption validation certificates are provided upon request through Esco’s ISO/IEC 17025-accredited service laboratory.
