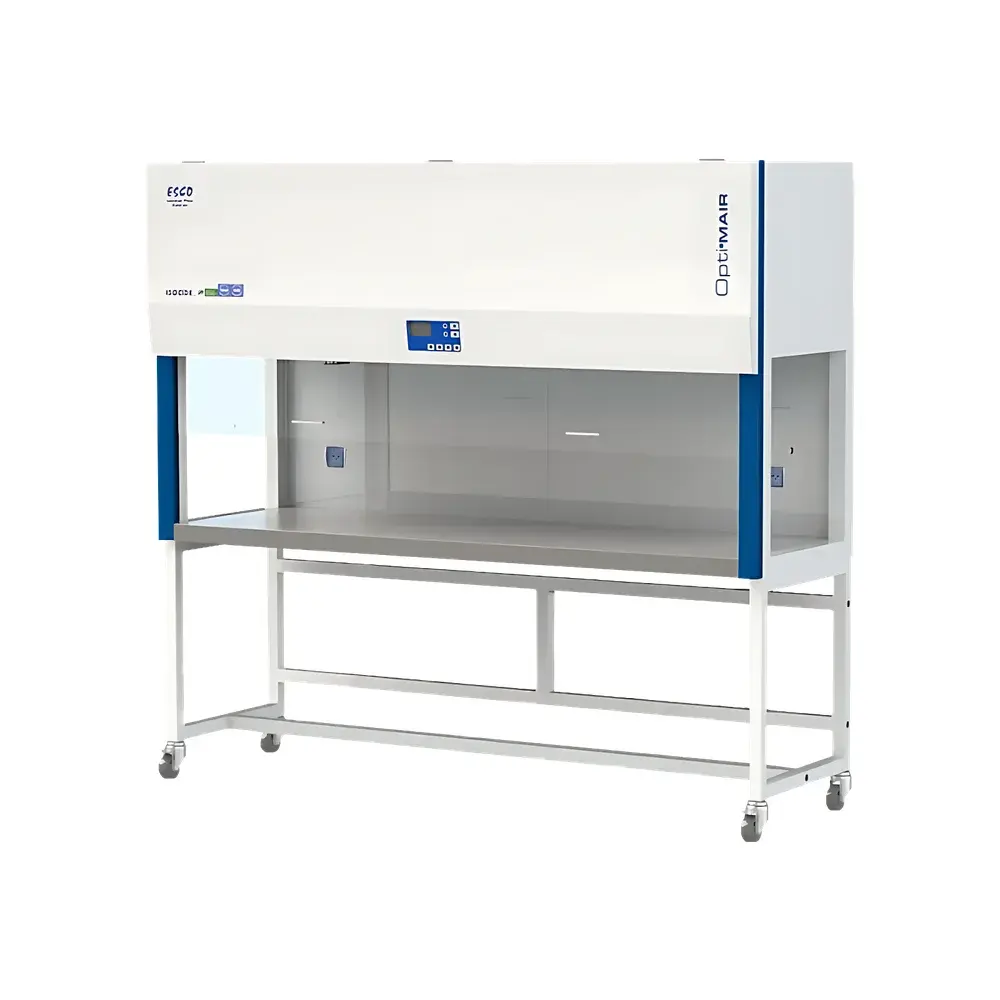

Esco OptiMair Vertical Laminar Flow Cleanbench (TCB Series)

Overview

The Esco OptiMair Vertical Laminar Flow Cleanbench (TCB Series) is an ISO-certified, personnel-protective and product-protective laminar airflow workstation engineered for aseptic handling in pharmaceutical QC labs, cell culture facilities, microbiology suites, and medical device manufacturing environments. It operates on the principle of unidirectional vertical laminar airflow—generated by a low-vibration, energy-efficient centrifugal blower—directed downward through a certified HEPA filter (≥99.99% @ >0.3 µm) to maintain a particle-free work environment compliant with ISO 14644-1 Class 5 (Fed. Std. 209E Class 100). Optional ultra-low penetration air (ULPA) filtration enables upgrade to ISO Class 4 (10 particles/ft³), supporting high-integrity applications such as sterile fill-finish preparation or nanomaterial handling. The TCB series integrates ergonomic design with regulatory-grade engineering: its vertical flow architecture minimizes turbulence-induced cross-contamination, while the sealed 304 stainless steel work surface and UV-blocking side panels ensure optical clarity, operator comfort, and long-term corrosion resistance under repeated disinfection cycles.

Key Features

• Adjustable laminar airflow velocity (0.30–0.45 m/s) with real-time digital display for process traceability and SOP adherence
• Esco IsoCide™ antimicrobial coating applied to external housing surfaces—validated per ISO 22196—to inhibit microbial colonization on frequently touched areas
• Dual-mode UV-C lamp system with programmable on/off scheduling; optional IR remote or RF wireless activation for hands-free decontamination prior to operation
• Ergonomically optimized chamber geometry: non-reflective coated rear panel reduces ocular fatigue; 5 mm UV-stabilized tempered glass side walls enhance ambient light transmission without compromising UV shielding
• Low-noise (<65 dBA), high-efficiency EC motor-driven blower delivering stable airflow across full operational lifespan—no belt wear, minimal vibration, and reduced maintenance intervals
• Integrated illumination system exceeding 900 lux at work surface—uniformly distributed and compliant with EN 12464-1 photometric requirements for precision manual tasks

Sample Compatibility & Compliance

The TCB Cleanbench accommodates standard biosafety-compatible consumables—including Petri dishes, tissue culture flasks, vials, syringes, and small-scale bioreactors—within its certified ISO 5 laminar zone. Its structural integrity and airflow uniformity have been validated per ISO 14644-3 Annex B (laminar flow testing), IEST-RP-CC002.2 (HEPA filter integrity), and AS 1386.5 (Australian cleanroom equipment standards). Regulatory alignment extends to YY/T 1539–2017 (Chinese medical cleanbench standard) and JG/T 292–2010 (architectural cleanroom specifications), ensuring suitability for GMP-regulated environments. All units undergo factory certification with particle count validation (≥5 sampling points per ISO 14644-1), airflow visualization (smoke studies), and filter leak testing (DOP/PAO scanning). Documentation supports FDA 21 CFR Part 11 readiness when paired with Esco’s optional audit-trail-capable control software.

Software & Data Management

While the base TCB model features a microprocessor-controlled touch-panel interface for airflow setpoint, UV scheduling, and illumination control, Esco offers optional firmware upgrades enabling data logging (timestamped airflow velocity, UV runtime, door-open events) and export via USB or RS-485. When integrated with Esco’s LabManager™ platform (sold separately), the TCB supports centralized monitoring across multi-unit installations, configurable alarm thresholds (e.g., velocity deviation >±5%), and GLP/GMP-compliant electronic records—including user authentication, change history, and digital signature support. All logged parameters comply with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) for audit readiness.

Applications

• Aseptic transfer of mammalian or microbial cultures in academic and industrial research laboratories
• Preparation of sterile media, reagents, and vaccines under cGMP Annex 1-aligned conditions
• Handling of sensitive biologicals—including monoclonal antibodies, viral vectors, and primary cells—where particulate and microbial ingress must be minimized
• QC testing of pharmaceutical dosage forms (e.g., injectables, ophthalmic solutions) requiring ISO 5 background environments
• Electronics assembly of microfluidic devices or MEMS components where electrostatic discharge (ESD)-safe stainless steel surfaces and low-particulate airflow are critical

FAQ

What ISO classification does the TCB Cleanbench achieve out-of-the-box?
Standard configuration delivers ISO 14644-1 Class 5 (≤3,520 particles/m³ ≥0.5 µm), equivalent to Fed. Std. 209E Class 100. Optional ULPA filtration enables ISO Class 4 (≤352 particles/m³) upon request.
Is the unit suitable for use with volatile organic solvents?
No—the TCB is not designed for flammable or corrosive vapors. For solvent-based applications, Esco recommends its Airstream® Class II Biosafety Cabinets (NSF/ANSI 49 certified) with dedicated exhaust ducting.
Can the UV lamp be operated while the sash is open?
No—UV interlock safety circuitry automatically disables UV emission when the front access sash exceeds 100 mm opening height, complying with IEC 61000-6-4 and local radiation safety regulations.
What maintenance intervals are recommended for HEPA filter replacement?
Filter service life depends on ambient particulate load and usage frequency; Esco recommends annual integrity testing (DOP/PAO scan) and replacement every 3–5 years under typical lab conditions, or sooner if pressure drop exceeds 20% of initial baseline.
Does the TCB series support integration into a building management system (BMS)?
Yes—via optional analog 0–10 V or Modbus RTU output modules, enabling remote status monitoring (fan run, UV active, door position) and alarm relay signaling to facility-wide BMS platforms.
