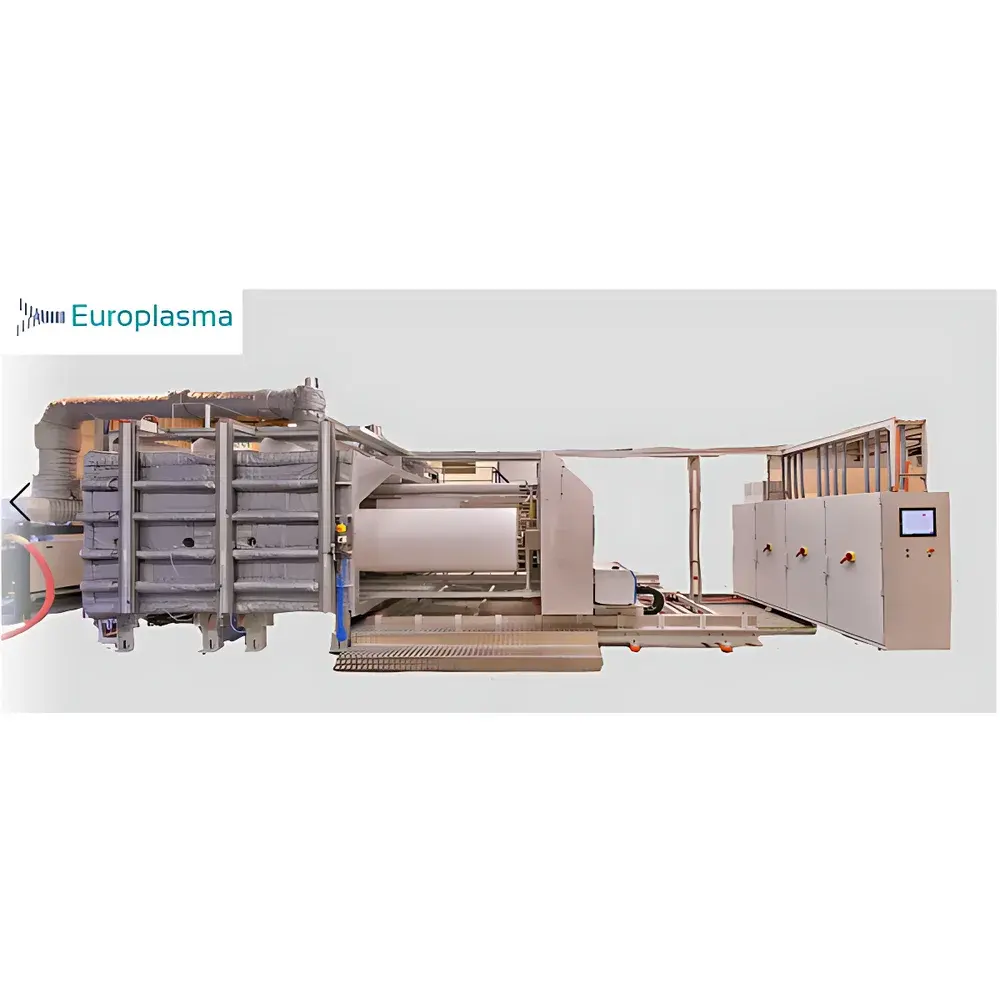

Europlasma CD 2400 Roll-to-Roll Fluorine-Free Plasma Coating System
| Brand | Europlasma |
|---|---|
| Origin | Belgium |
| Model | CD 2400 |
| Power | 5 kW |
| Dimensions | 2400 mm × Ø1000 mm |
| Chamber Volume | 2000 L |
| Chamber Material | Aluminum |
| Process Gases | O₂, Ar |
| Control Mode | Fully Automatic |
Overview
The Europlasma CD 2400 is a fully automated, roll-to-roll (R2R) plasma-enhanced chemical vapor deposition (PECVD) system engineered for industrial-scale functional nanocoating of flexible substrates under low-pressure plasma conditions. Unlike conventional atmospheric plasma or spray-based coating methods, the CD 2400 utilizes a vacuum-based capacitively coupled plasma (CCP) source to activate precursor vapors—enabling conformal, pinhole-free, sub-100 nm thin-film deposition with precise stoichiometric control. Its fluorine-free coating capability—delivered via PlasmaGuard® chemistry—is specifically developed to meet evolving global regulatory requirements (e.g., EU REACH Annex XIV, US EPA Safer Choice, and IEC 62474 VOC restrictions) that restrict per- and polyfluoroalkyl substances (PFAS), including PFOA and PFOS. Designed for continuous web processing, the system supports high-throughput surface functionalization while maintaining batch-to-batch reproducibility essential for medical device manufacturing, battery separator treatment, and wearable electronics encapsulation.
Key Features
- Roll-to-roll architecture with integrated unwinding/tension control and precision rewind module for stable web handling at speeds up to 5 m/min
- 5 kW RF generator (13.56 MHz) with impedance-matching network optimized for uniform plasma density across 2400 mm web width
- 2000 L aluminum vacuum chamber featuring ISO-KF flanged ports, integrated cryo-trap, and pressure regulation from 10⁻³ to 10 Pa
- Multi-gas mass flow control (MFC) system supporting O₂, Ar, N₂, and custom precursor vapors (e.g., siloxanes, alkoxysilanes, acrylic monomers)
- PlasmaGuard®-compatible vapor delivery system with heated lines and back-pressure regulation to ensure consistent precursor dosing without condensation
- PLC-based HMI with recipe management, real-time process logging, and hardware interlocks compliant with IEC 61508 SIL2
Sample Compatibility & Compliance
The CD 2400 accommodates flexible substrates ranging from 12 µm PET and PI films to nonwovens (e.g., meltblown PP), medical-grade silicone tubing (ID 0.5–4 mm), and rigid-flex PCB laminates. Substrate width is configurable up to 2400 mm; web thickness tolerance: 25–500 µm. All coating processes are validated against ISO 14644-1 Class 5 cleanroom-compatible operation and support GLP/GMP documentation workflows. The PlasmaGuard® fluorine-free formulation meets ASTM F2413-18 (foot protection), ISO 20623:2020 (water resistance for textiles), and IEC 60529 IPX5–IPX8 test protocols when applied to coated assemblies. System design adheres to CE Machinery Directive 2006/42/EC, PED 2014/68/EU (for vacuum vessel), and EMC Directive 2014/30/EU.
Software & Data Management
The embedded control software provides full traceability through time-stamped event logs, parameter audit trails, and digital signature-enabled recipe approval. Process data—including RF forward/reflected power, chamber pressure, gas flow rates, substrate temperature (via IR pyrometer), and film thickness (in-situ optical monitoring optional)—are exported in CSV or XML format. Optional integration with MES platforms (e.g., Siemens Opcenter, Rockwell FactoryTalk) supports electronic batch records (EBR) aligned with FDA 21 CFR Part 11 requirements. All firmware updates undergo version-controlled validation, and system diagnostics include predictive maintenance alerts based on RF generator duty cycle and vacuum pump performance metrics.
Applications
- Encapsulation of wearables: hydrophobic barrier layers on TWS earbuds, smartwatch flex circuits, and biosensor patches achieving IPX7/IPX8 rating without compromising signal integrity
- Lithium-ion battery manufacturing: hydrophilic surface activation of ceramic-coated separators and anode/cathode current collectors to improve electrolyte wettability and interfacial adhesion
- Medical devices: plasma-polymerized anti-thrombogenic coatings on extruded polymer catheters and electrosurgical instrument sheaths
- Functional textiles: durable water repellency (DWR) on flame-retardant aramid nonwovens for first-responder PPE without fluorinated chemistry
- PCB protection: ultra-thin (<50 nm) dielectric passivation on HDI boards for conformal moisture and ionic contamination resistance
FAQ
What fluorine-free chemistries are supported on the CD 2400?
PlasmaGuard® is the primary fluorine-free platform, utilizing organosilicon and acrylic precursors to generate SiOxCyHz or crosslinked polyacrylate networks. Nanofics® 10 (a PFA-free silane derivative) is also compatible for enhanced hydrophobicity.
Can the system be validated for ISO 13485-certified medical device production?
Yes—the CD 2400 supports IQ/OQ/PQ protocol execution, includes calibration certificates for all critical sensors (pressure, temperature, MFC), and provides raw data archives required for regulatory submission.
Is atmospheric plasma processing possible with this system?
No—the CD 2400 operates exclusively under low-pressure (vacuum) conditions to ensure plasma stability, precursor dissociation control, and film uniformity. Atmospheric R2R solutions are offered separately by CPI, Europlasma’s sister company.
What is the typical film thickness range achievable with PlasmaGuard®?
Coating thickness is controllable from 10 nm to 300 nm depending on dwell time, power density, and precursor concentration—with ellipsometry and XPS verification recommended for critical applications.
Does the system support remote diagnostics and service access?
Yes—optional secure VPN-enabled remote support allows Europlasma engineers to monitor system health, analyze fault logs, and assist with parameter optimization while maintaining data sovereignty per GDPR and local IT security policies.
