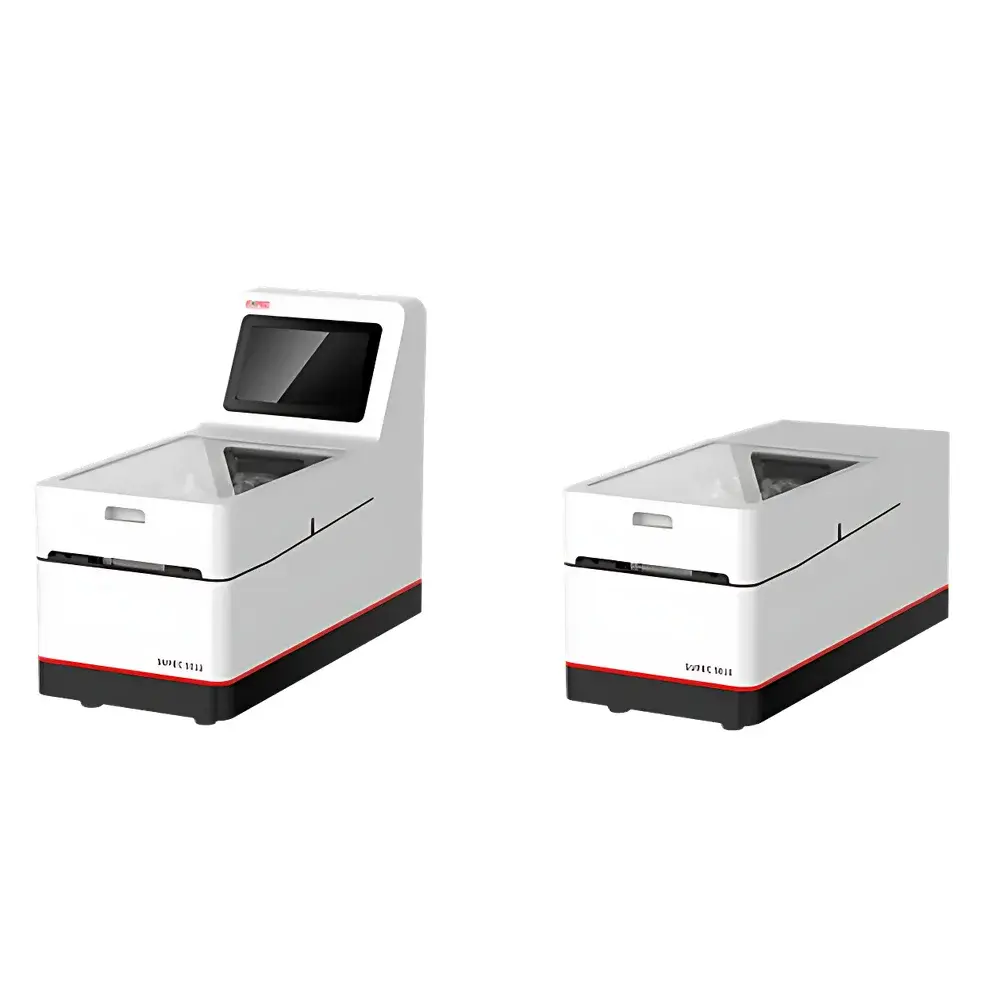

EXPEC SUPEC 5010 Automated Flow Injection Analyzer

Overview

The EXPEC SUPEC 5010 Automated Flow Injection Analyzer (FIA) is a modular, standards-compliant analytical platform engineered for precise, high-throughput determination of key water quality parameters in environmental and regulatory laboratories. Based on the well-established flow injection analysis principle—where discrete sample zones are introduced into a continuously flowing carrier stream, followed by controlled chemical reaction, dispersion, and photometric detection—the SUPEC 5010 delivers reproducible, low-carrier-consumption quantification without the complexity of continuous-flow segmentation. Its architecture adheres to fundamental FIA design tenets: minimized reagent consumption, reduced risk of cross-contamination, rapid method development, and inherent suitability for unattended operation. The system is specifically optimized for compliance-driven applications in drinking water, surface water, groundwater, wastewater, and marine environments, supporting routine monitoring as well as emergency response scenarios where field-deployable performance is critical.

Key Features

• Modular channel architecture: Each independent analytical channel integrates dedicated sampling, reaction, detection, and multi-channel manifold modules—enabling true parallel multi-parameter analysis without time-sharing compromises.
• Compact and transportable design: Engineered with laboratory benchtop footprint and lightweight construction (<15 kg per core unit), facilitating both fixed-lab deployment and rapid field mobilization via standardized carry cases.
• LED-based photometric detection: Utilizes high-stability, low-power LED light sources (typical lifetime >100,000 hours) with short warm-up time (<30 s), eliminating lamp drift and reducing maintenance intervals compared to traditional tungsten-halogen or deuterium sources.
• Flexible automation integration: Compatible with multiple EXPEC automatic samplers (e.g., AS-500 series) for batch processing; supports direct connection to online sampling interfaces for continuous, real-time monitoring configurations.
• Robust fluidic control: Precision peristaltic pumping with pulse-dampened delivery ensures consistent flow rates across varying viscosity and temperature conditions—critical for maintaining stoichiometric reaction integrity in complex matrices.

Sample Compatibility & Compliance

The SUPEC 5010 is validated for aqueous matrices including potable water, freshwater, seawater, treated and raw wastewater, and aquaculture effluents. It supports standard methods aligned with ISO 15681 (phosphorus, nitrogen), ISO 6775 (ammonia), ISO 11290 (cyanide), ASTM D1253 (residual chlorine—via adapted protocols), and China’s HJ/T 399–2007 (COD_Mn), HJ 535–2009 (NH₃-N), HJ 536–2009 (total cyanide), and HJ 484–2009 (phenols). All hardware and software components are designed to support GLP-compliant workflows, including full audit trail logging, user access control, and electronic signature readiness per FDA 21 CFR Part 11 requirements when deployed with compliant LIMS integration.

Software & Data Management

The instrument is operated via EXPEC FIA Control Suite—a Windows-based application providing method editor, real-time chromatogram visualization, peak integration, calibration curve management (linear, quadratic, and multi-point weighted regression), and QC flagging (e.g., drift, carryover, signal-to-noise thresholds). Raw data files are stored in vendor-neutral CSV and XML formats, enabling traceable export for third-party statistical analysis or regulatory submission. The software maintains full version-controlled method libraries, instrument configuration backups, and automated report generation compliant with ISO/IEC 17025 documentation requirements.

Applications

• Routine regulatory monitoring of drinking water treatment plants (e.g., NH₃-N, NO₂⁻, NO₃⁻, PO₄³⁻ in freshwater and seawater).
• Wastewater discharge compliance testing (TP, TN, COD_Mn, anionic surfactants, phenolic compounds).
• Emergency response analysis during chemical spills or algal bloom events (rapid cyanide, sulfide, and volatile phenol screening).
• Marine environmental assessment (seawater-specific adaptations for nitrate, nitrite, ammonia, and orthophosphate at elevated salinity).
• Method development and validation studies in accredited environmental testing laboratories seeking ISO 17025 scope expansion.

FAQ

Is the SUPEC 5010 suitable for ISO/IEC 17025-accredited laboratories?
Yes—the system supports full traceability, electronic records, user authentication, and audit logs required for accreditation. Method validation templates and uncertainty estimation tools are included.
Can it analyze seawater samples without matrix interference?
Yes—dedicated seawater modules include salinity-tolerant reagents, pressure-compensated flow control, and matrix-matched calibration protocols per ISO 15681-2 and EPA Method 353.2 adaptations.
What is the typical analysis time per parameter in multi-channel mode?
Cycle time ranges from 90 to 180 seconds per sample depending on reaction kinetics, with up to eight parameters analyzed simultaneously without inter-channel crosstalk.
Does the system support remote diagnostics or cloud-based data upload?
Local network connectivity is supported for remote desktop assistance; secure cloud upload requires optional EXPEC DataBridge gateway configured under customer IT security policy.
Are consumables proprietary or compatible with industry-standard tubing and fittings?
All fluidic components use universal 1.0 mm ID PTFE/PVC tubing and standard Luer-lock connectors—no vendor-locked consumables are required.
