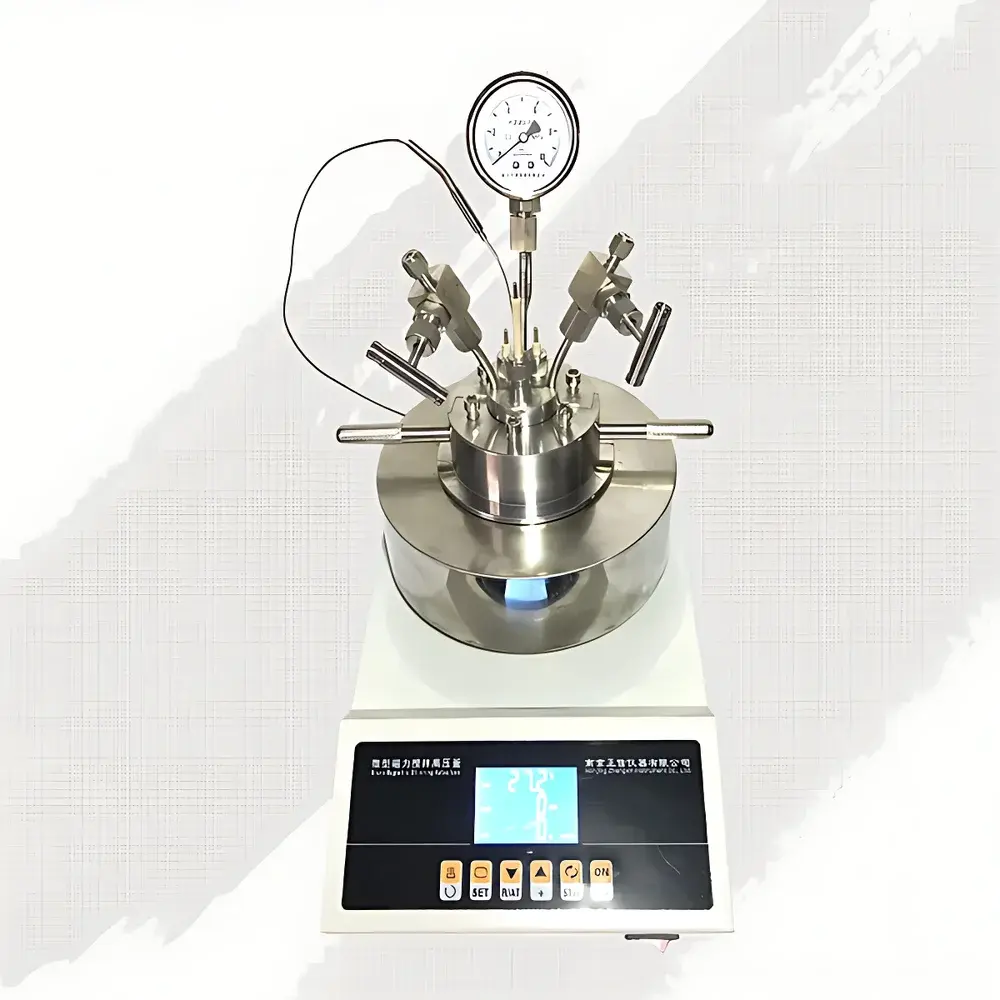

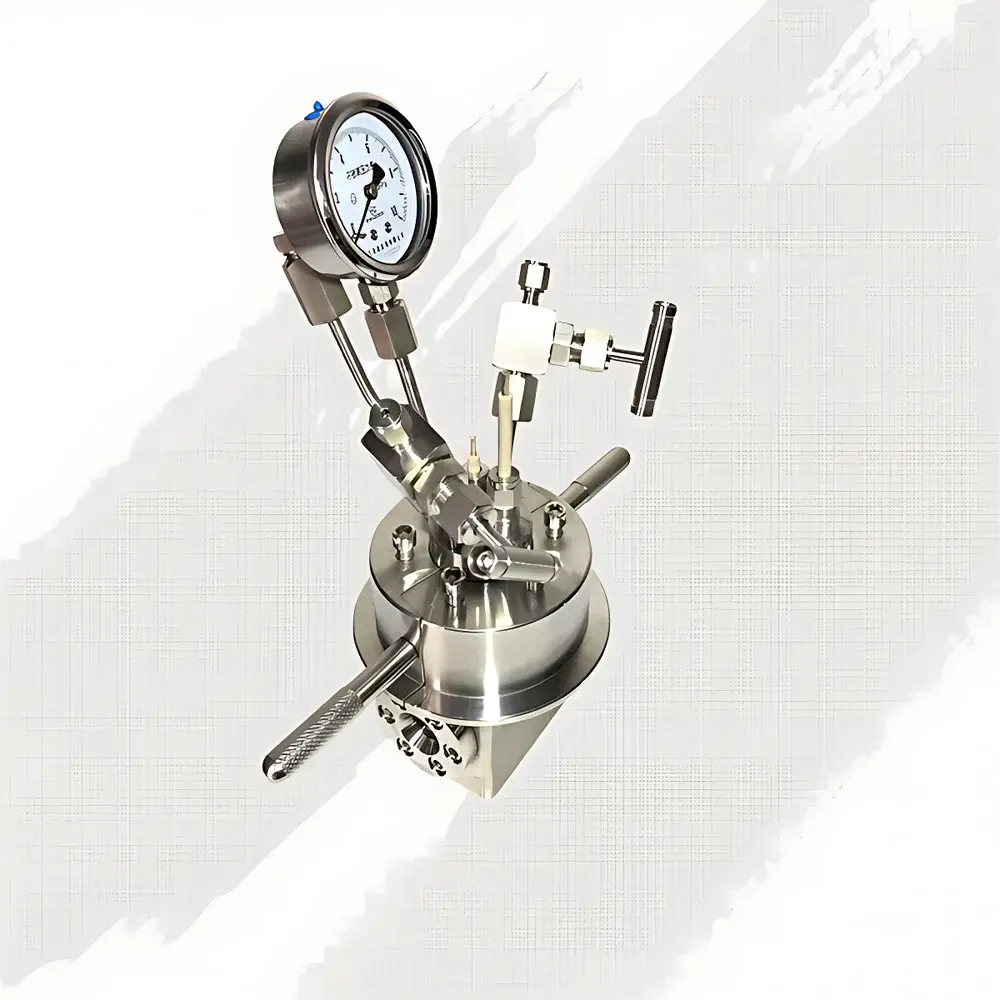

EY Series Photoelectrochemical Viewport High-Pressure Reactor

Overview

The EY Series Photoelectrochemical Viewport Reactor is a purpose-engineered benchtop high-pressure reaction system designed for in situ optical monitoring of electrochemical and photocatalytic processes under controlled thermal, pressure, and atmospheric conditions. Built upon Couette-type magnetic coupling and sealed viewport architecture, it enables real-time spectroscopic observation—including UV-Vis absorption, Raman scattering, and fluorescence emission—through a sapphire optical window rated for continuous operation up to 350 °C and 20 MPa. The reactor integrates electrochemical compatibility via standardized three-electrode configuration (working, counter, reference), supporting potentiostatic/galvanostatic control with external potentiostats. Its modular thermal management system employs PID-regulated dual-zone heating (vessel wall + base plate), minimizing thermal gradients and ensuring reproducible kinetic studies in heterogeneous catalysis, photoelectrosynthesis, and corrosion electrochemistry.

Key Features

• Optical-grade sapphire viewport (diameter ≥15 mm, transmission >85% from 190–5500 nm) enabling simultaneous illumination and detection without optical path obstruction
• Forged stainless steel (304 or 316L) body machined from solid bar stock—no welds in pressure boundary—certified to ASME BPVC Section VIII Div. 1 design margins
• Dual-seal system: primary metal-to-metal hard seal (Hastelloy C-276 gasket) supplemented by secondary PTFE-encapsulated elastomer O-ring for redundant leak integrity
• Intelligent safety interlocks: temperature deviation >±5 °C or time overrun >±1 min triggers audible alarm and automatic heater cutoff; integrated rupture disc (Hastelloy alloy, burst pressure 22 MPa ±0.3 MPa)
• Brushless DC motor drive with SmCo permanent magnets—rated for 10,000+ hr service life, 0–1000 rpm continuous operation, bidirectional rotation programmable via front-panel interface
• Modular heating assembly: removable 304 stainless steel jacket with embedded NiCr resistance wire; rapid thermal equilibration (<15 min to 250 °C from ambient)

Sample Compatibility & Compliance

The WEP-150ML accommodates standard electrochemical electrode configurations: Pt foil or mesh working electrodes, Ag/AgCl (3 M KCl) reference electrodes, and graphite or Pt-wire counter electrodes—all mounted via chemically inert PTFE-insulated feedthroughs. Internal linings (optional) include quartz, PPL (polyphenylensulfone), or ceramic coatings for aggressive media (e.g., HF-containing electrolytes, molten salts). The system complies with ISO 10816-3 for vibration thresholds during stirring and meets CE machinery directive 2006/42/EC for electrical safety. Pressure containment validation follows EN 13445-3 Annex C hydrostatic test protocol at 1.5× MAWP. For GLP-regulated labs, optional audit-trail firmware supports timestamped parameter logging per FDA 21 CFR Part 11 requirements.

Software & Data Management

While the base unit operates via standalone keypad interface with LCD display (2×16 characters), optional RS485/Modbus RTU output enables integration into LabVIEW™, MATLAB®, or custom SCADA platforms. Temperature, pressure, stir speed, and elapsed time are streamed at 1 Hz resolution. All setpoints and alarm events are stored internally (non-volatile EEPROM, 10,000-cycle endurance) with UTC timestamps. Firmware supports user-defined ramp-soak profiles (up to 10 segments) and configurable alarm hysteresis. No cloud connectivity or proprietary software installation required—data export via USB-C dump to CSV format.

Applications

• In situ photoelectrochemical impedance spectroscopy (PEIS) of metal oxide photoanodes (e.g., BiVO₄, Fe₂O₃) under simulated AM1.5G illumination
• High-temperature/pressure CO₂ electroreduction in ionic liquid electrolytes (e.g., [BMIM][PF₆]) with operando ATR-FTIR coupling
• Electrocatalytic N₂ fixation studies using Li-mediated systems under inert atmosphere and elevated pressure (5–10 bar N₂)
• Corrosion behavior mapping of pipeline steels in synthetic seawater at 80 °C and 10 MPa hydrostatic load
• Solvothermal synthesis of MOFs with real-time UV-Vis monitoring of ligand coordination kinetics

FAQ

What optical wavelengths can pass through the sapphire viewport?
Sapphire transmits effectively from 190 nm (deep UV) to 5500 nm (mid-IR); anti-reflective coating (optional) enhances throughput above 90% across 250–2000 nm.
Is the reactor compatible with standard potentiostats?
Yes—three dedicated BNC feedthroughs (working, reference, counter) with 10¹² Ω insulation resistance support Gamry, BioLogic, and PalmSens instruments.
Can I replace the sapphire window myself?
No—viewport replacement requires factory recalibration of torque-controlled sealing and helium leak testing per ISO 10648-2; field service not supported.
What is the maximum allowable thermal ramp rate?
For structural integrity and sensor longevity, recommended ramp rate is ≤5 °C/min below 200 °C and ≤2 °C/min above 200 °C.
Does the system support inert gas purging?
Yes—dual 1/8″ Swagelok® inlet/outlet ports enable continuous flow purge (N₂, Ar) with integrated back-pressure regulator; residual O₂ <10 ppm achievable after 3× volume exchange.
