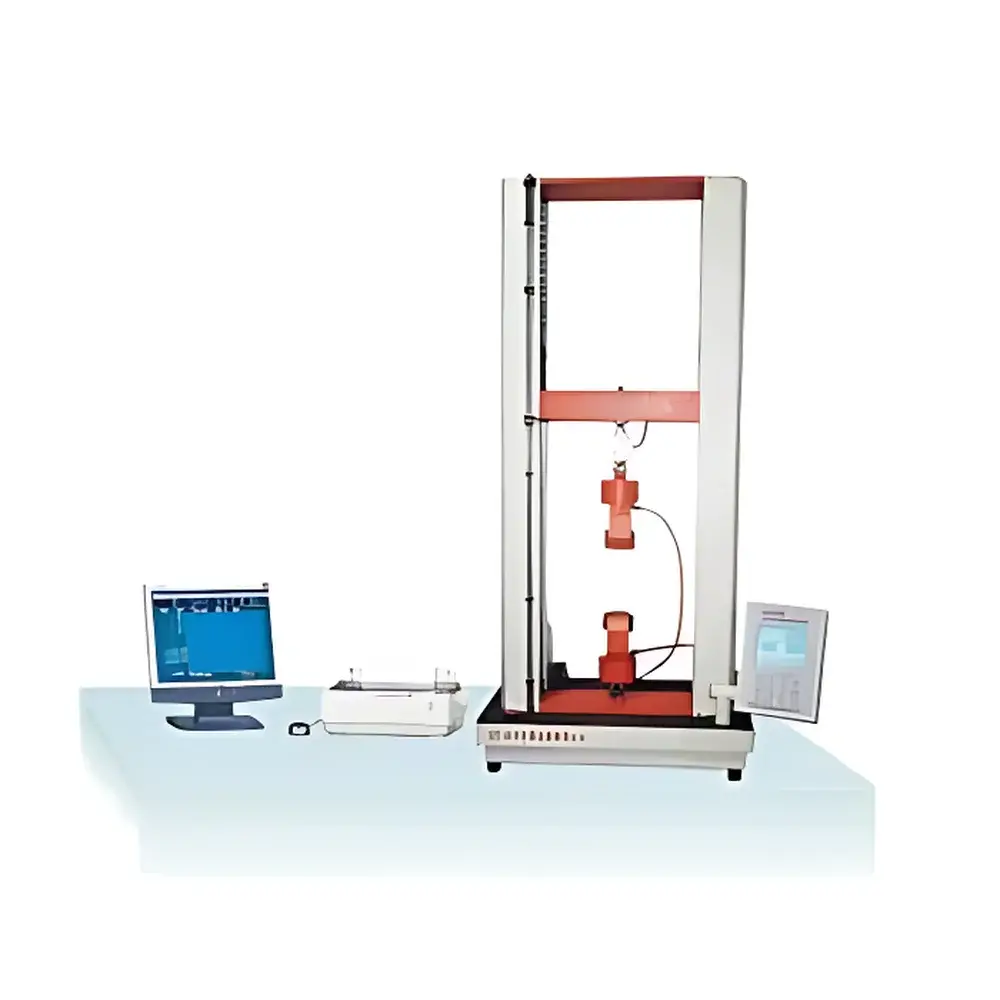

Fangyuan YG026M Multi-Function Electronic Fabric Tensile Tester
| Key | Brand: Fangyuan Instruments |
|---|---|
| Origin | Zhejiang, China |
| Model | YG026M |
| Force Range | 500 cN – 50,000 N (selectable) |
| Load Resolution | 1/50,000 of full scale |
| Force Accuracy | Class 0.5 (±0.5% of reading within 2–120% of sensor range |
| Maximum Travel | 900 mm |
| Elongation Resolution | 0.01 mm |
| Effective Width | 420 mm |
| Data Sampling Rate | ≥800 Hz (up to 1000 Hz dynamic) |
| Storage Capacity | ≥4,000 test records (onboard) |
| Test Speed | 0.1–1000 mm/min |
| Dimensions (L×W×H) | 450×750×1550 mm |
| Weight | 200 kg |
Overview
The Fangyuan YG026M Multi-Function Electronic Fabric Tensile Tester is a precision-engineered electromechanical testing system designed for comprehensive mechanical characterization of textile materials and related soft goods. Based on universal tensile testing principles—applying controlled uniaxial force while measuring real-time load and displacement—the instrument complies with fundamental mechanics-of-materials methodology applicable across ASTM D5034, ISO 13934-1/-2, ISO 13935-1/-2, ISO 13936-1/-2, GB/T 3923.1–2013, GB/T 3917.1–2009, and other internationally recognized textile standards. Its modular architecture supports both static and dynamic loading protocols—including constant-rate extension (CRE), constant-load hold, constant-elongation hold, cyclic fatigue, and creep-relaxation sequences—enabling rigorous evaluation of tensile strength, elongation at break, tear resistance (tongue, trapezoid, double-tongue), bursting strength (ball burst), seam slippage, seam strength, yarn/single-filament breaking force, and elastic recovery behavior.
Key Features
- High-fidelity force measurement using calibrated load cells with Class 0.5 accuracy across 2–120% of full scale, traceable to national metrological standards.
- Dual-control operation: Standalone testing via integrated Sharp 5.7-inch blue LCD touchscreen with full Chinese menu navigation, or PC-synchronized control with real-time force–elongation curve visualization.
- Industrial-grade motion control system featuring Panasonic vector-controlled servo motor (response time <10 ms/1000 rpm), KNS precision ball-screw transmission, and high-resolution rotary encoder for sub-millimeter positioning repeatability.
- Real-time data acquisition at up to 1000 Hz ensures no peak-force loss during rapid failure events—critical for accurate determination of yield point, initial modulus, breaking work, and post-yield plastic deformation.
- Modular fixture interface compliant with ISO 2041 standard mounting dimensions, supporting quick interchange of pneumatic clamps, jaw-type grips, and specialized fixtures for fabrics, yarns, zippers, leather, paper, and nonwovens.
- Comprehensive onboard memory (≥4,000 tests) with timestamped storage, on-device review capability, and export-ready reporting—including mean, max, CV%, and statistical summaries.
- Multi-unit force display (N, cN, kgf, lbf) and configurable parameter sets for direct alignment with ASTM, ISO, AATCC, or GB test method requirements without software modification.
- Hardware-level safety protections: Overload cutoff, negative-force lockout, mechanical end-limit switches, overcurrent/overvoltage suppression, and emergency stop circuitry certified per IEC 61000-6-2 EMC immunity standards.
Sample Compatibility & Compliance
The YG026M accommodates flat, flexible, and anisotropic specimens ranging from fine monofilaments (<0.1 mm diameter) to heavy-duty woven canvas (up to 420 mm effective width). It supports standardized specimen geometries per ISO 13934 (strip test), ISO 13935 (seam slippage), ISO 13936 (bursting), and ASTM D5034 (grab test). Compliance extends to GLP-aligned workflows through audit-trail-enabled software logging (user ID, timestamp, method version, calibration status). While not FDA 21 CFR Part 11–certified out-of-box, the system’s deterministic data flow, immutable test record generation, and export-to-CSV/Excel functionality enable integration into validated quality management systems under ISO/IEC 17025 and ISO 9001 frameworks.
Software & Data Management
The bundled Quality Expert Analysis Software provides ISO/GB-compliant test method templates—including tensile, tear, burst, seam strength, and elasticity modules—with editable parameters (gauge length, pre-tension, speed ramp profiles). All test reports include operator ID, sample ID, batch number, environmental conditions (optional input), raw curve data, and statistical outputs (mean, SD, CV%). Curve zoom-and-point-read functionality allows precise extraction of force/elongation values at any coordinate. Export options include PDF, CSV, and native Excel (.xlsx) formats compatible with LIMS and ERP platforms. Firmware and software updates are provided free of charge for the instrument’s operational lifetime, ensuring long-term regulatory adaptability.
Applications
This tester serves QC laboratories in textile mills, garment manufacturers, technical fabric R&D centers, and third-party testing institutes. Typical use cases include: validation of warp/weft tensile integrity in denim and industrial geotextiles; quantification of seam slippage resistance in sportswear; assessment of elastic recovery in spandex-blended knits; comparative tear propagation analysis in protective workwear; and verification of zipper slider retention strength per ASTM F2255. Its extended force range (up to 50 kN) also permits mechanical evaluation of composite laminates, coated fabrics, and automotive interior trim materials under elevated load conditions.
FAQ
What textile standards does the YG026M natively support?
The system includes preloaded method configurations for ISO 13934-1, ISO 13935-1, ISO 13936-1, ASTM D5034, ASTM D1682, GB/T 3923.1, and GB/T 3917.1. Custom methods can be defined via the open scripting interface.
Can the instrument operate without a connected PC?
Yes—full standalone operation is enabled via the integrated LCD control panel, including test execution, result display, and thermal-printed report output.
Is calibration traceability documented?
Each delivered unit includes a factory calibration certificate referencing national metrology institute standards (e.g., CNAS-accredited labs in China); field recalibration kits and procedures are available upon request.
What is the warranty coverage and service response time?
Standard warranty is 24 months parts-and-labor; extended service plans include remote diagnostics, annual preventive maintenance, and priority spare-part dispatch within 72 business hours.
Are pneumatic夹具 and high-capacity load cells available as options?
Yes—pneumatic clamping systems (6–8 bar operating pressure), 100 kN load cells, and specialized fixtures for knit loop testing or braided cord evaluation are offered as configurable accessories.
