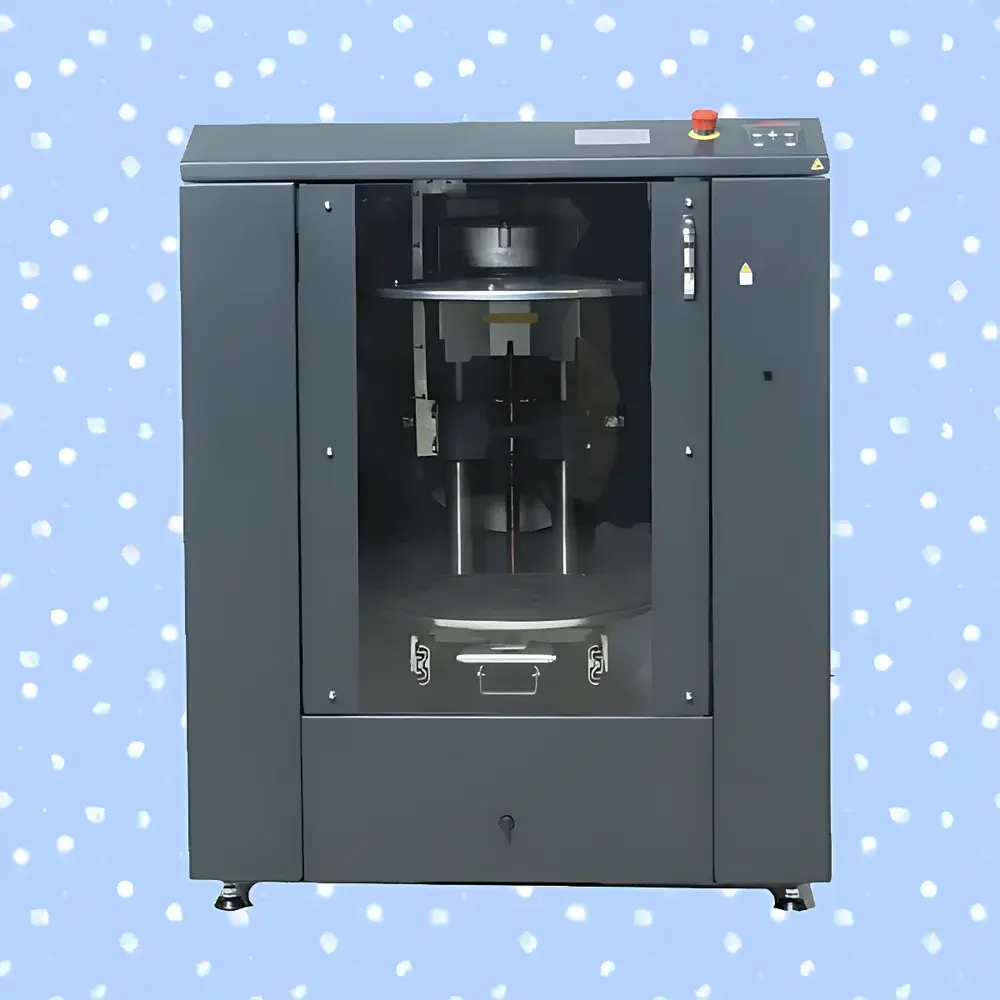

Fast & Fluid GA480 Automatic Stirring and Mixing System

Overview

The Fast & Fluid GA480 Automatic Stirring and Mixing System is an industrial-grade, benchtop-integrated mixing platform engineered for reproducible, high-torque blending of medium-to-high viscosity formulations under controlled mechanical conditions. Unlike conventional overhead stirrers, the GA480 employs a vertically adjustable, motor-driven spindle coupled with a dynamically balanced, fully extendable base platform—enabling secure, hands-free operation across variable container geometries and batch weights up to 40 kg. Its core architecture adheres to Couette flow principles for consistent shear application, making it particularly suitable for non-Newtonian fluid processing where rheological stability, dispersion homogeneity, and minimal air entrapment are critical. Designed for integration into GLP-compliant laboratory workflows and pilot-scale production environments, the system supports both continuous and time-programmed mixing cycles, with thermal compatibility up to 300 °C when paired with external heated jackets or hotplates.

Key Features

• Automated clamping mechanism with programmable force calibration ensures repeatable vessel retention across cylindrical, oval, and irregular cross-section containers (min. height: 80 mm; max. height: 400 mm)
• Fully extendable 380 mm diameter stainless-steel base platform with replaceable anti-slip rubber matting and integrated load-bearing slope for safe manual unloading
• 750 W AC motor delivering stable torque output across 100–230 rpm range, featuring soft-start ramping and real-time dynamic imbalance detection via embedded vibration sensors
• Graphical human-machine interface (HMI) with touch-responsive controls, intuitive parameter programming (speed, duration, ramp profiles), and on-screen diagnostic feedback
• Modular service design: removable top cover and rear access panel facilitate routine maintenance, sensor calibration, and drive assembly inspection
• Dual-voltage compatibility (115 V / 230 V) and standard IEC 60309 power inlet enable global deployment without hardware modification
• USB host port and detachable Ethernet interface support firmware updates, remote diagnostics, and audit-trail-capable data export (CSV/JSON)

Sample Compatibility & Compliance

The GA480 accommodates a broad spectrum of sample vessels—from standard ISO 4788 glass beakers to custom elliptical stainless-steel reactors—without requiring adapter kits. Its adaptive clamping geometry maintains centric alignment even with off-axis loads, minimizing eccentric wobble during high-viscosity operation. The system conforms to IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emission) standards for electromagnetic compatibility. While not intrinsically rated for hazardous locations, optional ATEX-compliant motor enclosures and explosion-proof control modules are available upon request. For regulated environments, the HMI logging function supports 21 CFR Part 11–compliant electronic records when configured with user authentication and audit trail activation.

Software & Data Management

Firmware v3.2+ includes embedded data logging with timestamped metadata (speed setpoint, actual RPM, runtime, detected imbalance events, temperature input from optional external probes). All operational logs are exportable via USB mass storage mode or network transfer using HTTP POST or SFTP protocols. The system supports integration with LIMS platforms through RESTful API endpoints (available under extended license), enabling automated job initiation, status polling, and raw dataset ingestion. Firmware updates are digitally signed and validated prior to installation to ensure integrity and traceability in GxP settings.

Applications

• Coating & paint R&D: Homogenization of pigment dispersions, resin-thinner blends, and rheology modifier incorporation at lab and pilot scale
• Pharmaceutical preformulation: Wet granulation support, suspension stabilization, and ointment base blending under controlled shear history
• Food & beverage development: Emulsion formation (e.g., mayonnaise analogs), starch gelatinization studies, and high-solids batter mixing
• Adhesives & sealants manufacturing: Degassing-assisted mixing of silicone RTVs, polyurethane prepolymers, and filled epoxy systems
• Academic rheology labs: Comparative shear-thinning analysis across formulation variants using standardized mixing protocols

FAQ

Does the GA480 include built-in heating or cooling capability?
No—the GA480 is a mechanically driven mixing platform only. Temperature control requires external equipment such as heated mantles, circulating baths, or jacketed vessels.
Can multiple vessels be processed simultaneously?
Yes, the extendable base allows sequential or parallel placement of up to three compatible vessels (subject to total mass ≤40 kg and combined footprint within 380 mm diameter circle).
Is the system compatible with FDA-regulated documentation requirements?
When operated with audit trail enabled and user access controls activated, the GA480 meets foundational ALCOA+ data integrity criteria and supports 21 CFR Part 11 compliance through third-party validation packages.
What maintenance intervals are recommended?
Motor brush inspection every 2,000 operating hours; dynamic balance recalibration annually or after major mechanical impact; rubber base mat replacement based on wear assessment (typically 12–18 months under continuous use).
