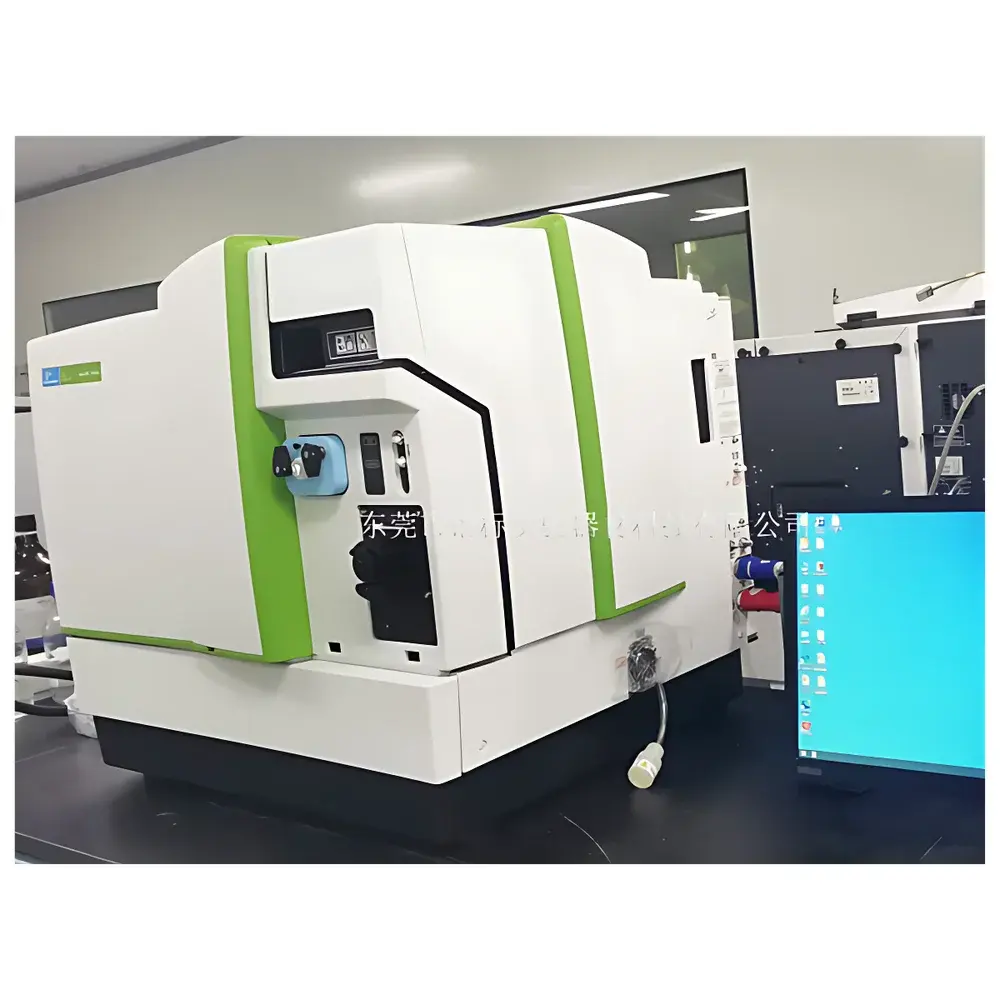

PerkinElmer NexION 1000G Triple-Quadrupole Inductively Coupled Plasma Mass Spectrometer

Overview

The PerkinElmer NexION 1000G is a triple-quadrupole inductively coupled plasma mass spectrometer engineered for high-precision, multi-element trace analysis across complex matrices. Unlike conventional single-quadrupole ICP-MS systems, the NexION 1000G employs a cascaded three-quadrupole architecture—comprising a Quadrupole Ion Deflector (QID), a Universal Collision/Reaction Cell (UCR), and a high-stability mass-resolving quadrupole—to simultaneously address polyatomic, isobaric, and oxide-based interferences through both kinetic energy discrimination and controlled ion-molecule reactions. This design enables robust interference removal without compromising sensitivity or dynamic range, making it particularly suited for regulated laboratories performing environmental monitoring, pharmaceutical elemental impurity testing, geological geochemistry, and industrial materials QA/QC under ISO/IEC 17025, GLP, or GMP frameworks.

Key Features

• Triple-quadrupole platform with real-time AutoLens™ ion optics tuning for consistent beam transmission and background suppression
• Universal Collision/Reaction Cell (UCR) supporting simultaneous use of He, H₂, O₂, NH₃, and CH₄ gases to eliminate spectral overlaps via collisional damping or selective oxidation/reduction chemistry
• Triple-cone interface positioned external to the vacuum chamber—enabling rapid, tool-free cone replacement and minimizing downtime during routine maintenance
• Four-stage differential vacuum system featuring three independent turbo-molecular pumps and a dry scroll backing pump, ensuring stable base pressure (<1×10⁻⁸ Torr) and long-term mass calibration integrity
• Self-excited solid-state RF generator (27.12 MHz) with LumiCoil™ air-cooled design—eliminating water chillers and reducing thermal drift across extended run times
• PlasmaLok™ virtual grounding technology to suppress secondary plasma discharges, removing the need for shielded torches or frequent grounding hardware replacement
• Dual-mode detector capable of analog and pulse-counting operation with >100,000 data points per second acquisition rate—supporting transient signal analysis for single-particle ICP-MS (spICP-MS) and single-cell applications

Sample Compatibility & Compliance

The NexION 1000G accommodates aqueous solutions, digested solids (EPA 3050B/3052), organic extracts (after appropriate dilution or micro-emulsion), and laser ablation aerosols when coupled with compatible LA systems. Its full-matrix introduction system—including SmartDilution™ intelligent electronic dilution and optional high-solids nebulizer—enables direct analysis of seawater, brines, biological digests, and high-TDS industrial effluents without manual dilution or matrix-matching. The instrument meets method requirements for EPA 200.8, EPA 6020B, ASTM D5673 (drinking water), ISO 17294-2 (water quality), and USP Chapters <232> and <233> for elemental impurities in pharmaceuticals. All data acquisition, processing, and reporting functions are fully compatible with 21 CFR Part 11-compliant audit trails, user access controls, and electronic signatures when deployed with Syngistix™ v5.0 or higher.

Software & Data Management

Syngistix™ for ICP-MS provides a unified interface for method development, real-time interference correction, isotope ratio calculation, and automated calibration curve generation. It supports customizable QC check routines (e.g., continuing calibration verification, bracketing standards, internal standard drift monitoring) aligned with ISO/IEC 17025 clause 7.7 and FDA guidance on analytical method validation. Raw data files (.raw) are stored in vendor-neutral formats and can be exported to LIMS via ASTM E1384-compliant ASCII or XML structures. Audit logs record all parameter changes, user logins, report modifications, and instrument state transitions—ensuring full traceability for regulatory inspections and internal quality audits.

Applications

• Environmental laboratories: Quantification of sub-pg/L U, Th, Pb, As, Cd, and Tl in groundwater, wastewater, and soil leachates per EPA 6020B; isotopic fingerprinting of Sr/Nd/Pb in sediment cores
• Pharmaceutical QA/QC: Elemental impurity screening per ICH Q3D guidelines, including catalyst residue detection (Pd, Pt, Rh) at ≤10 pg/g levels in APIs and excipients
• Geochemical research: High-precision isotope ratio measurements (e.g., εNd, δ²⁶Mg) using standard-sample bracketing and external normalization protocols
• Materials science: Bulk and surface contamination profiling of semiconductors, battery cathode materials, and additive-manufactured alloys at ppt–ppq detection limits
• Food safety labs: Multi-element screening for toxic metals (As, Cd, Pb, Hg) and essential nutrients (Se, Zn, Fe) in infant formula, cereals, and dietary supplements per EU Commission Regulation (EU) No 2023/136

FAQ

Is this unit certified for regulatory compliance in GLP or GMP environments?
Yes—the NexION 1000G, when operated with Syngistix™ v5.0+ and configured with appropriate user access controls and audit logging, satisfies key requirements of FDA 21 CFR Part 11, EU Annex 11, and ISO/IEC 17025 for data integrity and instrument qualification.
What maintenance intervals are recommended for the triple-cone interface and RF torch?
The triple-cone interface requires inspection every 200–300 hours of plasma operation; typical torch lifetime exceeds 1,000 hours under standard aqueous conditions. No scheduled maintenance is required for the LumiCoil™ RF coil due to its passive air-cooling design.
Can the NexION 1000G perform isotope ratio analysis for geochronology?
Yes—it supports high-precision isotope ratio measurements with internal standardization, mass bias correction algorithms, and offline data reduction using standard reference materials such as NIST SRM 981 and JMC-001.
Does the system include factory calibration documentation and IQ/OQ protocols?
All units undergo full operational qualification prior to resale; comprehensive IQ/OQ documentation packages—including performance verification reports against ASTM D5673 and EPA 6020B criteria—are available upon request.
Is remote diagnostics and software support included post-purchase?
PerkinElmer-certified technical support is available globally via secure remote connection for troubleshooting, method optimization, and software updates—subject to active service contract terms.
