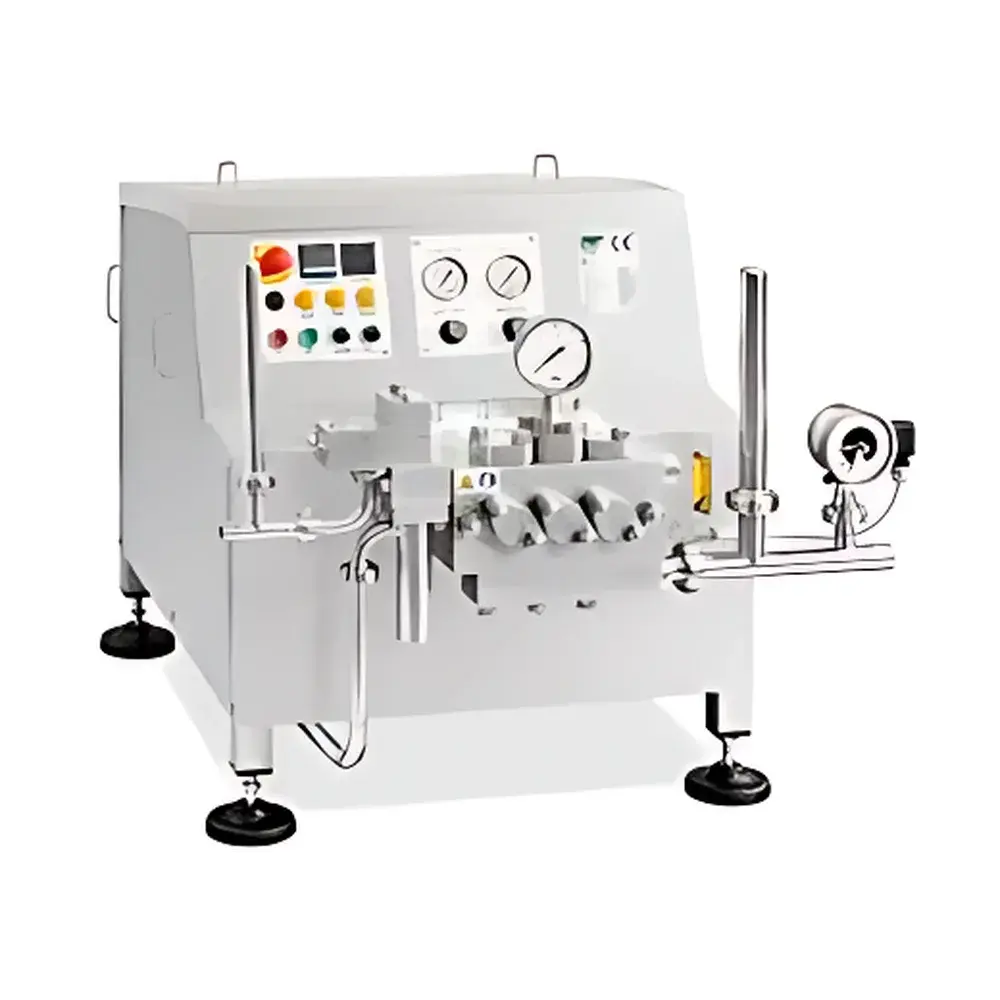

FBF FBF3011 High-Pressure Homogenizer System

Overview

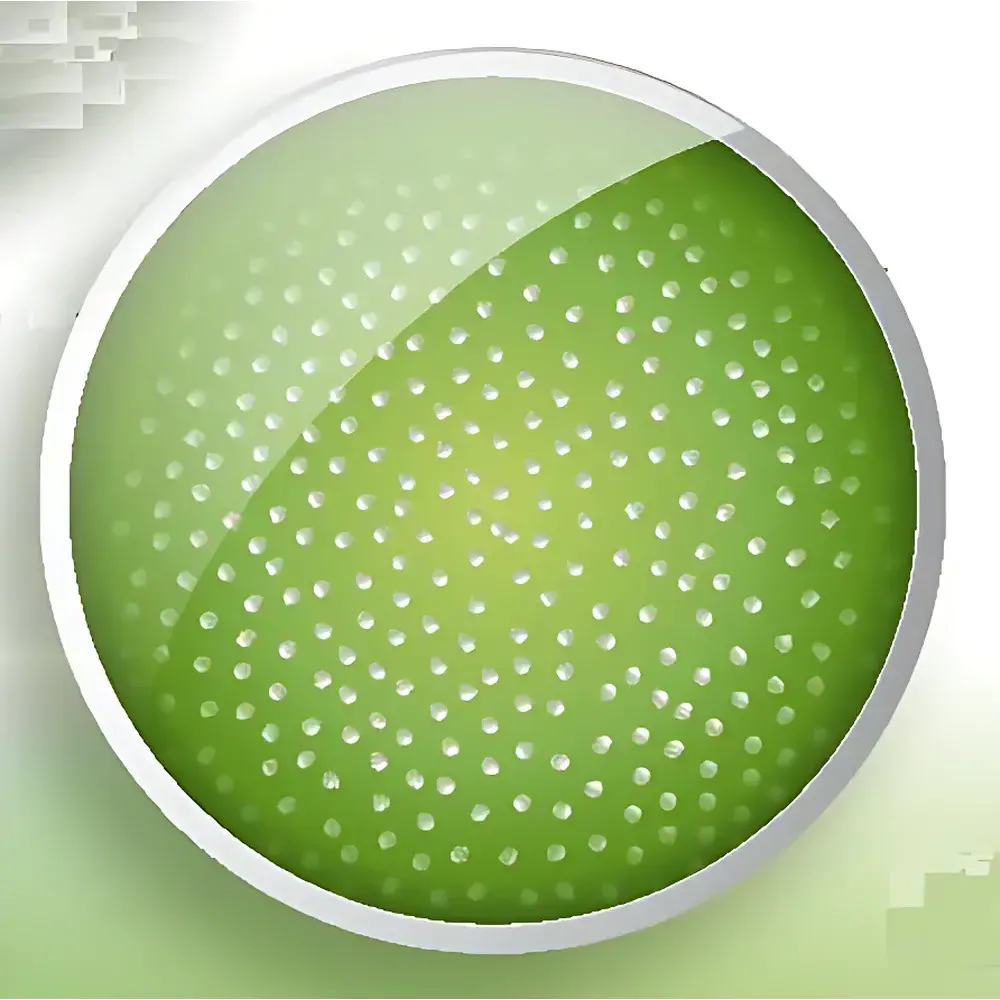

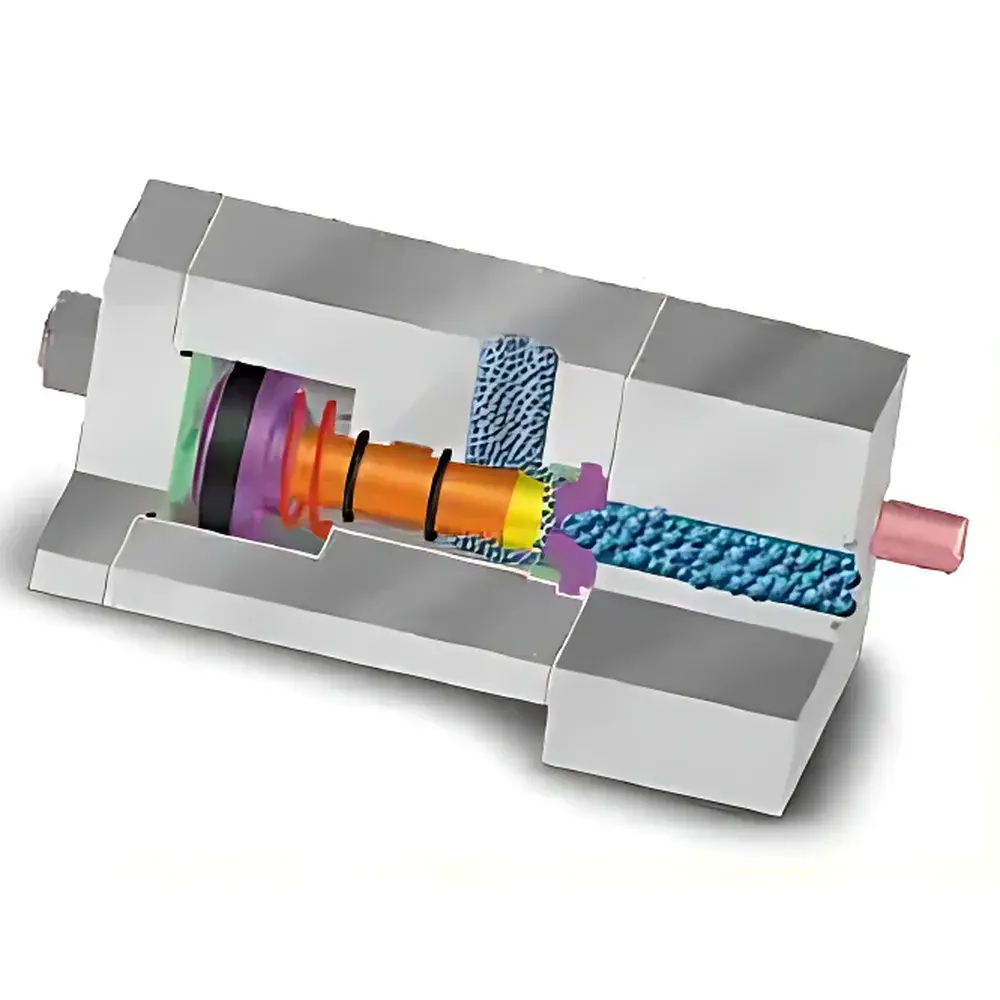

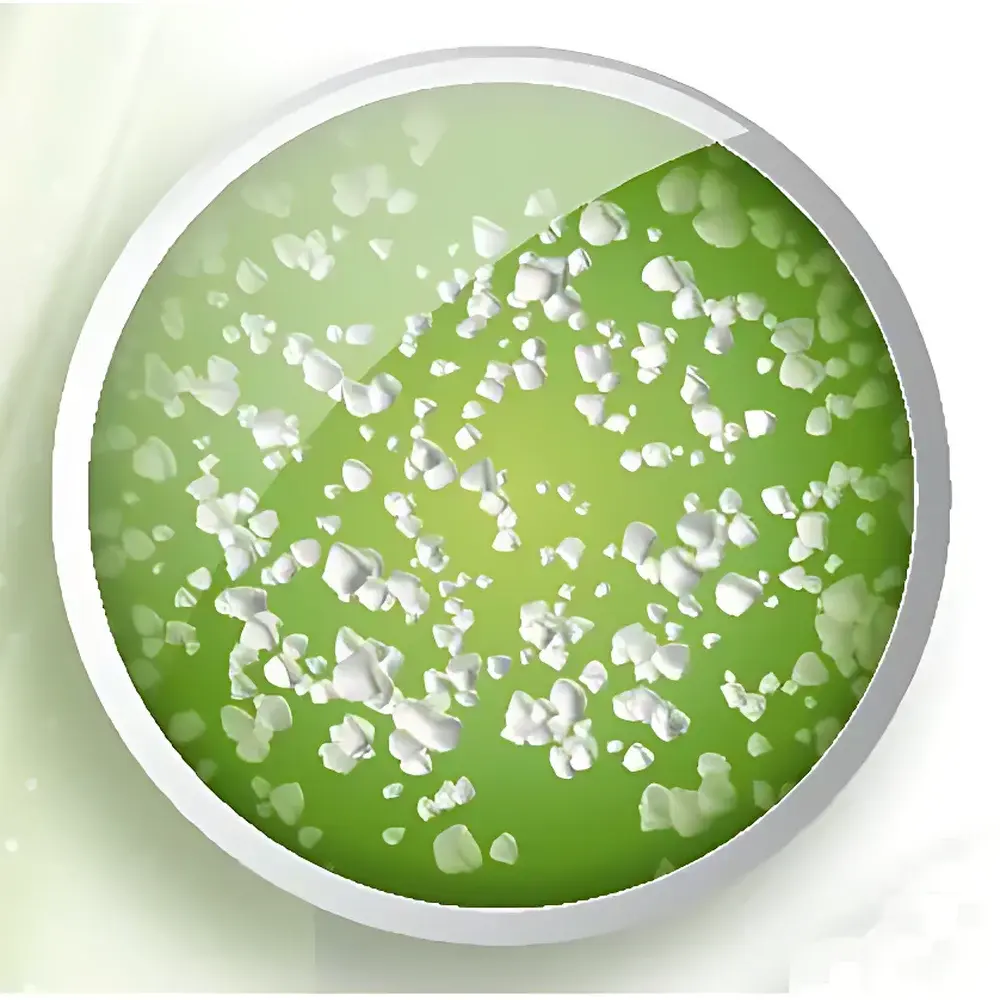

The FBF FBF3011 High-Pressure Homogenizer System is an industrial-grade, CE-certified homogenization platform engineered for reproducible, scalable processing of sensitive biopharmaceutical, nutraceutical, and high-value colloidal formulations. Based on the principle of controlled turbulent shear and cavitation under ultra-high pressure, the system forces product through a precisely engineered homogenization valve where rapid pressure drop induces particle size reduction, cell disruption, emulsification, or nano-dispersion. Unlike low-shear mixing technologies, this system delivers consistent sub-micron dispersion stability—critical for liposomal drug delivery, protein therapeutics, vaccine adjuvants, and functional food emulsions. Designed and manufactured in Italy by FBF, the FBF3011 integrates robust mechanical architecture with hygienic process engineering, supporting both laboratory development and pilot-scale GMP-aligned production.

Key Features

• Triple-plunger high-pressure pump with AISI 316 stainless steel compression head—guaranteed against cracking or structural defect for 5 years
• Individually inspected valve blocks machined from certified AISI 316 stainless steel, ensuring traceability and corrosion resistance
• Cryogenically manufactured piston assemblies with dual linear guides for axial alignment stability and extended service life
• Sanitary spring-loaded safety relief valve with replaceable seat and disc—compliant with EHEDG and 3-A Sanitary Standards
• Energy-optimized homogenization valve geometry enabling stable, vibration-free operation across full pressure range (100–250 bar)
• Integrated cooling circuit compatible with municipal water supply (2–6 bar, 60–70 L/h) for continuous thermal management
• Full mechanical lubrication system with dedicated 0.37 kW oil pump (IP55 rating) for sustained uptime under continuous operation
• CIP/SIP-ready design: validated cleaning cycle ≤30 min at ≤90 °C; sterilization cycle ≤145 °C with integrated temperature and pressure monitoring

Sample Compatibility & Compliance

The FBF3011 accommodates aqueous, oily, and viscous suspensions up to 500 cP and inlet particulates up to 500 µm—enabling direct processing of clarified fermentation broths, crude plant extracts, or pre-emulsified lipid phases without pre-filtration. Its wetted parts conform to FDA-compliant materials (AISI 316L SS, EPDM/FKM elastomers), and surface finish meets Ra ≤0.8 µm per ISO 13485 and ASME BPE-2023 requirements. The system carries full CE marking per Machinery Directive 2006/42/EC and Pressure Equipment Directive 2014/68/EU. Optional upgrades support compliance with FDA 21 CFR Part 11 (electronic records/signatures), EU Annex 11 (computerized systems), and WHO TRS 986 Annex 5 (sterile processing validation).

Software & Data Management

While the base configuration features analog pressure indication and manual pressure adjustment, optional digital instrumentation includes calibrated 4–20 mA pressure transducers with real-time data logging capability. Integrated programmable logic controller (PLC) supports configurable setpoints for homogenization pressure, flow rate, and timing sequences—including automatic valve actuation, pressure ramping profiles, and interlocked shutdown on overpressure or cooling failure. Audit trail functionality (with user login, timestamped events, and parameter change history) is available upon specification of the GMP-compliant HMI package—fully aligned with ALCOA+ principles for data integrity in regulated environments.

Applications

• Biopharmaceuticals: Lysis of E. coli, yeast, or mammalian cells for recombinant protein recovery; preparation of nanoliposomes and lipid nanoparticles (LNPs) for mRNA delivery
• Vaccines: Homogenization of virus-like particles (VLPs) and adjuvant emulsions (e.g., MF59-type systems)
• Functional Foods: Stabilization of omega-3 fish oil emulsions, nano-curcumin dispersions, and protein-fortified beverages
• Cosmeceuticals: Production of transparent nanoemulsions for topical delivery of retinoids, peptides, or botanical actives
• Materials Science: Dispersion of graphene oxide, quantum dots, or metal oxide nanoparticles in polymer matrices

FAQ

What is the maximum allowable viscosity for continuous processing on the FBF3011?
The system is rated for feed streams up to 500 cP at operating temperature (≤90 °C); higher viscosities may require pre-heating or dilution to maintain stable plunger displacement and valve dynamics.
Can the FBF3011 be integrated into an automated manufacturing line?
Yes—via standard 4–20 mA analog I/O, Modbus RTU/TCP, or Profibus DP interfaces (optional); PLC integration supports recipe-based operation, batch reporting, and MES connectivity.
Is second-stage homogenization available as a factory-installed option?

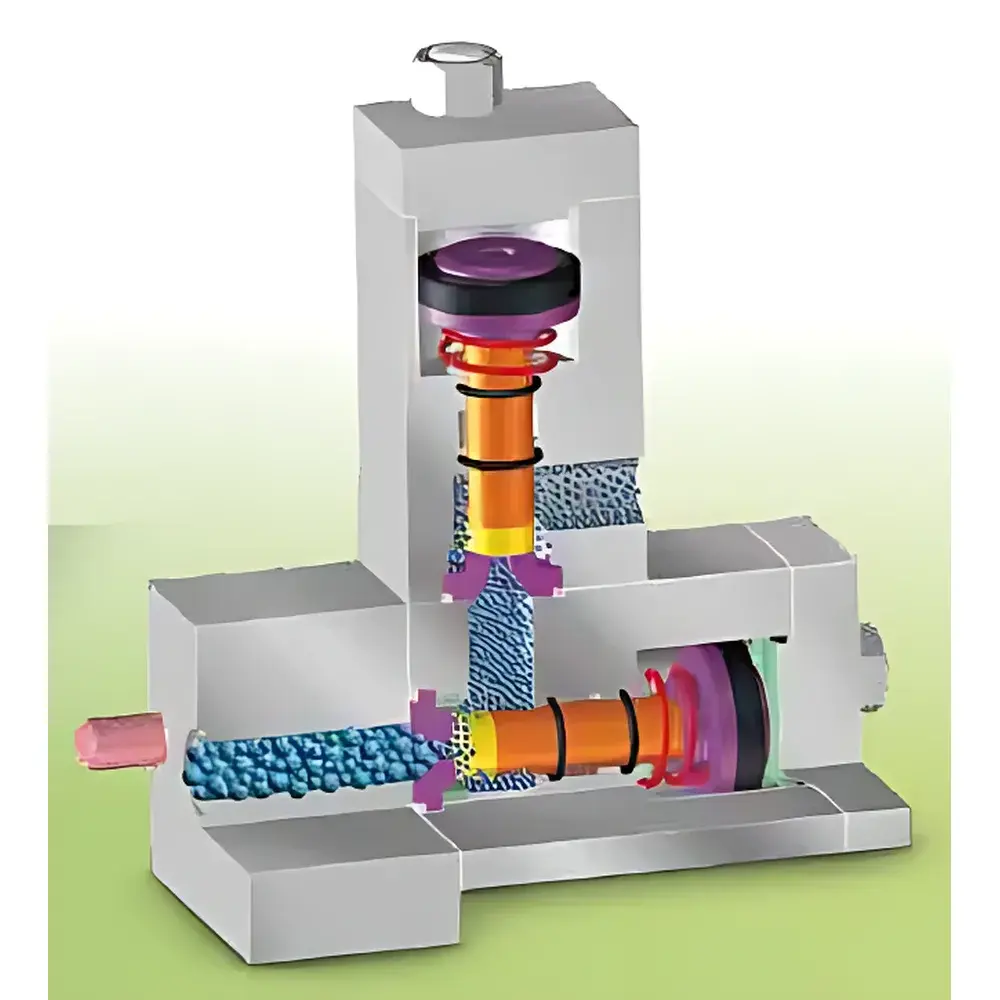

Yes—the secondary homogenization valve is offered as a modular add-on with independent hydraulic control, enabling two-stage pressure profiling for improved droplet uniformity in demanding emulsion applications.
What documentation is provided for regulatory submissions?
FBF supplies IQ/OQ protocols, material certifications (EN 10204 3.1), CE technical files, and FAT/SAT reports; full validation support packages are available upon request for GMP commissioning.
Does the system support aseptic processing?
With optional sterile barrier configurations—including SIP-capable inlet/outlet manifolds, diaphragm isolation valves, and steam-traceable tubing—the FBF3011 meets Grade A air classification requirements when installed in appropriate cleanroom environments.
