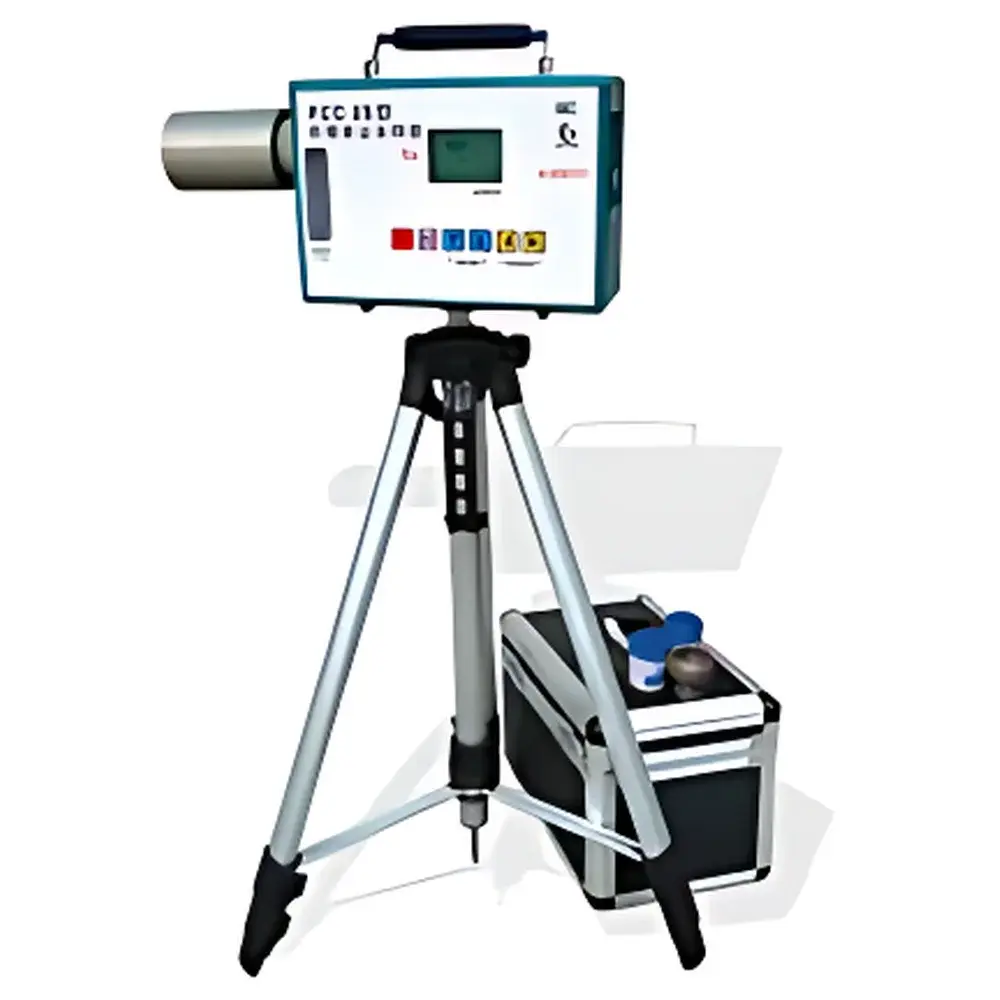

FCC-25 Intrinsically Safe Explosive Atmosphere Dust Sampler

Overview

The FCC-25 Intrinsically Safe Explosive Atmosphere Dust Sampler is a certified portable sampling instrument engineered for quantitative collection of airborne particulate matter in hazardous locations where flammable gases, vapors, or combustible dusts may be present. Designed in strict compliance with IEC 60079-0 and GB 3836.4 (Chinese equivalent of EN 60079-11), the device employs intrinsic safety (ibI category, T4 temperature class, 150 °C surface limit) to eliminate ignition risk under normal and fault conditions. Its core measurement principle relies on constant-flow aspiration through standardized pre-separators—enabling simultaneous gravimetric determination of both total suspended particulates (TSP) and respirable fraction (RF) in accordance with internationally recognized inhalability conventions. The sampler integrates a high-efficiency diaphragm pump delivering stable 20 L/min flow under variable filter loading, coupled with real-time feedback-controlled current regulation to maintain flow accuracy within ±5% across its full operational load range (≥1000 Pa backpressure). This architecture ensures metrological consistency required for occupational hygiene monitoring per ISO 7708:1995 and ACGIH TLV® methodology.

Key Features

• Intrinsically safe design certified to ibI (150 °C) per GB 3836.4–2021 and IEC 60079-11:2017 — suitable for Zone 1/21 and coal mine underground environments classified under methane-air mixtures.
• Dual-mode pre-separator compatibility: includes both cyclonic total-dust inlet and impactor-based respirable-dust selector meeting BMRC (British Medical Research Council) aerosol penetration curve specifications (ISO 7708:1995 Annex B).
• Microprocessor-driven timing circuit enabling precise programmable sampling duration from 1 to 99 minutes in 1-minute increments — supports shift-based exposure assessment protocols.
• Integrated low-voltage protection with audible and visual alarm activation when battery voltage drops below operational threshold — prevents data loss during field deployment.
• Robust ABS polymer housing treated for anti-static dissipation (surface resistivity <10⁹ Ω), moisture resistance (IP54-rated ingress protection), and mechanical shock resilience (MIL-STD-810G compliant drop test performance).
• No-pulsation airflow output achieved via optimized pump valving and damping chamber — minimizes particle re-entrainment and improves filter deposition uniformity.

Sample Compatibility & Compliance

The FCC-25 is validated for use with standard 37-mm or 25-mm diameter mixed-cellulose ester (MCE), polyvinyl chloride (PVC), or polycarbonate membrane filters, as specified in NIOSH Method 0600 and OSHA ID-142. It accommodates both personal (belt-mounted) and area (fixed-point) sampling configurations. All internal wetted surfaces are chemically inert to common industrial aerosols including silica, coal dust, metal fumes, and organic pigments. The instrument meets essential requirements of China’s JJG 956–2019 verification regulation for dust samplers and aligns with functional equivalency benchmarks outlined in ISO 13137:2013 (Workplace air — Requirements for pumped samplers). Calibration traceability is maintained via gravimetric comparison against NIST-traceable primary flow standards at accredited laboratories.

Software & Data Management

While the FCC-25 operates as a standalone hardware platform without embedded firmware or Bluetooth connectivity, it supports full auditability under GLP/GMP frameworks through external calibration logs and manual time-stamped field records. Each unit ships with a calibrated certificate referencing factory verification using dry-calibrated rotameters traceable to national metrology institutes. For digital integration, users may pair the device with third-party logging systems (e.g., LabVIEW-compatible DAQ modules or custom Android/iOS apps) via analog voltage output (0–5 V proportional to instantaneous flow). All operational parameters—including elapsed time, battery status, and alarm events—are recorded manually in paper-based exposure assessment forms compliant with ISO 45001:2018 occupational health and safety management documentation requirements.

Applications

• Coal mining operations: continuous respirable dust monitoring in longwall faces, conveyor transfer points, and crusher stations per MSHA 30 CFR Part 70 regulations.
• Foundry and metalworking facilities: assessment of ferrous/non-ferrous oxide fume exposure during casting, grinding, and welding processes.
• Cement and limestone quarrying: evaluation of crystalline silica (quartz) concentrations against OELs defined by EU Directive 2017/2398 and ACGIH Threshold Limit Values.
• Pharmaceutical manufacturing cleanrooms: verification of powder handling containment integrity during tablet compression and blending operations.
• Emergency response teams: rapid deployment in post-explosion or fire-damaged zones where residual combustible dust layers require characterization prior to re-entry.

FAQ

What certification standards does the FCC-25 meet for intrinsic safety?

It complies with GB 3836.4–2021 (equivalent to IEC 60079-11:2017) for ibI protection level, rated for Group I (mining) applications with maximum surface temperature of 150 °C.
Can the FCC-25 simultaneously collect total and respirable dust fractions?

Yes — by installing either the total-dust cyclone or BMRC-conforming impactor pre-separator, the unit enables separate but concurrent sampling trains for gravimetric analysis of both fractions.
Is the device suitable for outdoor use in high-humidity environments?

Yes — its housing features anti-moisture coating and IP54-rated sealing, allowing operation up to 95% RH at temperatures between −5 °C and 35 °C.
What maintenance intervals are recommended for field calibration verification?

Pre-use flow verification is required before each sampling shift using a primary calibrator (e.g., bubble meter or electronic calibrator traceable to NIST); annual full recalibration is advised per JJG 956–2019.
Does the FCC-25 support remote data transmission or cloud upload?

No — it is a non-connected, analog-only instrument designed for regulatory simplicity and explosion-proof integrity; all data must be manually documented and archived per local occupational health recordkeeping rules.
