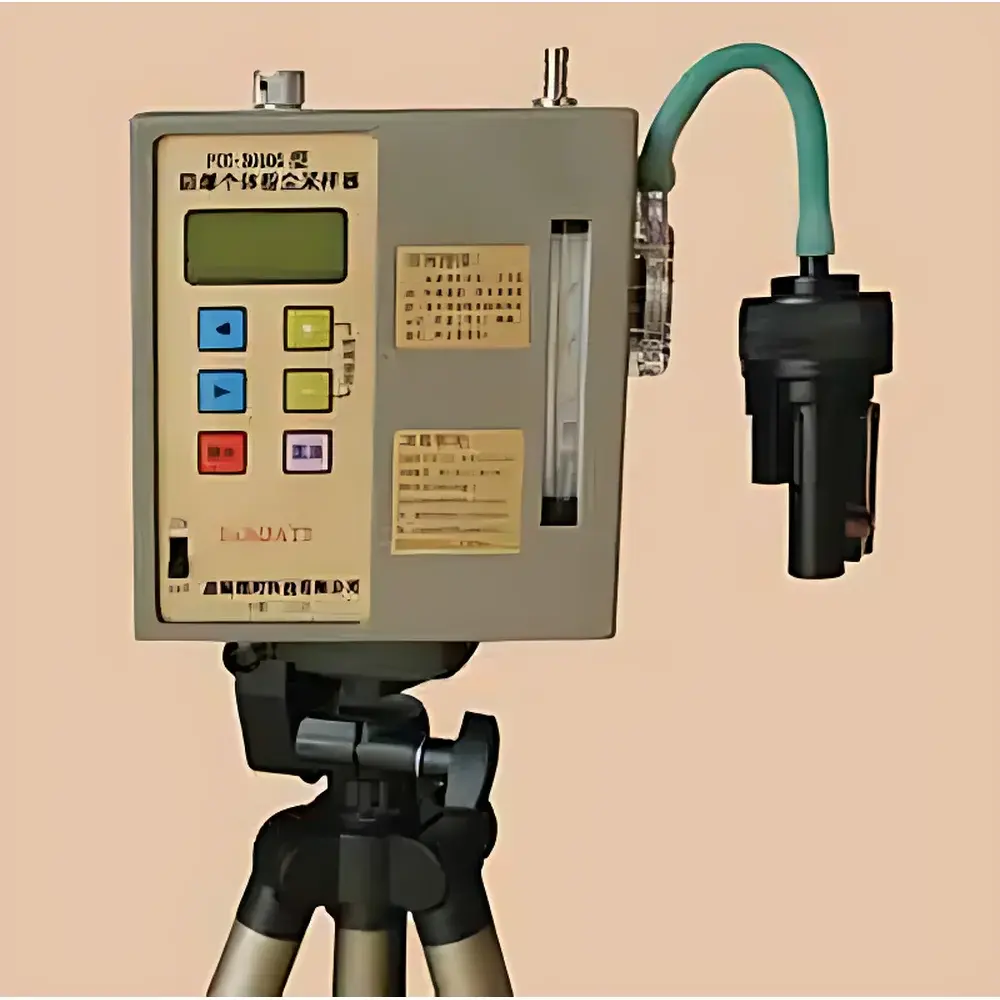

FCC-3000G Intrinsically Safe Personal Dust Sampler

Overview

The FCC-3000G Intrinsically Safe Personal Dust Sampler is a compact, battery-powered sampling instrument engineered for occupational hygiene monitoring in hazardous environments where explosive gas atmospheres may be present. Designed in accordance with IEC 60079-0 and IEC 60079-11 standards for intrinsic safety (Exib I), the device enables compliant, real-time collection of airborne particulate matter—including both total dust and respirable fraction—during full-shift exposure assessments. Its operational principle relies on constant-flow volumetric aspiration through standardized pre-separators, ensuring adherence to the British Medical Research Council (BMRC) inhalability curve (ISO 7708:1995). The sampler integrates a precision diaphragm pump, microprocessor-controlled flow regulation circuitry, and intelligent under-voltage protection to maintain stable 2 L/min sampling across variable filter loading conditions. All electronic components—including timing logic, power management, and display drivers—are fully isolated and energy-limited to prevent ignition hazards in methane- or coal-dust-rich atmospheres typical of underground mining, chemical processing, and grain handling facilities.

Key Features

• Intrinsically safe design certified to Exib I marking—suitable for Zone 0/1 coal mine and Class I, Division 1 hazardous locations
• Dual-fraction sampling capability using BMRC-compliant pre-separators for simultaneous collection of total and respirable dust fractions
• Integrated digital timer with real-time elapsed time display and automatic shutdown upon battery depletion or preset duration
• Constant-flow control circuit maintains ±5% accuracy at 2 L/min over full battery discharge cycle and filter load up to 2000 Pa
• Robust housing fabricated from flame-retardant ABS with conformal coating for moisture resistance and surface resistivity <10⁹ Ω (EN 61340-5-1 compliant)
• Sealed tactile membrane switches minimize ingress risk and eliminate mechanical wear—enhancing long-term reliability in high-dust environments
• Low acoustic signature (<60 dB(A)) ensures non-interference with voice communication and hearing protection protocols

Sample Compatibility & Compliance

The FCC-3000G is compatible with standard 25-mm and 37-mm diameter PVC, mixed-cellulose ester (MCE), or polyvinyl chloride (PVC) filters used in gravimetric analysis per ISO 7708, EN 481, and NIOSH Method 0600. Pre-separator assemblies meet the geometric and aerodynamic specifications required for BMRC-equivalent respirable dust definition. Device certification includes conformity to GB 3836.1–2010 (Chinese equivalent of IEC 60079-0) and GB 3836.4–2010 (IEC 60079-11). It supports compliance with OSHA 29 CFR 1910.1200 (Hazard Communication), MSHA 30 CFR Part 56/57, and EU Directive 2014/34/EU (ATEX) when deployed within validated sampling protocols. No external calibration gas or auxiliary hardware is required for routine operation.

Software & Data Management

As a standalone field instrument, the FCC-3000G does not incorporate embedded Bluetooth, Wi-Fi, or proprietary software interfaces. All operational data—including start/stop timestamps and cumulative sampling duration—are retained locally via non-volatile memory and displayed on the integrated LCD. For regulatory traceability, users are advised to document sampling parameters manually in accordance with GLP principles or integrate readings into laboratory information management systems (LIMS) during gravimetric analysis. The device supports audit-ready recordkeeping when paired with calibrated flow calibrators (e.g., primary piston provers traceable to NIST or NPL standards) prior to each sampling campaign. Firmware updates are not applicable; hardware revision control is maintained via serial-numbered manufacturing logs.

Applications

• Personal exposure monitoring for respirable crystalline silica (RCS), coal dust, and metal fumes in underground and surface mining operations
• Compliance sampling under MSHA PELs and OSHA Permissible Exposure Limits (PELs) for total dust and respirable fractions
• Baseline air quality assessment in confined-space maintenance, foundry casting, and abrasive blasting environments
• Field validation of local exhaust ventilation (LEV) system performance in pharmaceutical and food processing plants
• Supporting exposure modeling inputs for IH risk assessments aligned with AIHA RP-2 and ISO/TR 9795

FAQ

Is the FCC-3000G suitable for use in methane-rich coal mines?
Yes—it carries Exib I certification, indicating intrinsic safety for Group I mining applications involving firedamp (methane) and coal dust.
Does the instrument require periodic factory recalibration?
No; however, field verification of flow rate using a NIST-traceable primary standard (e.g., dry gas meter or electronic bubble flowmeter) is required before each sampling shift per ISO 8502-12 and OSHA Technical Manual Section II: Chapter 2.
Can the device operate continuously for an entire 8-hour shift?
Yes—rated for >10 hours of continuous operation at 2 L/min under typical ambient conditions (0–35 °C, <95% RH).
What filter types are recommended for respirable dust collection?
37-mm PVC filters (5-μm pore size) mounted with BMRC-certified cyclone pre-separators are recommended per EN 481 and ISO 7708 Annex B.
Is the battery pack user-replaceable and serviceable?
Yes—the five Ni-MH cells are accessible via sealed rear panel; replacement must follow manufacturer-specified cell rating (1.3 Ah, 1.2 V nominal) and include verification of current-limiting resistor integrity.
