Fengyunhui Smart Operations & Oil Condition Monitoring Platform

Overview

The Fengyunhui Smart Operations & Oil Condition Monitoring Platform (Model FYH-M) is an integrated industrial IoT solution engineered for continuous, real-time lubrication health assessment and predictive maintenance in critical rotating equipment. Unlike conventional offline oil analysis laboratories, this platform employs embedded sensor fusion—combining dielectric constant, viscosity, particle count (via optical scattering), water content (capacitive sensing), and temperature—to deliver in-situ, multi-parameter oil condition data. The system operates on a dual-mode architecture: edge-enabled local acquisition (with onboard data preprocessing and alarm logic) and cloud-based centralized analytics. Designed specifically for petroleum, energy, marine propulsion, chemical processing, and mining applications, it supports ISO 4406:2017 (fluid cleanliness), ASTM D6971 (on-line particle monitoring), and ISO 21783 (lubricant condition monitoring systems) compliance frameworks. Its core objective is to shift maintenance strategy from time-based or reactive to condition-based and risk-prioritized—reducing unplanned downtime, extending oil drain intervals, and enabling traceable, auditable asset lifecycle management.

Key Features

• Multi-sensor oil condition monitoring: Simultaneous measurement of viscosity (cSt), water content (% vol), dielectric permittivity (ε_r), particulate contamination (ISO 4406 code), and oil temperature (±0.5 °C)
• Hybrid connectivity: Dual-path data transmission via industrial-grade RS-485/Modbus RTU (for legacy PLC integration) and LTE Cat-1/Wi-Fi 6 (for secure cloud uplink with TLS 1.3 encryption)
• Edge intelligence: On-device anomaly detection using adaptive thresholding and baseline drift compensation; configurable alarm severity levels (Warning, Alert, Critical) with SNMP v3 trap support
• Digital twin–enabled asset registry: Auto-populated equipment ledger with OEM specifications, service history, oil change logs, and calibration metadata—including NIST-traceable sensor validation records
• Remote calibration orchestration: Secure, role-based access to perform zero-point verification, span adjustment, and sensor diagnostics without physical site visit—fully compliant with ISO/IEC 17025 documentation requirements
• Robust industrial enclosure: IP66-rated housing with -25 °C to +70 °C operating range, EMI-hardened circuitry per IEC 61000-6-2/6-4, and SIL2-compatible safety logic

Sample Compatibility & Compliance

The FYH-M platform supports continuous monitoring of mineral, synthetic, and bio-based lubricants used in turbines, compressors, gearboxes, hydraulic systems, and marine diesel engines. It is validated for use with ISO VG 32–680 oils and compatible with common additive packages (ZDDP, TBN stabilizers, anti-wear agents). All sensor modules undergo factory calibration against certified reference standards traceable to CNAS-accredited laboratories (Certificate No. CNAS LXXXXX). System-level compliance includes CE marking (EMC Directive 2014/30/EU, RoHS 2011/65/EU), ATEX Zone 2 / IECEx certification for hazardous area deployment (optional), and alignment with API RP 546 (Electrical Equipment for Petroleum Industry) and ISO 55001 asset management principles.

Software & Data Management

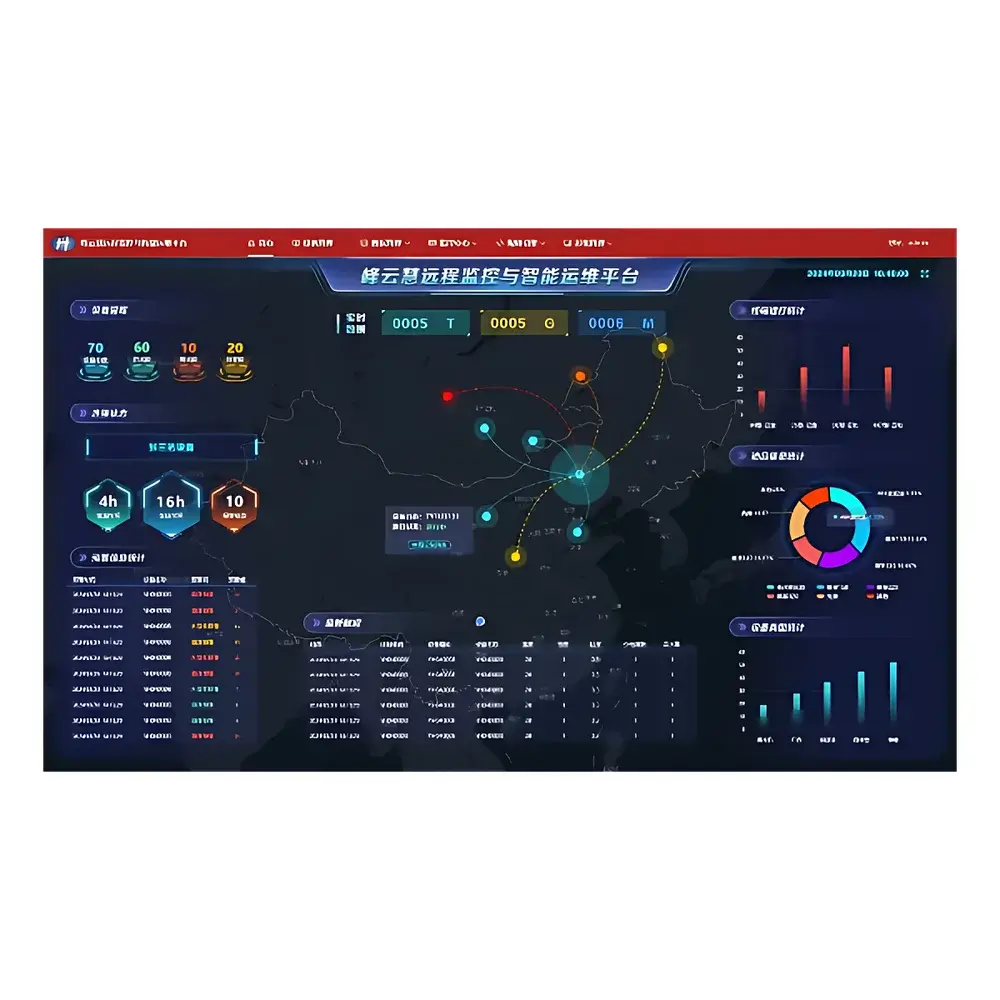

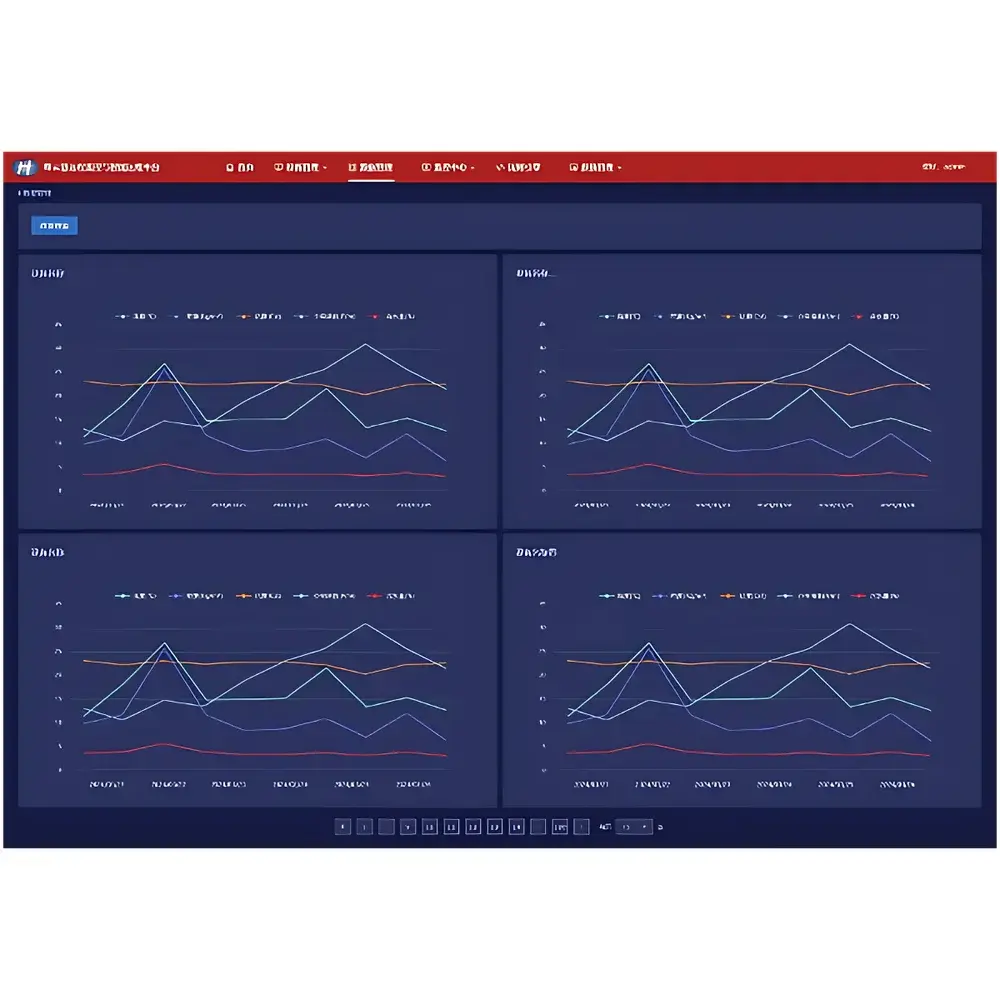

The platform’s web-native application (accessible via Chrome, Edge, or Firefox) provides role-based dashboards for operators, reliability engineers, and QA/QC managers. Data is stored in a PostgreSQL 14 database with daily encrypted backups and WORM (Write Once Read Many) archival options. Audit trails meet FDA 21 CFR Part 11 requirements: electronic signatures, immutable log entries, and user-action timestamps are enforced across all configuration changes, alarm acknowledgments, and report generation. Integrated RESTful APIs enable bi-directional synchronization with CMMS (e.g., IBM Maximo, SAP PM) and ERP systems. Advanced analytics include trend forecasting (ARIMA-based residual life estimation), root cause correlation (oil degradation vs. vibration harmonics), and automated report generation compliant with ISO 18436-4 (condition monitoring certification).

Applications

• Power generation: Real-time turbine oil health tracking to prevent varnish formation and servo valve stiction
• Offshore drilling rigs: Early detection of seawater ingress and wear metal accumulation in top drive gearboxes
• Refinery hydroprocessing units: Monitoring thermal degradation of high-temperature circulating oils under H₂ partial pressure
• Container ship main engines: Correlating crankcase oil acidity (TAN) surges with cylinder liner wear rates
• Mining conveyor drives: Optimizing relubrication intervals based on grease consistency loss and abrasive particle load

FAQ

Does the FYH-M platform support integration with existing SCADA or DCS systems?
Yes—it provides native Modbus TCP/RTU, OPC UA (PubSub over MQTT), and BACnet/IP protocols for seamless interoperability with legacy control infrastructure.
How frequently are sensor calibrations required, and is recalibration traceable?
Field sensors are designed for 12-month calibration intervals; each calibration event generates a digital certificate with unique ID, date, technician credentials, and uncertainty values—all archived in the system audit log.
Can the platform operate in offline mode during network outages?
Yes—the edge gateway retains ≥30 days of raw sensor data locally and resumes synchronized upload automatically upon network restoration, with no data loss.
Is cybersecurity certification available for the platform?
The firmware complies with IEC 62443-4-2 SL2 requirements; penetration test reports and SOC 2 Type II attestation documentation are available under NDA to qualified enterprise customers.
