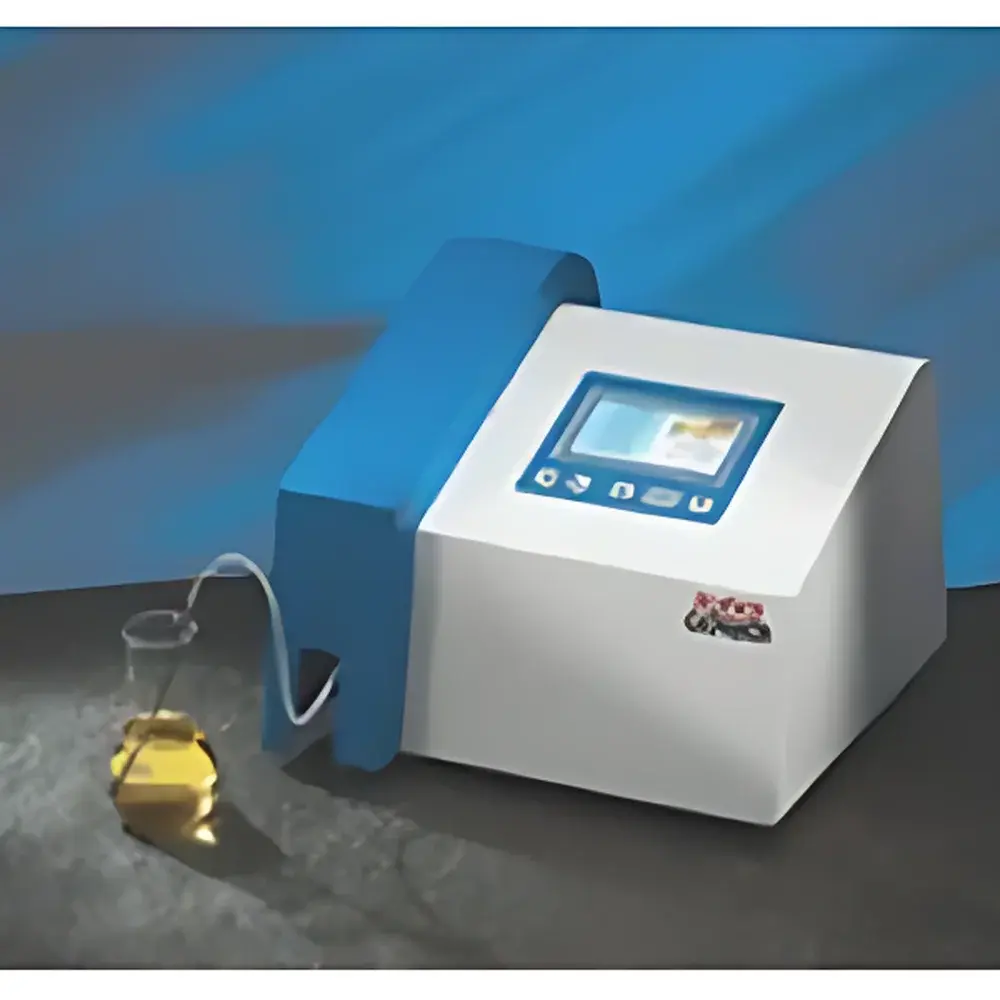

Fermento-Flash Beer Composition Analyzer by Funke
| Brand | Funke |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported Instrument |
| Model | Fermento-Flash |
| Price Range | USD 1,400 – 7,000 (est.) |
| Instrument Type | Dedicated Beer Analyzer |
| Application | Laboratory Use |
| Measurement Time | 4 min |
| Alcohol by Volume (ABV) | 0–12 % v/v |
| pH Range | 0–14 |
| Dimensions (L × W × H) | 480 × 345 × 250 mm |
| Weight | 20 kg |
Overview
The Fermento-Flash Beer Composition Analyzer by Funke is a dedicated, benchtop laboratory instrument engineered for rapid, simultaneous quantification of critical quality parameters in finished beer and wort samples. It operates on the principle of integrated density measurement via oscillating U-tube densitometry coupled with high-precision temperature-controlled refractometry and potentiometric pH sensing—enabling traceable, repeatable determination of alcohol content (ABV), real extract (RE), apparent extract (AE), original extract (OE), and specific gravity—all within a single 4-minute automated cycle. Designed specifically for brewing laboratories operating under ISO/IEC 17025, ASBC, EBC, and AOAC guidelines, the system eliminates manual titrations, distillations, or separate gravimetric analyses traditionally required for OE and ABV validation. Its architecture conforms to GLP-compliant workflows, supporting audit-ready data capture and instrument qualification protocols.
Key Features
- Simultaneous multi-parameter analysis: ABV (0–12 % v/v), real extract (0–10 % w/w), apparent extract (0–10 % w/w), original extract (0–20 % w/w), density (0.95–1.05 g/cm³), and pH (0–14) in one run
- Automated sample handling with integrated degassing support—samples require only pre-degassing prior to loading; no filtration or dilution needed
- High-resolution 7-inch TFT color touchscreen interface with intuitive menu navigation and multilingual OS (English, German, Spanish, French)
- Internal reference library for up to 20 certified reference beers (e.g., Pilsner, Weizen, Stout, Bock), enabling matrix-matched calibration without external standards
- RS232 serial interface for direct connection to laboratory printers, LIMS, or SCADA systems; optional USB-to-Ethernet adapter available for network integration
- Robust stainless-steel fluidic path compliant with FDA 21 CFR Part 11 requirements when paired with validated software configuration
Sample Compatibility & Compliance
The Fermento-Flash accepts standard degassed beer samples (12–20 mL per analysis) across all major styles—including lagers, ales, sour beers, non-alcoholic brews, and hopped seltzers. It accommodates carbonation levels up to 6.5 g/L CO₂ after degassing and tolerates turbidity up to 400 NTU without interference. All measurements are traceable to NIST-certified density and pH reference materials. The analyzer meets ASTM D8195–22 (Standard Test Method for Alcohol Content of Beer by Density and Refractive Index), EBC Analytica Chapter 9.1 (Alcohol Determination), and ASBC Methods of Analysis Section 9 (Beer Analysis). Built-in calibration verification routines satisfy internal QA/QC requirements for ISO 9001 and ISO 22000-certified breweries.
Software & Data Management
The embedded firmware supports full audit trail functionality, including user login history, method versioning, calibration logs, and timestamped result export. Raw data and processed reports are exportable in CSV, PDF, and XML formats. Optional PC-based FermentoControl Suite (v3.2+) enables advanced statistical process control (SPC), trend charting, and batch comparison analytics. When deployed in regulated environments, the system supports electronic signatures, role-based access control, and 21 CFR Part 11 compliance through configurable audit logging and data integrity safeguards—fully documented in the Instrument Qualification Package (IQ/OQ/PQ).
Applications
- Final product release testing in commercial breweries and contract manufacturing facilities
- R&D formulation development for low-alcohol, alcohol-free, and flavored malt beverages
- In-process monitoring during fermentation and maturation stages
- Raw material acceptance testing of wort and adjunct syrups
- Contract lab accreditation support (e.g., for UKAS, DAkkS, or ANAB assessments)
- Teaching and method validation in brewing science programs at universities and technical institutes
FAQ
What sample preparation is required before analysis?
Only mechanical or vacuum degassing is necessary—no centrifugation, filtration, or dilution. Samples must be at ambient temperature (15–25 °C) and free of visible particulates.
Can the instrument measure non-beverage malt-based products?
Yes—it has been validated for wort, dextrose solutions, and cereal-based fermentables; however, viscosity >15 cP requires optional heated sample module (sold separately).
Is routine recalibration required between runs?
No. The system performs automatic zero-point verification at startup and every 20th analysis using internal reference cells; full calibration is recommended weekly or after maintenance.
Does the analyzer comply with EU Regulation (EC) No 1169/2011 for nutritional labeling?
Yes—its ABV and extract values meet the uncertainty thresholds defined in Annex IX for mandatory alcohol and carbohydrate declarations on packaged beer labels.
What is the expected service life and maintenance interval?
With annual preventive maintenance (PM) by certified Funke field engineers, the system maintains metrological stability for ≥8 years; key components (densimeter cell, pH electrode, optical sensor) have mean time between failures (MTBF) exceeding 15,000 hours.
