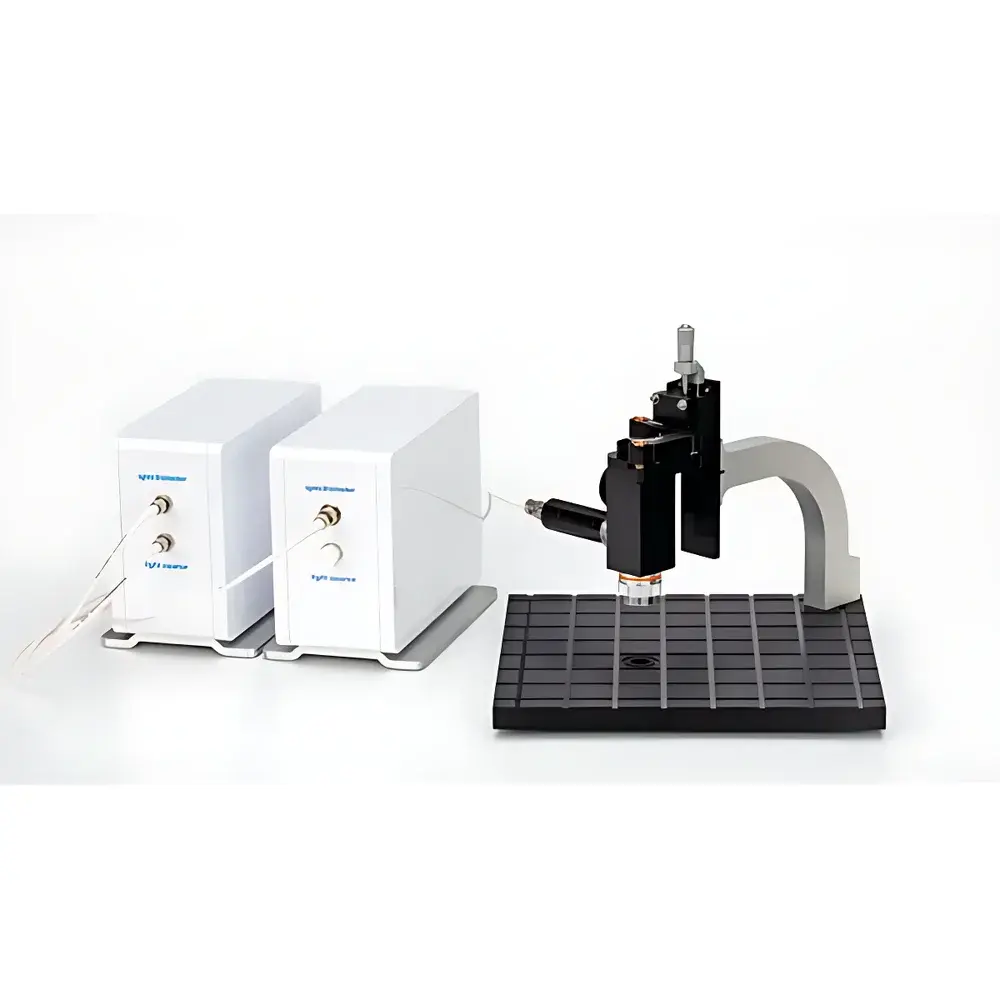

Filmetrics F3-sX White Light Interferometric Thin-Film Thickness Measurement System
| Brand | KLA |
|---|---|
| Origin | USA |
| Manufacturer | Filmetrics (a KLA company) |
| Type | Benchtop Spectroscopic Reflectometry System |
| Model | F3-sX |
| Wavelength Options | 980 nm / 1310 nm / 1550 nm |
| Thickness Range | 15 nm – 3 mm (depending on configuration and film type) |
| Spot Size | 10 µm |
| Material Library | >130 preloaded optical constants |
| Software | FILMeasure 8 (local acquisition & analysis), FILMeasure Standalone (remote data processing) |
| Compliance | Designed for semiconductor fab, R&D, and QC environments supporting GLP/GMP traceability workflows |
Overview
The Filmetrics F3-sX is a benchtop spectroscopic reflectometry system engineered for non-contact, high-precision thickness measurement of single- and multi-layer thin films on rigid substrates. Unlike traditional mechanical or eddy-current gauges, the F3-sX employs white light interferometry combined with spectral reflectance analysis to determine film thickness based on interference fringe patterns generated at film-substrate and air-film interfaces. Its near-infrared (NIR) spectral configurations—specifically optimized for silicon transparency and low absorption in common dielectrics—enable reliable measurements across opaque, highly doped, or optically complex stacks where visible-light systems fail. The instrument operates on the principle of modeling the measured reflectance spectrum against theoretical Fresnel-based optical models, iteratively solving for layer thicknesses, refractive indices (n), and extinction coefficients (k) using Levenberg–Marquardt optimization. This physics-based approach ensures traceable, repeatable results without calibration standards for most routine applications.
Key Features
- Three wavelength-optimized variants: F3-s980 (960–1000 nm), F3-s1310 (1280–1340 nm), and F3-s1550 (1520–1580 nm), each tuned for specific substrate and film combinations including heavily doped Si, SiO₂, SiNₓ, poly-Si, and metal oxides.
- 10 µm spot size enabling localized metrology on patterned wafers, MEMS devices, and microstructured surfaces without spatial averaging artifacts.
- Fully integrated hardware architecture: collimated broadband NIR source, high-resolution spectrometer, precision XYZ stage (manual or motorized), and calibrated reference silicon wafer—all housed in a compact, vibration-insensitive enclosure.
- Preloaded optical constant database containing >130 materials with temperature- and wavelength-dependent n/k values, compliant with SOPs used in semiconductor process control labs.
- Real-time spectral acquisition and model fitting with sub-nanometer resolution in thickness output (dependent on film optical properties and signal-to-noise ratio).
Sample Compatibility & Compliance
The F3-sX accommodates flat, rigid samples up to 200 mm in diameter (with optional stage upgrades). It supports native measurement of transparent, semi-transparent, and opaque films—including amorphous silicon, aluminum oxide, titanium nitride, and spin-on carbon—without requiring backside access or destructive cross-sectioning. All configurations meet ASTM E2574–22 (Standard Practice for Spectroscopic Ellipsometry and Reflectometry Data Analysis) and support audit-ready reporting per ISO/IEC 17025 requirements. When deployed in regulated environments, FILMeasure 8 software can be configured to comply with FDA 21 CFR Part 11 for electronic records and signatures, including user authentication, audit trails, and data integrity safeguards.
Software & Data Management

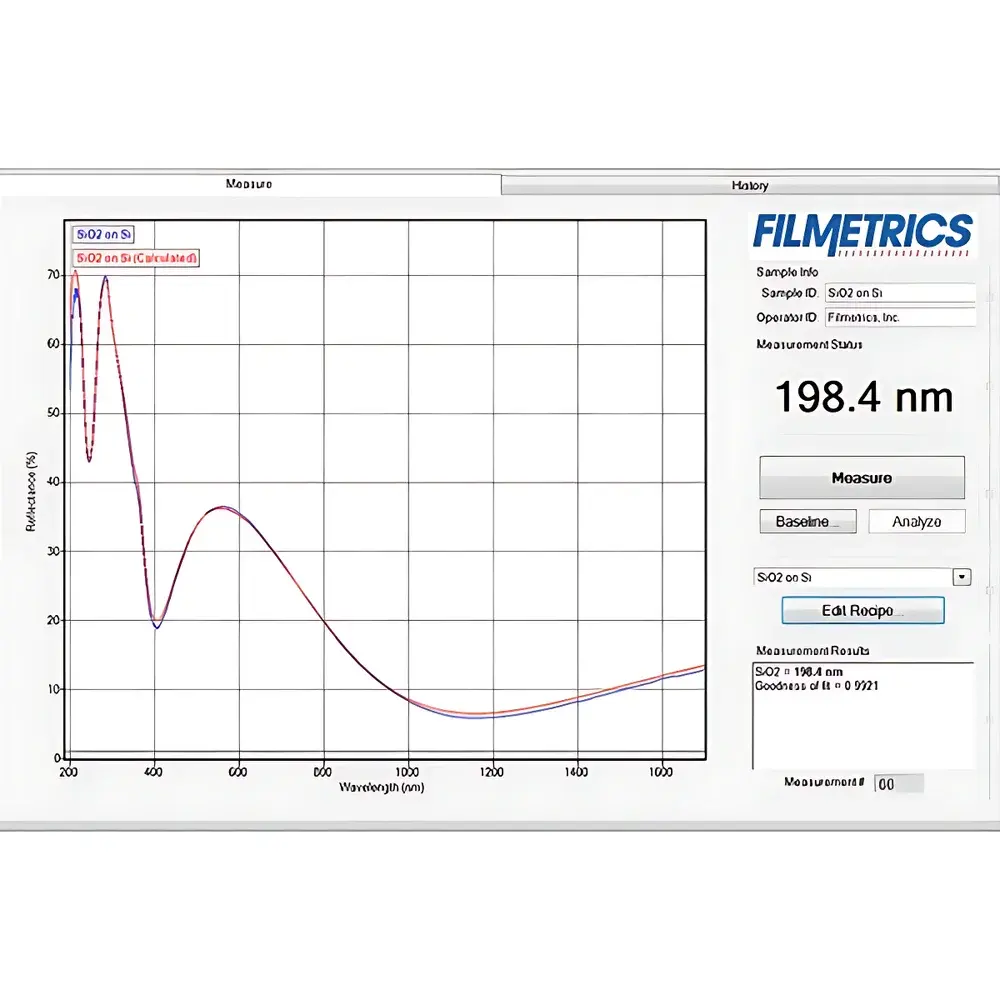

FILMeasure 8 serves as the primary acquisition and analysis interface, offering intuitive layer stack definition, automatic peak detection, and batch measurement scripting for unattended operation. The standalone FILMeasure application enables offline analysis of exported .fms files, facilitating collaboration between process engineers and metrology specialists. All spectral data, fit parameters, and confidence metrics are stored in vendor-neutral HDF5 format, ensuring long-term archival compatibility. Optional integration with factory MES systems via RESTful API allows direct upload of measurement logs—including timestamp, operator ID, recipe name, and pass/fail flags—to centralized SPC databases.
Applications
- Semiconductor front-end process control: gate oxide, hard mask, and STI fill thickness monitoring on 200 mm and 300 mm wafers.
- Photovoltaic R&D: quantifying anti-reflective coating uniformity and CIGS absorber layer thickness gradients.
- MEMS fabrication: measuring residual stress-induced curvature in thin-film cantilevers via multi-point thickness mapping.
- Display manufacturing: validating ITO and OLED stack thickness consistency across large-area glass substrates.
- Academic thin-film research: rapid screening of ALD, PVD, and sol-gel deposited layers during process development.
FAQ
What is the minimum measurable thickness with the F3-sX?
For high-contrast films such as SiO₂ on Si, the practical lower limit is ~15 nm using the F3-s1310 or F3-s1550 configurations; thinner films require visible-wavelength accessories or ellipsometry.
Can the F3-sX measure rough or textured surfaces?
Yes—the 10 µm spot size and robust spectral fitting algorithms accommodate RMS roughness up to ~20 nm; for higher roughness, averaging over multiple points is recommended.
Is calibration required before each measurement?
No routine recalibration is needed; the system uses an internal Si reference wafer for periodic verification, and all optical models are physics-based rather than empirical.
How does the F3-sX handle multi-layer stacks?
FILMeasure 8 supports up to 10-layer models with simultaneous fitting of thickness and optical constants, provided sufficient spectral contrast exists across the selected wavelength range.
What support options are available for global users?
KLA provides remote web-assisted troubleshooting (internet required), application engineering consultations (Mon–Fri, Pacific Time), and hardware upgrade paths for future spectral or automation needs.
