FISCHER FERITSCOPE FMP30 Ferrite Meter
| Brand | Fischer |
|---|---|
| Origin | Germany |
| Model | FERITSCOPE_FMP30 |
| Measurement Range | 0.1–110 FN or 0.1–80% Fe |
| Accuracy | ±0.1% Fe (relative) |
| Operating Temperature | Ambient (15–30 °C) |
| Calibration Standards | Five certified reference samples covering 0.3–80% Fe |
| Compliance | DIN 32514-1, Basler Norm |
| Power Supply | Rechargeable battery or AC adapter |
Overview

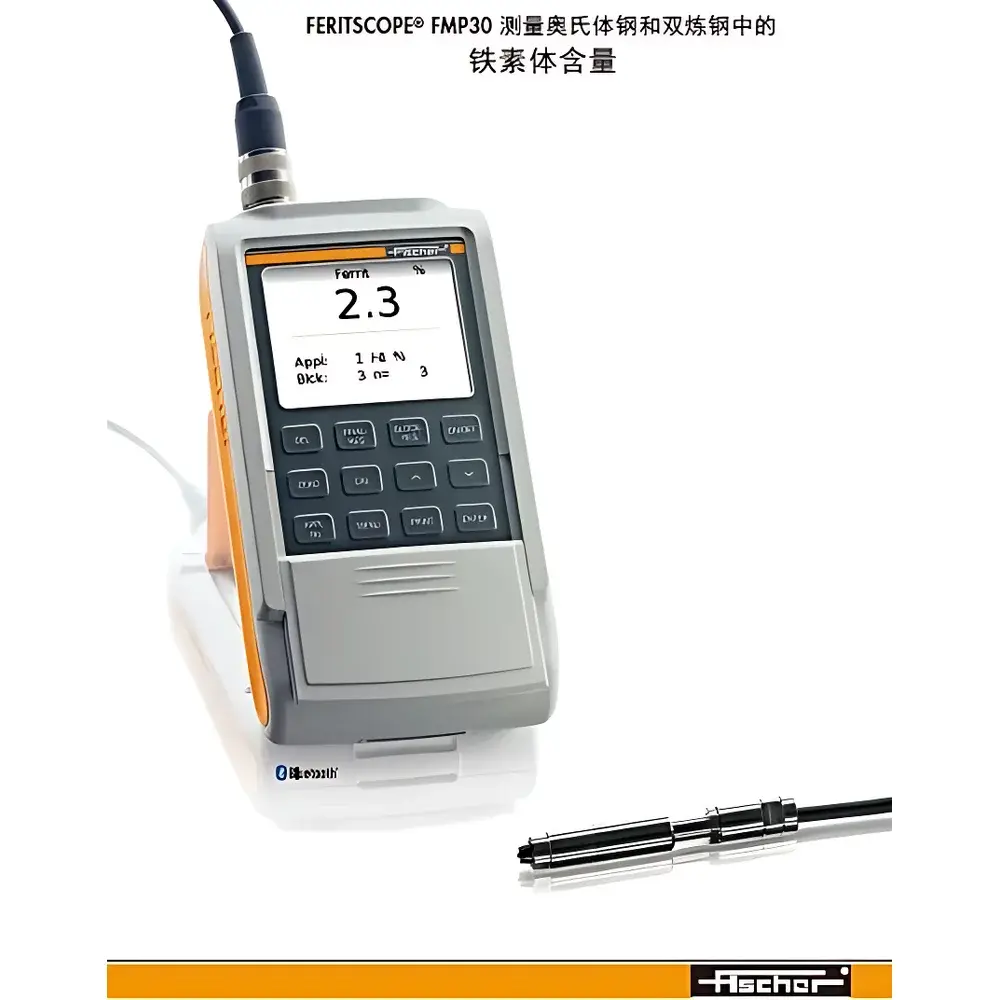

The FISCHER FERITSCOPE FMP30 is a handheld, non-destructive ferrite measurement instrument engineered for precise quantification of ferrite content in austenitic and duplex stainless steels. It operates on the magnetic induction principle—measuring the magnetic permeability difference between ferritic (magnetic) and austenitic (non-magnetic) phases—to deliver rapid, repeatable results in field and workshop environments. Unlike optical or metallographic methods requiring sample sectioning and etching, the FMP30 provides immediate, in-situ readings without surface preparation beyond standard cleaning. Its design addresses critical metallurgical requirements in high-integrity applications where ferrite volume fraction directly influences resistance to stress corrosion cracking (SCC), thermal fatigue, and mechanical strength—particularly in welded joints exposed to aggressive chemical, petrochemical, or power generation service conditions.
Key Features
- Portable, rugged housing with IP54-rated ingress protection for industrial site use
- Large backlit LCD display showing simultaneous % Fe and FN (Ferrite Number) values with intuitive unit switching
- Auto-measurement initiation upon probe contact—eliminates operator timing variability
- Modular probe system including flat, curved, and miniature probes (e.g., FERITSCOPE S10, S20, S30) for access to weld toes, pipe interiors, and narrow-radius bends
- Dual power mode: long-life rechargeable Li-ion battery (≥8 h continuous operation) or optional AC adapter for benchtop continuity
- Integrated zero-point compensation and temperature drift correction algorithms ensuring stability across ambient shifts
- One-point calibration across full range using certified reference standards—no multi-point curve fitting required
Sample Compatibility & Compliance
The FMP30 is validated for use on wrought, cast, and welded austenitic and duplex stainless steels—including UNS S32205/S32750, EN 1.4462/1.4410, and ASTM A923-compliant grades. Surface roughness must not exceed Ra 3.2 µm; curvature radius ≥10 mm for standard probes (curved probes extend compatibility to radii down to 5 mm). Measurements comply with DIN 32514-1 (determination of ferrite content in stainless steels by magnetic measurement) and the Basler Norm for weld inspection in pressure equipment. All factory-calibrated reference standards are traceable to UKAS-accredited TWI Secondary Standard Kits (certified per ISO/IEC 17025), supporting audit readiness under ASME BPVC Section V, EN 10088-1, and PED 2014/68/EU frameworks.
Software & Data Management
While the FMP30 operates as a standalone instrument, it interfaces seamlessly with FISCHER’s MMS PC2 desktop platform via USB or Bluetooth, enabling data export to CSV or XML formats. When integrated into MMS PC2, measurement records include timestamp, GPS coordinates (optional external module), operator ID, probe type, and calibration status—supporting 21 CFR Part 11-compliant electronic signatures and audit trails. Raw data files retain full metadata for GLP/GMP documentation, and batch reports can be generated per project, weld ID, or heat number—critical for QA/QC reporting in ASME U-1A or ISO 9001-certified fabrication shops.
Applications
- On-site verification of ferrite content in pipe girth welds prior to hydrotesting in oil & gas transmission systems
- Monitoring heat-affected zone (HAZ) ferrite depletion during post-weld heat treatment (PWHT) of reactor vessels
- Quality control of cladding layers in dissimilar metal welds (e.g., Inconel 625 over carbon steel)
- Validation of filler metal selection in automated orbital TIG welding of pharmaceutical tubing
- Periodic surveillance of ferrite stability in aging duplex components within desalination plant heat exchangers
FAQ
Does the FMP30 require periodic recalibration by an accredited lab?
No—field recalibration using certified reference standards is sufficient per DIN 32514-1. Annual verification against TWI secondary standards is recommended for ISO 17025-aligned labs.
Can the FMP30 measure ferrite in cast duplex stainless steel?
Yes, provided the casting surface is ground to Ra ≤3.2 µm and free of decarburized or oxidized layers that distort magnetic response.
Is the FN scale interchangeable with % Fe across all alloy systems?
FN correlates empirically with % Fe for standard duplex and super-duplex grades per ASTM E562, but deviations occur in highly alloyed or nitrogen-rich compositions—always validate with metallography for critical applications.
What probe is recommended for measuring inside small-diameter tubing (e.g., 25 mm OD)?
The FERITSCOPE S30 miniature probe (Ø8 mm, 150 mm cable) enables reliable measurements down to 20 mm internal diameter when used with a custom guide fixture.
Does battery life degrade significantly below 10 °C?
Li-ion performance declines below 5 °C; for sub-zero field work, maintain batteries at ≥15 °C prior to deployment and use insulated probe housings to minimize thermal shock effects.
