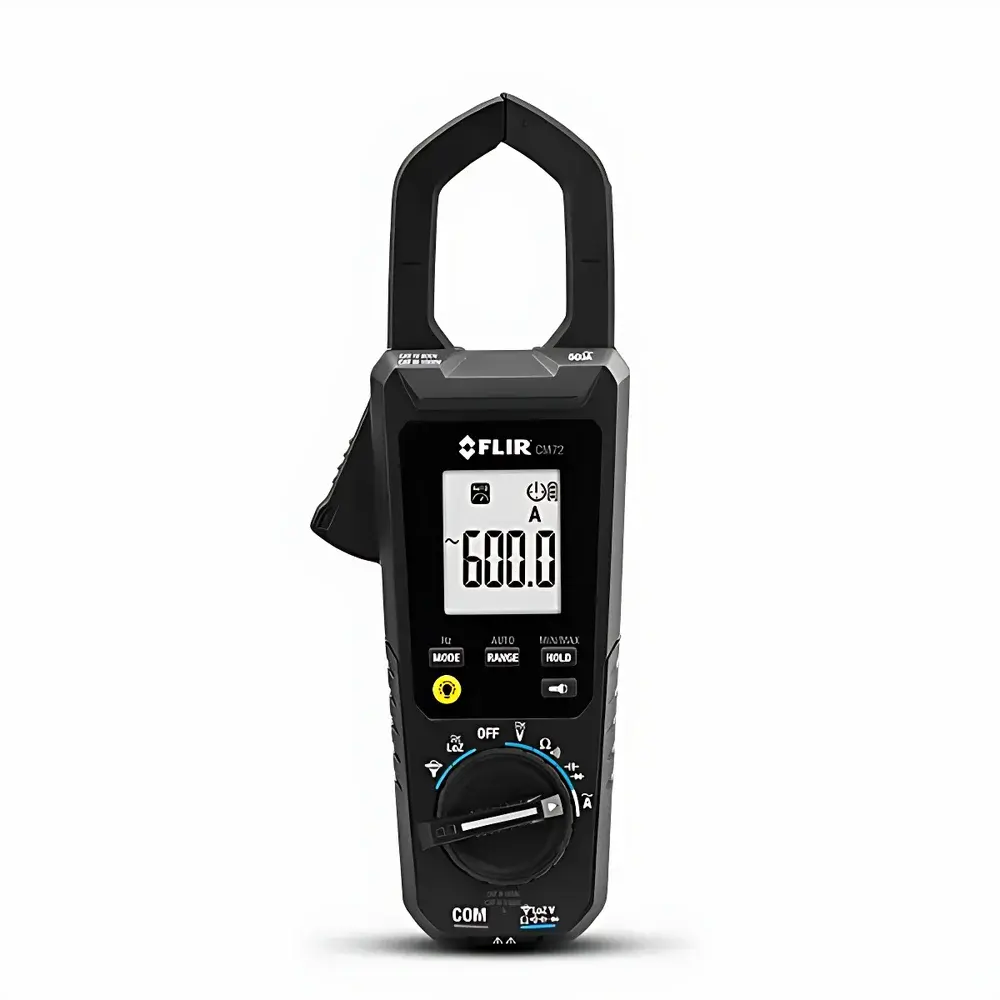

FLIR CM72 True-RMS Digital Clamp Meter

Overview

The FLIR CM72 True-RMS Digital Clamp Meter is an engineered solution for professional electricians, maintenance technicians, and facility engineers requiring reliable, high-fidelity AC current measurements in constrained or low-visibility environments. Built upon a core principle of induction-based current sensing—leveraging the magnetic field generated by conductors to derive RMS current values without circuit interruption—the CM72 delivers metrologically sound readings across non-sinusoidal waveforms common in modern power systems with variable-frequency drives, LED lighting ballasts, and switched-mode power supplies. Its design prioritizes ergonomic accessibility and measurement integrity: the extended-jaw clamp geometry enables insertion into densely packed panelboards and narrow DIN-rail enclosures, while its integrated high-lumen LED worklight (≥100 lux at 30 cm) ensures legibility in dimly lit utility closets, basement electrical rooms, or outdoor service panels at dusk.

Key Features

• True-RMS AC Current Measurement: Accurately measures non-linear loads up to 600 A AC with inherent waveform independence—compliant with IEC 61010-1 CAT III 600 V safety rating.
• Ergonomic Extended-Jaw Clamp: 28 mm jaw opening with tapered profile facilitates access to isolated busbars, stacked conductors, and rear-mounted terminals in industrial control panels and switchgear compartments.
• High-Contrast Backlit LCD Display: 4000-count resolution screen with large, segmented digits (18 mm height) and adjustable backlight intensity for rapid visual verification under ambient light levels as low as 5 lux.
• Dual-Molded Housing: Impact-resistant thermoplastic shell with soft-grip TPE overmold provides slip resistance during one-handed operation and meets MIL-STD-810G drop-test requirements (1 m onto concrete).
• Low-Impedance Voltage Mode (LoZ): Mitigates ghost voltage artifacts in parallel conductor runs; automatically engages when selecting V~ mode, reducing input impedance to ~3 kΩ for stable open-circuit detection.
• Smart Diode Test with Disable Function: Enables semiconductor junction verification while suppressing auto-ranging during critical continuity checks—preventing false pass/fail interpretation in complex control circuits.

Sample Compatibility & Compliance

The CM72 is optimized for use on insulated copper and aluminum conductors ranging from 14 AWG to 4/0 AWG (2.08–107 mm²), including THHN, XHHW, and MTW cable types. It supports measurements on single-conductor cables, twisted pairs, and bundled feeder runs—provided conductor separation exceeds 15 mm to minimize mutual coupling error. The instrument complies with international safety and electromagnetic compatibility standards, including IEC 61010-1 (Edition 3.0), IEC 61326-1 (EMC for test equipment), and UL 61010-1. Its calibration traceability aligns with NIST standards through FLIR’s ISO/IEC 17025-accredited calibration laboratory, supporting GLP documentation requirements for regulated industrial maintenance programs.

Software & Data Management

While the CM72 operates as a standalone handheld instrument without Bluetooth or USB connectivity, its measurement stability and repeatability support integration into structured data workflows. All readings adhere to ANSI/ISA-88.01 and ISO/IEC 17025 documentation protocols when recorded manually into CMMS platforms such as IBM Maximo or SAP PM. The device includes built-in min/max/avg tracking with hold function, enabling time-stamped capture of transient events (e.g., motor inrush, transformer energization surges) for later correlation with SCADA logs or preventive maintenance records. Firmware updates are not applicable—hardware-level design ensures long-term functional consistency across deployment lifecycles exceeding 10 years under typical industrial usage conditions.

Applications

• Preventive Maintenance Audits: Quantifying load imbalances across three-phase distribution panels in commercial HVAC systems and data center PDUs.
• Energy Efficiency Assessments: Measuring standby current draw of legacy control relays and PLC I/O modules prior to retrofitting.
• Troubleshooting Industrial Motor Circuits: Verifying full-load amps (FLA) against nameplate ratings while isolating harmonic distortion effects via True-RMS validation.
• Electrical Safety Verification: Confirming de-energized status using LoZ voltage mode before lockout/tagout procedures per OSHA 1910.333.
• Renewable Integration Support: Validating inverter output current consistency in rooftop solar combiner boxes with limited physical access.

FAQ

Does the FLIR CM72 support DC current measurement?
No—the CM72 is designed exclusively for AC current sensing via current transformer (CT) principle. DC measurements require Hall-effect-based clamp meters such as the FLIR CM85.
Can the CM72 measure current through armored or conduit-encased cables?
Accurate measurement requires exposure of individual insulated conductors. Current cancellation occurs when phase and neutral conductors are enclosed within the same metallic conduit or armor; separation or removal of shielding is necessary.
Is the LED worklight user-replaceable?
The integrated LED assembly is sealed within the housing and not field-serviceable; however, its rated lifetime exceeds 50,000 hours under normal use conditions.
What is the specified accuracy for AC current at 50 Hz and 60 Hz?
±2.0% of reading ±5 digits (600 A range), verified per manufacturer’s published specifications under controlled laboratory conditions per IEC 61557-13.
Does the CM72 include a certificate of calibration?
Each unit ships with a factory calibration report traceable to NIST standards; optional ISO/IEC 17025-compliant calibration certificates are available upon request through authorized FLIR service centers.
