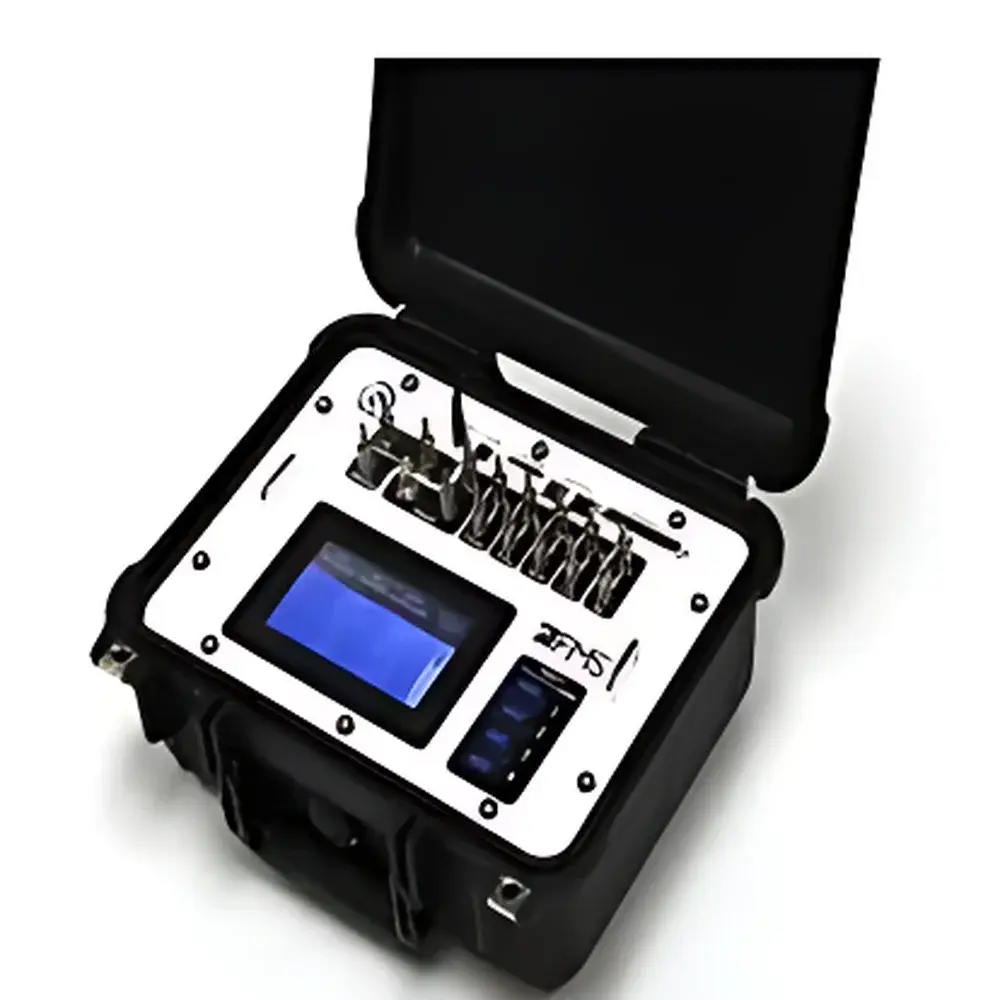

FMS Portable Multifunctional Energy Metabolism Measurement System

Overview

The FMS Portable Multifunctional Energy Metabolism Measurement System is a field-deployable, open-circuit respirometry platform engineered for high-fidelity quantification of oxygen consumption (VO₂), carbon dioxide production (VCO₂), and water vapor exchange (VH₂O) in diverse biological systems. Based on the established Sable Systems International (SSI) architecture, the FMS Portable integrates precision electrochemical (fuel cell), nondispersive infrared (NDIR), and thin-film capacitive sensing technologies within a ruggedized, miniaturized chassis. Its core measurement principle relies on differential gas analysis across a calibrated flow path—enabling calculation of metabolic rate (MR), respiratory exchange ratio (RER), evaporative water loss (EWL), and thermoregulatory indices via stoichiometric equations derived from Weir (1949) and subsequent refinements. Designed explicitly for mobility without compromising metrological integrity, the system operates autonomously in remote ecological settings, animal housing facilities, clinical exercise labs, and agricultural field trials—supporting both steady-state and dynamic metabolic profiling under ecologically or physiologically relevant conditions.

Key Features

• Ruggedized portable enclosure (35 × 30 × 15 cm, 4 kg) with integrated carry handle and IP54-rated ingress protection for dust/moisture resistance in variable outdoor environments
• Self-contained data acquisition: 32 GB removable SD card enables continuous logging without external computing hardware; sampling intervals configurable from 0.1 s to 1 hour
• Real-time environmental compensation: Onboard temperature and barometric pressure sensors automatically correct gas concentration readings per ISO 8573-1 and ASTM D6245 standards
• Modular analog I/O architecture: Eight bipolar voltage inputs accommodate third-party analyzers (e.g., NOₓ, CH₄, NH₃), flowmeters, or behavioral sensors; four dedicated thermistor inputs support simultaneous chamber/ambient/animal surface temperature monitoring
• High-resolution capacitive touchscreen interface: Simultaneously displays VO₂, VCO₂, VH₂O, atmospheric pressure, relative humidity, analog channel traces, storage status, flow rate, and timestamped acquisition metadata
• Dual power architecture: Operates via 12–15 VDC input (with universal AC adapter) or optional 4.8 Ah lithium-ion battery pack—validated for ≥6 hours of continuous operation at 500 mL/min flow and full sensor activation
• SableBus-compatible digital backbone: Enables synchronization with auxiliary modules (e.g., whole-body plethysmographs, treadmill controllers, LED photostimulation units) for closed-loop experimental paradigms

Sample Compatibility & Compliance

The FMS Portable supports metabolic assessment across taxonomic and ontogenetic scales—from insects (Drosophila melanogaster, Aedes aegypti) and neonatal rodents to adult livestock (cattle, sheep, poultry) and human subjects in ambulatory or semi-restricted protocols. Its flexible flow range (10–1500 mL/min) and low dead volume design minimize washout time and enhance temporal resolution during transient physiological events (e.g., post-exercise recovery, hypoxic challenge, feeding response). The system conforms to GLP-aligned data integrity requirements: all raw sensor voltages, compensated concentrations, and derived metabolic parameters are timestamped and stored with audit-trail metadata. While not FDA-cleared as a medical device, its architecture satisfies key elements of 21 CFR Part 11 for electronic records when deployed in non-clinical research governed by NIH, USDA, or NSF guidelines. Calibration traceability follows NIST-traceable gas standards (e.g., certified O₂/N₂ blends, CO₂-in-air mixtures), and routine verification aligns with ISO 17025-accredited laboratory practices.

Software & Data Management

Data acquisition and preliminary analysis are managed through Sable Systems’ ExpeData v3.x software suite (Windows-compatible), which provides real-time visualization, automated baseline correction, and batch processing of respirometric time-series. Raw .dat files retain native 16-bit ADC resolution and are exportable in CSV, MATLAB (.mat), or HDF5 formats for downstream statistical modeling (R, Python, Prism). The system supports programmable trigger logic via TTL outputs—enabling event-synchronized recording (e.g., stimulus onset, locomotor bout initiation). For longitudinal studies, ExpeData’s cohort management module enforces consistent annotation of subject ID, treatment group, ambient conditions, and chamber configuration—facilitating reproducible meta-analyses across multi-site collaborations. All calibration logs, sensor replacement dates, and firmware revision histories are embedded in file headers, ensuring full traceability per FAIR (Findable, Accessible, Interoperable, Reusable) data principles.

Applications

• Wildlife & Ecophysiology: Field-based assessment of thermal neutral zones, climate adaptation thresholds, and energy budgets in free-ranging or semi-captive species—including fossorial mammals, migratory birds, and ectothermic reptiles under natural photoperiod and humidity regimes
• Translational Biomedicine: Longitudinal tracking of metabolic dysfunction in rodent models of obesity, type 2 diabetes, cardiovascular remodeling, and aging—integrated with telemetry, activity monitoring, and dietary intervention protocols
• Agricultural Science: Quantification of enteric methane (CH₄) precursors via RER modulation, feed efficiency ratios, and heat stress indices in ruminants and monogastric livestock under tropical or temperate husbandry systems
• Human Exercise Physiology: Mobile measurement of substrate utilization, mechanical efficiency, and ventilatory thresholds during graded cycling, treadmill walking, or simulated occupational tasks—particularly in pregnancy, rehabilitation, or extreme-environment scenarios (e.g., high-altitude acclimatization)
• Toxicology & Environmental Health: Detection of sublethal metabolic perturbations following exposure to endocrine disruptors, heavy metals, or combustion residues—as demonstrated in avian, chelonian, and murine models cited in peer-reviewed literature

FAQ

Is the FMS Portable suitable for long-term unattended field deployments?
Yes—the system’s sealed electronics, wide operating temperature range (3–50 °C), and dual-power capability (AC/battery) enable stable operation for up to 72 hours when paired with an external 12 V deep-cycle battery and passive flow control.
Can the O₂ and CO₂ sensors be recalibrated in situ?
Fuel cell O₂ sensors require zero/span calibration using certified gases (N₂ and 20.9% O₂ in N₂); NDIR CO₂ sensors support automatic baseline drift correction but require periodic span verification with 1–3% CO₂ standard gas.
What level of technical support is provided for method development?
FMS distributors offer application-specific protocol consulting—including chamber design validation, flow optimization for target species, and integration with custom behavioral apparatus—backed by Sable Systems’ global engineering team.
Does the system comply with regulatory requirements for Good Laboratory Practice (GLP)?
While not certified for regulated GLP studies, its data structure, audit logging, and calibration documentation meet foundational GLP criteria for non-regulated academic and industrial research governed by institutional biosafety and animal care committees.
How is data security handled during multi-user institutional deployment?
ExpeData supports role-based access control, encrypted project archives, and networked backup to institutional NAS infrastructure—ensuring compliance with GDPR and HIPAA-compliant data handling policies where applicable.
