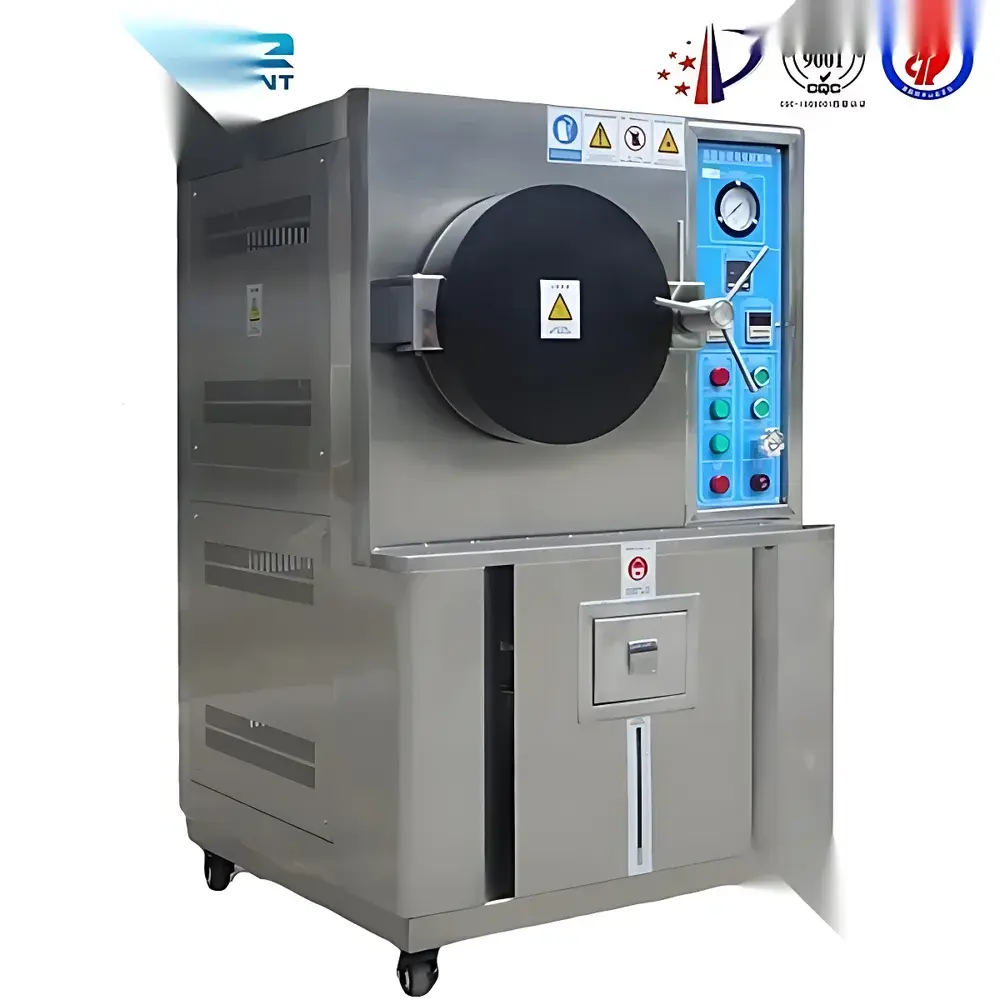

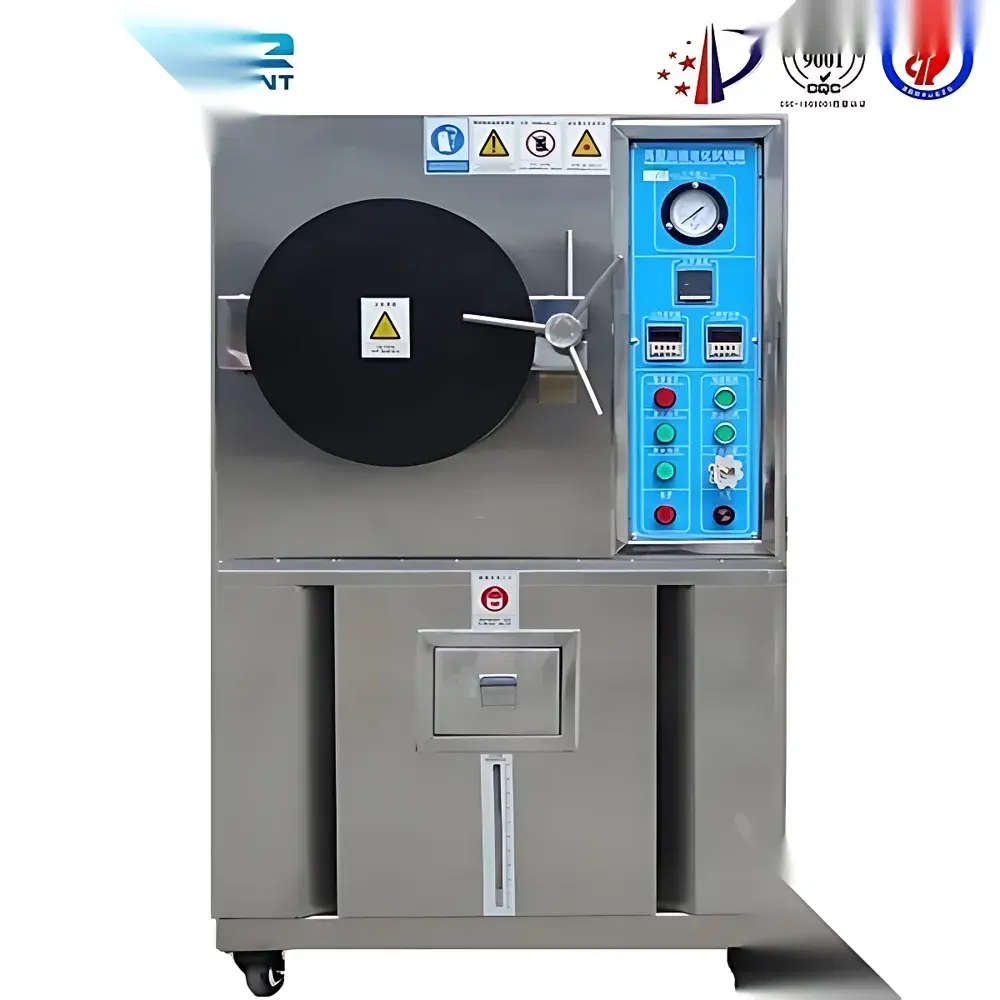

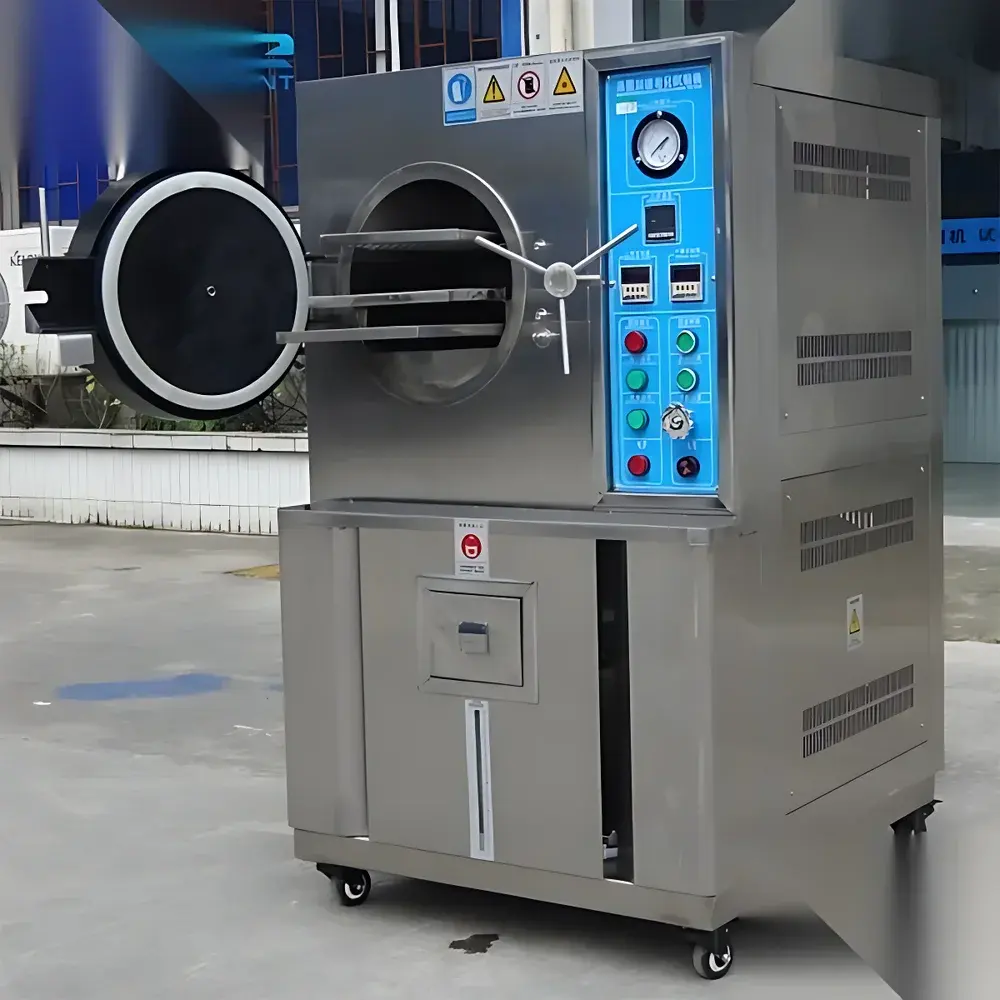

Foyong HAST Accelerated Aging Test Chamber

Overview

The Foyong HAST Accelerated Aging Test Chamber is an engineered environmental stress test system designed for highly accelerated stress testing (HAST) of electronic components, PCB assemblies, semiconductor packages, and encapsulated devices under elevated temperature, humidity, and pressure conditions. Operating on the principle of saturated steam pressurization—where ambient air is displaced by pure water vapor within a sealed chamber—the system achieves accelerated moisture ingress without condensation, enabling failure mechanisms such as corrosion, delamination, and intermetallic growth to manifest in hours rather than weeks or months. Unlike traditional damp heat testing (e.g., 85°C/85% RH), HAST applies controlled overpressure (up to 2.5 kg/cm²) to raise the dew point and sustain 100% RH at temperatures up to 125°C, significantly reducing test duration while maintaining thermodynamic equivalence to real-world field stresses. This chamber meets the core physical requirements for JEDEC JESD22-A110 and A118 qualification protocols, and serves as a critical tool for reliability engineers conducting qualification, lot acceptance, and process validation per IEC 60749-28 and IPC-9708 standards.

Key Features

• Hermetically sealed stainless-steel inner chamber (Φ240 × 440 mm) rated for continuous operation at 3.5 kg/cm² burst pressure, ensuring long-term structural integrity under repeated pressurization cycles.
• Microprocessor-based PID control system with high-resolution LED timer (000–999 hr) and real-time monitoring of temperature, humidity, and pressure—all displayed simultaneously with 0.1°C resolution and ±0.5°C uniformity.
• Integrated automatic water filtration and replenishment system compatible with municipal tap water—eliminating dependency on deionized or distilled water supplies and reducing operational cost and logistical overhead.
• Energy-optimized thermal management architecture incorporating R404A refrigerant and Taikang hermetic compressors, delivering >30% lower power consumption versus legacy HAST systems while maintaining noise levels below 60 dB(A).
• Saturated steam generation via electric heating elements with closed-loop distilled water recovery—minimizing water consumption and eliminating external drainage requirements during extended unattended runs.
• Programmable pressurization profile: reaches 1.04 kg/cm² (equivalent to 121°C/100% RH saturation pressure) in ≤45 minutes with pressure stability maintained at ±0.02 kg/cm² throughout test duration.

Sample Compatibility & Compliance

The chamber accommodates standard JEDEC trays, waffle packs, and bare-die carriers without modification. Its vertical orientation and optimized internal geometry support uniform steam distribution via natural convection—validated per ISO/IEC 17025 calibration procedures for temperature and humidity homogeneity. All electrical and mechanical subsystems comply with IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emissions). The control firmware supports audit-ready data logging with timestamped records of setpoints, actual values, alarms, and system status—fully traceable for GLP/GMP environments. While not pre-certified to FDA 21 CFR Part 11, the system’s architecture permits integration with validated electronic signature and audit trail modules upon customer request.

Software & Data Management

The embedded controller provides non-volatile memory for up to 100 user-defined test programs, each supporting multi-step sequences with independent ramp/soak profiles for temperature, pressure, and hold time. Data output is available via RS-485 interface (Modbus RTU protocol) for integration into centralized MES or LIMS platforms. Optional PC-based software enables remote monitoring, real-time graphing, CSV export, and automated report generation—including compliance summaries against GB/T 2423 series and JEDEC-referenced pass/fail thresholds. Firmware supports multilingual UI localization (English, Japanese, Korean, Simplified Chinese) without hardware modification.

Applications

This HAST chamber is routinely deployed in semiconductor front-end and back-end manufacturing for package-level reliability screening—including QFN, BGA, WLCSP, and molded discrete devices. It supports failure analysis labs performing root-cause correlation between HAST-induced defects (e.g., wire bond lift, mold compound blistering, solder mask degradation) and field return data. Additional use cases include qualification of conformal coatings, automotive ECUs subjected to under-hood thermal cycling, medical device PCBs requiring ISO 13485-compliant accelerated aging, and aerospace-grade connectors evaluated per MIL-STD-883 Method 1030. Its ability to operate continuously—enabled by auto-replenishment and thermal load balancing—makes it suitable for 7×24 qualification campaigns requiring minimal operator intervention.

FAQ

What standards does this HAST chamber meet?

It complies with GB/T 2423.1–1989 (cold), GB/T 2423.2–1989 (dry heat), and GB/T 2423.3–1993 (damp heat), and satisfies the physical parameter envelope required by JEDEC JESD22-A110 (unbiased HAST) and JESD22-A118 (biased HAST).

Can the chamber operate without distilled water?

Yes—the integrated filtration system allows direct connection to potable tap water; no external deionization or distillation is required.

Is pressure calibration traceable to national standards?

Pressure transducers are factory-calibrated using NIST-traceable deadweight testers; full calibration certificates are provided with each unit.

What is the maximum continuous run time?

Unlimited—system design supports uninterrupted operation for >999 hours via auto-refill, thermal management redundancy, and fail-safe pressure relief.

Does the controller support data export for regulatory submission?

Yes—raw sensor logs (CSV) and summary reports (PDF) include full metadata (operator ID, test ID, timestamps, deviations), meeting documentation requirements for ISO 9001 and IATF 16949 audits.
