FPC Flexible Circuit Board Peel Strength Tester – Yuelian YL-1209 Universal Electronic Testing Machine

Overview

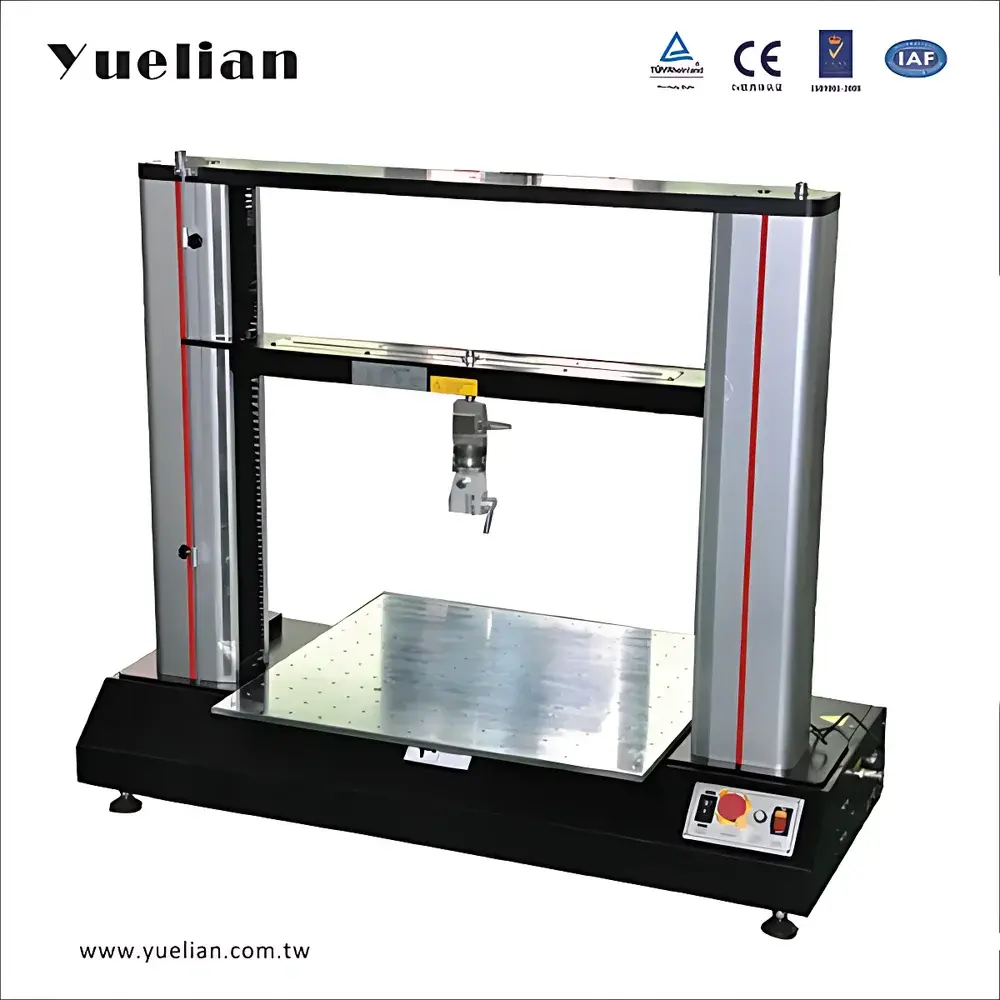

The Yuelian YL-1209 FPC Flexible Circuit Board Peel Strength Tester is a precision-engineered electromechanical universal testing machine designed specifically for mechanical characterization of thin-film electronic interconnects and flexible printed circuitry. It operates on the principle of controlled uniaxial force application under programmable displacement or load control, enabling quantitative measurement of interfacial adhesion strength via standardized peel geometries—including 180°, 90°, and T-peel configurations—as well as tensile shear, cleavage, and elongation-to-failure tests. Its architecture integrates a high-resolution servo motor drive system, precision preloaded ball screw transmission, and real-time digital signal acquisition to ensure repeatability and traceability in low-force, high-sensitivity applications typical of microelectronics packaging and PCB assembly validation.

Key Features

• Modular fixture interface supporting rapid interchange of peel jigs (180°, 90°, T-peel), tensile grips, shear fixtures, and cleavage tools—enabling multi-mode mechanical evaluation on a single platform.
• High-fidelity force transduction with ±0.3% accuracy and 1/500,000 internal resolution, calibrated per ISO 7500-1 Class 0.5 requirements for low-load (<5 kN) static testing.
• Programmable crosshead speed from 0.5 to 500 mm/min, adjustable in 0.1 mm/min increments, optimized for both quasi-static peel kinetics and dynamic response profiling.
• Integrated PC-based control system with USB interface, offering real-time force-displacement curve visualization, automatic peak detection, and post-test parameter extraction (e.g., average peel force, maximum load, elongation at break, yield point).
• Dual-range load cell compatibility allows seamless switching between high-sensitivity (e.g., 10–100 N) and high-capacity (1–5 kN) measurement domains without recalibration.
• Safety-critical hardware interlocks: overload cutoff, emergency stop, specimen rupture auto-stop, travel limit switches, and automatic return-to-initial-position function.

Sample Compatibility & Compliance

The YL-1209 is validated for use with polyimide-based FPC substrates, copper-clad laminates, solder mask films, anisotropic conductive films (ACF), thermosetting adhesives, and encapsulation resins used in consumer electronics, automotive infotainment modules, and medical wearable sensors. Fixture geometry conforms to ASTM D903 (peel adhesion), ISO 8510-2 (T-peel), and JIS C 5012 (flexible printed wiring board testing). System-level compliance includes ISO/IEC 17025 traceability support through documented calibration records, audit-ready test reports with timestamped metadata, and alignment with GLP documentation practices for R&D labs and QC environments.

Software & Data Management

The proprietary Windows-based software suite supports MS Access relational database integration, enabling structured storage of test parameters, operator IDs, environmental conditions (optional sensor input), and raw time-series data. Each test generates a compliant report with embedded force–displacement curves, statistical summaries (mean, SD, CV%), and customizable pass/fail thresholds. Audit trail functionality logs all user actions—including method edits, calibration events, and result modifications—with timestamps and operator credentials. Export formats include CSV, PDF, and XML for LIMS integration; optional 21 CFR Part 11 compliance packages provide electronic signature support and role-based access control.

Applications

• Quantitative peel strength assessment of coverlay-to-copper and solder mask-to-substrate interfaces in multilayer FPC fabrication.
• Evaluation of adhesive bond integrity in chip-on-flex (COF) and tape-automated bonding (TAB) assemblies.
• Shear strength validation of anisotropic conductive paste (ACP) joints under thermal cycling preconditioning.
• Mechanical screening of flexible hybrid electronics (FHE) substrates during qualification of roll-to-roll lamination processes.
• Comparative analysis of aging effects on acrylic, epoxy, and silicone-based pressure-sensitive adhesives used in wearable device mounting.
• Support for IPC-TM-650 2.4.9, MIL-STD-202 Method 212, and JEDEC JESD22-B108 test protocols in reliability engineering workflows.

FAQ

What peel angles does the YL-1209 support out-of-the-box?

Standard configurations include dedicated fixtures for 180°, 90°, and T-peel geometries per ASTM D903 and ISO 8510-2. Custom angular fixtures (e.g., 45°) are available upon request.
Is the system compatible with third-party LIMS or ERP platforms?

Yes—CSV and XML export modes enable direct ingestion into enterprise systems; optional API integration kits support RESTful data push to cloud-hosted QA databases.
Can the software generate GLP-compliant audit trails?

The base software logs all critical events with user ID, timestamp, and action type. Full 21 CFR Part 11 compliance requires the optional Electronic Signature Module with biometric or PKI authentication.
What maintenance intervals are recommended for long-term accuracy?

Annual force calibration against NIST-traceable standards is advised; quarterly verification using certified reference load cells ensures ongoing ISO 7500-1 Class 0.5 conformance.
Does the system meet CE or UKCA marking requirements?

The YL-1209 complies with EN 61000-6-2 (EMC immunity) and EN 61000-6-4 (EMC emission) standards. CE declaration is provided with shipment; UKCA marking requires additional UK-based notified body assessment.
