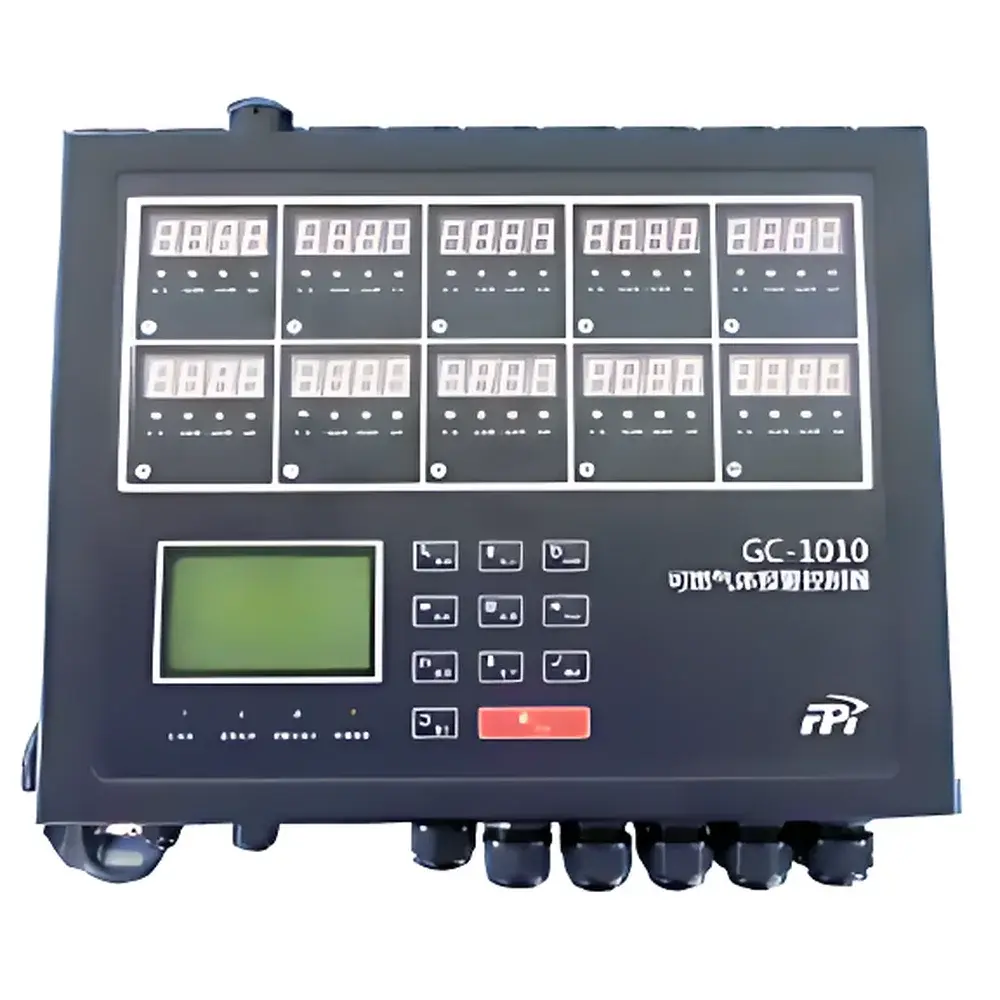

FPI GC-1010-AA/AE 10-Channel Gas Detection Alarm Controller

Overview

The FPI GC-1010-AA/AE is a wall-mounted, 10-channel gas detection alarm controller engineered for continuous monitoring and safety-critical response in industrial process environments. It serves as a centralized interface for powering, acquiring, processing, and transmitting signals from up to ten 2-wire or 3-wire electrochemical, catalytic bead, infrared, or semiconductor-based toxic and combustible gas detectors. Built upon a deterministic real-time acquisition architecture, the controller performs synchronized sampling across all channels at configurable intervals—ensuring temporal coherence essential for cross-channel correlation analysis and time-stamped event reconstruction. Its design conforms to functional safety principles aligned with IEC 61508 SIL 2 requirements for safety-related systems, supporting integration into broader plant-wide safety instrumented systems (SIS) where gas hazard mitigation is mandated by process safety management (PSM) protocols.

Key Features

• 10-channel integrated architecture with independent signal conditioning per channel—supporting simultaneous analog input scaling, linearization, and cold-junction compensation for thermocouple-linked auxiliary sensors (e.g., ambient temperature or humidity).
• Real-time synchronized data acquisition with sub-100 ms inter-channel timing skew, enabling precise leak source triangulation when deployed with spatially distributed detector arrays.
• Dual-mode visual indication: high-contrast monochrome LCD (128 × 64 pixels) for parameter configuration, historical trend review, and alarm log navigation; plus discrete high-luminance LEDs (≥200 mcd) for immediate channel-status feedback (normal, fault, pre-alarm, alarm).
• Intelligent voting logic engine supporting 1-out-of-2 (1oo2), 2-out-of-3 (2oo3), or custom weighted voting configurations—reducing false positives while maintaining sensitivity to genuine multi-point gas releases.
• Redundant communication pathways: isolated RS485 (Modbus RTU) for legacy DCS integration and IEEE 802.3-compliant Ethernet (10/100BASE-TX) with TCP/IP stack supporting Modbus TCP, HTTP API, and optional MQTT v3.1.1 for cloud telemetry.
• Configurable 24 V DC active output (max. 500 mA) compliant with EN 60947-5-1, suitable for triggering external sounders, strobes, solenoid valves, or ventilation dampers per local fire code or process shutdown sequences.

Sample Compatibility & Compliance

The GC-1010-AA/AE interfaces exclusively with certified industrial gas detectors conforming to GB/T 50493–2019 (Chinese Design Standard for Gas Detection and Alarm Systems in Petrochemical Enterprises) and compatible with international equivalents including EN 45544-1 (toxic gas detectors) and EN 50194-1 (combustible gas detectors). It supports 4–20 mA current loop inputs with HART transparency, permitting diagnostics and configuration via handheld communicators. All firmware and hardware design comply with EMC Directive 2014/30/EU (EN 61326-1), Low Voltage Directive 2014/35/EU (EN 61000-6-2/-4), and RoHS 2011/65/EU. For hazardous area deployments, it is rated for use in non-classified zones only; field devices must carry appropriate ATEX/IECEx certifications (e.g., II 2G Ex d IIC T6 Gb).

Software & Data Management

Configuration and diagnostics are performed via embedded web server (HTTPS-enabled) or FPI’s PC-based GasGuardian™ Engineering Software (v4.2+), which provides role-based access control (RBAC), audit trail logging per ISO/IEC 17025:2017 Annex A.2, and electronic signature support compliant with FDA 21 CFR Part 11 for regulated industries. Historical data—including channel readings, alarm events, system faults, and configuration changes—is stored in non-volatile memory (≥30 days at 1-minute resolution) and exportable in CSV or XML formats. Optional secure remote access via TLS 1.2 tunnel enables off-site monitoring without compromising network segmentation integrity.

Applications

This controller is deployed in refineries, chemical manufacturing plants, LNG terminals, wastewater treatment facilities, and semiconductor fabrication cleanrooms—where continuous, auditable monitoring of H₂S, CO, Cl₂, NH₃, CH₄, H₂, and VOCs is required for personnel protection, environmental compliance (e.g., EPA Method 21), and process integrity assurance. Its voting logic and synchronized acquisition make it particularly suited for confined space entry permit systems, flare gas monitoring, and vapor recovery unit (VRU) supervision where correlated multi-sensor validation is mandated.

FAQ

Does the GC-1010-AA/AE support HART communication with connected transmitters?
Yes—it maintains full HART transparency on all 4–20 mA inputs, allowing simultaneous analog signal acquisition and digital device configuration/diagnosis using standard HART modems.
Can alarm thresholds be configured independently per channel?
Yes—each channel supports user-defined low, high, and maintenance warning setpoints with hysteresis adjustment and delay timers to suppress transient spikes.
Is firmware upgrade performed locally or remotely?
Both options are supported: via USB flash drive (local) or over Ethernet using signed firmware packages authenticated via SHA-256 and RSA-2048 signatures.
What is the maximum cable length supported for RS485 communication?
Up to 1,200 meters at 9.6 kbps with proper twisted-pair cabling and termination; distance decreases with higher baud rates per TIA/EIA-485-A specifications.
Does the controller provide built-in surge protection?
Yes—each analog input channel includes integrated transient voltage suppression (TVS) diodes rated to IEC 61000-4-5 Level 3 (2 kV line-to-ground, 1 kV line-to-line).
