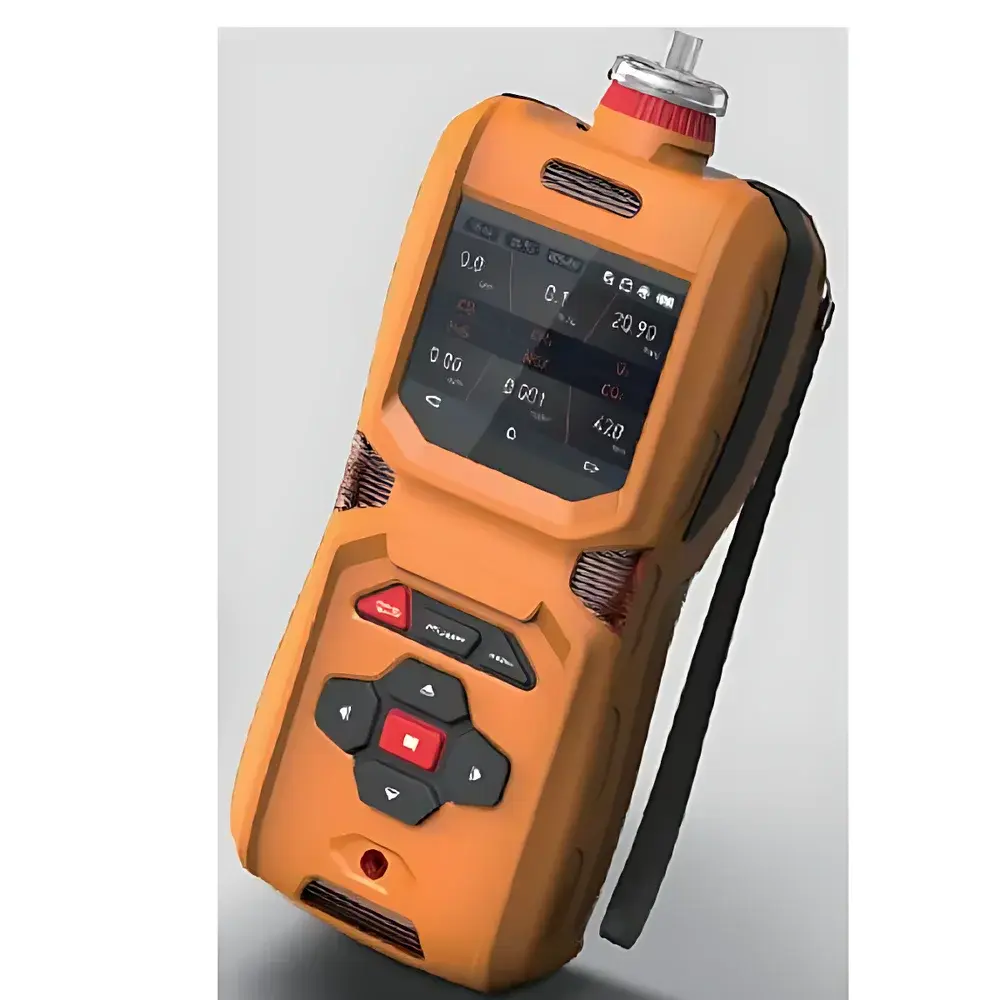

FS-200 Multi-Gas Detector

Overview

The FS-200 Multi-Gas Detector is an intrinsically safe, portable ambient air quality monitor engineered for real-time, simultaneous detection of up to five target gases—including hydrogen (H₂), ammonia (NH₃), and sulfur hexafluoride (SF₆)—alongside integrated temperature and relative humidity measurement. Built on a modular sensor architecture, the instrument employs electrochemical (for H₂ and NH₃), non-dispersive infrared (NDIR, optional for SF₆), and catalytic bead (for combustible gas) sensing principles—each selected per IEC 60079-29-1 and EN 45544-1 compliance requirements. Its core design targets field deployment in high-risk industrial environments where rapid, reliable gas hazard assessment is critical to personnel safety and regulatory adherence. The FS-200 operates across extreme ambient conditions (−40 °C to +70 °C; 0–99% RH), with internal particulate and moisture filtration enabling stable performance in high-dust or saturated-humidity settings typical of refinery perimeters, pharmaceutical cleanroom exhaust ducts, and municipal wastewater treatment facilities.

Key Features

• Intrinsically safe construction certified to Ex d IIC T6 Gb (IEC 60079-1) and IP66-rated enclosure for protection against dust ingress, rain, and water splashes
• Integrated sampling pump with adjustable flow rate of 500 mL/min, supporting both diffusion and active draw configurations
• 2.5-inch 320 × 240 high-resolution color LCD display with eight tactile navigation keys and dual-language UI (English/Chinese)
• Multi-mode alarm system: audible (≥85 dB at 30 cm), visual (high-brightness LED strobe), and haptic vibration—configurable per gas channel and severity threshold
• Rechargeable 3.6 VDC / 5000 mAh lithium polymer battery with embedded protection circuitry (overcharge, over-discharge, overvoltage, overtemperature, short-circuit)
• Onboard data logging: standard 100,000-point memory with user-defined storage intervals (1 s to 24 h); export via USB or RS232 to PC using included free PC software
• Optional accessories include high-temperature sampling probe (up to 800 °C flue gas), heated humidity/dust filter modules, and wireless infrared thermal printer

Sample Compatibility & Compliance

The FS-200 is validated for continuous monitoring of ambient air, process vent streams, and confined-space atmospheres. Sensor cross-sensitivity profiles are documented per ISO 16000-23 and ASTM D6196 for interference rejection under multi-component gas matrices. All electrochemical sensors meet EN 50104 (oxygen) and EN 50191 (toxic gases) specifications. Optional NDIR-based SF₆ modules comply with IEC 62453-3-2 for sub-ppm trace detection in electrical switchgear maintenance. Device firmware supports audit-ready operation per GLP/GMP requirements, including time-stamped event logs, user-access control, and tamper-evident calibration records. Calibration verification intervals align with OSHA 1910.120 and EU Directive 2014/68/EU (PED) recommendations.

Software & Data Management

The bundled PC software enables full configuration, real-time telemetry viewing, historical trend analysis, and report generation in PDF/CSV formats. It supports FDA 21 CFR Part 11-compliant electronic signatures when used with domain-authenticated Windows environments. Data files include metadata such as sensor serial numbers, calibration dates, environmental conditions (T/RH), and alarm activation timestamps. Firmware updates are delivered via signed USB packages with SHA-256 hash verification. Remote diagnostics and sensor health monitoring are accessible through optional Bluetooth-enabled gateway modules (not included).

Applications

• Petrochemical refineries: leak detection of H₂ in reformer units and NH₃ in amine scrubbers
• Power generation: SF₆ purity monitoring in GIS substations and transformer fault gas screening
• Pharmaceutical manufacturing: ambient NH₃ tracking near sterilization tunnels and HVAC return ducts
• Municipal infrastructure: H₂ monitoring in biogas collection systems and sewer headspaces
• Environmental remediation: post-excavation soil vapor intrusion surveys for volatile inorganic compounds
• Industrial hygiene: personal exposure assessment during maintenance of cryogenic hydrogen storage vessels

FAQ

What is the recommended calibration frequency for the FS-200?

Calibration is advised before each day’s use for critical safety applications, or at least once per 30 days for routine monitoring. Bump testing with certified span gas is required prior to entry into any potentially hazardous atmosphere.
Can the FS-200 be used for continuous unattended monitoring?

Yes—when powered externally (via USB-C DC input) and mounted with optional wall bracket, it supports 24/7 operation with automatic data upload via RS232-to-Ethernet converter (sold separately).
Does the device support third-party gas sensor modules?

No. Only factory-calibrated, serialized sensors supplied by the authorized Italian manufacturer are supported to maintain metrological traceability and explosion-proof integrity.
How is sensor lifetime defined and verified?

Electrochemical sensors are rated for 2–3 years (H₂/NH₃) or 2/6-year selectable options (O₂); NDIR sensors exhibit 5–10-year operational life. End-of-life is determined automatically via signal drift analysis and reported in the system status menu.
Is the FS-200 compliant with EPA Method TO-15 or ISO 16017-1?

While not a certified reference method analyzer, the FS-200 meets the performance criteria for screening-level measurements outlined in EPA SW-846 Chapter 9 and ISO 16017-1 Annex A for preliminary site assessment and hazard identification.
