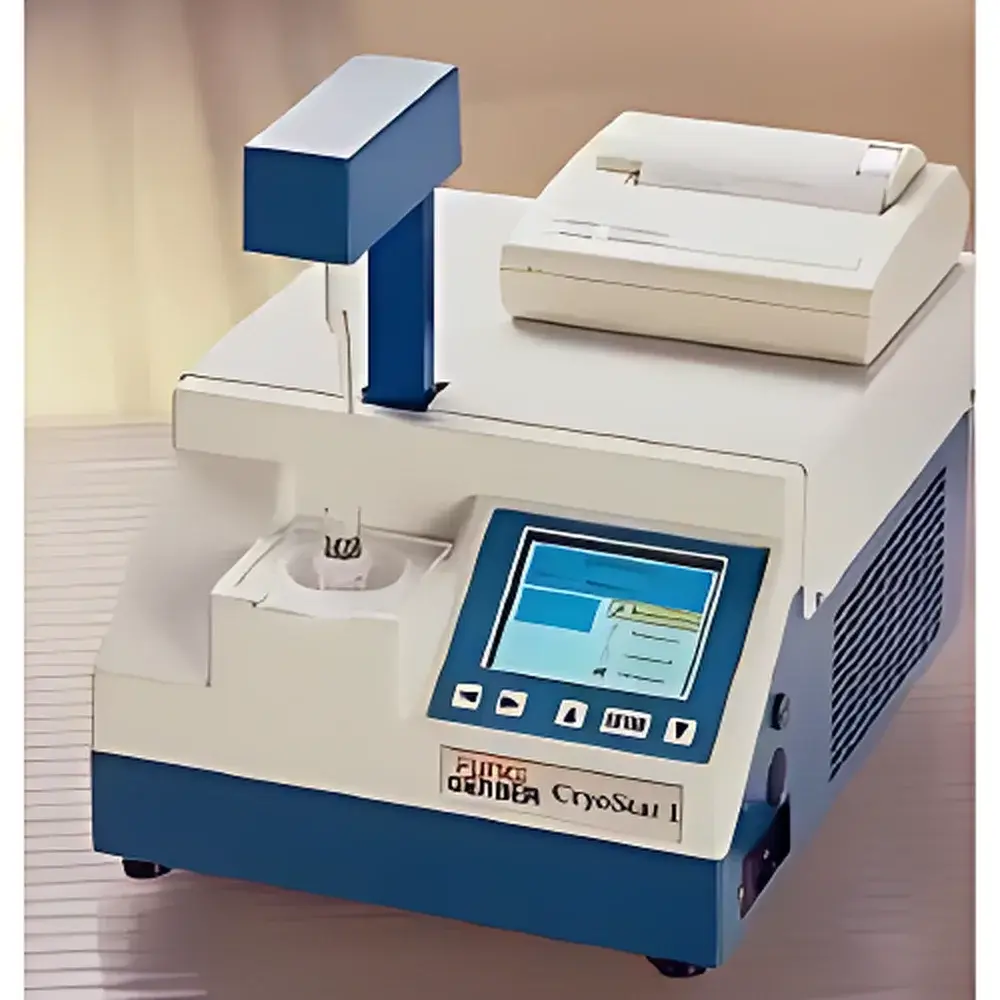

Funke Gerber CRYOSTAR I Milk Cryoscope

Overview

The Funke Gerber CRYOSTAR I Milk Cryoscope is a precision laboratory instrument engineered for the accurate determination of milk freezing point depression—a thermodynamic parameter directly correlated with milk adulteration by water addition. Based on colligative property principles, the instrument measures the temperature at which a milk sample transitions from liquid to solid phase under controlled supercooling and nucleation conditions. Pure water freezes at 0.000 °C; however, dissolved solutes—including lactose, minerals, and salts—lower the freezing point of bovine milk to an average of –0.530 °C. Each 1% volumetric dilution with water elevates the measured freezing point by approximately +0.0053 °C. The CRYOSTAR I detects this shift with high thermal resolution and computes the corresponding water adulteration percentage using a validated algorithm aligned with ISO 5764:2022 and IDF 102:2017 standards for milk cryoscopy.

Key Features

• High-resolution platinum resistance thermometer (PRT) probe with 0.0001 °C digital resolution and active thermal stabilization during nucleation detection
• Dedicated Peltier-based cooling system enabling rapid thermal equilibration and consistent sub-zero ramping (–1.500 °C minimum)
• Automated nucleation triggering and ice-point recognition via real-time thermal derivative analysis (dT/dt), minimizing operator dependency
• Integrated thermal calibration verification using dual-point reference standards (Calibration Fluid A and B) traceable to NIST-certified reference materials
• Robust mechanical architecture with vibration-damped sample chamber and sealed optical path to prevent condensation interference
• Low-power DC auxiliary supply (12 V) supporting field-deployable operation in mobile dairy testing units or remote collection centers

Sample Compatibility & Compliance

The CRYOSTAR I is validated for raw, pasteurized, and standardized bovine milk, including samples with fat content ranging from 0.5% to 6.0% and total solids between 11.5% and 14.5%. It accommodates minor variations in somatic cell count and bacterial load without compromising measurement integrity, provided samples are homogenized and free of visible particulates or coagulated casein. All measurements comply with statutory requirements under EU Regulation (EC) No 853/2004, Codex Alimentarius Standard CXS 206–1999, and national dairy quality ordinances mandating freezing point testing for authenticity verification. Instrument firmware supports audit-ready data logging per GLP/GMP guidelines, including timestamped calibration events, user authentication logs, and raw thermal curve export.

Software & Data Management

The included Windows-compatible software provides full instrument control, automated report generation (PDF/CSV), and compliance-ready data archiving. Raw thermograms are stored with metadata (operator ID, sample ID, calibration status, ambient temperature, humidity). The software implements electronic signature functionality compliant with FDA 21 CFR Part 11 when deployed on validated IT infrastructure. Data export supports LIMS integration via RS-232 serial protocol with configurable baud rates (9600–115200 bps) and ASCII-formatted output. Calibration history tracking includes expiration alerts for consumables (coolant, calibration fluids) and automatic lockout if recalibration intervals exceed 30 days.

Applications

• Regulatory milk quality screening at dairy intake stations and cooperative collection hubs
• Adulteration verification during raw milk procurement and supplier qualification audits
• Process validation in ultra-high-temperature (UHT) and evaporated milk production lines
• Reference method support for ISO/IEC 17025-accredited food testing laboratories
• Research applications in dairy science, including osmolality correlation studies and seasonal compositional monitoring

FAQ

What is the theoretical detection limit for water adulteration using the CRYOSTAR I?
The instrument achieves a theoretical resolution of ~0.2% v/v water addition based on its ±0.0002 °C operational repeatability and the established sensitivity coefficient of 0.0053 °C per 1% dilution.
Is routine maintenance required beyond calibration fluid replacement?
Yes—coolant replenishment every 6 months (or after 500 measurements), periodic cleaning of the PRT probe tip with ethanol, and annual verification of Peltier module efficiency are recommended per Funke Gerber Service Bulletin CR-2023-04.
Can the CRYOSTAR I be used for non-bovine milks (e.g., goat, buffalo)?
It may provide indicative results, but certified calibration curves and regulatory acceptance are only established for cow’s milk per ISO 5764. Alternative species require method validation per AOAC Official Method 991.18.
Does the instrument meet requirements for export certification documentation?
Yes—the CE marking, Declaration of Conformity (2014/30/EU EMC Directive and 2014/35/EU LVD), and factory calibration certificate (traceable to PTB Braunschweig) are supplied with each unit.
How is thermal drift compensated during extended batch runs?
The system performs auto-zero compensation before each measurement cycle using a built-in reference junction and monitors ambient thermal load via auxiliary sensors; deviations exceeding ±0.001 °C trigger a recalibration prompt.
