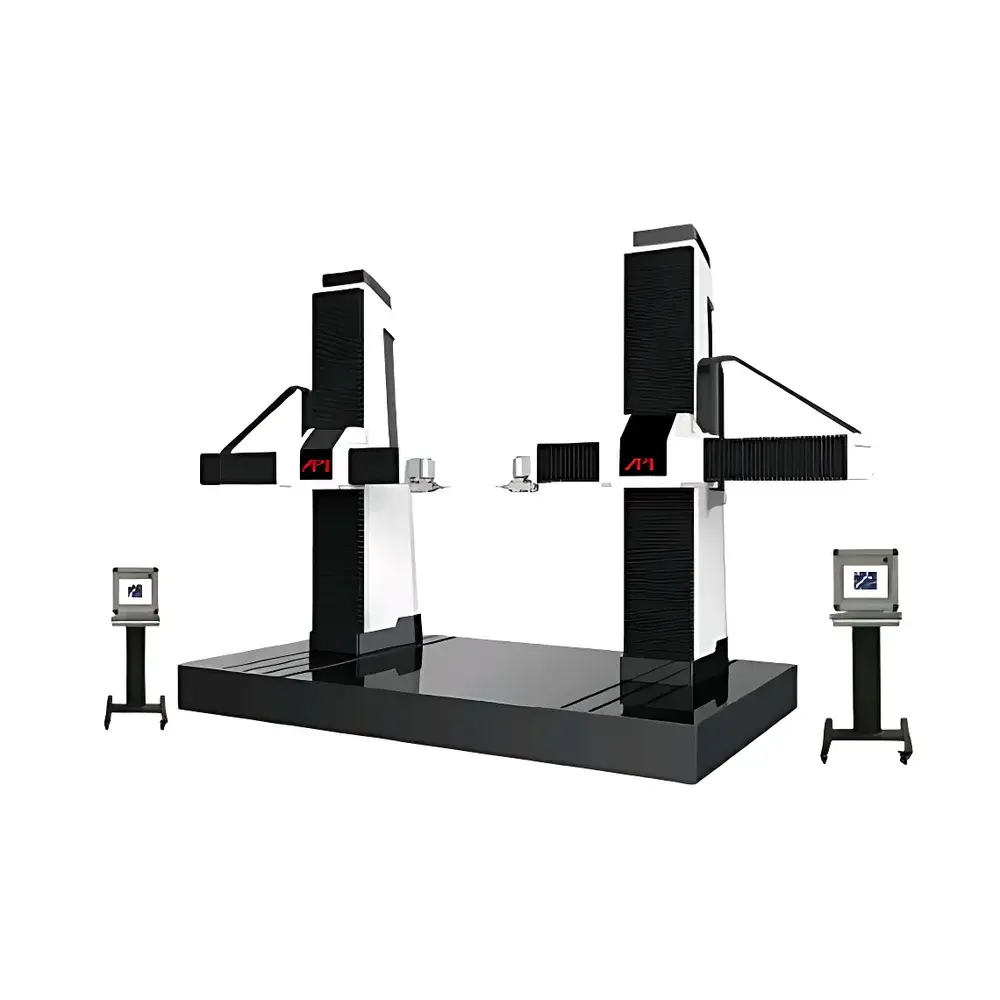

Galaxy V Oil-Clay Modeling Milling Machine

Overview

The Galaxy V Oil-Clay Modeling Milling Machine is a high-precision, fully automated 5-axis CNC milling system engineered specifically for rapid physical prototyping in automotive styling studios and industrial design centers. Unlike conventional coordinate measuring machines (CMMs), the Galaxy V functions as a metrology-integrated subtractive manufacturing platform—combining dimensional verification capability with high-fidelity sculptural machining. Its core architecture employs a rigid welded steel frame optimized for dynamic stiffness and thermal stability, minimizing vibration-induced deviation during extended contouring operations. The machine operates on a closed-loop motion control architecture with servo-driven linear axes and integrated feedback from high-resolution optical encoders. It is not a contact CMM but rather a precision sculpting system whose positional accuracy and repeatability are validated against ISO 10360-2 and VDI/VDE 2617 standards for large-volume metrological equipment.

Key Features

• Fully automatic dual-axis swiveling milling head (A/B axes) with continuous, infinitely variable angular positioning across full travel envelope—enabling complex surface machining without manual repositioning or fixture changes.
• BT-series tool interface compliant with ISO 7388-1, ensuring interchangeability with standard machining center tooling and eliminating post-reinstallation tool offset compensation.
• Integrated centralized lubrication system delivering precise oil volume at scheduled intervals to all linear guides and ball screw assemblies—extending service life and sustaining kinematic consistency over >10,000 operating hours.
• Modular control cabinet embedded within the machine base, reducing cable routing complexity and electromagnetic interference susceptibility; paired with an ergonomically designed mobile operator console featuring touchscreen HMI and real-time axis status monitoring.
• Full-enclosure dust containment structure with positive-pressure air filtration—meeting ISO 14644-1 Class 8 cleanroom compatibility requirements for clay modeling environments where particulate control is critical to surface finish integrity.

Sample Compatibility & Compliance

The Galaxy V accommodates oil-clay blocks up to 20,000 mm × 1,600 mm × 3,100 mm (L×W×H), supporting both solid clay billets and laminated composite substrates used in full-scale vehicle buck fabrication. Toolpath generation is compatible with STL, IGES, STEP AP214, and native CAD formats from major OEM styling software (e.g., Autodesk Alias, ICEM Surf, CATIA Automotive Styling). The system complies with CE machinery directive 2006/42/EC, EN 60204-1 (electrical safety), and ISO 12100 (risk assessment). For regulated design validation workflows, optional audit-trail logging and user-access controls align with GLP documentation requirements per OECD Series on Principles of Good Laboratory Practice.

Software & Data Management

Control firmware supports NC program import via RS-232, Ethernet TCP/IP, or USB 3.0, with onboard G-code interpretation conforming to ISO 6983-1. Optional Metrology Add-On Module enables on-machine probing using Renishaw PH10MQ or similar kinematic touch-trigger probes for in-process dimensional verification—outputting measurement reports in Q-DAS QDB or XML-based DMIS format. All operational logs—including axis position history, spindle load profiles, and lubrication cycle timestamps—are stored in SQLite databases with configurable retention policies. Data export adheres to ASTM E2714-18 for digital record preservation in engineering change management systems.

Applications

• Full-scale automotive exterior and interior clay modeling for concept vehicle development, including Class-A surfacing validation prior to tooling investment.
• Architectural scale model fabrication requiring tight tolerance adherence across curved façade elements and parametric geometry.
• Industrial design prototyping for consumer electronics housings, appliance panels, and ergonomic evaluation mockups.
• Educational use in transportation design programs for hands-on teaching of digital-to-physical translation workflows.
• Reverse engineering support: integration with structured-light 3D scanners for scan-to-CAD-to-machining closed-loop iteration.

FAQ

Is the Galaxy V certified for use in ISO/IEC 17025-accredited laboratories?
The Galaxy V is not a calibration artifact or reference standard; however, its mechanical performance parameters meet traceable verification criteria outlined in ISO 10360-2 when operated with certified laser interferometer validation protocols.
Can the machine perform in-process inspection without interrupting milling cycles?
Yes—when equipped with the optional probe module and compatible controller firmware, tactile probing routines can be embedded directly into G-code sequences for automatic feature verification between roughing and finishing passes.
What maintenance intervals are recommended for long-term accuracy retention?
Linear scale recalibration is advised every 12 months or after 2,000 operating hours; ball screw preload verification every 24 months; and full lubrication system filter replacement every 18 months under continuous operation.
Does the system support third-party CAM software integration?
All major CAM platforms—including Mastercam, PowerMill, and HyperMill—export compatible APT-CL or G-code output with custom post-processors available through API’s engineering support portal.
Is remote diagnostics and firmware update capability included?
Standard Ethernet connectivity enables secure remote access via TLS-encrypted VNC sessions; firmware updates are delivered as signed binary packages with SHA-256 checksum verification.
