Gangdong Zhiview Smart Fourier Transform Infrared Spectrometer

Overview

The Gangdong Zhiview Smart Fourier Transform Infrared (FTIR) Spectrometer is a compact, benchtop-grade analytical instrument engineered for precision mid-infrared spectroscopy in resource-constrained or mobile laboratory environments. Based on Michelson interferometry with a dynamically aligned moving mirror and fixed retroreflector design, the system acquires interferograms digitized at high fidelity and transforms them into absorbance/transmittance spectra using fast Fourier transformation algorithms. Its optical architecture centers on a thermoelectrically stabilized, permanently aligned aluminum optical bench—eliminating field-service alignment requirements and ensuring long-term wavenumber accuracy and photometric repeatability across extended operational cycles. Designed to meet the functional demands of regulated and academic settings alike, the Zhiview Smart delivers laboratory-grade spectral performance without the footprint or infrastructure dependency of conventional FTIR platforms.

Key Features

• Compact, Space-Efficient Design: Dimensions of 355 × 265 × 160 mm and mass of 9.6 kg enable deployment on crowded lab benches, inside fume hoods, or transport between sampling sites—ideal for quality control in manufacturing cleanrooms or field-based environmental screening.
• Monolithic Gold-Coated Corner Cube Retroreflector: Precision-machined from solid aluminum and coated with high-reflectivity gold (R > 98% across 7800–350 cm⁻¹), the corner cube eliminates adhesive-based assembly, mitigating thermal drift and mechanical hysteresis under ambient temperature fluctuations.
• 24-Bit Analog-to-Digital Conversion & Pyroelectric Detection: Paired with a low-noise, wide-dynamic-range pyroelectric detector (imported), the system achieves real-time spectral acquisition with minimal quantization error and high temporal resolution—critical for kinetic studies or rapid sample throughput.
• Integrated Humidity Mitigation System: Combines a hermetically sealed interferometer housing, desiccant status indicator window, and anti-hydrolysis KBr beam splitter (germanium-coated, moisture-resistant), extending operational uptime in high-humidity climates without routine purging.

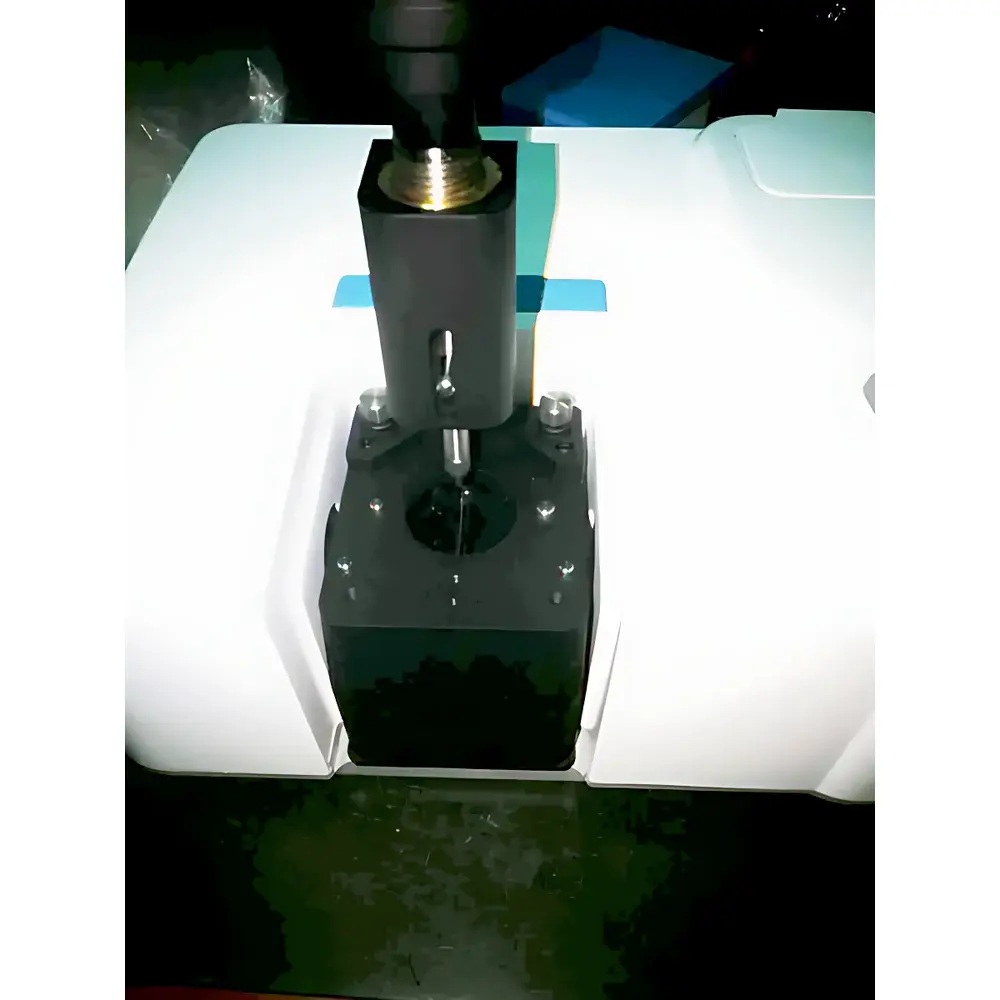

• Modular Accessory Interface: Standardized mounting rails support quick-swap integration of ATR accessories (push-fit single-reflection diamond/ZnSe), gas cells (10 cm pathlength, CaF₂ windows), liquid transmission cells (demountable, 0.1–1.0 mm spacers), and KBr pellet holders—enabling method transfer across solid, liquid, and gaseous phases.
• Regulatory-Ready Software Architecture: Embedded audit trail functionality with time-stamped, user-identified event logging; role-based access control (three-tier permissions: Admin, Operator, Reviewer); electronic signature support compliant with 21 CFR Part 11 principles for pharmaceutical and clinical labs.

Sample Compatibility & Compliance

The Zhiview Smart supports qualitative and quantitative analysis of organic and inorganic compounds across diverse matrices—including APIs, polymers, catalysts, soils, aqueous extracts, and volatile organics. Its 7800–350 cm⁻¹ spectral range covers fundamental C–H, O–H, N–H, C=O, C–O, and Si–O stretching/bending modes essential for structural elucidation per ASTM E1252, ISO 18381, and USP . The instrument meets GLP/GMP documentation requirements through traceable calibration (NIST-traceable polystyrene film validation), linearity verification (<0.1% deviation in 4400–500 cm⁻¹ region excluding atmospheric H₂O/CO₂ bands), and reproducibility testing (RSD < 0.5% for peak intensity over 10 consecutive scans). Optional IQ/OQ/PQ documentation packages are available to support full 3Q validation per ISO/IEC 17025 and FDA guidance.

Software & Data Management

Bundled with Gangdong’s proprietary IRSoft v5.x platform (Windows XP/7/10 compatible), the spectrometer provides intuitive spectral acquisition, baseline correction (Rubberband, Concave), peak search/assignment (integrated Sadtler library), multivariate analysis (PCA, PLS), and customizable report generation. All raw interferograms and processed spectra are stored in vendor-neutral .SPA format, fully readable by third-party tools including OMNIC, GRAMS/AI, and Python-based SciPy workflows. Data integrity is enforced via encrypted project files, immutable metadata embedding (instrument ID, operator, date/time, acquisition parameters), and automated backup to network drives or cloud storage endpoints.

Applications

• Pharmaceutical QC: Identification of excipients, detection of counterfeit drugs, polymorph screening, and residual solvent quantification per ICH Q2(R2).
• Polymer Characterization: Degree of crystallinity assessment, oxidation index calculation, copolymer composition analysis, and degradation monitoring.
• Environmental Monitoring: Microplastic identification in water/sediment samples, VOC profiling in air canisters, and soil organic matter fingerprinting.
• Academic Research: Teaching FTIR fundamentals, reaction monitoring, thin-film thickness estimation (using interference fringes), and surface adsorption studies via in situ ATR.
• Materials Science: Coating uniformity evaluation, catalyst surface speciation (CO probe molecule adsorption), and graphene oxide reduction tracking.

FAQ

Does the Zhiview Smart require continuous dry-air or nitrogen purging?
No—its sealed interferometer, anti-hydrolysis beam splitter, and visual desiccant indicator reduce dependence on external purge gases. Ambient operation is viable in RH ≤ 70%; for prolonged use above 75% RH, optional desiccant replacement every 6–12 months is recommended.
Is the instrument compatible with LIMS integration?
Yes—IRSoft supports ASTM E1384-compliant data export (CSV, XML) and offers a TCP/IP API for bidirectional communication with major LIMS platforms (e.g., LabWare, Thermo SampleManager, STARLIMS).
What validation documentation is provided out-of-the-box?
Each unit ships with Factory Acceptance Test (FAT) report, Certificate of Conformance, and basic IQ checklist. Full 3Q validation kits—including URS, DQ, IQ/OQ protocols, and PQ test records—are available as add-on services.
Can the software perform quantitative analysis using external calibration standards?
Yes—IRSoft includes built-in calibration curve tools supporting linear, quadratic, and multi-point PLS regression models, with LOD/LOQ estimation per CLSI EP17-A2 guidelines.
Is the ATR accessory included standard or optional?
The push-fit single-reflection diamond ATR module is offered as an optional accessory; ZnSe and Ge variants are also available for specific spectral range or durability requirements.
