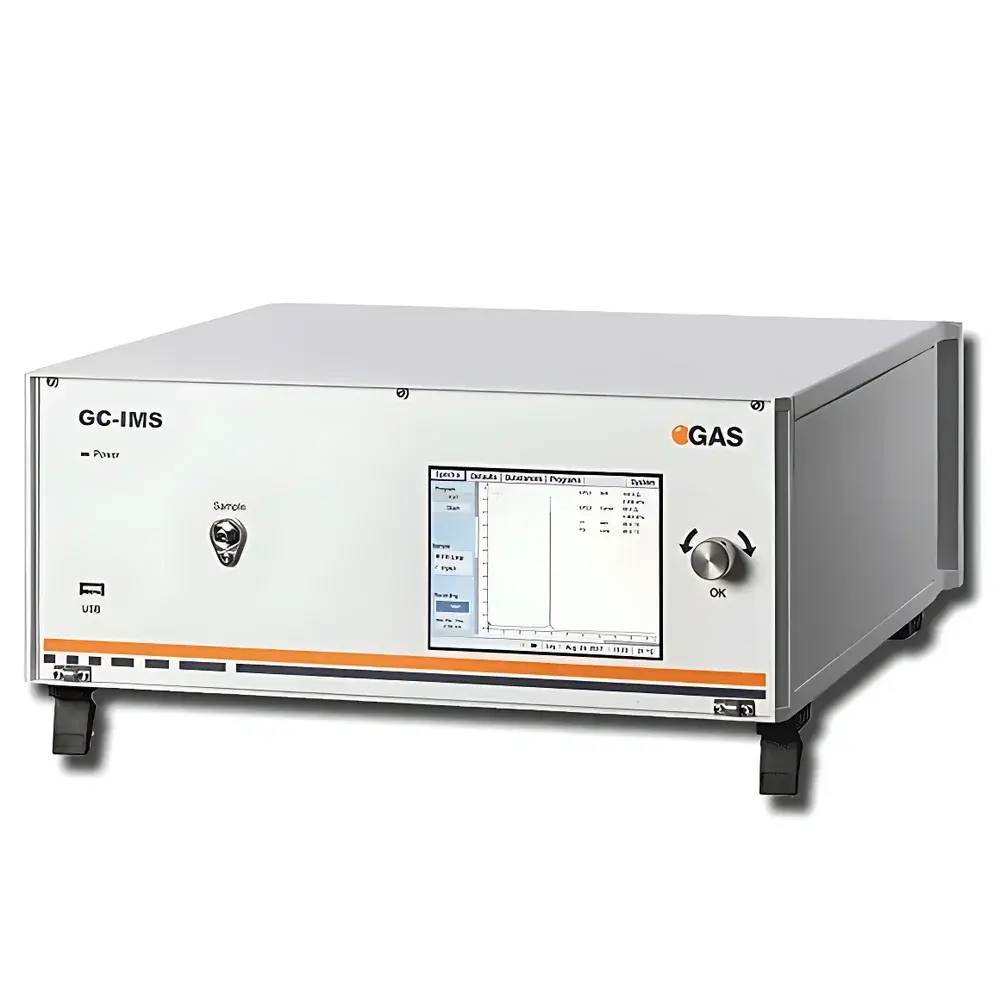

G.A.S. GC-IMS Hybrid Gas Chromatography–Ion Mobility Spectrometer

Overview

The G.A.S. GC-IMS Hybrid Gas Chromatography–Ion Mobility Spectrometer is a field-deployable analytical platform engineered for real-time, high-sensitivity detection of volatile organic compounds (VOCs) in ambient air, headspace, and process gas streams. It integrates two orthogonal separation techniques—capillary gas chromatography (GC) and drift-tube ion mobility spectrometry (IMS)—to deliver compound-specific identification and quantification without cryogenic cooling or high-vacuum infrastructure. Unlike conventional mass spectrometry-based systems, the GC-IMS operates at ambient pressure with nitrogen as the sole drift gas (or carrier-gas-free when coupled with the optional CGFU module), enabling rapid thermal equilibration (<5 min warm-up), low power consumption, and robust performance in mobile or unconditioned environments. Its core measurement principle relies on differential ion mobility: after electron ionization (EI) or photoionization (PI), ions are separated in the drift tube based on their collision cross-section (CCS) under a weak electric field, yielding mobility spectra with unit-resolved peaks. Coupled with GC retention time, this dual-dimension separation provides enhanced selectivity for structural isomers (e.g., aldehydes vs. ketones, ortho-/meta-/para-xylene) and trace-level analytes in complex matrices.

Key Features

• No vacuum system required — eliminates turbomolecular pumps, vacuum gauges, and associated maintenance
• Sub-ppbv detection limits for target VOCs (e.g., benzene, formaldehyde, siloxanes) in direct gas sampling mode
• Switchable positive/negative ionization modes for broad compound coverage including polar, nonpolar, and semi-volatile species
• Integrated automated sampling module with programmable sequence control and internal standard calibration
• Real-time concentration display with user-defined alarm thresholds; visual and audible alerts triggered upon exceedance
• Compact footprint (≤38 × 28 × 18 cm) and lightweight design (<8 kg) optimized for handheld, vehicle-mounted, or fixed-site deployment
• Carrier-gas-free operation enabled by the CGFU (Closed Gas Flow Unit), eliminating dependence on compressed gas cylinders
• Onboard temperature-controlled inlet (150 °C) and transfer line to prevent condensation of high-boiling analytes

Sample Compatibility & Compliance

The GC-IMS accepts undiluted gas-phase samples from ambient air, static headspace vials, dynamic purge-and-trap effluents, or continuous process lines. It is validated for direct analysis of aqueous and solid-phase samples via thermal desorption (e.g., Micro TD module) without pre-concentration. The system meets functional requirements for field-use compliance with ISO 16000-6 (indoor air VOC analysis), ASTM D5197 (ambient aldehyde determination), and EN 14662 (odorant monitoring). Data acquisition and storage adhere to ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available); full audit trails, electronic signatures, and user-access controls are implemented in accordance with FDA 21 CFR Part 11 for regulated environments.

Software & Data Management

The proprietary LAV (Laboratory Analysis Viewer) software provides instrument control, spectral visualization, library matching, and quantitative reporting in a single interface. Users can import or build custom IMS–GC retention time libraries for targeted screening (e.g., EPA TO-15 compounds, odorants, siloxanes). Calibration curves for up to 32 analytes are stored per method, supporting internal standard or external calibration strategies. All raw mobility spectra, chromatograms, and processed results are saved in vendor-neutral HDF5 format with embedded metadata (timestamp, operator ID, instrument configuration). Batch processing, statistical outlier detection, and PCA-based pattern recognition are available for comparative odor profiling across multiple sites or time points.

Applications

• Automotive cabin air quality monitoring: Simultaneous quantification of benzene, toluene, ethylbenzene, xylenes, styrene, acetaldehyde, and acrolein per China GB/T 27630 and EU UNECE R117
• Biogas quality assurance: Real-time detection of cyclic and linear siloxanes (D3–D6, L2–L5) at sub-ppb levels to prevent turbine fouling
• Natural gas odorant management: Quantitative tracking of THT (tetrahydrothiophene), MTBE, or mercaptans for leak detection and dosage optimization
• Wastewater treatment odor mapping: Spatial profiling of sulfides, indoles, skatoles, and short-chain fatty acids at influent/effluent points
• Industrial hygiene monitoring: On-site detection of toxic industrial chemicals (TICs) such as dimethyl sulfate (DMS), isocyanates, and geosmin in ppm–ppt range
• Drinking water off-flavor assessment: Trace-level analysis of geosmin and 2-methylisoborneol (MIB) following EPA Method 525.3 sample preparation protocols

FAQ

Does the GC-IMS require carrier gas cylinders for routine operation?

No — the optional CGFU module enables closed-loop nitrogen recirculation, eliminating dependency on external gas supplies.
Can the system quantify isomeric VOCs such as ortho-, meta-, and para-xylene?

Yes — GC separation resolves isomers by retention time, while IMS adds mobility-based discrimination, improving confidence in peak assignment.
Is method validation support available for regulatory submissions?

Yes — G.A.S. provides IQ/OQ documentation templates, linearity/ruggedness test protocols, and LOD/LOQ verification reports aligned with ICH Q2(R2) guidelines.
What is the typical analysis time for a full VOC panel in automotive cabin testing?

Under optimized conditions using Micro TD and fast GC ramping, complete analysis of seven regulated VOCs takes ≤15 minutes per sample.
How is data integrity ensured during unattended field deployments?

All acquisitions include digital signatures, immutable timestamps, and checksum-verified HDF5 archives compliant with 21 CFR Part 11 Annex 11 requirements.
