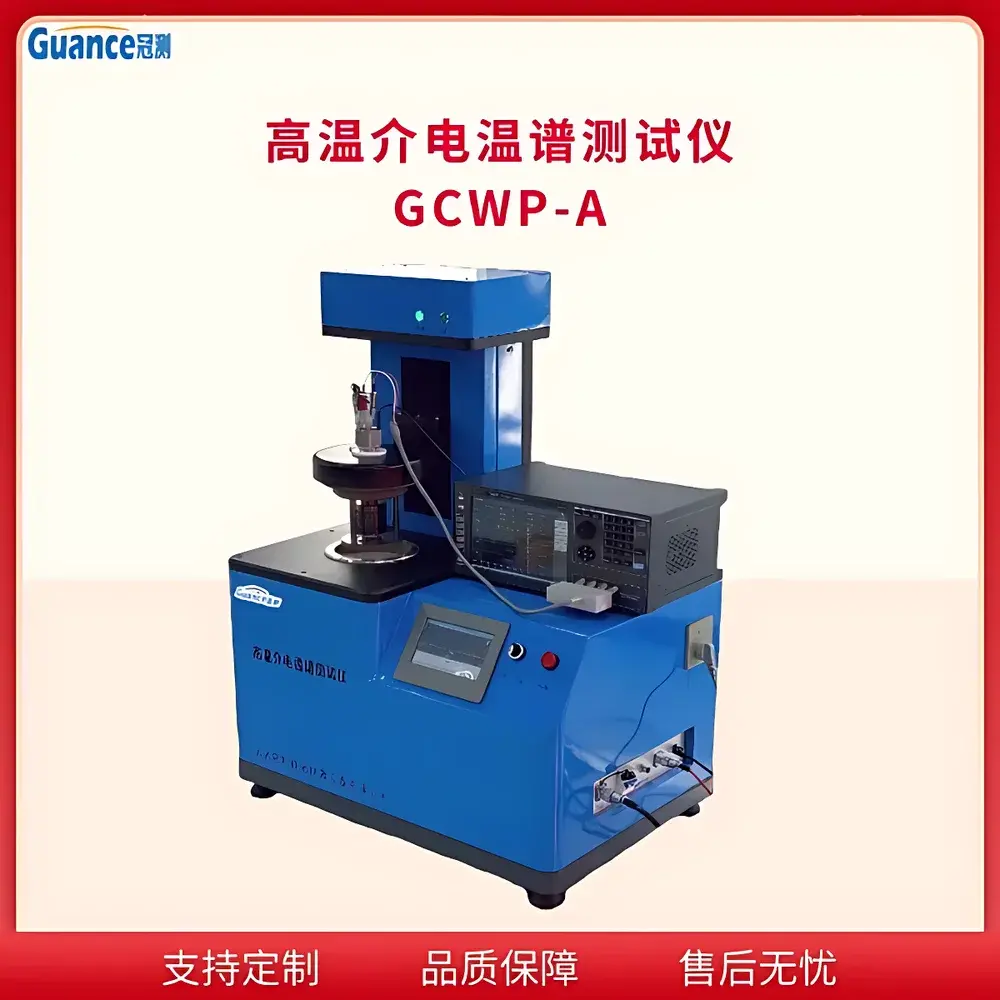

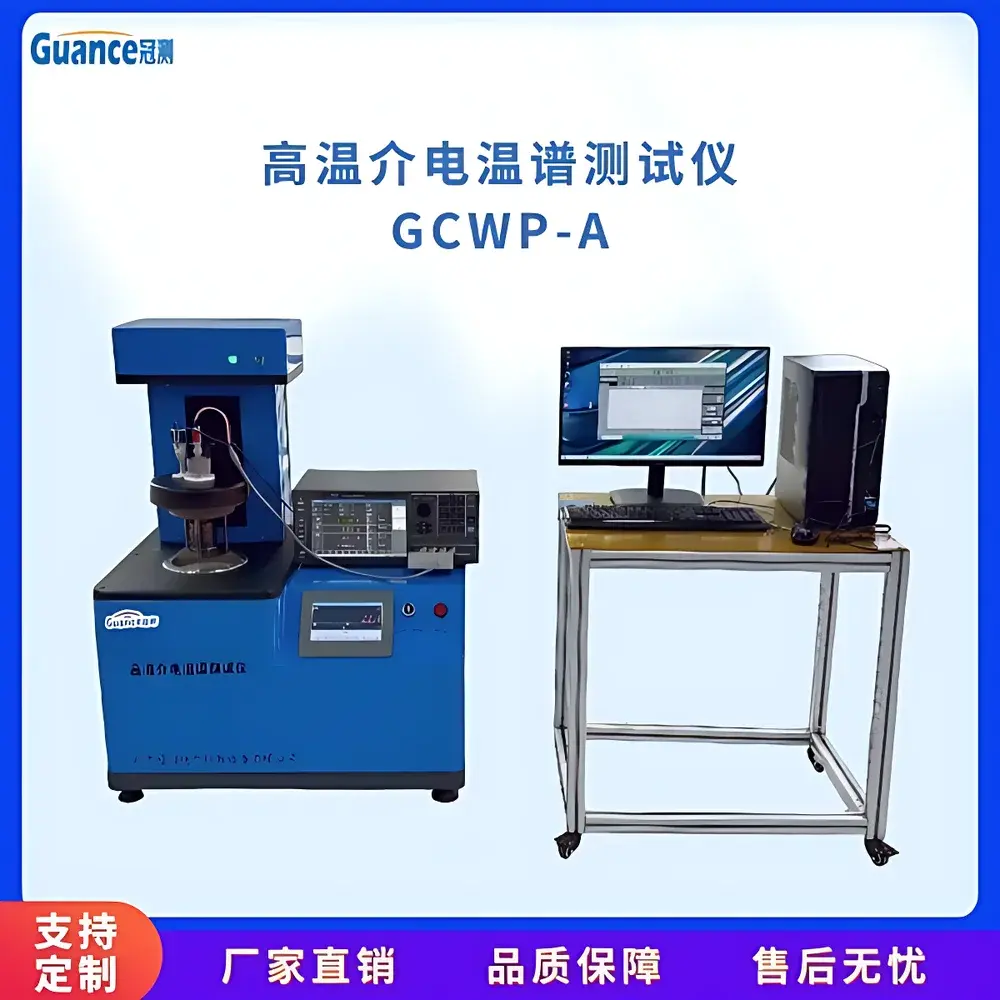

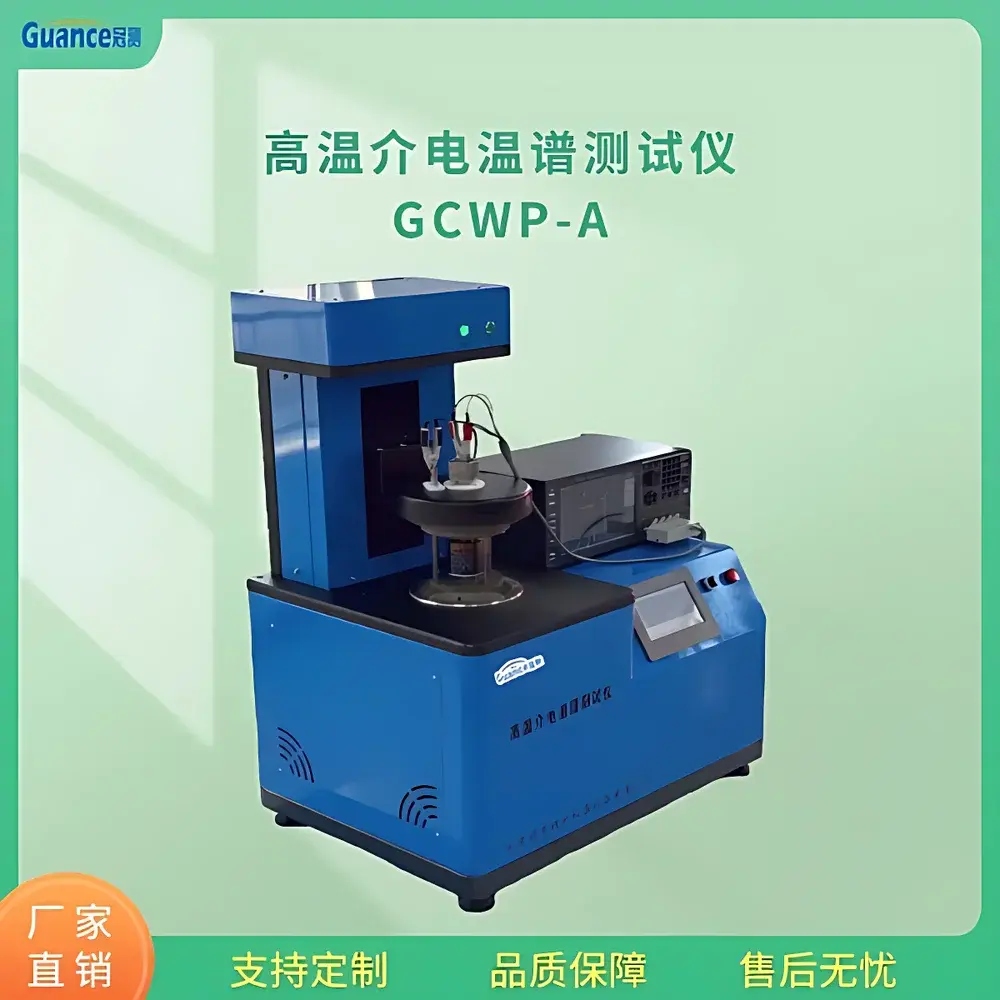

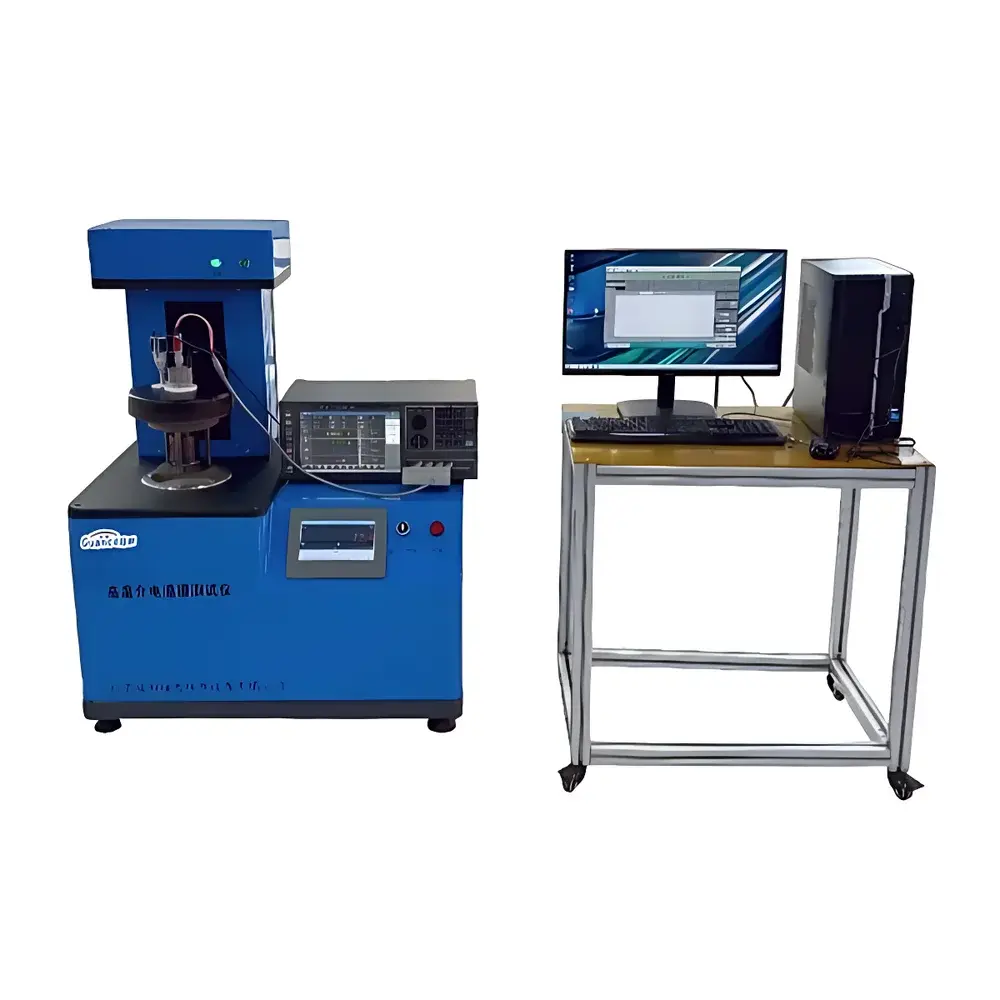

GCWP-A88 High-Temperature Dielectric Temperature & Frequency Spectroscopy System

Overview

The GCWP-A88 High-Temperature Dielectric Temperature & Frequency Spectroscopy System is an engineered platform for precision measurement of complex permittivity (ε* = ε′ − jε″) and dielectric loss tangent (tan δ) across controlled thermal and frequency domains. It operates on the principle of impedance spectroscopy under programmable temperature modulation, enabling quantitative characterization of polarization mechanisms—including dipole relaxation, interfacial (Maxwell–Wagner–Sillars) effects, and ionic conduction—in solid and quasi-solid dielectric materials. Designed for laboratory-based materials science research, the system supports dynamic thermal profiling (heating/cooling ramps up to 5 °C/min) while maintaining sub-degree thermal stability—critical for resolving thermally activated relaxation processes in ceramics, polymer composites, ferroelectrics, and insulating oxides.

Key Features

• Integrated cryo-thermal chamber with dual-mode regulation: electric resistance heating coupled with liquid nitrogen injection for rapid, reproducible cooling down to −30 °C—enabling full coverage of glass transition, ferroelectric Curie, and phase-change regimes.
• High-stability brass parallel-plate electrode assembly (25 mm diameter, fixed 1.0 mm gap), calibrated per IEC 60250 geometry requirements; includes guard-ring configuration to minimize fringing field errors and surface leakage currents.
• Wideband LCR measurement engine operating from 20 Hz to 2 MHz at 0.05% basic impedance accuracy, supporting both auto-balancing bridge and series/parallel equivalent circuit modeling.
• Real-time synchronized acquisition: simultaneous logging of temperature (Pt100 sensor, traceable to NIST standards), frequency sweep data, and complex permittivity components with timestamped metadata.
• Rugged mechanical architecture with vacuum-compatible flange interface (CF-35 optional), enabling future integration into glovebox or low-humidity inert-atmosphere environments.

Sample Compatibility & Compliance

The GCWP-A88 accommodates disk-shaped, pelletized, or thin-film specimens (thickness: 0.2–5.0 mm; diameter ≥20 mm) of inorganic dielectrics (Al₂O₃, BaTiO₃, SiO₂), polymeric insulators (PEEK, PI, epoxy), elastomers (silicone rubber, EPDM), and ceramic–polymer composites. All measurement protocols adhere strictly to internationally recognized standards: GB/T 1409–2006 (equivalent to IEC 60250) for AC capacitance and dissipation factor at power and audio frequencies; GB/T 1693–2007 for vulcanized rubber; and ASTM D150 for solid electrical insulating materials. The system’s thermal control algorithm and electrode calibration certificate support GLP-compliant reporting and audit-ready documentation for R&D labs operating under ISO/IEC 17025 frameworks.

Software & Data Management

Control and analysis are executed via GCWP-ControlSuite v3.2—a Windows-based application compliant with FDA 21 CFR Part 11 requirements for electronic records and signatures (user role management, audit trail logging, and secure data export). Four primary test modes are implemented: (1) Isothermal single-frequency measurement at ambient conditions; (2) Isothermal frequency sweep (logarithmic or linear); (3) Continuous升温 temperature sweep with fixed-frequency acquisition (e.g., 1 kHz, 100 kHz); and (4) Controlled降温 cooling-cycle measurement to capture hysteresis behavior. Raw data are stored in HDF5 format with embedded metadata (temperature setpoint, actual reading, frequency point, instrument ID, operator ID). Export options include CSV, MATLAB (.mat), and PDF reports with customizable templates aligned with journal submission guidelines (e.g., Journal of Applied Physics, IEEE Transactions on Dielectrics).

Applications

• Characterization of relaxor ferroelectrics and high-k dielectrics for capacitor miniaturization.
• Thermal stability assessment of encapsulation resins and PCB substrate laminates under thermal cycling stress.
• Quantification of moisture-induced conductivity and interfacial polarization in aged polymeric insulation systems.
• Correlation of tan δ peaks with molecular mobility transitions in thermoset curing kinetics studies.
• Quality control of sintered ceramic batches via dielectric fingerprinting at elevated temperatures.

FAQ

Does the GCWP-A88 support automated temperature ramping with dwell steps?
Yes—the software allows user-defined multi-segment thermal profiles including ramp rates, dwell durations, and trigger-based frequency sweeps at each plateau.
Can the system be used under inert gas or vacuum conditions?
The base chamber includes a standard KF-25 port; optional CF-35 vacuum flange and gas purge fittings are available for N₂/Ar purging or ≤10⁻³ mbar vacuum operation.
Is electrode calibration traceable to national metrology institutes?
Each brass electrode set ships with a factory calibration certificate referencing NIST-traceable LCR standards (Keysight E4980AL, 1 MHz reference), valid for 12 months.
What sample preparation guidance is provided?
Comprehensive SOPs—including polishing protocols, silver paste application, and thickness measurement best practices—are included in the technical manual and accessible via embedded help system.
How is data integrity ensured during long-duration thermal sweeps?
The system implements hardware-level watchdog timers, redundant Pt100 temperature validation, and automatic file checksum generation to prevent corruption during multi-hour measurements.
