Generic 20g Random Vibration Shaker System

Overview

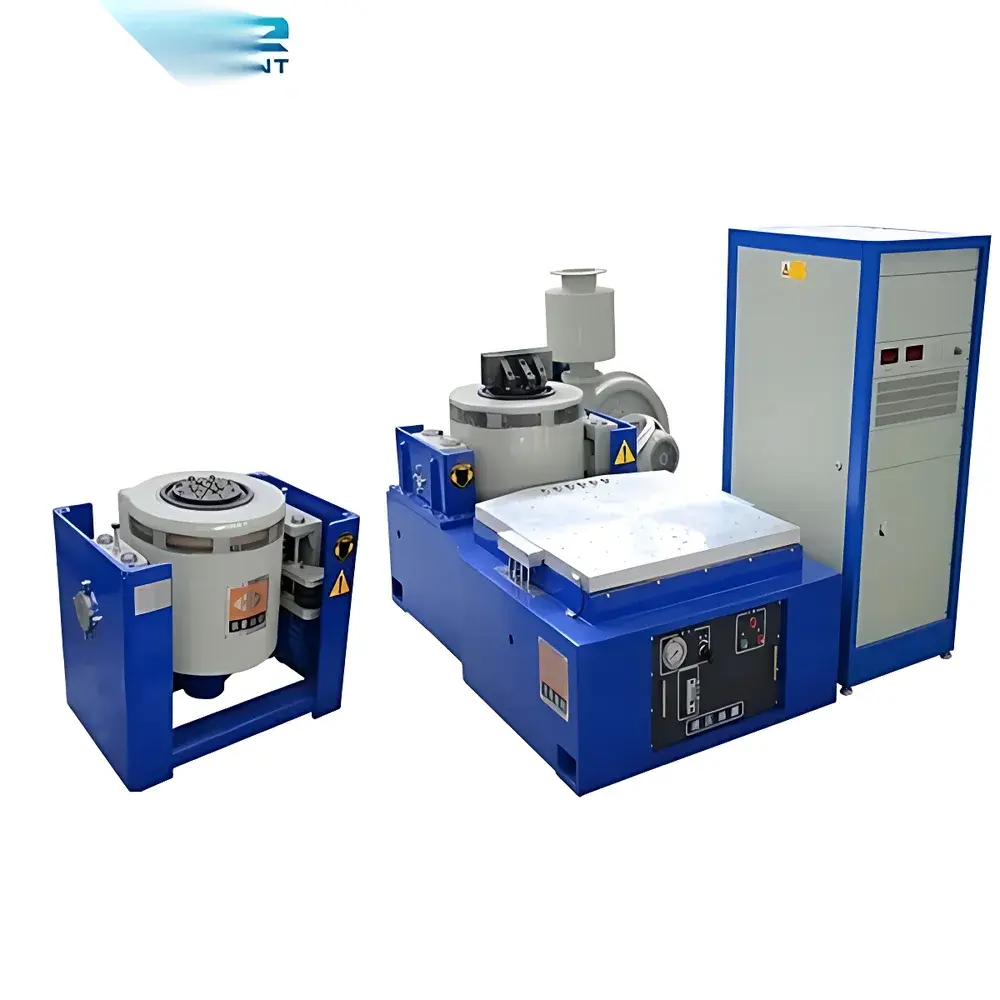

The Generic 20g Random Vibration Shaker System is an electrodynamic vibration testing platform engineered for precision mechanical stress evaluation under controlled sinusoidal excitation. While commonly referenced as a “random vibration” shaker in commercial nomenclature, this system operates primarily in deterministic sinusoidal mode—supporting sweep, programmable, logarithmic, and octave-based test profiles per ISO 5344, IEC 60068-2-6, and MIL-STD-810H methodologies. It is not a true broadband random shaker (which requires closed-loop PSD control and digital signal synthesis), but rather a high-fidelity sinusoidal shaker optimized for resonant frequency identification, fatigue life assessment, and structural integrity verification of components and subassemblies. Its 20 g peak acceleration capability, combined with 5 mm peak-to-peak displacement and a 100 kg payload capacity, enables rigorous qualification testing across aerospace hardware, automotive ECUs, medical device enclosures, and industrial electronics. The system’s modular table configurations (30×30 cm to 100×100 cm) and dual-axis (vertical/horizontal) mounting options support both single-point and multi-axis sequential testing protocols.

Key Features

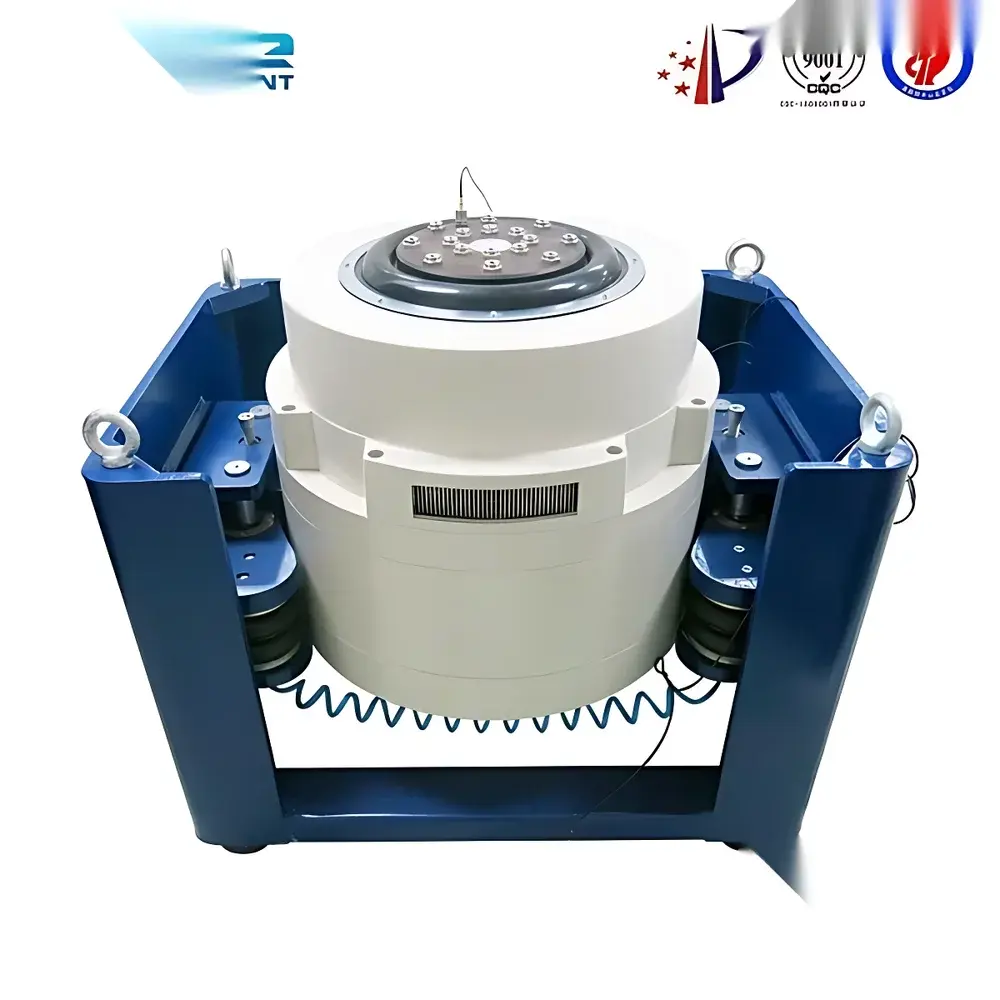

• Electrodynamic actuator architecture with air-cooled voice coil motor, delivering stable 20 g_pk acceleration across the full operational bandwidth.
• Programmable test sequencing: 15 independent segments per test profile, each configurable for target frequency, dwell time, sweep rate, and amplitude ramping—fully compliant with ASTM D999 and IPC-9701 requirements.
• True bidirectional sweep functionality: user-defined upper/lower frequency limits and dwell duration, supporting both linear and logarithmic sweep modes (1–600 Hz standard; extended to 5000 Hz upon factory calibration).

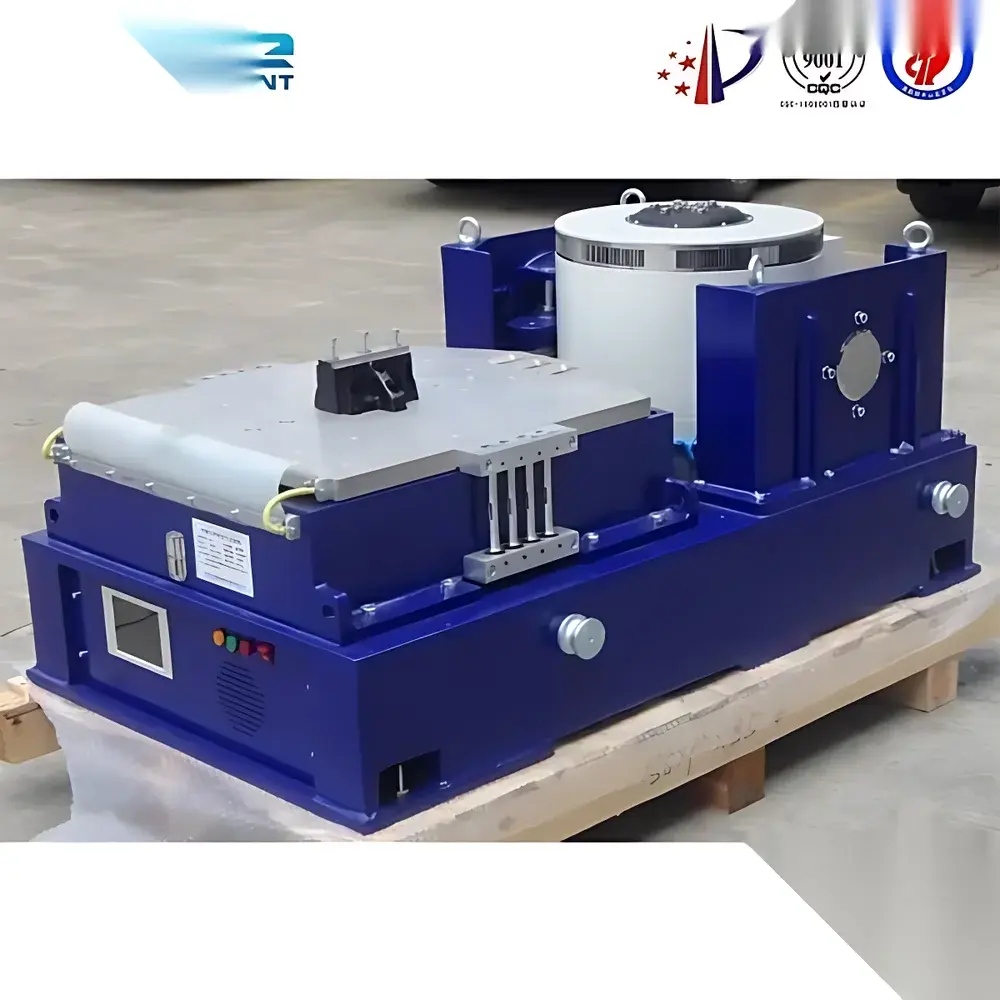

• Dual-axis mechanical design: interchangeable vertical (Z-axis) and horizontal (X/Y-axis) configurations, with rigid base plates and low-center-of-gravity structural framing to minimize rocking moments during high-g excitation.
• Adjustable displacement range: 0–5 mm p-p, digitally regulated via feedback-controlled amplifier to maintain waveform fidelity at resonance peaks.
• Integrated thermal protection and over-acceleration cutoff circuits ensure long-term reliability under continuous duty cycles.
• Standard 2.2 kW power supply with IEC 61000-3-2 harmonic compliance and CE/UKCA marking for global laboratory deployment.

Sample Compatibility & Compliance

The shaker accommodates test specimens up to 100 kg mass on any standard table size (30×30 cm minimum; 100×100 cm maximum), with optional slip-table extensions and fixture interface kits (M6/M8 threaded inserts, T-slots) for custom mounting. It supports passive and active transducer integration—including accelerometers (IEPE or charge output), laser Doppler vibrometers, and strain gauge arrays—for real-time response validation. The system meets essential regulatory benchmarks for environmental simulation: ISO 10816-1 (vibration severity assessment), IEC 60068-2-6 (sinusoidal vibration testing), and MIL-STD-810H Method 514.8 (vibration tailoring). Though not inherently compliant with FDA 21 CFR Part 11 out-of-the-box, its controller firmware supports audit-trail-enabled software upgrades for GxP-aligned validation workflows when deployed in pharmaceutical or Class II/III medical device QC labs.

Software & Data Management

The shaker operates with vendor-neutral SCPI-compatible command set (IEEE 488.2), enabling seamless integration into LabVIEW, MATLAB, or Python-based test automation frameworks. Optional Windows-based control software provides graphical waveform preview, real-time FFT spectrum display, and automated report generation (PDF/CSV) with timestamped metadata. All test logs include traceable parameters: applied frequency, acceleration setpoint, displacement limit, ambient temperature, and system status flags. For regulated environments, optional firmware modules enable electronic signatures, user role-based access control, and immutable data archiving—aligned with GLP and GMP documentation expectations.

Applications

• Resonance search and mode shape analysis of printed circuit board assemblies (PCBAs) and chassis structures.
• Vibration endurance screening of avionics enclosures, satellite subsystems, and UAV payloads per ECSS-Q-ST-70-08C.
• Qualification testing of automotive infotainment modules, ADAS sensors, and battery management systems under ISO 16750-3.
• Reliability validation of consumer electronics (smartphones, wearables) per IEC 60068-2-64 (though note: true random testing requires supplemental controller hardware).
• Educational and R&D use in mechanical engineering laboratories for modal analysis coursework and thesis-level dynamic characterization studies.

FAQ

Is this system capable of true random vibration testing?

No—it is a high-performance sinusoidal shaker. True random vibration requires a dedicated controller with real-time PSD synthesis, closed-loop error correction, and broadband amplifier bandwidth (>5 kHz). This unit supports only deterministic waveforms: sine, sweep, and programmable step sequences.

Can it perform multi-axis simultaneous vibration?

No. It supports vertical (Z-axis) or horizontal (X/Y-axis) operation individually. Multi-axis testing must be conducted sequentially using repositioning or auxiliary fixtures.

What is the maximum payload at 20 g across all frequencies?

The 100 kg load rating applies at frequencies ≤100 Hz. Above 100 Hz, payload must be derated per the shaker’s force-limited envelope (F = m·a); consult the mechanical compliance curve in the technical manual.

Does the system include calibration certification?

A factory-as-built calibration certificate (traceable to NIST or PTB standards) is included. Annual recalibration services are available through authorized service centers.

Is remote monitoring supported?

Yes—via Ethernet (TCP/IP) or RS-232 interface using SCPI commands. Real-time acceleration and displacement telemetry can be streamed to external DAQ systems.
