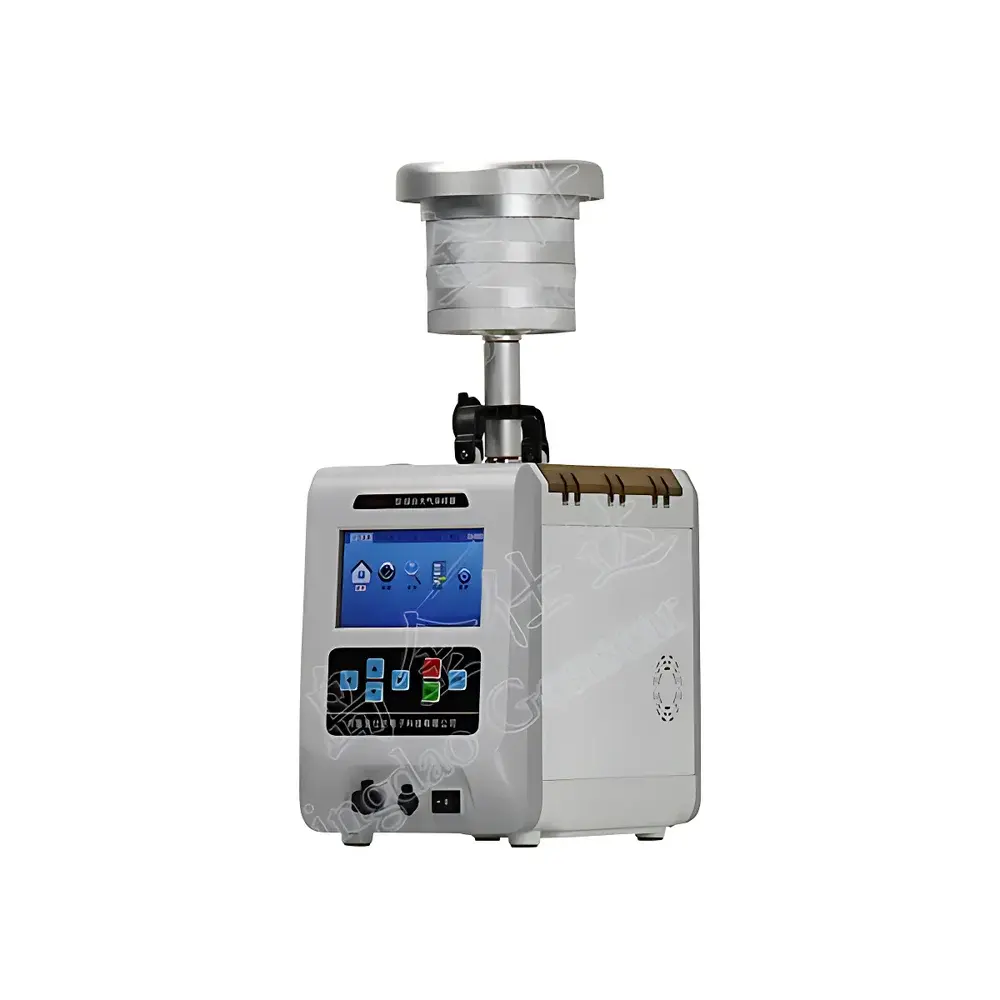

Genetec KB-6120-B Integrated Ambient Air Sampler

Overview

The Genetec KB-6120-B Integrated Ambient Air Sampler is a dual-channel, temperature-controlled, constant-flow sampling instrument engineered for simultaneous collection of gaseous pollutants and airborne particulate matter (PM) in ambient air monitoring applications. It operates on the principle of volumetric flow control via precision digital mass flow sensors and maintains stable aspiration across variable backpressure conditions—critical for field deployment where filter loading, absorption bottle resistance, and environmental temperature shifts affect system dynamics. Designed to meet stringent metrological and regulatory requirements for environmental laboratories and monitoring networks, the KB-6120-B supports gravimetric analysis of total suspended particulates (TSP), PM₁₀, and PM_2.5, as well as solution-based capture of SO₂, NO_x, ozone, benzene, and other volatile or semi-volatile compounds. Its integrated thermoelectric cooling/heating module ensures consistent sample conditioning at 20 °C ±2 °C, eliminating condensation and ice formation in cold climates—a known failure mode in conventional samplers.

Key Features

• Dual independent sampling channels with real-time, closed-loop digital flow control (0.100–1.000 L/min per channel), each equipped with high-accuracy thermal mass flow sensors calibrated traceably to NIST standards
• Brushless DC sampling pumps delivering sustained vacuum up to 130 kPa, enabling reliable operation with high-resistance filters (e.g., quartz fiber, Teflon membrane) and multi-stage absorption trains
• Integrated Peltier-based thermostat chamber housing both absorption bottles and desiccant tubes—eliminating external tubing, minimizing adsorption losses, and ensuring light-shielded (amber-transparent lid), temperature-stabilized collection
• 5.0-inch industrial-grade capacitive touchscreen with wide-temperature operation (−20 °C to +50 °C), supporting bilingual UI (English/Chinese), touch-and-keyboard hybrid input, and password-protected parameter calibration and configuration
• Ruggedized rain- and snow-resistant enclosure (IP54-rated chassis), optimized for unattended outdoor deployment in urban, industrial, and remote monitoring stations
• Embedded data logging with ≥100,000 records capacity; USB export, Bluetooth 5.0 wireless transfer, and optional Bluetooth thermal printer interface for field verification

Sample Compatibility & Compliance

The KB-6120-B is validated for use with standard EPA and ISO-compliant sampling media, including 47-mm and 90-mm quartz fiber filters (for PM gravimetry), glass fiber filters (for organic carbon analysis), impingers and bubblers containing absorbing solutions (e.g., KI for ozone, NaOH for SO₂), and diffusion scrubbers for reactive gases. Its flow stability and pressure compensation meet the performance criteria outlined in ISO 7203 (ambient air sampling pumps), EN 12341 (PM₁₀/PM_2.5 samplers), and US EPA Reference Method PS-1. All internal wetted surfaces are chemically inert (PTFE-sealed valves, borosilicate glass components), preventing analyte adsorption or catalytic degradation. The instrument’s firmware implements audit-trail logging per GLP principles, recording operator ID, calibration events, flow deviations, and environmental parameter drift—supporting traceability during regulatory inspections under ISO/IEC 17025 or national accreditation frameworks.

Software & Data Management

Data acquisition and instrument control are managed via embedded firmware compliant with IEC 62443-3-3 security baseline. Each sampling event automatically records time-stamped values for actual flow rate, ambient temperature, barometric pressure, inlet temperature/pressure, accumulated volume (at standard conditions), and pump runtime. Raw data are stored in CSV format with ISO 8601 timestamps and can be exported directly to LIMS or third-party QA/QC platforms. Optional PC software provides graphical trend analysis, flow deviation alerts, compliance reporting against HJ/T 376–2007 (24-hour continuous sampler validation), and automated generation of QC checklists aligned with CNAS-CL01:2018 requirements. Firmware updates are delivered via signed binary packages to prevent unauthorized modification.

Applications

• Ambient air quality monitoring networks (urban background, traffic, industrial fence-line, rural reference sites)
• Source emission characterization and dispersion modeling support studies
• Occupational health and safety assessments in manufacturing, mining, and construction zones
• Research on atmospheric aerosol chemistry, secondary organic aerosol formation, and gas–particle partitioning
• Regulatory compliance testing for national ambient air quality standards (NAAQS-equivalent frameworks)
• Educational laboratory instruction in environmental engineering, analytical chemistry, and air pollution control

FAQ

Does the KB-6120-B support simultaneous gaseous and particulate sampling on both channels?
Yes—each channel operates independently and may be configured for either gas absorption (e.g., impinger train) or particulate filtration (e.g., PM_2.5 cyclone + filter), or mixed-mode setups.
What is the calibration interval recommendation and traceability basis?
Annual calibration is recommended using a primary-standard dry calibrator (e.g., Brooks 5876 or Mesa Labs TDL-300). Factory calibration certificates include uncertainty budgets referenced to national metrology institutes.
Can the instrument operate continuously for 7 days without intervention?
Yes—when powered by AC or an optional high-capacity Li-ion battery pack (≥12 Ah), it supports uninterrupted 24/7 operation with automatic power-fail recovery and timestamp continuity.
Is the internal thermostat capable of sub-zero temperature maintenance?
No—the Peltier module provides active cooling down to 20 °C minimum and heating up to 30 °C maximum; it is not designed for cryogenic conditioning but prevents freezing under typical winter field conditions.
Are firmware updates and software tools available internationally?
Yes—Genetec provides English-language firmware, PC software, and technical documentation through its global support portal, with regional service centers in EU, APAC, and North America.
