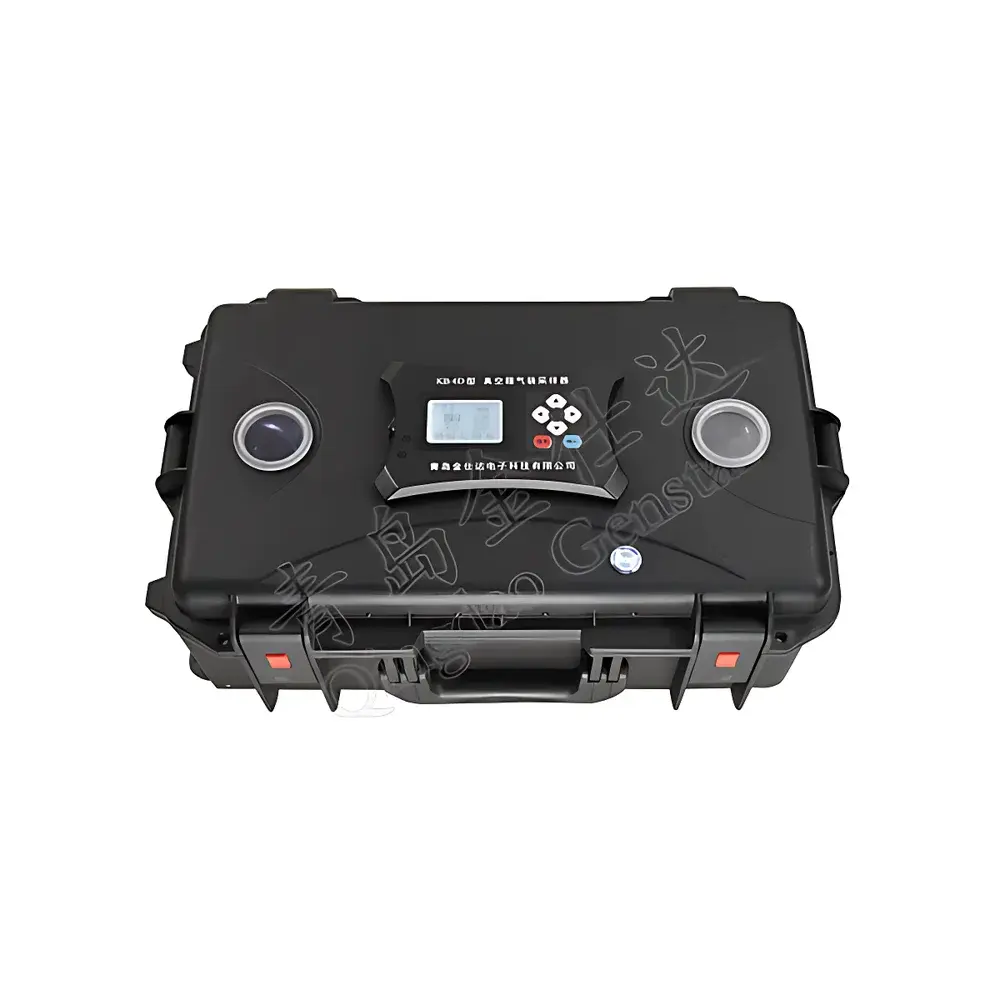

Genetec KB-6D Integrated Vacuum Gas Sampling Bag System

Overview

The Genetec KB-6D Integrated Vacuum Gas Sampling Bag System is a field-deployable, manually operated instrument engineered for standardized collection of gaseous environmental samples using the vacuum gas bag method. It operates on a dual-pressure principle: first purging residual air from the sampling bag via controlled positive-pressure nitrogen or ambient air displacement, then drawing the target sample under regulated negative pressure generated by an integrated diaphragm pump. This methodology ensures minimal sample dilution, eliminates active flow bias, and preserves the integrity of volatile organic compounds (VOCs), methane (CH₄), non-methane hydrocarbons (NMHC), and other reactive or adsorption-prone analytes. Designed in strict accordance with Chinese national environmental standards—including HJ 732–2014 (sampling of VOCs from stationary sources using gas bags), HJ 38–2017 (GC determination of total hydrocarbons, methane, and NMHC in stack emissions), and HJ 604–2017 (direct-injection GC analysis of ambient air hydrocarbons)—the KB-6D serves as a foundational pre-analytical tool for laboratories requiring trace-level representativeness and regulatory traceability.

Key Features

• Integrated vacuum manifold architecture with front-panel toggle valve enabling full purge-and-fill sequence without external tools or auxiliary components
• Chemically inert fluid path constructed entirely from perfluoroalkoxy (PFA) tubing, stainless-steel fittings, and fluoropolymer-sealed valves—validated for low adsorption and zero carryover across C₂–C₁₂ hydrocarbons and polar VOCs
• Adjustable diaphragm sampling pump with calibrated flow range (0.1–2.0 L/min), supporting both low-flow ambient air sampling and high-volume stack gas capture
• Heated sampling probe (operating range: 50–120 °C) with sintered polytetrafluoroethylene (PTFE) particulate filter (≤0.5 µm pore size) to prevent condensate formation and particle ingress during humid or low-temperature sampling
• Internal rechargeable lithium-ion battery (14.8 V, 4.4 Ah) providing ≥8 hours of continuous operation; AC adapter included for benchtop use or extended field deployment
• Ergonomic, ruggedized housing (IP54-rated) with integrated carrying handle and shock-absorbing base—designed for repeated transport across industrial sites, wastewater treatment plants, landfill perimeter monitoring zones, and mobile lab vehicles

Sample Compatibility & Compliance

The KB-6D is validated for collection of uncompressed, ambient-pressure gas matrices including ambient air, flue gas (post-scrubber), fugitive emissions, biogas headspace, and indoor air. Its inert pathway supports quantitative recovery of thermally labile compounds such as formaldehyde, acetaldehyde, benzene, toluene, ethylbenzene, xylenes (BTEX), and C₃–C₈ alkanes. All operational protocols align with HJ 732–2014 requirements for bag conditioning, blank verification, leak testing (≤1% loss over 1 hr at 25 kPa vacuum), and storage stability (≤24 hr at 4 °C prior to GC analysis). The system meets functional equivalency to EPA Method TO-14A and ISO 16000-6:2011 for sorbent-free passive sampling, and its mechanical design facilitates audit-ready documentation per GLP and CNAS-accredited laboratory workflows.

Software & Data Management

The KB-6D is a hardware-only sampling platform with no embedded firmware or digital interface. All operational parameters—including purge duration, sampling time, ambient temperature, barometric pressure, and bag lot number—are recorded manually in field logs compliant with HJ/T 55–2000 (Guidelines for Environmental Monitoring Quality Assurance). Users integrate collected bags directly into downstream analytical systems (e.g., Agilent 7890/8890 GC-FID, Thermo Scientific Trace 1300 GC-MS) following chain-of-custody procedures defined in HJ 442.3–2020. For laboratories operating under 21 CFR Part 11 or ISO/IEC 17025:2017, the KB-6D’s mechanical simplicity ensures full compatibility with electronic lab notebook (ELN) systems that track sample metadata, analyst ID, calibration status of connected GC instruments, and audit trails for sample receipt and analysis initiation.

Applications

• Regulatory compliance monitoring of VOC emissions from petrochemical facilities, coating operations, and printing plants per local environmental bureau mandates
• Landfill and anaerobic digester biogas profiling—simultaneous quantification of CH₄, CO₂, H₂S, and NMHC for emission factor modeling
• Indoor air quality (IAQ) assessment in schools, hospitals, and office buildings—targeted screening for solvent vapors and combustion byproducts
• Emergency response sampling during chemical spills or vapor cloud incidents where rapid, contamination-free grab sampling is critical
• Method validation studies supporting development of new GC-based protocols for emerging contaminants (e.g., fluorinated ethers, unsaturated aldehydes)
• University and government research programs requiring reproducible, low-cost gas matrix preservation for kinetic or isotopic analysis

FAQ

What gas bag types are compatible with the KB-6D?
Standard 1–10 L aluminum-laminated Tedlar® or FlexFoil® bags with septum-sealed inlet ports; custom bag adapters available upon request.
Does the KB-6D require calibration before each use?
No routine calibration is required; however, users must perform a system leak check and blank bag test prior to each sampling campaign per HJ 732–2014 Section 7.3.
Can the heated probe be used for high-temperature stack sampling?
The probe is rated for continuous operation up to 120 °C; for stacks exceeding this temperature, a cooled probe extension or dilution module is recommended.
Is the KB-6D suitable for radioactive or highly toxic gas sampling?
Yes—when used with certified containment bags and appropriate PPE; all wetted materials are non-reactive with Cl₂, NH₃, HCl, and HF at ambient concentrations.
How is battery life monitored during field use?
A dual-LED status indicator (green/red) displays charge level and fault conditions; runtime is logged manually in the field notebook alongside sampling timestamps.
