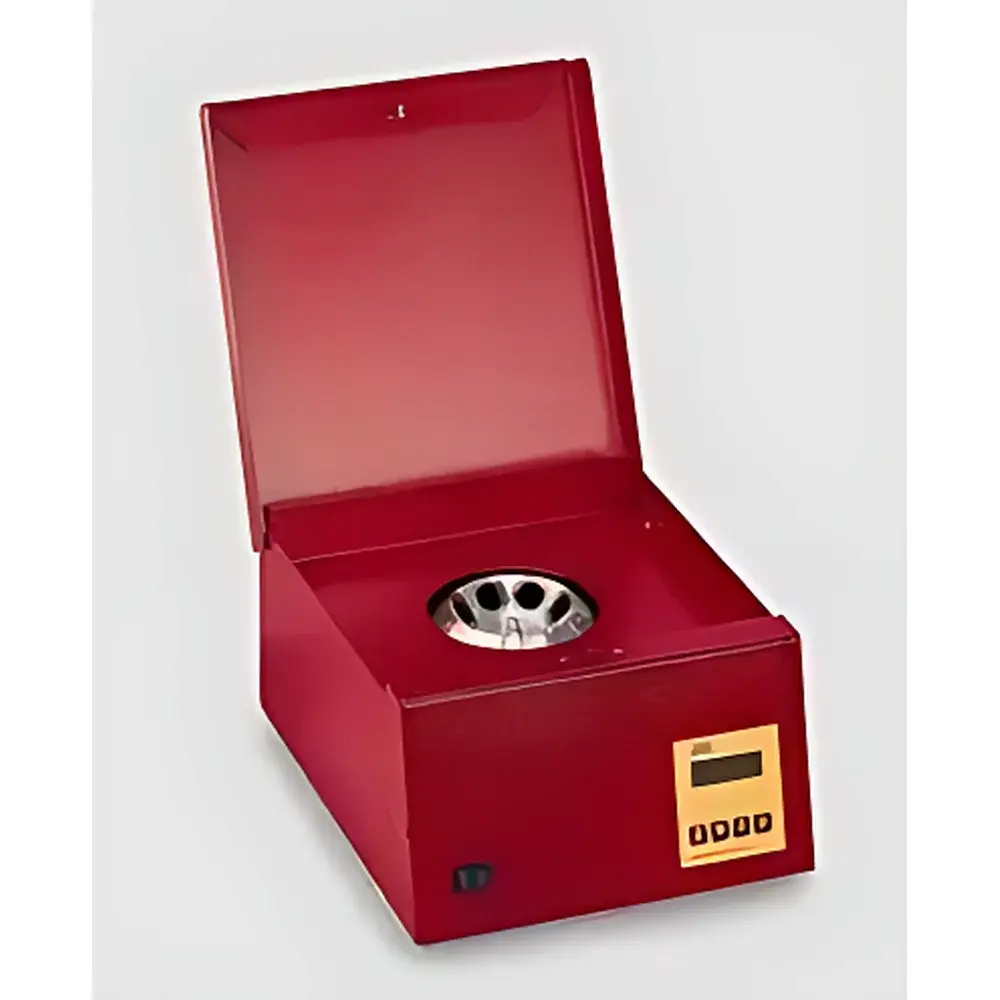

Gerber Nova Safety Gerber Centrifuge for Butterfat Analysis
| Brand | GERBER |
|---|---|
| Origin | Germany |
| Model | Nova Safety |
| Max Speed | 1350 rpm |
| Relative Centrifugal Acceleration (RCF) | 350 × g |
| Capacity | 8 tubes |
| Temperature Control | 65 °C (heated) |
| Timer | Digital display |
| Safety Features | Automatic lid lock, electronic brake (<8 s stop time) |
| Dimensions (L×W×H) | 470 × 380 × 230 mm |
| Weight | 13.2 kg |
| Voltage | 230 V, 50 Hz |
| Power | 450 W |
Overview
The Gerber Nova Safety Gerber Centrifuge is a purpose-built, thermally regulated centrifugal instrument engineered exclusively for standardized butterfat determination in dairy products according to the internationally recognized Gerber method (ISO 1211:2010, AOAC 920.11, IDF 12a:2002). Unlike general-purpose laboratory centrifuges, this device integrates precise thermal control, calibrated rotational dynamics, and method-specific tube geometry to ensure reproducible separation of fat from milk, cream, or buttermilk matrices under strictly defined conditions. The centrifuge operates on the principle of differential sedimentation—where sulfuric acid digestion liberates fat globules, and subsequent centrifugation at 1350 rpm (350 × g) forces fat to rise into the calibrated neck of the Gerber butyrometer. Its fixed-speed, fixed-angle rotor design eliminates variability introduced by variable speed selection, directly supporting compliance with regulatory fat quantification protocols used in dairy quality control laboratories worldwide.
Key Features
- Method-locked operation: Fixed 1350 rpm rotation ensures strict adherence to Gerber method requirements—no user-adjustable speed settings to prevent procedural deviation.
- Integrated heating system: Maintains constant 65 °C incubation temperature during centrifugation, critical for complete fat liberation and phase separation in acid-digested samples.
- Digital countdown timer: High-contrast LED display provides accurate, traceable timing (0–15 min range), essential for GLP-compliant recordkeeping.
- Automated safety interlock: Motor disables unless the hinged safety lid is fully closed and latched—mechanically verified before initiation.
- Rapid deceleration: Electromagnetic braking brings rotor to rest in less than 8 seconds, minimizing turnaround time between runs without compromising mechanical integrity.
- Robust cast-aluminum housing: Designed for continuous daily use in high-throughput dairy QC environments; vibration-damped base ensures stable operation at rated RCF.
Sample Compatibility & Compliance
The Nova Safety accommodates eight standard Gerber butyrometers (11 mL capacity, ISO 6732:2016 compliant) simultaneously. Each tube position features precision-machined sleeves that align butyrometers at the exact 30° tilt angle required for optimal fat column formation. The unit complies with IEC 61010-1:2010 for electrical safety and meets EN 61326-1:2013 electromagnetic compatibility standards. Its operational parameters satisfy the instrumental requirements specified in ISO 1211 (Milk — Determination of fat content — Gerber gravimetric method), making it suitable for laboratories undergoing ISO/IEC 17025 accreditation or FDA-regulated dairy testing under 21 CFR Part 11 when paired with auditable data logging procedures.
Software & Data Management
As a dedicated analog-digital hybrid instrument, the Nova Safety does not incorporate embedded software or network connectivity. All operational parameters—including run time, temperature setpoint, and cycle completion—are controlled via front-panel electro-mechanical interfaces with tactile feedback. Digital timer output is non-volatile and readable without external devices, supporting manual entry into laboratory notebooks or LIMS. For labs requiring electronic records, optional external USB timer loggers or industrial PLC-integrated monitoring systems may be deployed per internal SOPs—ensuring full auditability without altering the instrument’s certified configuration.
Applications
- Routine butterfat quantification in raw milk, pasteurized milk, cream, recombined milk, and whey-based products.
- Verification of fat content claims for labeling compliance (EU Regulation No. 1169/2011, USDA AMS Grade Standards).
- Process control in dairy receiving stations and cheese manufacturing facilities.
- Reference method validation against infrared or mid-FTIR analyzers (e.g., Foss MilkoScan, Bentley Microscan).
- Training and proficiency testing in food science education programs accredited by IFST or IFT.
FAQ
Is the Nova Safety compatible with non-Gerber butyrometers?
No—it is mechanically configured only for ISO 6732-compliant Gerber butyrometers (11 mL, conical neck, 30° tilt). Use of alternative tubes invalidates method compliance.
Does the unit require calibration certification?
Yes—annual verification of rotational speed (±10 rpm tolerance), temperature uniformity (±1 °C across all positions), and timer accuracy (±0.5 s/min) is recommended per ISO/IEC 17025 Clause 6.5. Calibration must be performed using NIST-traceable instruments.
Can the centrifuge operate continuously for multiple shifts?
Rated for intermittent duty (max 30 min ON / 10 min OFF); sustained back-to-back operation exceeds thermal design limits and voids warranty.
What maintenance is required?
Monthly cleaning of rotor chamber and lid gasket; biannual inspection of brake assembly and thermal sensor response; no lubrication required—sealed bearing design.
Is CE marking valid for UKCA compliance?
CE marking remains accepted in Great Britain until December 31, 2024; post-2024, UKCA-certified units will be supplied separately per UK MDR 2002.
