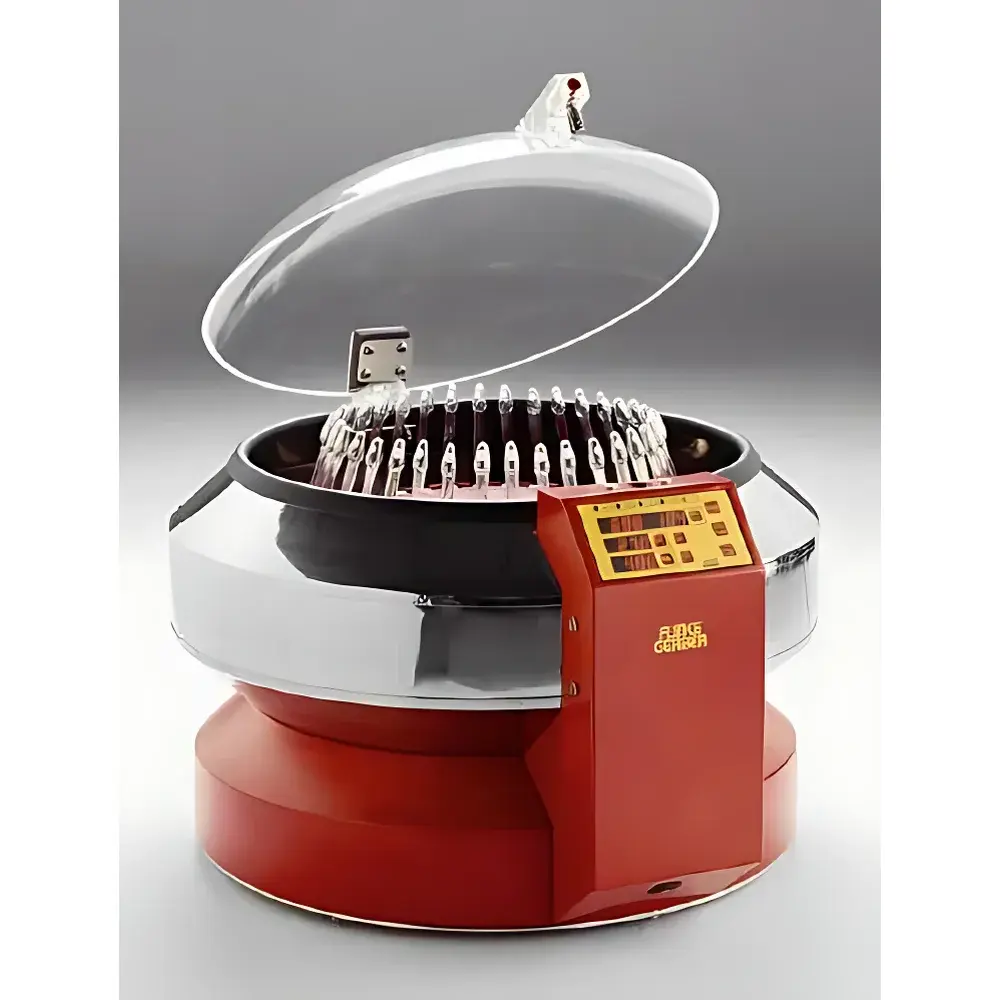

GERBER Super-Vario-N Gerber Centrifuge for Milk Fat Determination

Overview

The GERBER Super-Vario-N Gerber Centrifuge is a precision-engineered, thermally regulated centrifugal instrument specifically designed for standardized fat determination in milk and dairy products. It operates on the fundamental principle of differential sedimentation under controlled centrifugal force and elevated temperature, enabling rapid phase separation of milk fat from aqueous and protein phases. Unlike general-purpose centrifuges, the Super-Vario-N is calibrated and validated for compliance with internationally recognized reference methods—including the Gerber (ISO 2446), Mojonnier (AOAC 920.110, ISO 1211), Babcock (AOAC 915.01), and solubility-based fat extraction protocols. Its integrated heating system ensures consistent thermal conditioning during centrifugation, which is critical for complete fat globule coalescence and accurate volumetric quantification in butyrometric analysis.

Key Features

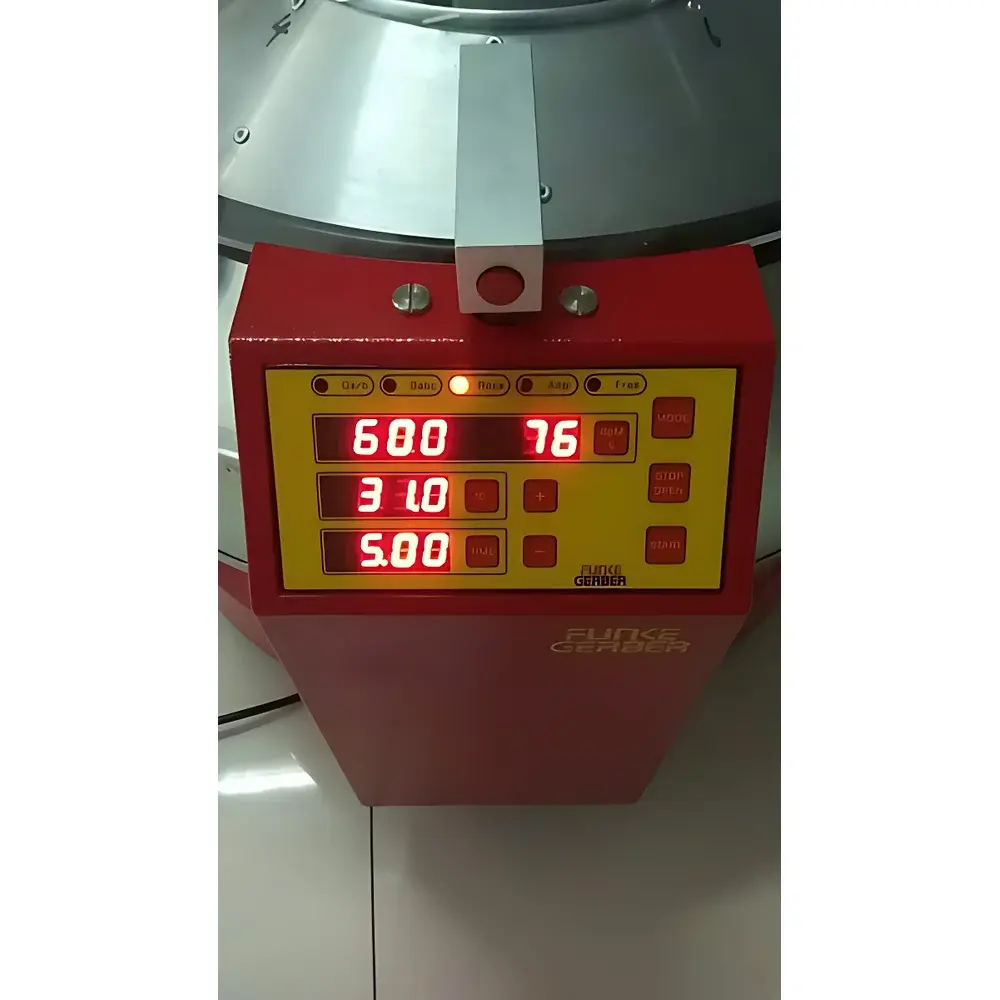

• Programmable Thermal Control: Precise digital heating up to 68 °C with 1 °C resolution—optimized to match the temperature requirements of Gerber and Mojonnier methodologies for optimal fat layer formation.
• Fine-Grained Speed Regulation: Adjustable rotational speed from 600 to 1130 rpm in 10-rpm increments, allowing method-specific optimization while maintaining mechanical stability and reproducibility across repeated runs.
• Flexible Timing Architecture: Programmable centrifugation duration from 1 to 99 minutes, supporting both rapid screening (e.g., 5-min Gerber runs) and extended protocols (e.g., 60-min Mojonnier extractions).
• Stainless Steel Chamber: Corrosion-resistant, easy-clean interior engineered for long-term exposure to acidic reagents (e.g., sulfuric acid, amyl alcohol) used in classical fat determination workflows.
• Integrated Safety System: Motor-driven automatic lid locking mechanism with interlocked power cutoff; dynamic electromagnetic braking ensures immediate rotor stop upon lid opening or cycle completion—fully compliant with IEC 61010-2-20 and EN 61010-1 safety directives.
• High-Throughput Capability: Accommodates 12 sample tubes simultaneously when configured for Schmidt-Lewandowsky (Mojonnier) or solubility-based fat analysis—reducing per-sample processing time without compromising inter-run consistency.

Sample Compatibility & Compliance

The Super-Vario-N is validated for use with standard Gerber butyrometers (20 mL), Mojonnier flasks (50 mL), Babcock bottles (17.6 mL), and solubility test tubes (15–25 mL). It supports raw, pasteurized, UHT, and reconstituted milk, as well as cream, whey, and fermented dairy matrices—provided sample pretreatment aligns with respective method specifications (e.g., homogenization, acid digestion, solvent addition). The instrument meets the mechanical and thermal performance criteria outlined in ISO 2446 (Gerber), ISO 1211 (Mojonnier), and AOAC Official Methods of Analysis for dairy fat quantification. Its operational parameters are traceable to NIST-calibrated torque and temperature standards, facilitating GLP-compliant documentation and internal audit readiness.

Software & Data Management

The Super-Vario-N operates via an embedded microcontroller interface with no external PC dependency—ensuring robustness in high-humidity laboratory environments typical of dairy quality control labs. All user-defined parameters (speed, temperature, time) are stored in non-volatile memory with timestamped last-used settings. While it does not feature network connectivity or electronic data export, its deterministic operation enables full manual traceability: each run is documented via handwritten logbooks or LIMS-integrated batch records referencing method ID, operator, calibration status, and environmental conditions. For laboratories operating under FDA 21 CFR Part 11 or EU Annex 11 requirements, the device is suitable for use within validated workflows where procedural controls (e.g., dual-operator verification, pre-run checklist sign-off) supplement its inherent mechanical reliability.

Applications

• Routine fat content verification in raw milk intake at dairy receiving stations
• Quality assurance testing of pasteurized and UHT milk prior to packaging
• Process monitoring during cream separation and standardization
• Regulatory compliance testing for national dairy standards (e.g., Codex Alimentarius, USDA-FNS, EU Commission Regulation No 1234/2007)
• Method validation and reference lab cross-checking against gravimetric or NIR alternatives
• Training and education in food science curricula requiring hands-on butyrometric technique instruction

FAQ

Is the Super-Vario-N compatible with ASTM D1293 for milk fat analysis?
No—ASTM D1293 refers to pH measurement of water; milk fat analysis follows ASTM D1120 (Babcock) or D2787 (Mojonnier). The Super-Vario-N supports both.
Can this centrifuge be used for non-dairy emulsions such as plant-based milks?
Yes, provided the selected fat extraction method (e.g., modified Mojonnier) has been technically validated for the matrix; recovery rates must be confirmed using spiked recovery studies per ISO 5725.
Does GERBER provide IQ/OQ documentation for the Super-Vario-N?
Yes—factory-issued Installation Qualification (IQ) templates and Operational Qualification (OQ) test protocols are available upon request for GMP-regulated facilities.
What maintenance intervals are recommended for routine operation?
Lubrication-free brushless motor design requires only quarterly visual inspection of rotor seating, annual calibration of temperature sensor (±0.5 °C), and biannual verification of lid lock engagement force per GERBER Service Bulletin SB-SV-2023-01.
Is rotor imbalance detection built into the control system?
No—the Super-Vario-N relies on mechanical symmetry and strict adherence to tube mass matching (±0.1 g); imbalance protection is achieved via vibration-sensing shutdown in accordance with EN 61000-6-2 EMC immunity requirements.
