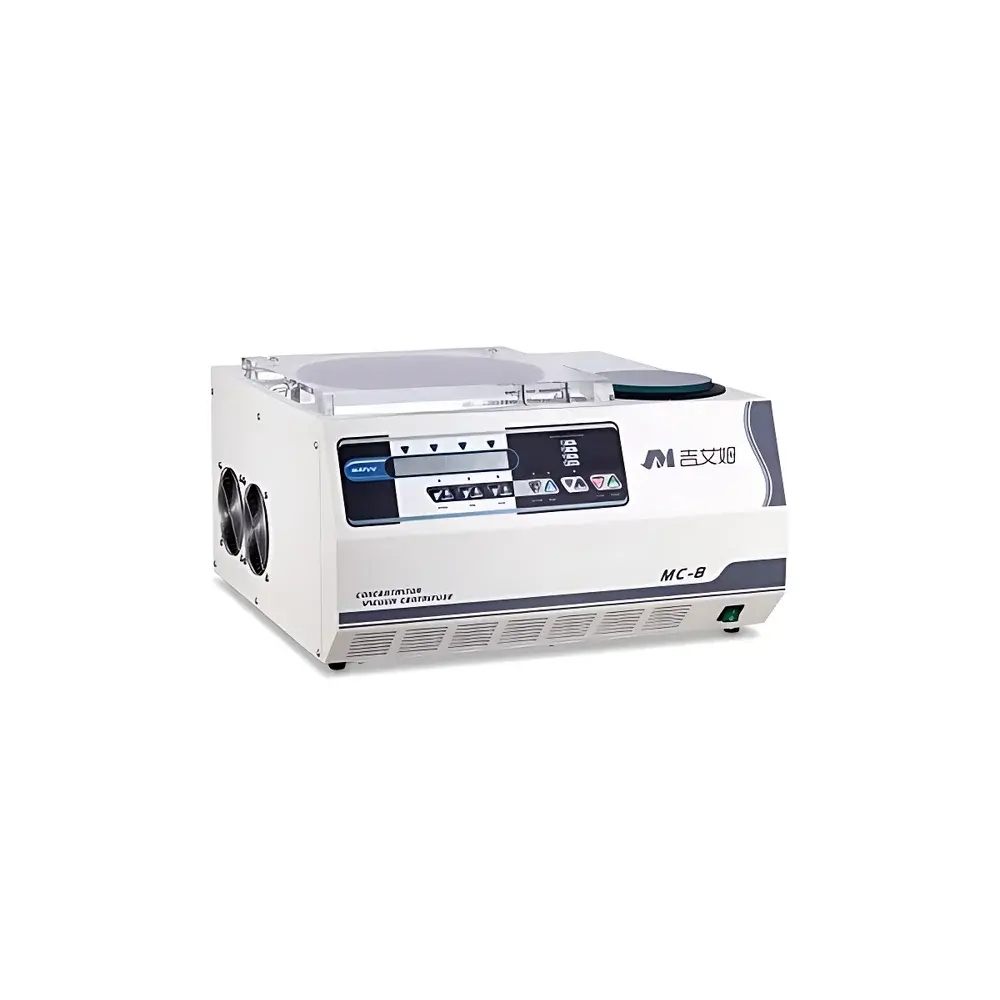

GiAim MC-8 Integrated Refrigerated Centrifugal Concentrator

Overview

The GiAim MC-8 Integrated Refrigerated Centrifugal Concentrator is an engineered solution for solvent removal, sample concentration, and lyophilization-preparatory processing in molecular biology, proteomics, metabolomics, and pharmaceutical R&D laboratories. It operates on the principle of simultaneous centrifugal force, vacuum-induced evaporation, and active condensation—where volatile solvents (e.g., ethanol, methanol, acetonitrile, ethyl acetate) are evaporated under reduced pressure, accelerated by controlled rotational energy, and captured in a −50 °C cold trap. Unlike modular systems requiring external vacuum pumps or chillers, the MC-8 integrates the centrifuge chamber, vacuum manifold, PTFE-lined cold trap, and refrigeration unit into a single robust chassis—minimizing footprint, eliminating inter-unit leak paths, and improving thermal and vacuum stability across extended runs (up to 9999 minutes). Its design adheres to core engineering requirements for reproducible concentration: precise temperature ramping (0–75 °C, ±0.5 °C accuracy), programmable RCF control (up to 430 × g), and vacuum regulation down to ≤30 Pa—enabling gentle yet efficient removal of heat-labile analytes without denaturation or foaming.

Key Features

• Monolithic stainless-steel (AISI 304) chamber with full PTFE coating on all solvent-contact surfaces—including rotor cavity, lid seal, vacuum valves, and condensate pathways—ensuring compatibility with aggressive organic solvents and acidic/basic aqueous matrices.
• Integrated −50 °C two-stage cascade refrigeration system with auto-defrost cycle, eliminating manual ice buildup management and maintaining consistent cold trap efficiency over multi-hour protocols.
• Intelligent vacuum sequencing logic: vacuum initiation is delayed until rotor reaches preset speed—preventing splashing, foaming, or tube displacement during acceleration.
• Real-time centrifugal imaging window with integrated LED illumination and anti-fog coating—enabling non-invasive visual monitoring of sample meniscus, foam formation, or pellet integrity without interrupting vacuum or rotation.
• Dual-safety vacuum release: automated venting via PTFE-sealed solenoid valve upon program completion or emergency stop; failsafe passive pressure equalization on power loss to preserve sample integrity.
• Four dedicated thermal presets (Room Temp, 30 °C, 45 °C, 60 °C) with rapid PID-controlled heating—reducing thermal overshoot and enabling method transfer across user-defined SOPs.
• Acoustic optimization: vibration-damped rotor assembly and insulated chamber housing limit operational noise to ≤60 dB(A) at 1 m distance—suitable for shared lab environments.

Sample Compatibility & Compliance

The MC-8 accommodates standard microcentrifuge tubes (0.2–2.0 mL), PCR strips, deep-well plates (96-well), and custom rotors supporting up to 24 × 1.5 mL or 12 × 5 mL tubes. All wetted materials comply with USP Class VI biocompatibility standards and ISO 10993-5 cytotoxicity requirements. The instrument meets CE marking directives (2014/30/EU EMC, 2014/35/EU LVD) and conforms to IEC 61010-1:2010 safety standards for laboratory electrical equipment. Vacuum and temperature profiles are fully loggable and exportable—supporting audit readiness for GLP-compliant workflows and internal QC documentation per ISO/IEC 17025.

Software & Data Management

The embedded 5.7″ capacitive touchscreen interface supports full parameter programming—including multi-step methods with independent setpoints for speed, temperature, vacuum level, and duration. All run logs (start/stop timestamps, actual RCF, chamber temperature history, vacuum decay curves, error codes) are stored internally (≥10,000 cycles) and exportable via USB 2.0 as CSV or PDF reports. Optional Ethernet connectivity enables remote monitoring and integration with LIMS via Modbus TCP protocol. Audit trail functionality records operator ID, parameter changes, and system events—meeting FDA 21 CFR Part 11 requirements when paired with institutional electronic signature policies.

Applications

• Concentration of DNA/RNA eluates post-column purification (e.g., silica-membrane kits) without salt carryover or shearing.
• Preparative cleanup of LC-MS fractions—removing volatile mobile phases while preserving labile post-translational modifications.
• High-yield recovery of synthetic oligonucleotides and peptide intermediates from DMF or DCM solutions.
• Routine reduction of cell lysate volumes prior to SDS-PAGE or Western blotting—maintaining enzyme activity and epitope conformation.
• Stabilization of unstable metabolites (e.g., acyl-glucuronides, reactive aldehydes) through low-temperature, oxygen-free concentration.

FAQ

Does the MC-8 require an external vacuum pump?
No—the system includes a built-in oil-free diaphragm vacuum pump rated for continuous operation and compatible with common organic solvents.
Can the MC-8 be used for lyophilization?
It is not a freeze dryer; however, it serves as a high-efficiency pre-concentration step before primary drying in dedicated lyophilizers—particularly for samples requiring volume reduction without freezing-induced aggregation.
Is rotor balancing required before each run?
Yes—symmetrical loading is mandatory per IEC 61010-2-020. The system includes automatic imbalance detection and will halt acceleration if >5 g mass asymmetry is sensed.
What maintenance intervals are recommended?
Cold trap cleaning every 200 operating hours; vacuum pump membrane replacement every 12 months or 3000 hours; annual calibration of temperature and vacuum sensors by authorized service personnel.
Is the MC-8 compatible with third-party rotors or adapters?
Only GiAim-certified rotors and tube holders are validated for safety and performance. Use of non-OEM components voids warranty and compromises RCF accuracy and containment integrity.
