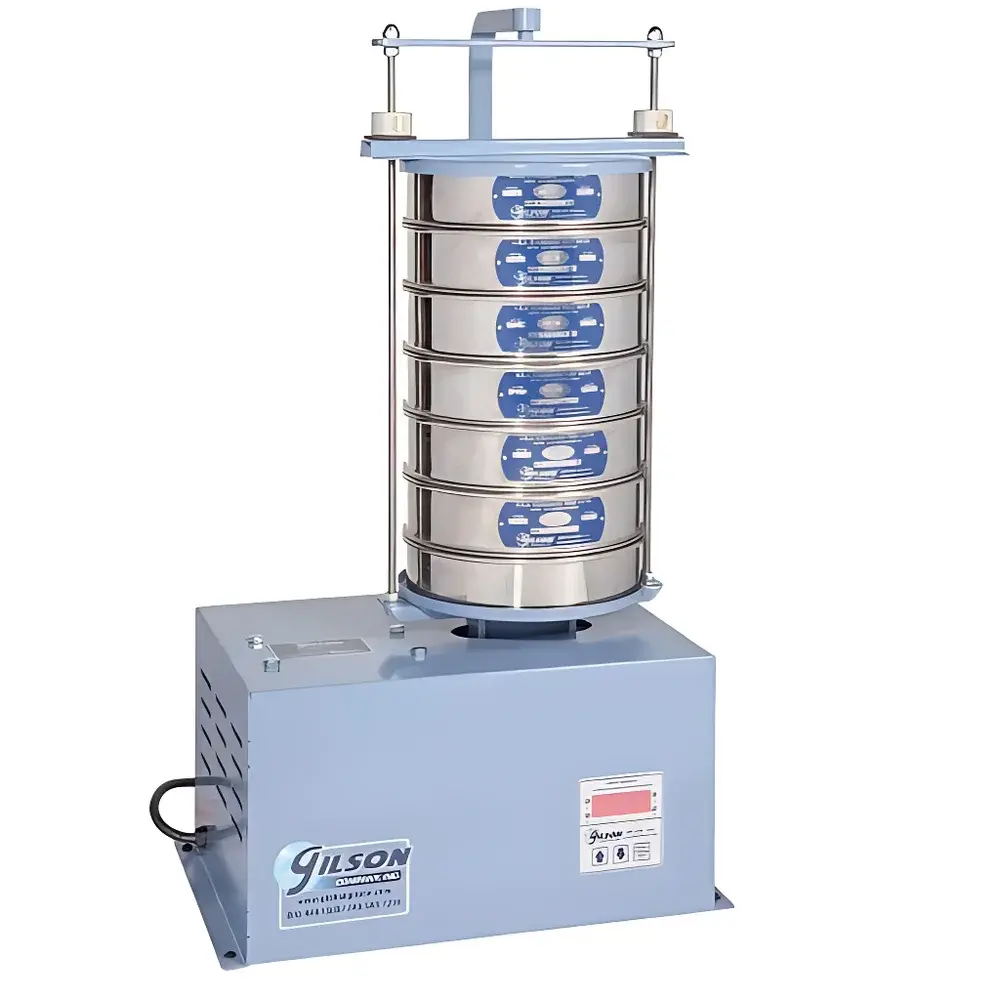

Gilson SS-15DF 8-inch Digital Sieve Shaker
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | SS-15DF |
| Pricing | Upon Request |
Overview
The Gilson SS-15DF 8-inch Digital Sieve Shaker is a precision-engineered mechanical sieve shaker designed for standardized particle size distribution analysis in accordance with ASTM E11, ISO 3310-1, and USP <786>. It employs a dual-motion mechanism—combining horizontal oscillation with vertical tapping—to replicate the kinetic energy profile of manual sieving while ensuring high reproducibility across repeated tests. This design enables effective stratification and separation of dry granular materials ranging from coarse aggregates (4.75 mm) down to fine powders (75 µm), making it suitable for routine quality control and R&D applications in geotechnical labs, construction materials testing, pharmaceutical manufacturing, and mineral processing facilities.
Key Features
- 8-inch (203 mm) sieve capacity compatible with both ASTM-standard and ISO 200 mm diameter test sieves
- Dual-motion drive system: 1/4 HP motor delivers controlled lateral oscillation + vertical tapping for enhanced particle mobility and efficient mesh penetration
- Integrated EZ-Clamp™ quick-release fixture system with slide-and-lock actuation and tactile button engagement—enables tool-free setup and secure stack retention
- Digital timer with large 0.5-inch (12.7 mm) LED display; programmable up to 99 minutes with ±1 second accuracy
- Pause/resume functionality preserves elapsed time during interruption—critical for multi-step or operator-intervention protocols
- Acoustic alert: 5-second audible tone at test completion, configurable via firmware
- Standalone benchtop configuration supports either six full-height (2-7/8″) sieves + receiver pan or twelve half-height (1-7/8″) sieves + pan stack
- Robust cast-iron base and reinforced steel frame ensure vibration isolation and long-term dimensional stability under continuous operation
Sample Compatibility & Compliance
The SS-15DF accommodates a broad spectrum of dry, free-flowing particulate samples—including crushed stone, sand, cementitious blends, metal powders, milled APIs, and agricultural feedstocks—provided they exhibit minimal cohesion and moisture content below 1% w/w. It complies with ASTM E11-22 (Specification for Woven Wire Test Sieve Cloth and Test Sieves), ISO 3310-1:2016 (Test sieves — Technical requirements and testing — Part 1: Test sieves of metal wire cloth), and supports GLP/GMP documentation workflows when paired with audit-trail-capable LIMS integration. Optional calibration verification kits—including certified reference beads and NIST-traceable sieve standard sets—are available to support ISO/IEC 17025 accreditation requirements.
Software & Data Management
While the SS-15DF operates as a standalone electromechanical instrument without embedded software, its digital timer module supports external data logging via optional RS-232 or USB-to-serial interface adapters (sold separately). When integrated into laboratory automation environments, test parameters—including duration, pause events, and cycle count—can be exported to CSV or XML formats for traceability in electronic lab notebooks (ELNs) or compliance-driven systems adhering to FDA 21 CFR Part 11. Firmware updates are delivered through Gilson’s secure customer portal and include enhanced timing diagnostics and error-code reporting for preventive maintenance scheduling.
Applications
- Aggregate gradation testing per ASTM C136/C136M and AASHTO T 27 for highway and concrete mix design
- Pharmaceutical granule and excipient sizing per USP <786> and EP 2.9.31
- Metal powder characterization for additive manufacturing feedstock qualification (ASTM B214, B822)
- Soil particle-size analysis per ASTM D422 and ISO 14688-1
- Feed and grain milling quality assurance per AOAC 992.03 and ISO 659
- Ceramic raw material classification and batch consistency verification
FAQ
What sieve standards does the SS-15DF support?
It accepts both ASTM-standard 8-inch (203 mm) sieves and ISO 200 mm diameter sieves, including full-height (73 mm) and half-height (48 mm) configurations.
Can the SS-15DF be mounted to a rigid surface?
Yes—the unit includes pre-drilled mounting holes on the base plate for permanent installation to a vibration-damped workbench or structural frame.
Is the EZ-Clamp™ system backward-compatible with older Gilson shakers?
The SSA-806 EZ-Clamp Upgrade Kit allows retrofitting of legacy SS-15 and SS-15F units with the current-generation clamping mechanism.
What power supply specifications apply outside North America?
The SS-15DF is available with configurable input voltage options (100–240 V AC, 50/60 Hz); consult Gilson’s regional technical support for model-specific certification (CE, UKCA, KC, etc.).
Are stainless-steel sieve frames included by default?
No—sieves are sold separately. Available configurations include brass, brass-frame/stainless-steel-wire, and fully stainless-steel options across multiple diameters (3″, 6″, 8″, 10″, 12″, 18″, and ISO 200/300 mm).
