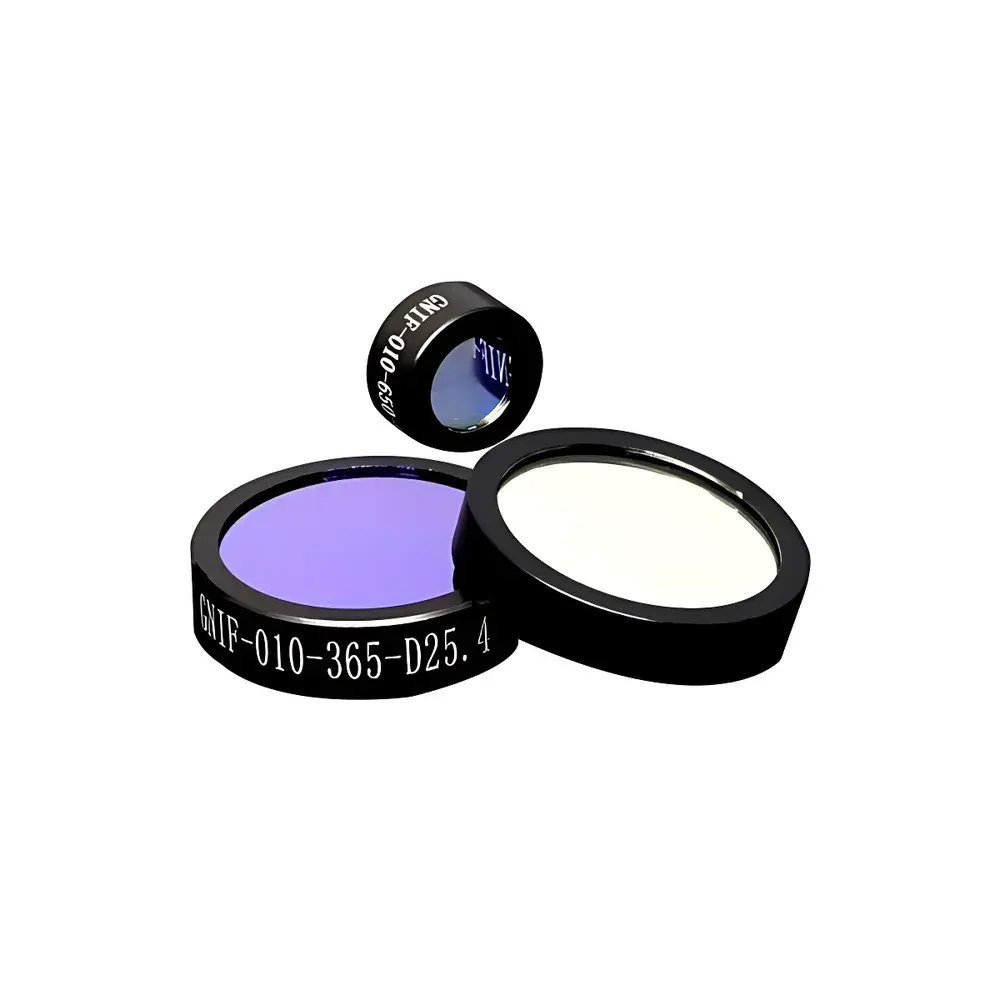

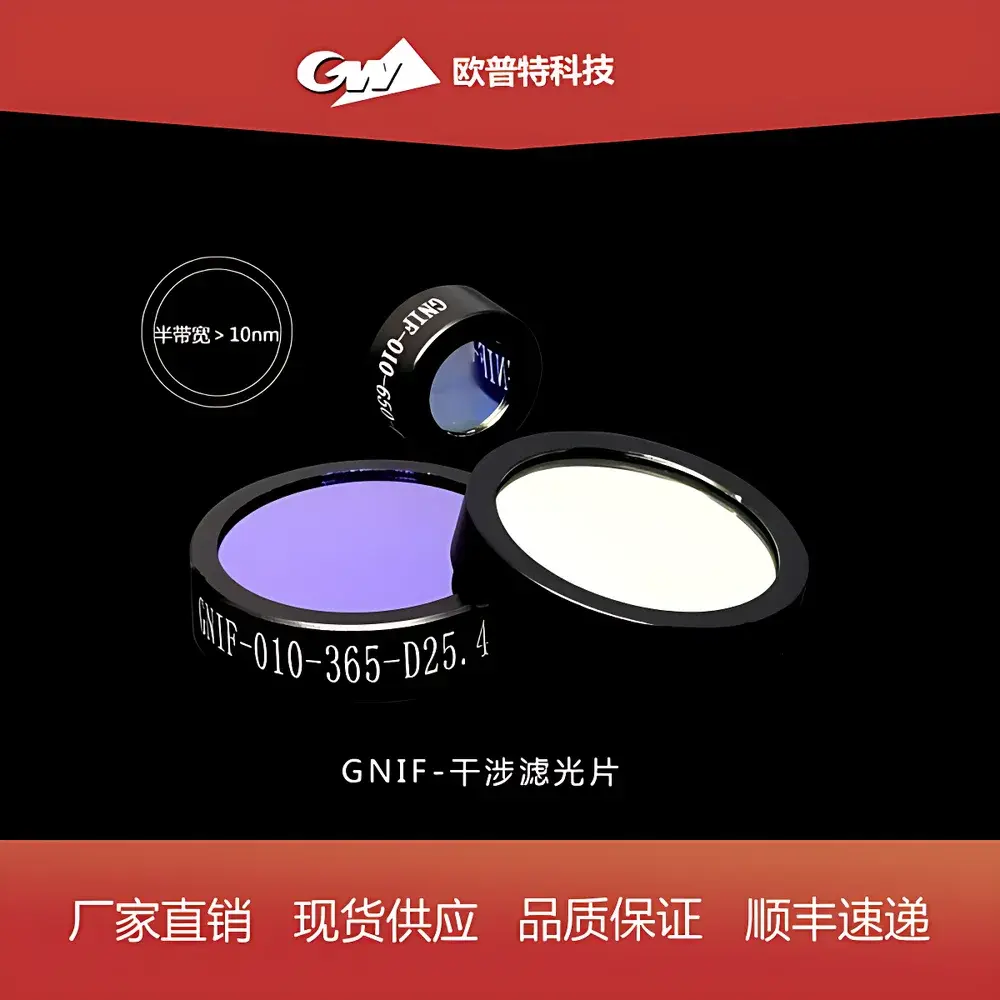

GNIF Interference Filter (FWHM >10 nm)

Overview

The GNIF Interference Filter is a precision optical component engineered for spectral selection in laboratory and industrial optical systems. Based on multi-layer dielectric thin-film interference principles, it delivers narrowband transmission with high out-of-band rejection, enabling accurate isolation of target wavelengths across the visible to near-infrared spectrum (400–1050 nm). Unlike absorptive or colored-glass filters, GNIF filters operate via constructive and destructive interference of light reflected at precisely controlled layer interfaces—ensuring minimal thermal drift, polarization sensitivity, and angular dependence within specified incidence conditions (typically ≤5° for optimal performance). These filters are optimized for use in fluorescence microscopy, laser line cleanup, spectrophotometry, optical sensing, and OEM instrumentation where stable, repeatable spectral definition is critical.

Key Features

• Wide spectral coverage: CWL options from 400 nm to 1050 nm, with standard tolerances of ±2 nm (for NIR bands) to ±7 nm (for broader FWHM variants)
• Controlled bandwidth: FWHM ranging from 14 nm to 75 nm, supporting both high-resolution spectral isolation (e.g., GNIF-14-1000-D12) and broader bandpass applications (e.g., GNIF-75-670-D25)
• High peak transmission: ≥45% minimum (at 800 nm and above); ≥75% typical for most visible and NIR variants under normal incidence
• Dual-diameter availability: Precision-ground and polished substrates in standard diameters Φ12.7 mm (0.5″) and Φ25.4 mm (1.0″), compatible with industry-standard lens mounts and filter wheels
• Robust dielectric coating architecture: Hard-coated, ion-assisted deposition (IAD) multilayer stacks ensure environmental stability, low humidity sensitivity, and resistance to cleaning solvents per MIL-C-48497A guidelines
• Consistent edge steepness: Typical transition width (10%–90% transmission) < 2× FWHM, supporting clean spectral separation in multi-filter configurations

Sample Compatibility & Compliance

GNIF filters are fabricated on UV-grade fused silica or BK7 substrates, selected based on spectral range and power-handling requirements. All filters meet ISO 10110-7 surface quality specifications (scratch-dig 60-40), with RMS surface roughness <5 Å. They comply with RoHS Directive 2011/65/EU and are free of restricted substances including lead, cadmium, and hexavalent chromium. While not certified to specific medical or aerospace standards, their performance characteristics align with common requirements for ISO/IEC 17025-accredited laboratories performing optical calibration, spectroscopic validation, and method development per ASTM E308 (Standard Practice for Computing the Colors of Objects by Using the CIE System) and ISO 9288 (Optics and photonics — Spectral filters — Vocabulary and test methods).

Software & Data Management

As passive optical components, GNIF filters require no embedded firmware or software integration. However, each filter is supplied with a traceable datasheet containing measured spectral transmittance curves (normalized to incident intensity), CWL, FWHM, blocking range (OD ≥4 from 200–1200 nm outside passband), and angular shift data (ΔCWL vs. angle of incidence). Datasheets conform to NIST-traceable measurement protocols using calibrated double-monochromator spectrophotometers (e.g., PerkinElmer Lambda 1050+ with 150 mm integrating sphere). For system-level integration, spectral response data is provided in ASCII (.csv) and XML formats compatible with Zemax OpticStudio, CODE V, and MATLAB-based optical modeling workflows.

Applications

• Laser-based instrumentation: Line filtering for HeNe (632.8 nm), diode lasers (650–950 nm), and supercontinuum sources
• Fluorescence detection: Excitation and emission band selection in confocal and widefield microscopes
• Environmental monitoring: Gas sensing (e.g., CH₄ at 1650 nm requires custom extension; standard GNIF series supports pre-filtering up to 1050 nm)
• Machine vision: Color channel separation and ambient light rejection in industrial inspection systems
• Educational optics labs: Demonstrating interference theory, spectral resolution limits, and Fabry–Pérot cavity fundamentals
• OEM integration: Embedded in portable spectrometers, blood oximeters, and agricultural NDVI sensors requiring stable, field-deployable spectral control

FAQ

What is the maximum incident power density these filters can withstand?
GNIF filters are rated for continuous-wave (CW) operation up to 5 W/cm² at room temperature when mounted on thermally conductive holders. Pulsed laser use requires consultation—damage threshold depends on pulse duration, repetition rate, and spot size.
Do GNIF filters exhibit polarization-dependent transmission?
Yes—transmission shifts slightly with s- and p-polarized light, especially beyond ±5° angle of incidence. For polarized applications, specify polarization state during ordering; custom anti-polarization designs are available.
Can I request custom center wavelengths or FWHM values outside the listed catalog?
Yes—custom designs (including non-standard CWL, asymmetric passbands, or extended blocking ranges) are supported with minimum order quantities and lead times of 8–12 weeks.
Are mounting rings or retention hardware included?
No—filters are supplied unmounted. Standard SM1 (1.035″-40) and SM05 (0.535″-40) compatible retaining rings are recommended and available separately.
How is spectral performance verified prior to shipment?
Each batch undergoes full-spectrum verification using a NIST-calibrated UV-VIS-NIR spectrophotometer. A certificate of conformance with measured CWL, FWHM, and peak T% is included with every order.
