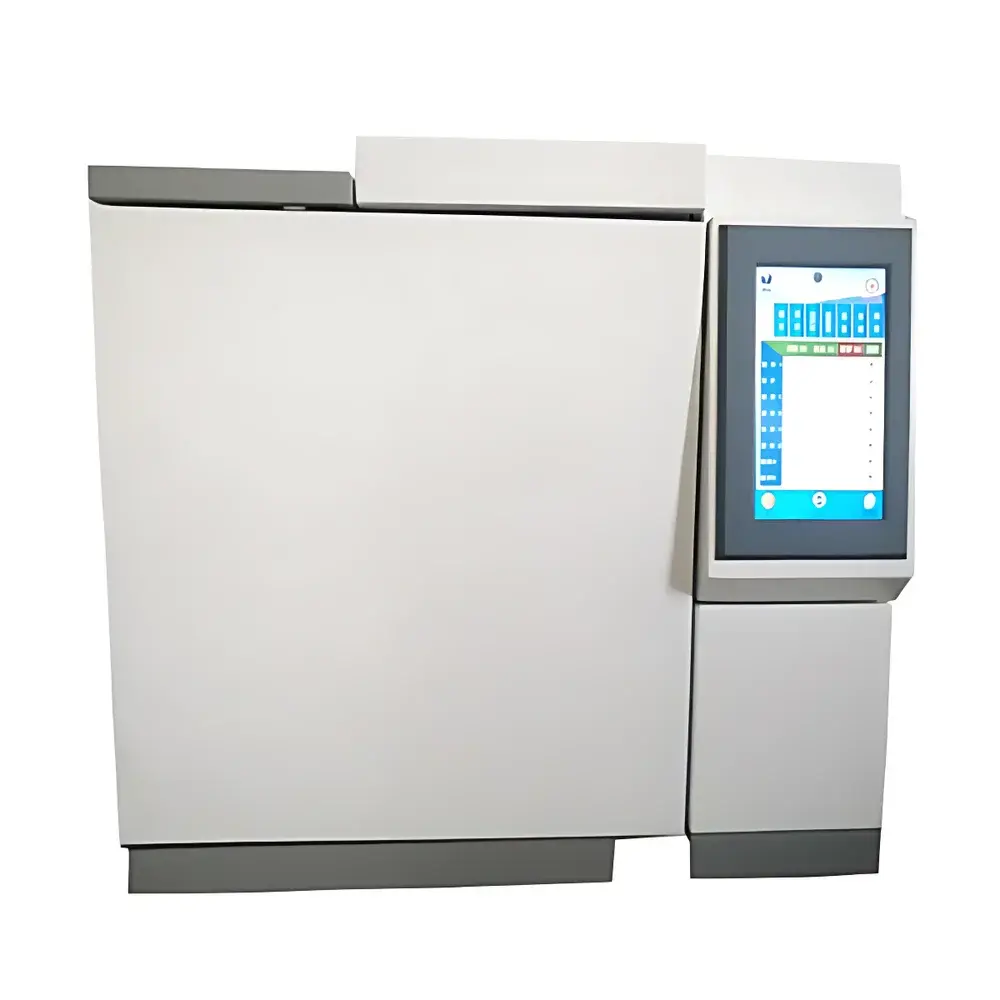

Golden Promise GC-8890 Dedicated Gas Chromatograph for 36-Component Baijiu Analysis

Overview

The Golden Promise GC-8890 Dedicated Gas Chromatograph is an online-capable, high-stability analytical platform engineered specifically for the quantitative profiling of 36 key volatile compounds in baijiu — China’s traditional distilled spirit. It operates on the fundamental principle of gas-phase separation: sample vapors are introduced via a precision split/splitless injector, carried through a fused-silica capillary column by a controlled carrier gas stream (He, H₂, or N₂), and resolved based on differential partitioning between the mobile phase and stationary phase. Eluting components are detected sequentially using either flame ionization (FID) or thermal conductivity (TCD) detectors — with dual-detector configuration enabled by an advanced gas routing manifold. The system integrates real-time digital pressure and flow control (EPC/EFC), enabling reproducible retention time alignment across multi-day batch analyses required for QC/QA in distillery laboratories and national food safety monitoring centers.

Key Features

• Online-ready architecture: Equipped with 10/100M Ethernet interface supporting TCP/IP communication; scalable to networked deployments with up to 5,000 instruments managed from a single workstation and up to three workstations concurrently controlling one GC-8890.
• Full remote instrument control: All acquisition parameters — oven ramp rates, detector gains, valve timing, EPC setpoints — are configurable and modifiable in real time via PC-based software without physical access.
• Digital EPC/EFC (optional): Delivers precise, drift-free regulation of carrier, makeup, and fuel gases; supports constant-flow, constant-pressure, and programmed pressure modes; includes 4-step pressure ramping with 0.01 kPa resolution.
• High-speed thermal management: Column oven achieves heating rates up to 80 °C/min and cools from 350 °C to ambient in ≤3 minutes, minimizing cycle time for high-throughput baijiu screening.
• Intelligent ignition & safety: Fully automated hydrogen–air mixing and spark sequence; continuous flame monitoring with automatic shutdown and visual/audio alert upon flame extinction.
• Multi-dimensional chromatography support: Eight programmable external event ports enable precise synchronization of up to four switching valves, facilitating heart-cutting, column back-flushing, and comprehensive two-dimensional (GC×GC) configurations.
• Dual-detector compatibility: Independent gas pathways allow concurrent FID and TCD operation — essential for simultaneous quantification of ethanol, esters, aldehydes (FID-sensitive) and permanent gases or CO₂ (TCD-sensitive) in fermentation headspace analysis.
• Robust thermal design: Dual motorized back doors adjust dynamically to oven temperature; platinum RTD sensors ensure ±0.1 °C isothermal stability; overtemperature protection triggers immediate heater cutoff if any zone exceeds user-defined limits.

Sample Compatibility & Compliance

The GC-8890 is optimized for liquid-injection analysis of distilled spirits following standardized pretreatment protocols (e.g., dilution in ethanol/water, internal standard addition). It accommodates 0.1–2 µL injections via syringe or autosampler, compatible with industry-standard 0.25–0.53 mm ID capillary columns (e.g., DB-WAX, HP-INNOWAX, or equivalent polar phases). Its hardware architecture meets foundational requirements for regulated environments: hardware-level fault logging, non-volatile parameter memory (retained during power loss), and integrated diagnostics for open/short circuits, gas leaks, and filament burnout. While the base instrument does not include embedded 21 CFR Part 11 compliance features, it interfaces seamlessly with validated third-party chromatography data systems (CDS) that provide electronic signatures, audit trails, and role-based access control — enabling full adherence to GLP, GMP, and CNAS-CL01 accreditation criteria.

Software & Data Management

The GC-8890 operates with Golden Promise’s GC Navigator™ software suite — a Windows-based application supporting method development, sequence definition, real-time spectral visualization, peak integration (with baseline correction and retention time locking), and customizable reporting. Raw data files (.DAT) conform to ASTM E1947-17 structural conventions, ensuring interoperability with OpenLab CDS, Chromeleon, and Empower platforms. All instrument events — including valve actuations, temperature deviations, pressure fluctuations, and detector saturation alerts — are timestamped and logged in binary diagnostic files. When deployed in networked mode, centralized data archiving can be configured via SMB/NFS shares or SQL-backed repositories. Software updates are delivered via signed firmware packages verified against SHA-256 checksums to maintain integrity in production-critical settings.

Applications

• Quantitative determination of ethyl acetate, isoamyl alcohol, ethyl lactate, and other 36 target congeners per GB/T 10781 series standards
• Authenticity verification and geographical origin discrimination of premium baijiu brands
• Fermentation process monitoring via headspace analysis of mash tanks and aging vessels
• Residual solvent testing in flavored baijiu and medicinal liquor formulations
• Stability studies assessing oxidation products (e.g., acetaldehyde, furfural) during long-term storage
• Regulatory compliance testing for national food safety supervision (SAMR mandates)

FAQ

Is the GC-8890 compliant with Chinese national standards for baijiu testing?
Yes — its resolution, retention time repeatability (RSD ≤0.15% for adjacent peaks), and detector linearity meet the instrumental performance requirements specified in GB/T 10781.1–2021, GB/T 22736–2008, and SN/T 4983–2017.
Can the system operate unattended for overnight batch analysis?
Absolutely — equipped with scheduled auto-start, event-triggered valve sequencing, and built-in power-fail recovery, it supports fully automated 24/7 operation when integrated with a 100-position autosampler.
What column dimensions and phases are recommended for 36-component separation?
A 30 m × 0.32 mm × 0.25 µm DB-WAX column operated under gradient temperature programming (40–220 °C at 5 °C/min) delivers optimal resolution for the mandated congener panel.
Does the instrument support hydrogen as carrier gas?
Yes — the EPC module is calibrated for H₂, He, and N₂; hydrogen operation reduces analysis time by ~40% and enhances FID sensitivity without compromising column lifetime when used with deactivation-treated capillaries.
How is method transfer handled between GC-8890 units?
Method files (.GCM) contain all instrument-specific parameters, including EPC setpoints, valve timing offsets, and detector tuning constants — ensuring consistent retention and response across installations within a laboratory network.
