Grace M3900 Online Viscometer
| Brand | Grace |
|---|---|
| Origin | USA |
| Manufacturer Status | Authorized Distributor |
| Origin Category | Imported |
| Model | M3900 |
| Price | Upon Request |
Overview

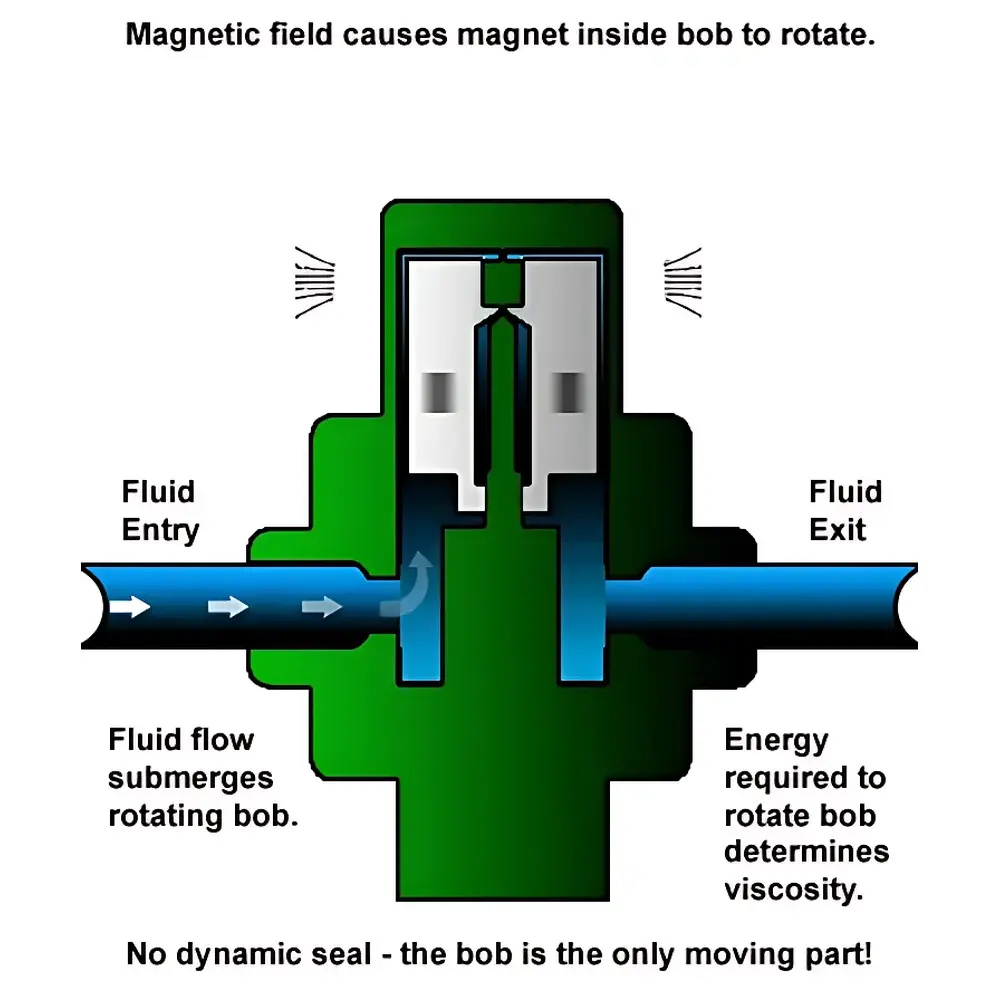

The Grace M3900 Online Viscometer is a robust, industrial-grade rotational viscometer engineered for continuous, real-time viscosity monitoring of flowing or static process fluids in oilfield, chemical, and petrochemical applications. It operates on the principle of coaxial cylinder (Couette) rheometry, where torque exerted on a rotating bob immersed directly in the fluid is measured to determine dynamic viscosity. Unlike conventional inline viscometers requiring dynamic seals—prone to wear, leakage, and calibration drift—the M3900 employs a patented magnetic drive system (U.S. Patent No. 8,850,874) that eliminates all mechanical shaft seals. This design ensures long-term operational stability, minimal zero drift, and intrinsic immunity to flow-induced artifacts, enabling accurate viscosity measurement independent of pipeline velocity, turbulence, or pulsation. Its stainless-steel construction (316 SS wetted parts), pressure rating up to 1,000 psi, and ambient-to-process temperature resilience make it suitable for harsh upstream and midstream environments—including high-pressure fracturing fluid lines and drilling mud circulation systems.
Key Features
- Patented sealless magnetic drive architecture—no dynamic seals, no lubrication, no seal maintenance
- API RP 13B-1 and API RP 39 compliant for drilling fluid and completion fluid rheological characterization
- Continuous rotational speed control from 3 to 600 rpm, programmable via integrated controller or external SCADA
- Viscosity range: 5–1,000 cP (mPa·s) with high reproducibility across shear rate profiles
- Full-access modular design: all internal components accessible via single-action cover removal for rapid cleaning and inspection
- Pressure-rated housing (up to 1,000 psi) with standard NPT or flanged process connections

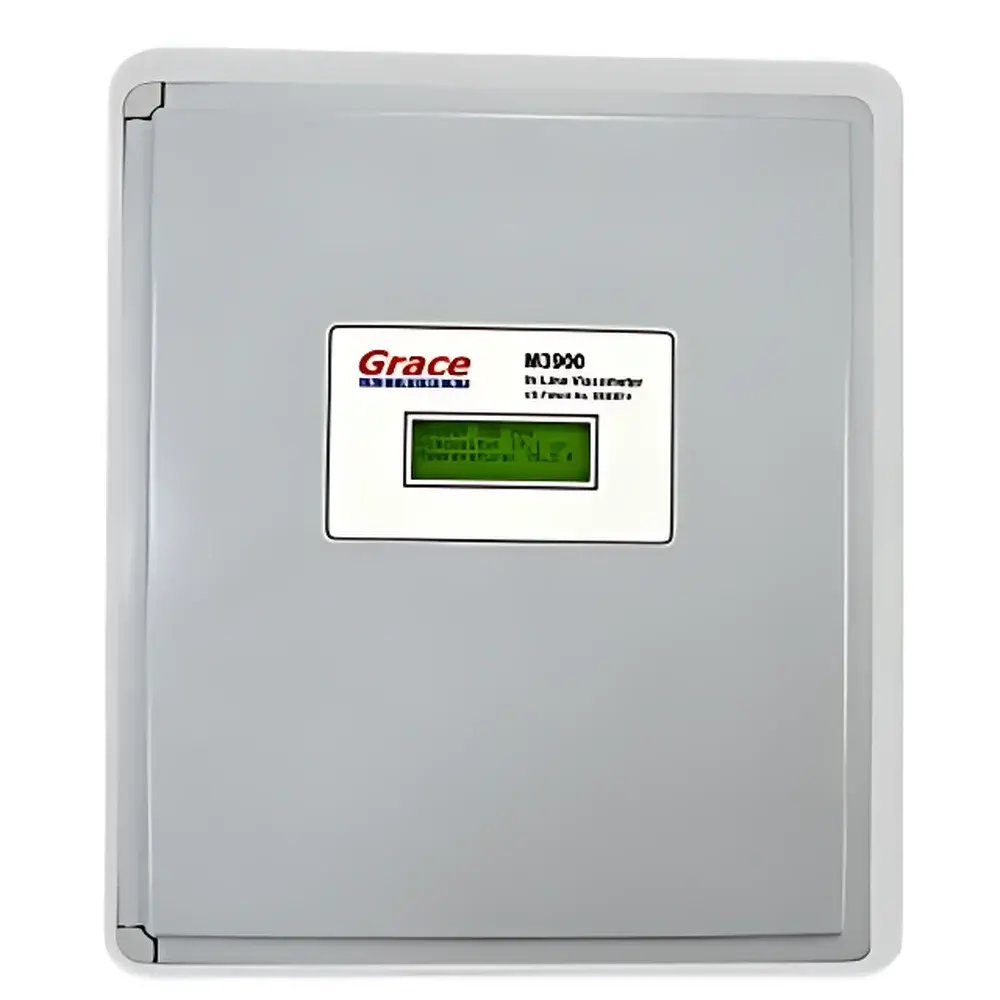

- Integrated LCD control panel with real-time viscosity, RPM, and status display
- Dual-output capability: analog (0–10 V DC) and digital (RS-232/RS-485 Modbus RTU) for seamless integration into DCS, PLC, or LIMS platforms
Sample Compatibility & Compliance
The M3900 is validated for non-Newtonian and shear-thinning fluids commonly encountered in wellbore operations—including water-based and oil-based drilling muds, crosslinked fracturing gels, cement slurries, and polymer solutions. Its absence of dynamic seals prevents contamination, particle entrapment, or shear degradation of sensitive formulations. The instrument meets the procedural and reporting requirements of API Recommended Practice 13B-1 (for rotary viscometer calibration and yield point/plastic viscosity determination) and API RP 39 (for rheological evaluation of completion fluids). All firmware and data logging functions support audit-ready operation under GLP and GMP frameworks; optional time-stamped event logs and user-access controls align with FDA 21 CFR Part 11 expectations for electronic records and signatures when deployed in regulated quality systems.
Software & Data Management

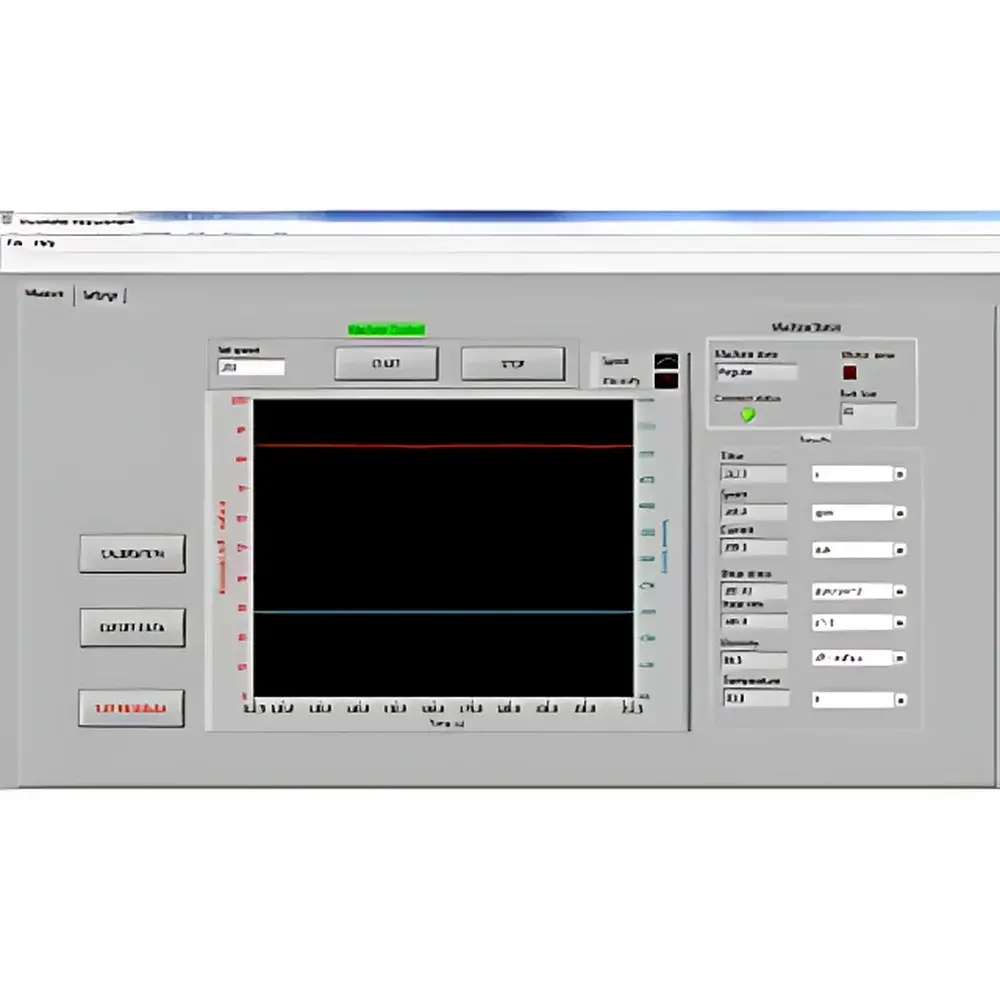

While the M3900 operates autonomously via its onboard microcontroller, it supports bidirectional serial communication for remote configuration, real-time data streaming, and automated calibration routines. Data export formats include CSV, Excel-compatible tab-delimited files, and ASCII log streams—enabling direct ingestion into statistical process control (SPC) software, historian databases (e.g., OSIsoft PI, Emerson DeltaV), or custom Python/MATLAB analysis pipelines. Firmware updates are performed via secure RS-485 session; all parameter changes and calibration events are timestamped and stored in non-volatile memory with configurable retention policies. Optional PC-based configuration utility provides graphical RPM ramping profiles, viscosity trend overlays, and alarm threshold management.
Applications
- Real-time monitoring of drilling fluid rheology during circulation and solids control
- In-line quality verification of fracturing fluid viscosity pre-job and during pump-down
- Batch consistency validation for polymer hydration tanks and blending skids
- Process optimization in bitumen emulsification, asphalt binder modification, and solvent recovery loops
- Long-term viscosity trending for predictive maintenance of pumps, mixers, and heat exchangers handling viscous media
FAQ
Does the M3900 require periodic recalibration?
Yes—calibration is recommended before initial commissioning, after major maintenance, and at intervals aligned with site-specific QA protocols (typically every 3–6 months). Calibration uses traceable Newtonian reference oils per ASTM D2196 and API RP 13B-1 Annex A.
Can the M3900 be installed vertically or horizontally?
It supports both orientations; however, horizontal installation is preferred for optimal bob immersion and bubble evacuation in low-shear applications. Orientation-specific mounting brackets and flow straighteners are available as accessories.
Is hazardous area certification available?
Standard units are rated for Class I, Division 2 (NEC/CEC) environments. ATEX and IECEx-certified variants (Zone 1/21) are available upon request with appropriate enclosure and cable gland configurations.
What maintenance is required beyond routine cleaning?
No scheduled lubrication or seal replacement is needed. Maintenance consists solely of periodic visual inspection of the bob surface, cleaning of the annular gap with approved solvents, and verification of torque sensor zero offset using the built-in diagnostic mode.
How does the M3900 handle suspended solids or abrasive fluids?
The 316 stainless steel bob and cup are hardened and polished to resist erosion. For highly abrasive slurries (e.g., >5% sand by volume), optional tungsten-carbide-coated bob kits extend service life and maintain measurement fidelity over extended exposure.
