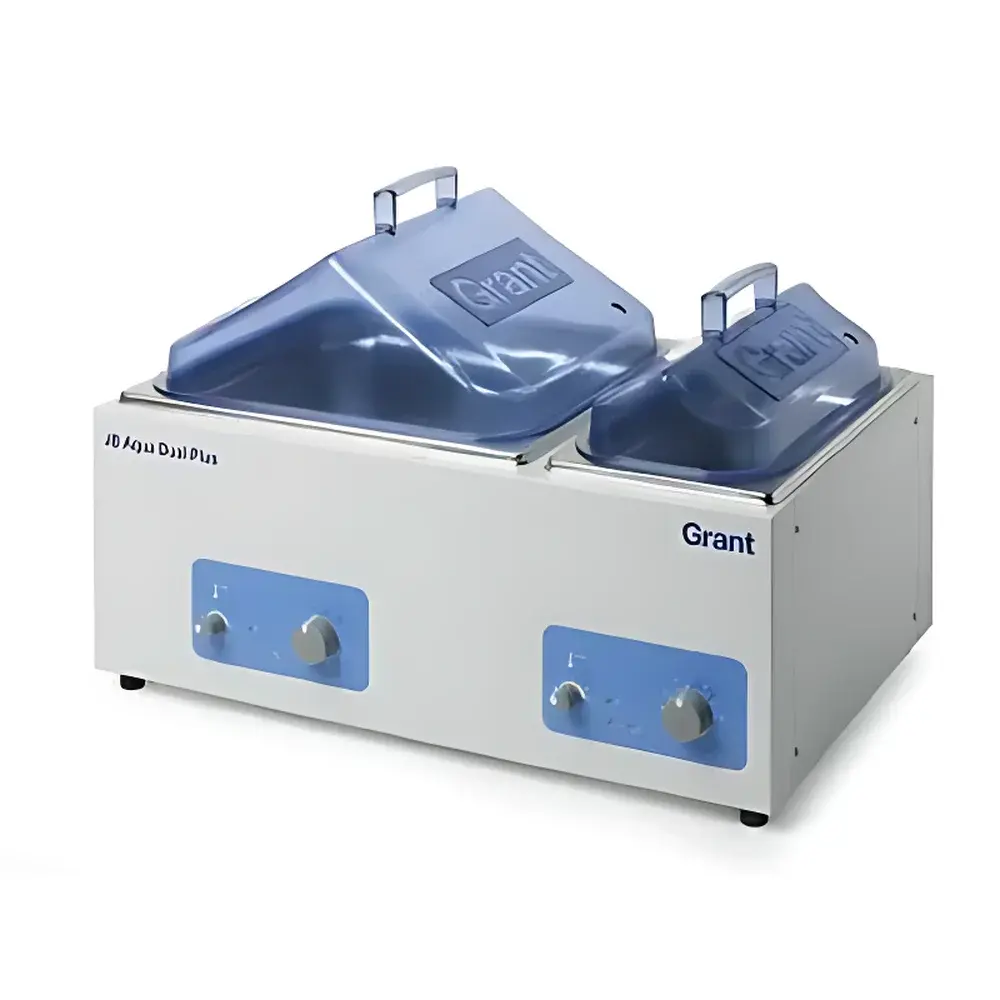

Grant JB AquaPlus Series Analog Water Bath

Overview

The Grant JB AquaPlus Series Analog Water Bath is a precision-engineered, cost-optimized thermal management system designed for consistent and reliable temperature control in routine laboratory applications. Operating on the principle of conduction-based heating via an integrated bottom-mounted heating pad and calibrated sensor, the AquaPlus series maintains stable bath temperatures across a range of 10 °C to 98 °C (with operational capability from ambient +5 °C), meeting DIN 12876 Class I stability requirements (±1.0 °C at 37 °C). Engineered for durability and energy efficiency, each unit features a polished stainless-steel bath chamber, corrosion-resistant resin-coated steel housing, and a proprietary blue polycarbonate lid with optional perforated base — collectively minimizing evaporative heat loss and enhancing thermal uniformity through optimized natural convection. The analog control architecture delivers intuitive, knob-based temperature setting without reliance on digital firmware or software dependencies, making it ideal for environments prioritizing simplicity, long-term reliability, and minimal maintenance.

Key Features

• Stainless-steel bath chamber with mirror-polished interior for chemical resistance and ease of cleaning
• Resin-coated steel chassis providing superior protection against humidity and corrosive reagents
• Removable analog temperature control knob — facilitates traceable calibration and mechanical verification
• User-adjustable overtemperature cut-off (sample protection function) with dual fail-safe logic: activates upon dry-out or simultaneous failure of primary thermostat and safety limiter
• Integrated bottom-heating pad and embedded temperature sensor — ensures uniform thermal distribution and rapid equilibration
• Optional drain valve (standard on 12 L, 18 L, and 26 L models) for efficient bath fluid replacement and maintenance
• Interchangeable accessories including polycarbonate lids (solid, perforated, or inclined), polypropylene floating balls (PS20), and height-adjustable sample supports (RS-series)
• Three-year limited warranty covering parts and labor under normal laboratory use conditions

Sample Compatibility & Compliance

The AquaPlus series accommodates a broad spectrum of sample containers — from microcentrifuge tubes (0.5–2 mL) to Erlenmeyer flasks (up to 2 L) — via standardized J2 and P1 rack systems. Perforated polycarbonate bases (included standard) support optimal vertical convection while enabling full immersion of varied vessel geometries. All models comply with CSA C22.2 No. 1010.1 safety certification for electrical equipment used in laboratory settings. While not explicitly validated for GLP/GMP workflows, the analog architecture inherently avoids software-related audit trail complexities; manual calibration records and physical overtemperature cutoff logs satisfy basic traceability requirements under ISO/IEC 17025 Annex A.2 for non-automated thermal equipment.

Software & Data Management

As an analog-controlled instrument, the JB AquaPlus series does not incorporate embedded microprocessors, display interfaces, or data logging capabilities. Temperature is set and monitored exclusively via calibrated mechanical dials and external thermometers (e.g., NIST-traceable RTDs or mercury-in-glass standards). This design eliminates firmware updates, cybersecurity concerns, and electronic drift — aligning with laboratories seeking deterministic, low-complexity thermal platforms. For facilities requiring documentation, users may integrate external temperature loggers (e.g., compliant with FDA 21 CFR Part 11 when paired with appropriate validation protocols) or record manual readings using paper-based SOPs aligned with internal quality management systems.

Applications

• Enzyme incubation and protein denaturation studies requiring stable sub-boiling temperatures
• Cell culture media warming and reagent equilibration prior to sterile handling
• Sample thawing of frozen biological specimens with controlled ramp rates
• Chemical reaction monitoring in glassware where direct contact heating must be avoided
• Calibration of temperature-sensitive instruments (e.g., viscometers, pH meters) using reference baths
• Quality control testing per ASTM D1500 (petroleum color), USP (compounding), or ISO 8573-1 (compressed air moisture analysis)

FAQ

What is the maximum operating temperature, and are there usage restrictions above 60 °C?
The bath operates up to 98 °C; however, above 60 °C, use of the polycarbonate lid or polypropylene floating balls (PS20) is mandatory to minimize evaporation and maintain thermal stability.
Is the unit suitable for continuous operation over extended periods?
Yes — all models are rated for uninterrupted duty cycles under standard laboratory ventilation and load conditions, provided the bath level remains above minimum fill line and ambient temperature stays within 15–30 °C.
Can the AquaPlus water bath be used with corrosive solutions such as acid baths?
The stainless-steel bath is resistant to mild acids and alkalis; however, prolonged exposure to strong oxidizers (e.g., HNO₃, H₂O₂) or halogenated solvents is not recommended. Always consult Grant’s chemical compatibility guide before introducing non-aqueous media.
Are calibration certificates included with purchase?
No factory-issued calibration certificate is supplied; however, the removable control knob allows third-party metrology labs to perform mechanical calibration traceable to national standards.
Does the Dual Plus model support independent temperature control for each chamber?
No — the JB Aqua Dual Plus features a single analog controller governing both compartments simultaneously; temperature uniformity between zones is maintained within ±0.8 °C under steady-state conditions.
