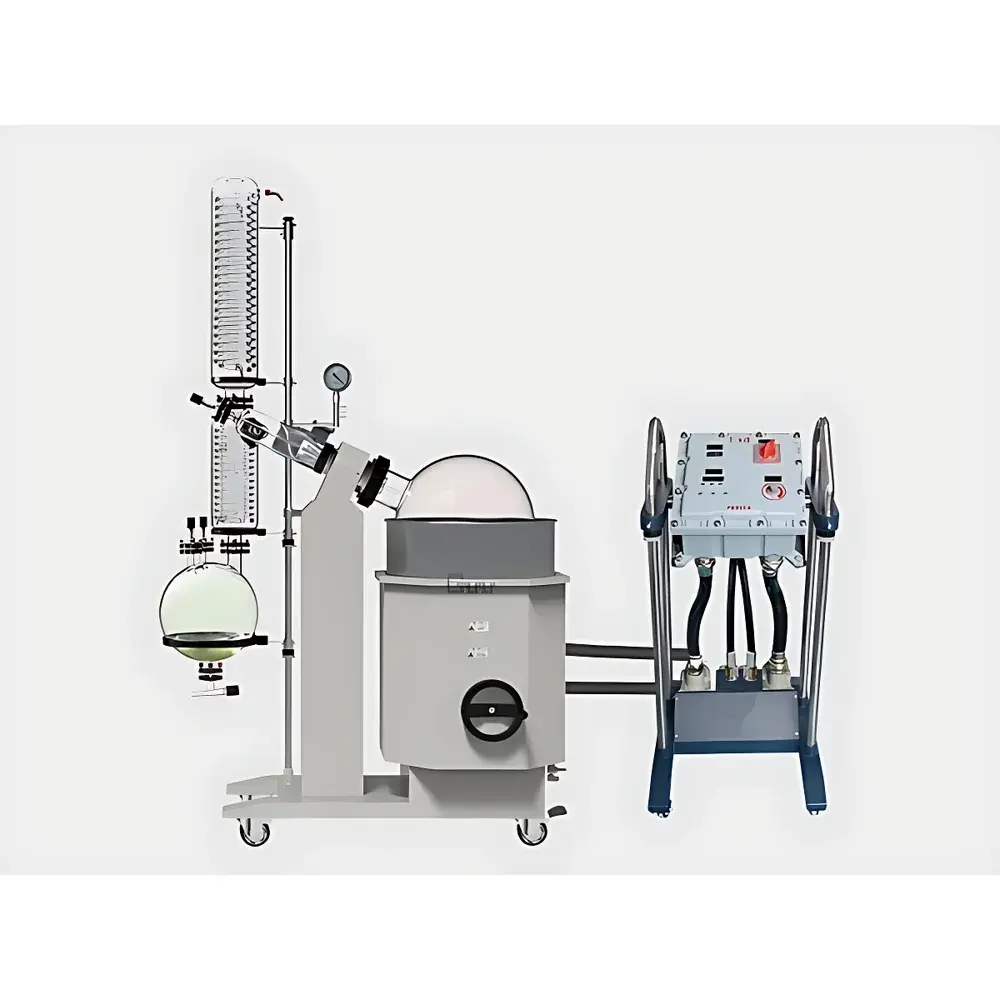

The Great Wall R-1010EX Explosion-Proof Rotary Evaporator

Overview

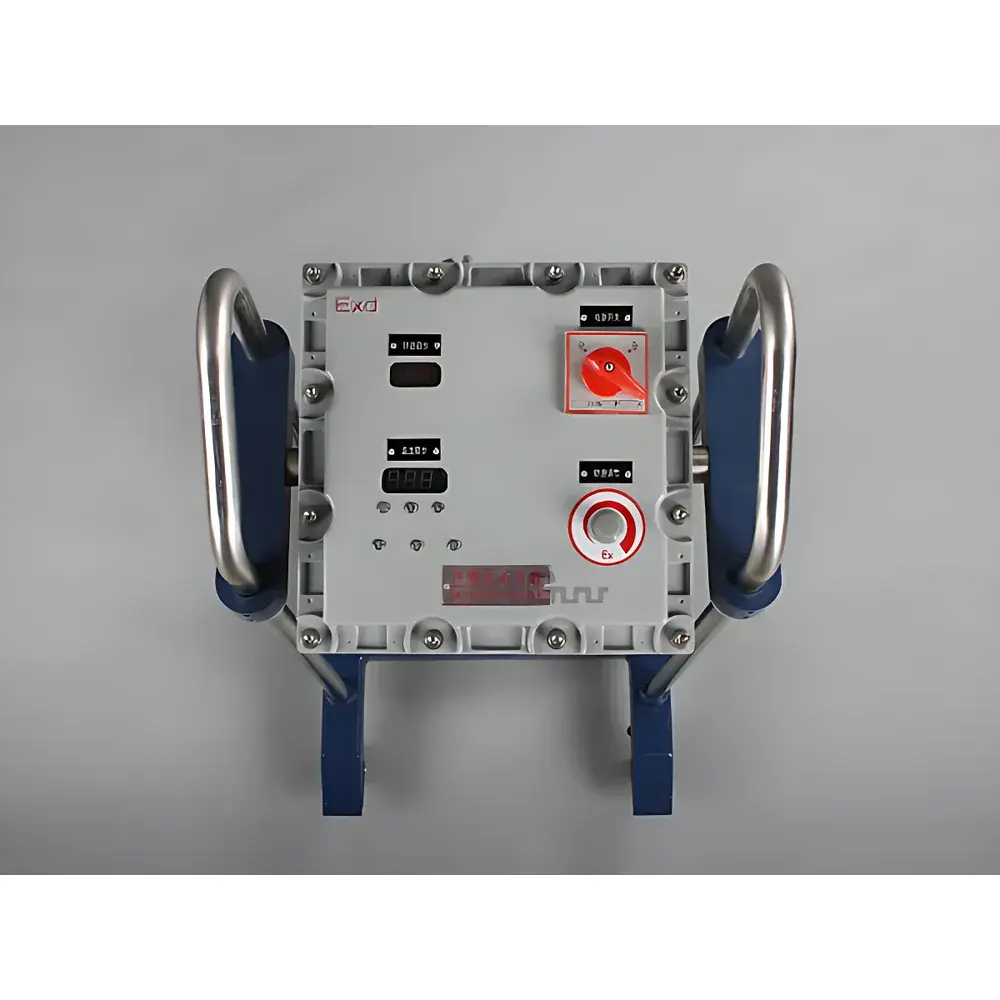

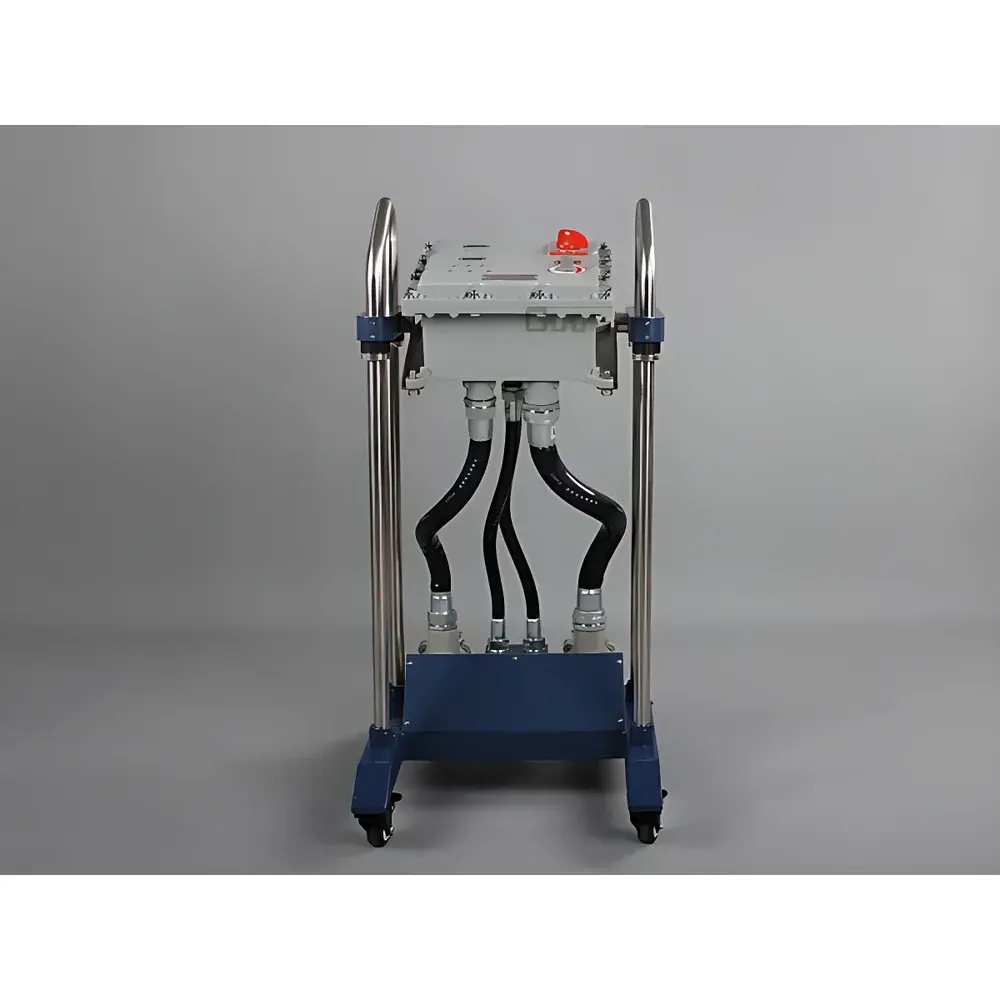

The Great Wall R-1010EX Explosion-Proof Rotary Evaporator is an intrinsically safe laboratory-scale purification system engineered for solvent removal, concentration, and gentle distillation of heat-sensitive or volatile compounds under reduced pressure. Designed in strict compliance with IEC 60079-0 and GB 3836.1–2010 standards for explosion-proof electrical equipment, the R-1010EX integrates a certified Ex d IIB T4 Gb-rated control cabinet with full separation between hazardous-area mechanical components and non-hazardous-zone electronics. Its core operational principle relies on simultaneous rotation, controlled heating, and vacuum-assisted evaporation: the 10 L rotating flask rotates at variable speeds (20–130 rpm) within a thermostatically regulated SUS304 water/oil bath (ambient +5 °C to 95 °C), while solvent vapors are condensed via a high-efficiency vertical dual-stage condenser assembly comprising a main condenser (0.390 m²) and auxiliary condenser (0.253 m²) with triple-reflux geometry. This architecture ensures high recovery yields (>95% for common solvents), minimal bumping, and reproducible mass transfer kinetics—critical for scale-up studies and regulatory-compliant process development.

Key Features

• Explosion-proof certification: Full Ex d IIB T4 Gb classification per GB 3836.1–2010 and IEC 60079-0, enabling safe operation in Class I, Division 1 (Zone 1) environments handling flammable solvents such as acetone, ethanol, diethyl ether, or ethyl acetate.

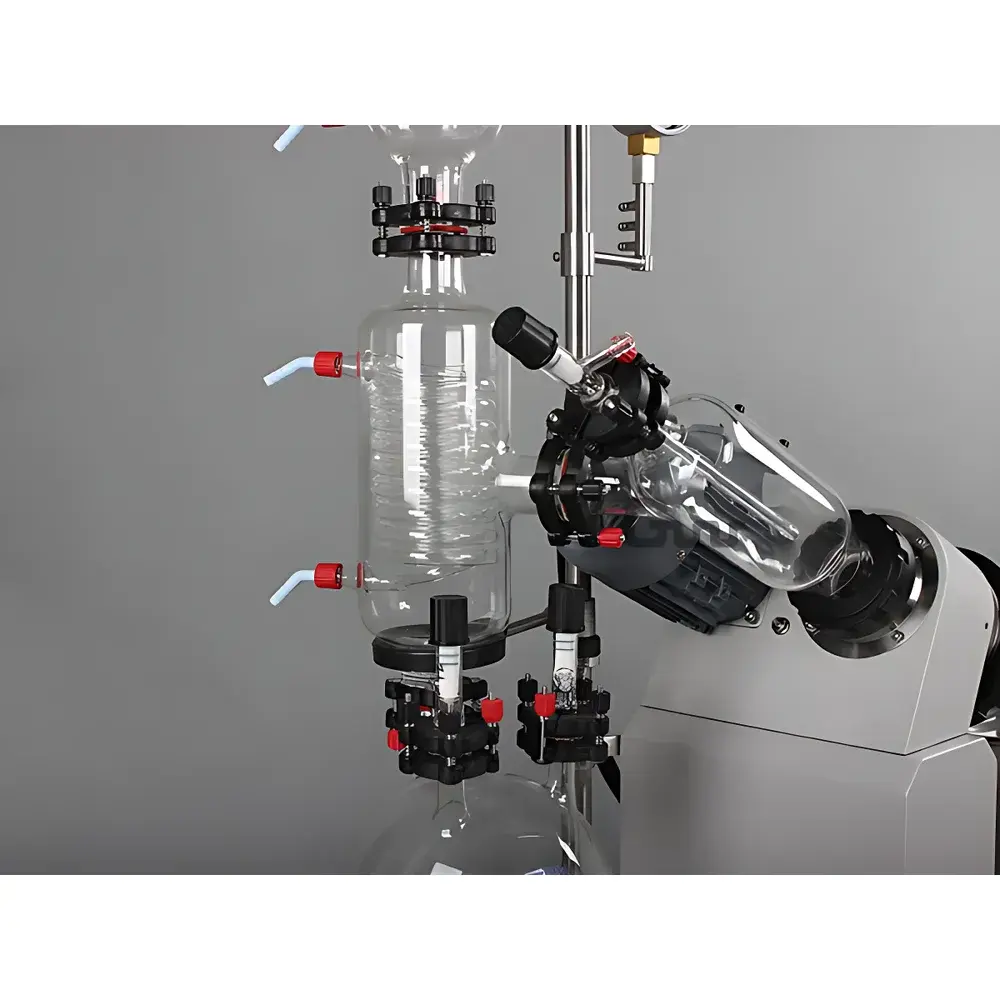

• Dual-stage condensation system: Vertically oriented main + auxiliary condensers with triple-reflux design maximize surface contact time and thermal gradient efficiency, achieving stable condensation even at high vapor loads (e.g., 8.6 L/h ethanol evaporation rate).

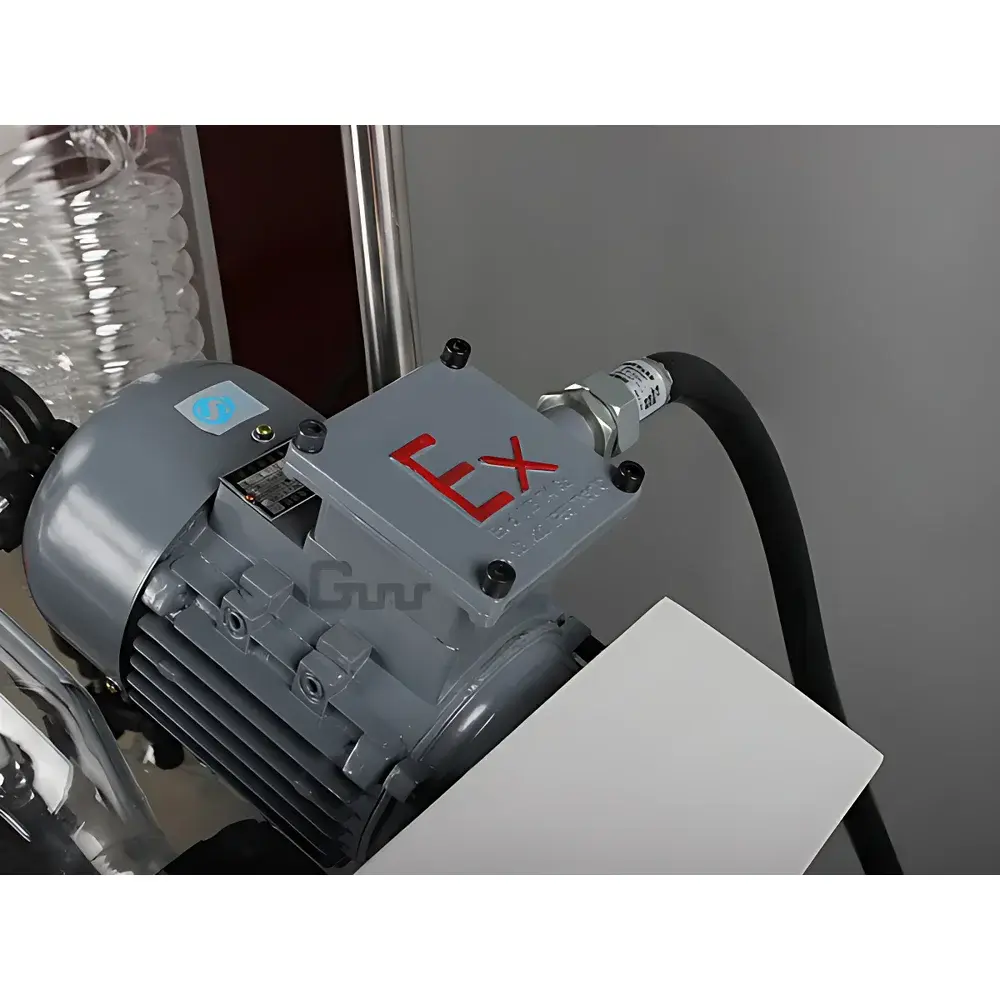

• Precision temperature & rotation control: Digital PID temperature controller maintains bath stability within ±1.5 °C across the full 5–95 °C range; frequency-controlled motor delivers smooth, low-vibration rotation from 20–130 rpm with programmable ramp profiles.
• Robust sealing architecture: Dual-material static seal combining PTFE gaskets and fluorinated rubber (FKM) O-rings ensures long-term vacuum integrity below 399.9 Pa—and down to 100 Pa when paired with a compatible vacuum source (e.g., oil-free diaphragm pump or circulating water aspirator).
• Modular safety integration: Integrated overcurrent, ground-fault, and overtemperature protections meet GLP-aligned electrical safety requirements; manual lift mechanism (0–160 mm travel) enables precise flask immersion depth adjustment without actuator interference in hazardous zones.

Sample Compatibility & Compliance

The R-1010EX accommodates a broad spectrum of organic and aqueous solutions, including but not limited to alcohols, esters, ketones, hydrocarbons, and low-boiling-point halogenated solvents. Its 10 L ISO-KF 95 mm rotating flask and 5 L collection vessel support batch processing consistent with ASTM E2654-22 (Standard Guide for Laboratory Evaporation Procedures) and ISO 6779:2021 (Laboratory Glassware – Rotary Evaporators). All wetted parts—including bath chamber, condenser jackets, and PTFE drain valve—are chemically inert and corrosion-resistant. The unit complies with CE marking requirements for electromagnetic compatibility (2014/30/EU) and low-voltage directive (2014/35/EU); its explosion-proof enclosure satisfies national mandatory inspection protocols for chemical R&D facilities under China’s AQ 3009-2007 standard for explosion protection in laboratories.

Software & Data Management

While the R-1010EX operates via a dedicated local control panel with digital display of bath temperature and rotation speed, it supports optional analog output interfaces (0–10 V / 4–20 mA) for integration into centralized lab monitoring systems. When deployed in GMP or GLP environments, users may log operational parameters manually or via external data acquisition units compliant with FDA 21 CFR Part 11 requirements (electronic records and signatures). Audit trails for temperature setpoints, run duration, and vacuum status can be maintained through third-party SCADA platforms interfaced via RS485 Modbus RTU protocol—enabling traceability for method validation and quality assurance documentation.

Applications

• Concentration of natural product extracts (e.g., botanical oils, alkaloid fractions) under oxygen-limited, low-temperature conditions to preserve thermolabile bioactives.
• Removal of reaction solvents following Grignard, Suzuki, or Friedel-Crafts syntheses—particularly where residual solvent limits must comply with ICH Q3C guidelines.
• Preparative purification of pharmaceutical intermediates prior to crystallization or lyophilization, supporting QbD-based process understanding.
• Recycling of high-purity solvents in QC laboratories performing residual solvent analysis by GC-FID or GC-MS.
• Teaching applications in university organic chemistry labs requiring intrinsically safe instrumentation for undergraduate distillation experiments involving flammable reagents.

FAQ

What explosion-proof certification does the R-1010EX hold?
The unit conforms to GB 3836.1–2010 (China) and IEC 60079-0 international standards, with Ex d IIB T4 Gb marking for use in Zone 1 hazardous areas containing Group IIB gases (e.g., acetone, ethanol vapor).

Can the R-1010EX be integrated with automated vacuum controllers?
Yes—its vacuum inlet accepts standard KF25/KF40 fittings and is compatible with programmable vacuum regulators (e.g., Vacuubrand VACUU·SELECT) via analog signal input for closed-loop pressure control.

Is the condenser cooled by circulating water only, or does it support dry ice/acetone jackets?
The vertical dual-stage condenser is designed for continuous water circulation (inlet/outlet NPT 1/4″); supplementary cryogenic cooling is not required due to its 0.643 m² total condensing area and triple-reflux geometry.

What maintenance intervals are recommended for the explosion-proof cabinet?
Per manufacturer guidelines, visual inspection of cable glands and housing integrity should occur quarterly; internal electrical connections require annual torque verification by qualified personnel trained in Ex maintenance procedures.

Does the R-1010EX support remote monitoring via Ethernet or Wi-Fi?
No native network interface is included; however, third-party IoT gateways with Modbus TCP conversion can bridge the RS485 port for cloud-based telemetry in validated infrastructure.
