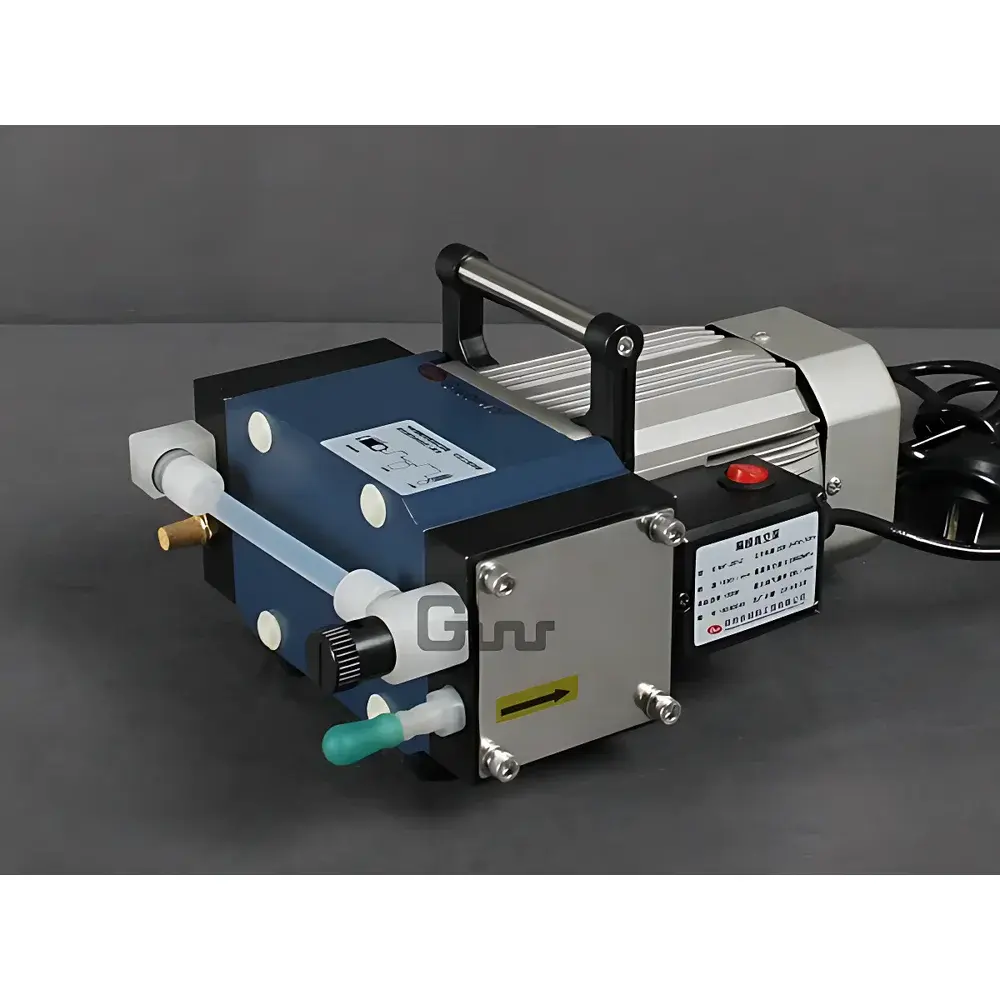

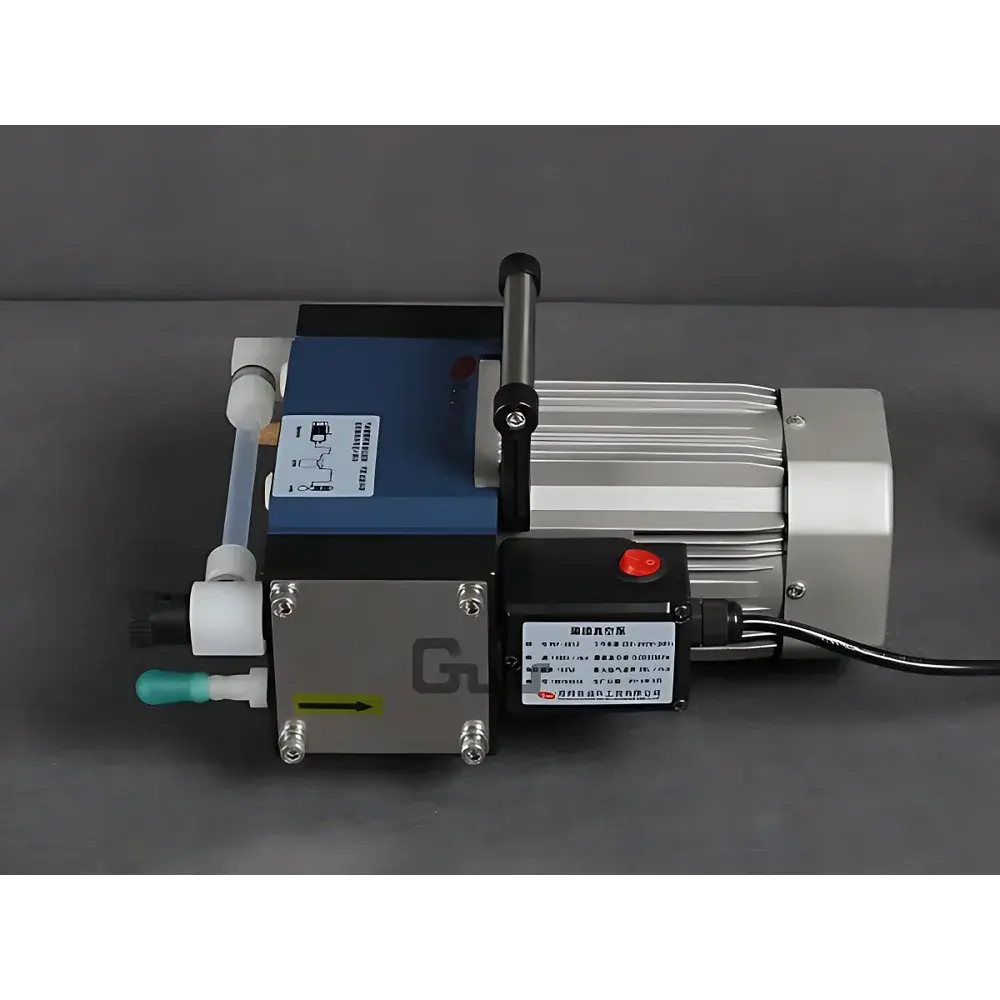

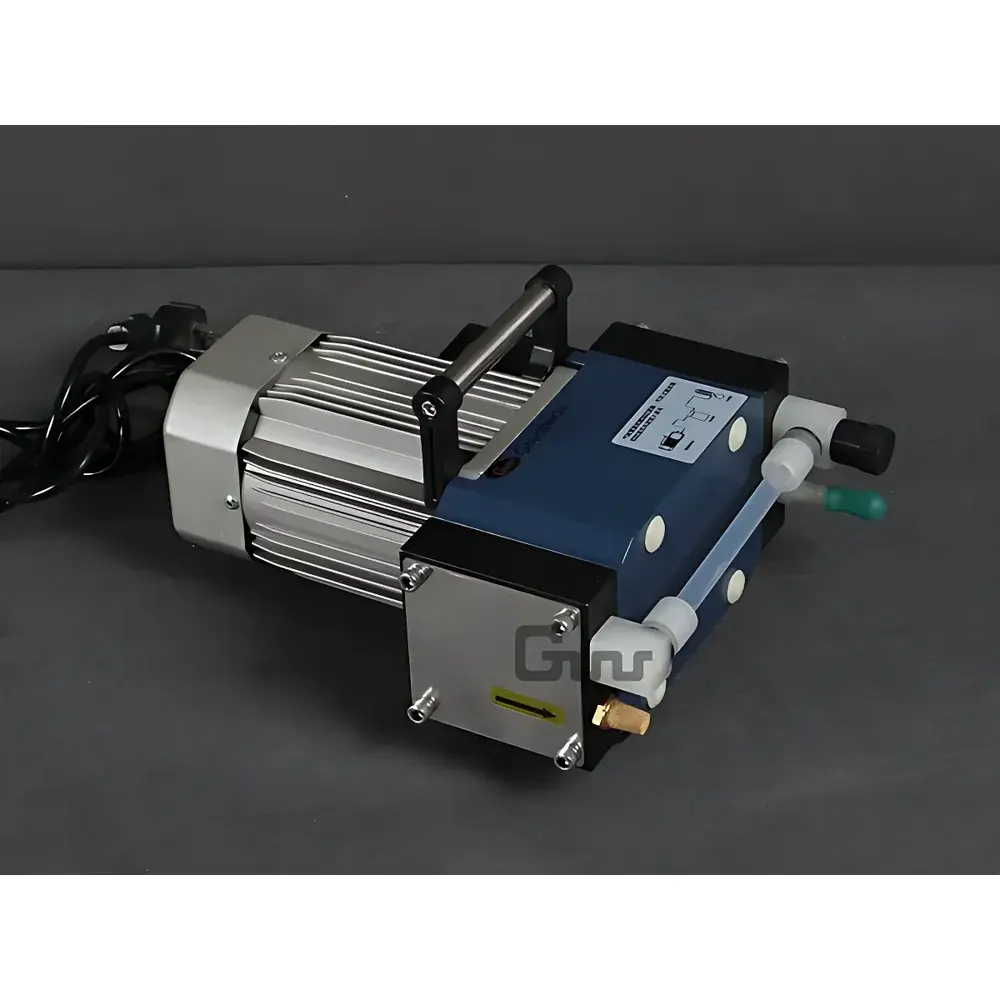

The Great Wall MP-301E Diaphragm Vacuum Pump

Overview

The Great Wall MP-301E Diaphragm Vacuum Pump is an oil-free, chemically resistant laboratory vacuum source engineered for precision, reliability, and long-term operational stability in demanding analytical and preparative workflows. Operating on positive displacement principle via a reciprocating PTFE-coated diaphragm and PEEK reed valves, the MP-301E generates vacuum through mechanical expansion and contraction of the sealed pumping chamber—eliminating reliance on lubricating oils and preventing hydrocarbon contamination of sensitive samples or vacuum lines. With an ultimate vacuum of 65 mbar (0.0935 MPa) and a nominal pumping speed of 40 L/min at ambient conditions, it serves as a robust alternative to water-ring and rotary vane vacuum pumps—particularly where solvent compatibility, low maintenance, and clean vacuum integrity are critical. Its compact footprint (310 × 225 × 168 mm) and lightweight design (10 kg) enable seamless integration onto fume hoods, rotary evaporator stands, filtration manifolds, and glovebox auxiliary systems without structural reinforcement.

Key Features

• Chemically inert wetted path: All gas-contact surfaces—including diaphragm, valves, and internal chambers—are fabricated from fluoropolymer materials (PTFE diaphragm, imported PEEK valves), ensuring resistance to aggressive solvents (e.g., acetone, chloroform, acetonitrile), acids, and bases.
• Oil-free and water-free operation: Eliminates consumable costs, wastewater disposal, and risk of backstreaming contamination—ideal for applications requiring ultra-clean vacuum such as mass spectrometry sample introduction, lyophilization pre-vacuum stages, and vacuum desiccation.
• Integrated vacuum regulation: A calibrated needle-valve mechanism allows continuous, stepless adjustment of system vacuum level—enabling precise control during gentle solvent removal or pressure-sensitive crystallization protocols.
• Acoustic optimization: Built-in silencer reduces operational noise to ≤52 dB(A) at 1 m distance—meeting ISO 7779 standards for laboratory equipment noise emission, supporting quiet workspaces and compliance with occupational health guidelines.
• Modular service architecture: Front-accessible diaphragm and valve assembly enables field replacement in under 15 minutes using standard tools—no specialized calibration or alignment required post-maintenance.
• Thermally stable motor: 180 W induction motor with IP54-rated enclosure provides consistent torque across voltage fluctuations (220–240 V~, 50 Hz) and maintains thermal equilibrium during extended duty cycles (>8 hrs/day).

Sample Compatibility & Compliance

The MP-301E is validated for use with organic solvents, aqueous solutions, and mildly corrosive vapors encountered in pharmaceutical QC labs, academic synthesis facilities, and environmental testing centers. It conforms to ISO 8573-1:2010 Class 0 certification for compressed air purity—extended to vacuum generation—ensuring zero oil carryover per ISO 8573-2 test methodology. While not intrinsically rated for explosive atmospheres (ATEX/IECEx), its spark-free design and non-metallic wetted components reduce ignition risk in controlled lab settings. The pump supports Good Laboratory Practice (GLP) documentation requirements through traceable serial-number-based maintenance logs and factory calibration certificates (available upon request). It is compatible with ASTM D86, USP , and ISO 2556 vacuum integrity test configurations when used with certified pressure transducers and data loggers.

Software & Data Management

The MP-301E operates as a standalone analog device with no embedded firmware or digital interface. However, it is fully compatible with third-party vacuum monitoring systems via its standardized 6 mm and 10 mm inlet ports. When paired with external pressure sensors (e.g., MKS Baratron® series) and LabVIEW™ or MATLAB®-based acquisition platforms, users can implement real-time vacuum profiling, automated endpoint detection (e.g., for rotary evaporation cut-off), and audit-trail-enabled logging compliant with FDA 21 CFR Part 11 when deployed with validated electronic record systems. Optional analog output modules (0–10 V or 4–20 mA) are available through authorized distributors for integration into centralized facility SCADA networks.

Applications

• Routine vacuum filtration of biological suspensions, nanoparticle dispersions, and catalyst slurries using Buchner or Hirsch funnels.
• Rotary evaporation support for heat-labile compounds (e.g., terpenes, oligonucleotides), where oil-free vacuum prevents thermal degradation and cross-contamination.
• Desiccator evacuation and vacuum drying of hygroscopic reference standards prior to gravimetric analysis (ASTM E1233).
• Gas sampling and purging in headspace GC vial preparation, especially for volatile organic compound (VOC) analysis per EPA Method 502.2.
• Pre-vacuum conditioning of sorbent tubes (e.g., Tenax®, Carbopack™) in ambient air monitoring protocols (ISO 16000-6).
• Support vacuum for cold traps in cryogenic condensation systems and low-pressure distillation setups.

FAQ

Is the MP-301E suitable for continuous 24/7 operation?
Yes—the motor and diaphragm assembly are rated for continuous duty at ambient temperatures up to 35°C and relative humidity ≤80% non-condensing. For uninterrupted operation beyond 12 hours, ensure adequate ventilation around the rear exhaust port.
Can this pump handle solvent vapors from rotary evaporation?
It is compatible with common low-boiling solvents (e.g., ethyl acetate, dichloromethane, methanol) when used with a cold trap. Direct pumping of high-vapor-pressure solvents without condensation may accelerate diaphragm aging; consult the chemical compatibility chart for exposure limits.
What maintenance intervals are recommended?
Diaphragm replacement is advised every 6,000 operating hours or annually—whichever occurs first. Valve inspection should occur quarterly in high-use environments. No lubrication or oil changes are required.
Does the pump include a vacuum gauge?
No—the MP-301E does not integrate a built-in pressure indicator. Users must connect an external analog or digital vacuum gauge compatible with the 6 mm or 10 mm inlet port.
Is technical documentation available in English?
Yes—full English-language operation manual, dimensional drawings, CE Declaration of Conformity, and material safety data sheets (MSDS) for PTFE and PEEK components are provided with shipment and accessible via The Great Wall’s international support portal.
