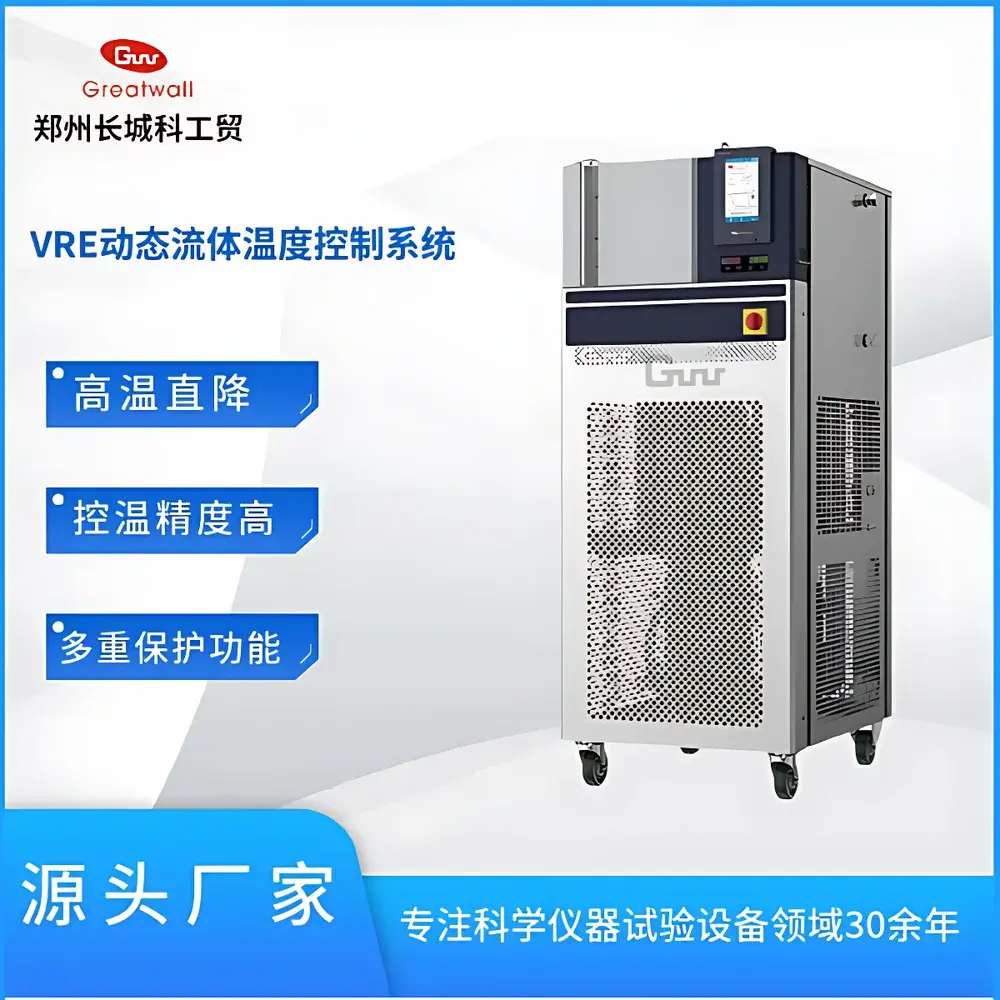

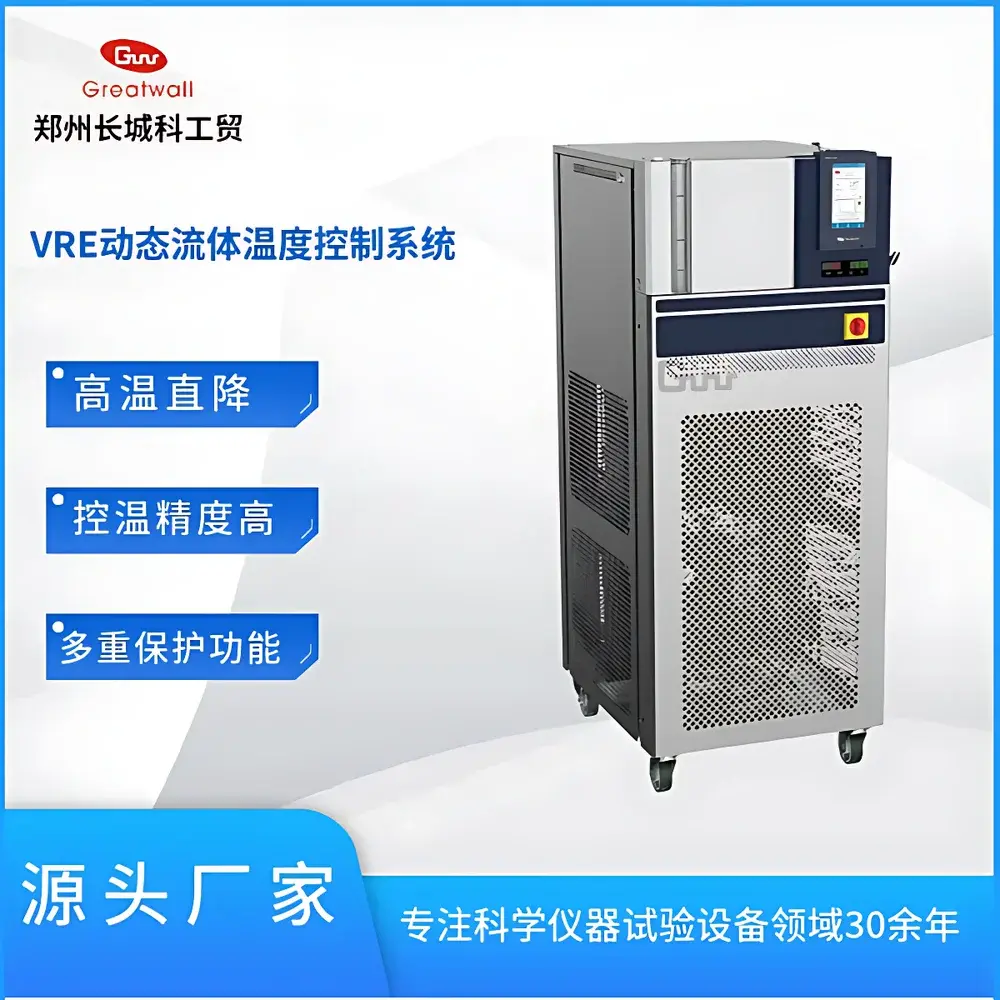

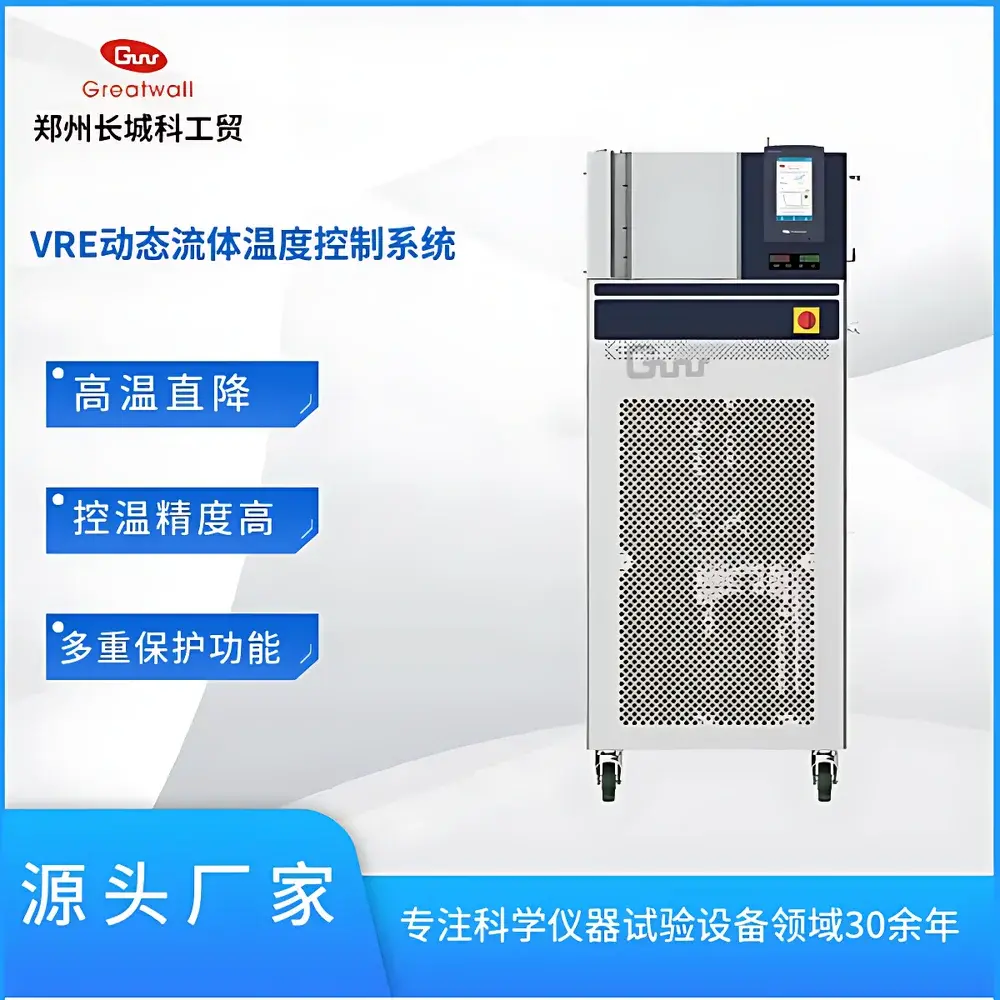

The Great Wall VRE 8202H Dynamic Fluid Temperature Control System

Overview

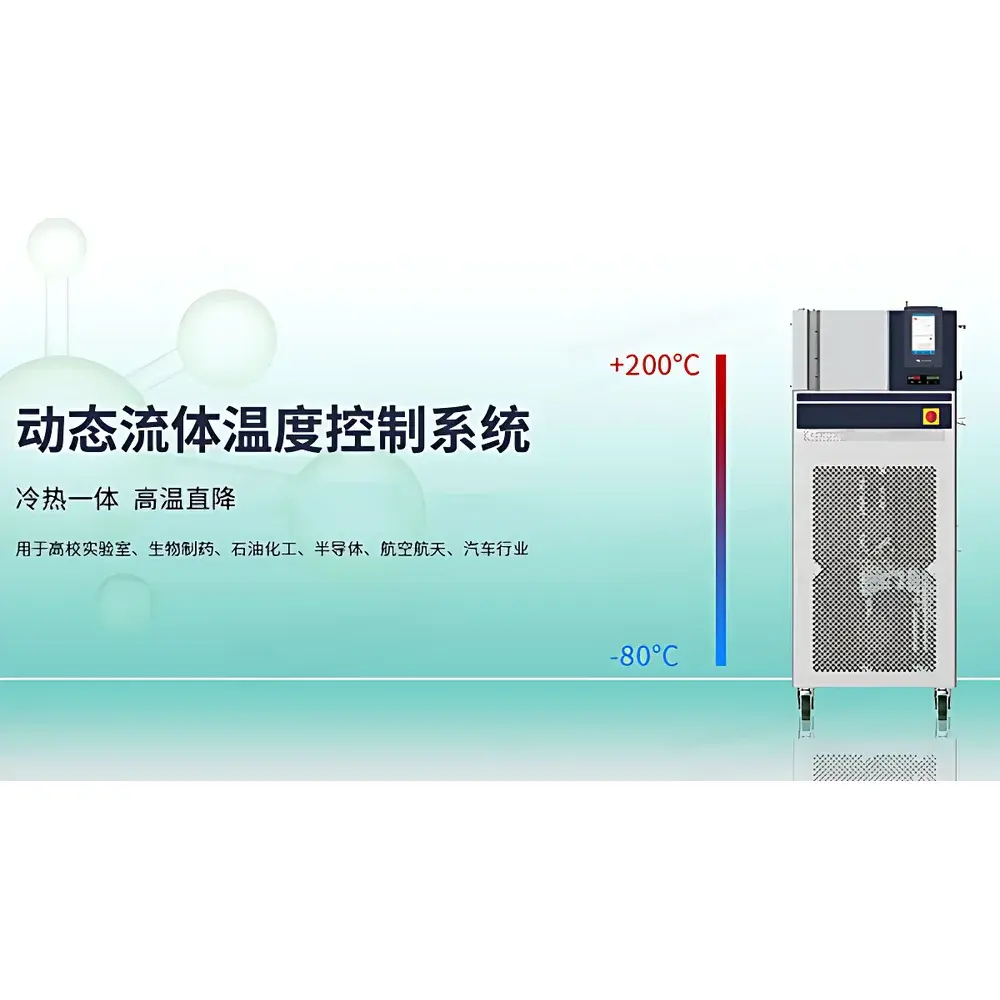

The Great Wall VRE 8202H Dynamic Fluid Temperature Control System is an integrated, air-cooled circulating chiller engineered for high-precision thermal management across demanding laboratory and industrial R&D environments. Utilizing a dual-stage cascade refrigeration architecture with optimized compressor sequencing, the system delivers continuous, stable temperature control from –80 °C to +200 °C—without thermal dead zones—enabling seamless operation across cryogenic, ambient, and high-temperature process regimes. Unlike conventional chillers limited by compressor start-stop constraints at extreme setpoints, the VRE 8202H maintains active refrigeration throughout its full range via intelligent load-matching algorithms and real-time ΔT (temperature differential) monitoring between supply and return fluid lines. Its closed-loop design circulates heat-transfer fluid (e.g., silicone oil, glycol/water mixtures) under regulated pressure (up to 2 bar) and flow (30 L/min), ensuring uniform thermal coupling with external equipment such as reactors, test chambers, power electronics, or battery cycler rigs.

Key Features

• Full-range refrigeration capability: Compressor remains operational at all setpoints from –80 °C to +200 °C, eliminating temperature blind spots and enabling uninterrupted ramping and hold cycles.
• Dual control modes: Internal sensor-based temperature regulation (for bath stability) and external process-sensor feedback (for application-level accuracy), switchable in software without hardware reconfiguration.
• Comprehensive safety architecture: Real-time liquid level detection, over-temperature cutoff, pressure monitoring, ΔT-based flow fault detection, and redundant thermal fuses ensure fail-safe operation during extended unattended runs.
• 7-inch capacitive touchscreen HMI with intuitive navigation, multilingual UI support (English default), and dynamic visualization of setpoints, actual values, alarm thresholds, error codes, and menu hierarchy.
• Three-tier user permission system (Operator / Technician / Administrator) with password protection and role-specific access rights—designed to meet pharmaceutical manufacturing requirements per Annex 11 and ISO 13485.
• FDA 21 CFR Part 11–compliant data integrity: Electronic signatures, immutable audit trails for parameter changes and fault events, and time-stamped operation logs with user ID attribution.
• Flexible programming: Up to 10 independent program groups, each supporting multi-step ramps, holds, and rate-limited transitions; supports custom profiles for controlled freeze-thaw, thermal cycling, or steady-state conditioning.

Sample Compatibility & Compliance

The VRE 8202H interfaces with a broad spectrum of thermal loads—including jacketed glass/metal reactors (5–50 L), microchannel reactors, glovebox cooling manifolds, EV battery modules, power inverters, semiconductor burn-in fixtures, and aerospace component test stands. Its 6 L reservoir accommodates common heat-transfer fluids compatible with low-temperature stability (e.g., Dow Corning PMX-200 series oils) and high-temperature inertness (e.g., Marlotherm SH). The system complies with IEC 61000-6-2 (EMC immunity) and IEC 61010-1 (safety for laboratory equipment). All firmware and logging functions are validated for GLP and GMP environments, supporting regulatory submissions requiring traceable thermal history and operator accountability.

Software & Data Management

Local operation is fully managed via the embedded HMI, while remote supervision and control are enabled through standard Ethernet (TCP/IP) or optional RS485 Modbus RTU protocol. A dedicated Windows-based PC software package provides real-time graphing, historical trend analysis, and batch export in CSV/Excel format. USB port enables direct data dump to removable media—retaining timestamps, user IDs, and parameter metadata without requiring network connectivity. All exported files include cryptographic hash verification to prevent tampering, satisfying ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).

Applications

• Thermal validation of pharmaceutical manufacturing equipment (e.g., bioreactor jackets, lyophilizer condensers)
• Electrochemical testing: Battery cell formation, EIS characterization, and thermal runaway simulation under controlled ambient gradients
• Automotive R&D: Electric motor cooling loop emulation, power electronics thermal cycling, HVAC system component testing
• Chemical process development: Exothermic reaction quenching, cryogenic distillation condensation, short-path evaporation temperature staging
• Materials science: Polymer crystallization kinetics, composite curing profile replication, semiconductor wafer chuck temperature mapping
• Aerospace: Pyrotechnic device thermal qualification, avionics box environmental stress screening

FAQ

What types of heat-transfer fluids are compatible with the VRE 8202H?

The system supports silicone oils (e.g., DC 200 series), polyalkylene glycols (PAG), and water-glycol mixtures. Fluid selection must align with viscosity limits at minimum operating temperature and thermal stability at maximum setpoint.
Does the unit support external PID control integration?

Yes—via analog 0–10 V or 4–20 mA input for process temperature feedback, enabling master-slave configurations with third-party controllers.
Is validation documentation (IQ/OQ/PQ protocols) available?

Factory-issued IQ/OQ templates compliant with ASTM E2500 and EU GMP Annex 15 are provided upon request; PQ execution requires site-specific sensor calibration and load characterization.
Can the chiller operate continuously for 72+ hours without intervention?

Yes—the system is rated for uninterrupted duty cycle operation with built-in diagnostics, predictive maintenance alerts, and automatic fault recovery logic.
How is cybersecurity addressed for network-connected units?

Firmware includes TLS 1.2 encryption for remote sessions, configurable firewall rules, disabled default credentials, and periodic security patch updates aligned with NIST SP 800-53 controls.
