GreenPrima PM8202CL Residual Chlorine, Chlorine Dioxide and Ozone Analyzer

Overview

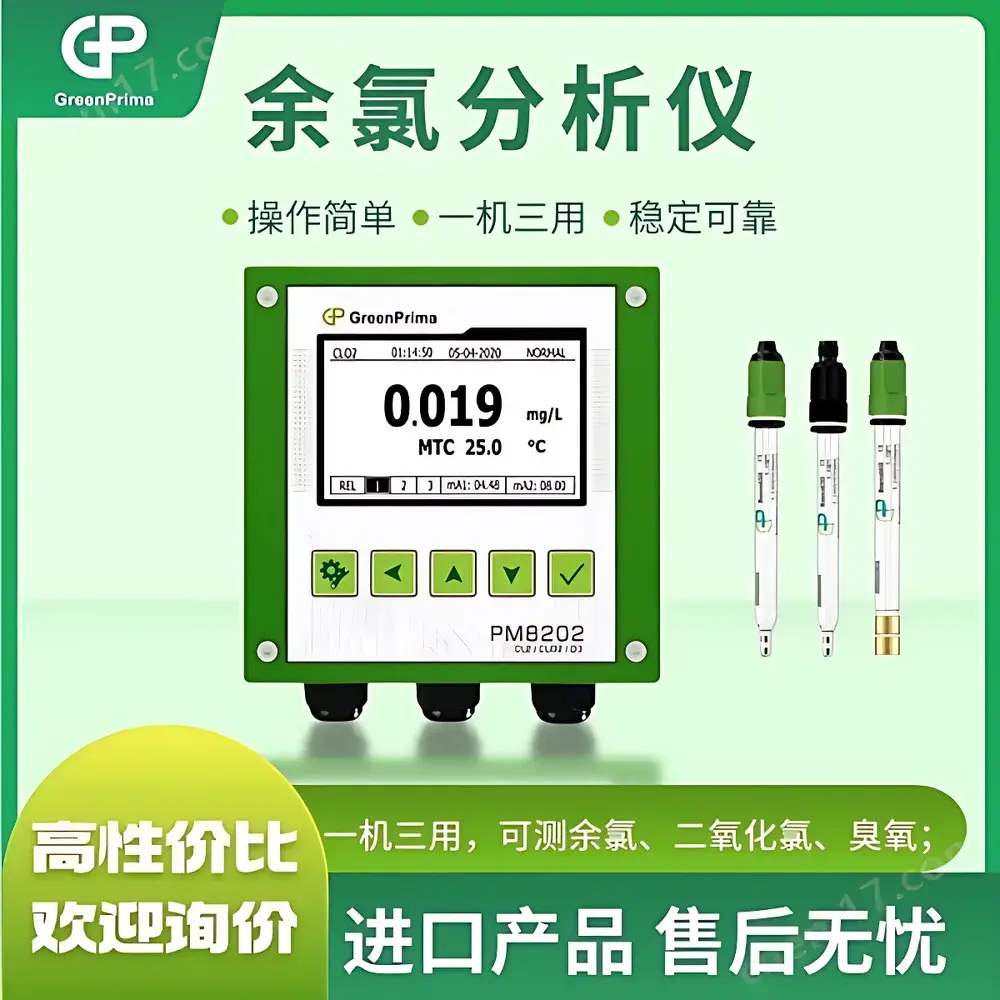

The GreenPrima PM8202CL is an online amperometric analyzer engineered for continuous, real-time monitoring of residual chlorine (free and total), chlorine dioxide, and ozone in aqueous systems. It operates on the constant-voltage amperometric principle—applying a stable polarization potential across a dual-electrode sensing cell (Pt or Au working electrode paired with Ag/AgCl reference) to selectively oxidize target disinfectants. The resulting diffusion-controlled current is linearly proportional to analyte concentration, enabling high reproducibility without chemical reagents or membrane consumables. Designed for integration into municipal water distribution networks, hospital wastewater treatment lines, secondary water supply systems, and industrial process water loops, the PM8202CL delivers stable electrochemical performance under variable flow, temperature, and background ion conditions. Its integrated BAF615 constant-flow cell ensures laminar, pulse-free sample delivery to the sensor surface—critical for minimizing response lag and drift in unattended operation.

Key Features

• True reagent-free operation: No colorimetric reagents, membranes, or electrolyte refills required—reducing maintenance intervals and total cost of ownership.
• Dual-electrode amperometric sensing: Pt or Au working electrode configurations (Bsens650/Bsens660) provide selective detection with minimal interference from nitrite, bromide, or organic oxidants.
• Triple-analyte capability: Single instrument platform supports calibration and measurement for free chlorine, chlorine dioxide, and ozone—each with independent range selection and temperature compensation.
• Intelligent flow management: Integrated BAF615 constant-flow cell maintains consistent hydraulic residence time (±1% flow stability), eliminating dependence on external dosing pumps or pressure regulators.
• Robust human-machine interface: Backlit graphic LCD with toggleable English/Chinese menu navigation, password-protected configuration access, and intuitive parameter setup wizard.
• Comprehensive I/O architecture: Dual isolated 4–20 mA analog outputs (configurable for concentration and/or temperature), RS485 Modbus RTU for SCADA integration, two programmable relay alarms with adjustable hysteresis, and timed cleaning control.
• Flexible mounting: Supports wall-mount, panel-mount, and inline pipe-mount installation per EN 61000-6-2/6-4 EMC and IP65 environmental protection standards.

Sample Compatibility & Compliance

The PM8202CL is validated for use in potable water, treated wastewater, cooling tower make-up, pharmaceutical process water, and hospital sterilization effluent streams. It complies with key regulatory expectations for continuous disinfectant monitoring, including EPA Method 334.0 (amperometric chlorine), ISO 7393-2 (electrochemical chlorine determination), and ASTM D1253 (residual chlorine in water). While not certified to FDA 21 CFR Part 11 out-of-the-box, its data logging architecture—including timestamped records, user-access logs, and non-volatile memory—supports GLP/GMP-aligned validation protocols when deployed with documented SOPs and audit trails. Temperature compensation follows NIST-traceable NTC10K or PT1000 sensor inputs, ensuring measurement integrity across -10 to 130 °C ambient and sample conditions.

Software & Data Management

Internal firmware stores up to 600,000 timestamped measurement records (concentration, temperature, sensor status, cleaning events) with automatic overwrite policy. Data export is supported via Modbus polling or optional USB-to-serial adapter (not included). Configuration parameters—including calibration coefficients, alarm thresholds, relay logic, and cleaning schedules—are retained in EEPROM to prevent loss during power interruption. Firmware updates are performed via secure UART interface using GreenPrima’s proprietary PC-based configuration utility, which enforces version-controlled change logs and backup/restore functionality. All analog outputs meet IEC 61000-4-2/4-4 immunity requirements for industrial environments.

Applications

• Municipal drinking water distribution: Real-time verification of chlorine residual at entry points, storage tanks, and critical junctions to ensure regulatory compliance (e.g., WHO Guidelines, EU Drinking Water Directive).
• Hospital wastewater disinfection: Monitoring of chlorine dioxide or ozone dosing efficacy prior to discharge—supporting ISO 14001 environmental management system reporting.
• Food & beverage process water: Continuous assurance of sanitizing agent concentration in CIP rinse cycles and final product contact water.
• Pharmaceutical purified water (PW) and water for injection (WFI) loops: Integration into PAT (Process Analytical Technology) frameworks for trending disinfectant decay kinetics and validating sanitization hold times.
• Industrial cooling water systems: Prevention of microbiologically influenced corrosion (MIC) through automated feedback control of biocide dosing based on real-time oxidant demand.

FAQ

What electrochemical principle does the PM8202CL use?
It employs constant-voltage amperometry with a dual-electrode sensor cell—applying a fixed bias potential to drive selective oxidation of target oxidants and measuring the resulting diffusion-limited current.
Can the same sensor measure chlorine, chlorine dioxide, and ozone simultaneously?
No—measurements are sequential and require manual or automated sensor mode switching; however, one analyzer unit supports all three analytes via software-selectable calibration curves and electrode configurations.
Is temperature compensation automatic or manual?
Both options are available: automatic compensation using integrated NTC10K or PT1000 probes, or manual offset entry when external temperature data is unavailable.
Does the instrument meet hazardous area classification requirements?
The PM8202CL is rated IP65 for dust/water ingress protection but is not intrinsically safe (ATEX/IECEx certified); it is intended for general-purpose indoor or sheltered outdoor installation.
How often does the sensor require recalibration?
Calibration frequency depends on application severity; typical intervals range from weekly (high-fouling wastewater) to quarterly (filtered potable water), guided by drift monitoring and QC check standards.
