GreenPrima PM8202D Online Polarographic Dissolved Oxygen Analyzer

Overview

The GreenPrima PM8202D is an industrial-grade online dissolved oxygen (DO) analyzer engineered for continuous, high-stability measurement in demanding process environments. It operates on the Clark-type polarographic principle—applying a fixed polarizing voltage across a noble metal cathode (typically gold or platinum) and a silver/silver chloride reference anode immersed in an aqueous electrolyte. Molecular oxygen diffuses through a selective gas-permeable membrane (Teflon®-based), undergoes electrochemical reduction at the cathode surface, and generates a current linearly proportional to the partial pressure of dissolved O₂. This current is converted into concentration units (ppm or ppb) with temperature-compensated calibration. Designed for unattended operation over extended periods, the PM8202D integrates robust signal conditioning, dual analog outputs, and Modbus-enabled digital communication—making it suitable for integration into DCS, SCADA, and PLC-based process control architectures across water treatment, biopharmaceutical fermentation, power generation, and fine chemical synthesis.

Key Features

• IP65-rated sealed enclosure with corrosion-resistant housing—validated for deployment in humid, dusty, or splash-prone industrial zones.

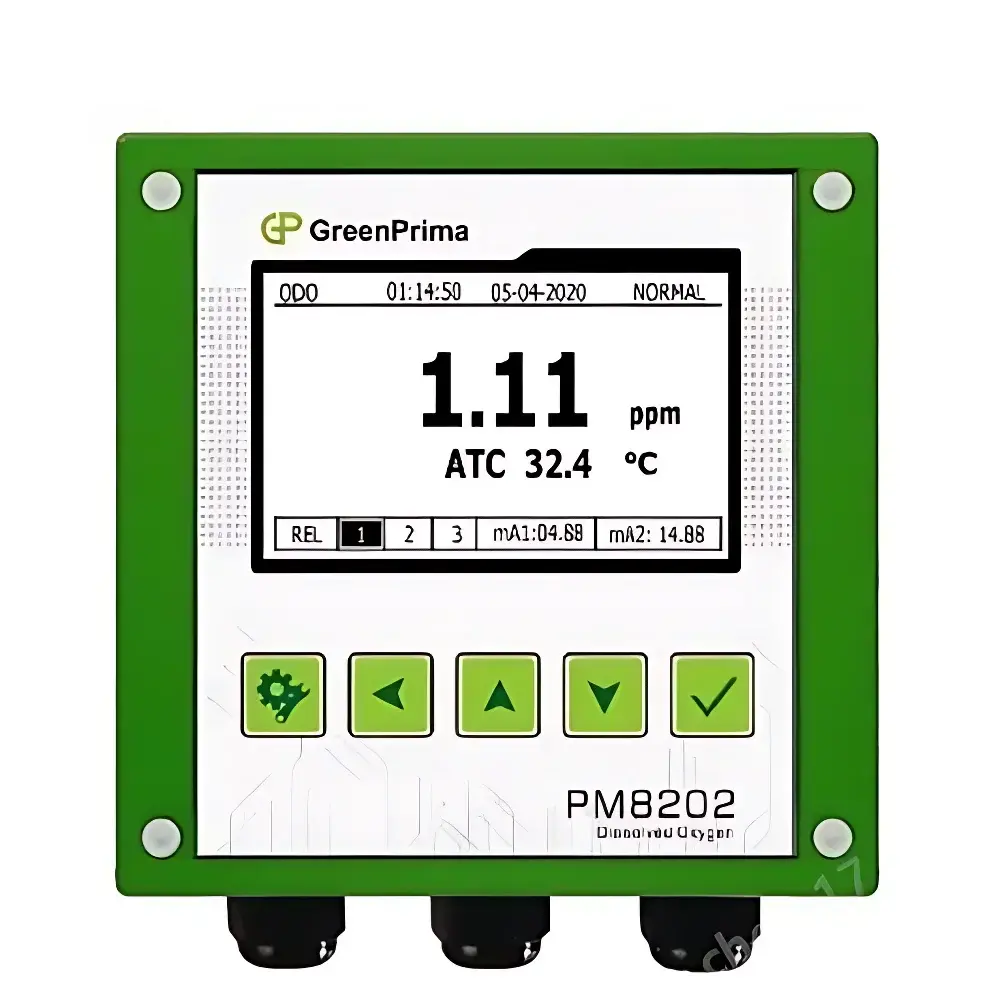

• Large backlit dot-matrix LCD display showing real-time DO concentration, temperature, system time, relay status, and diagnostic indicators—configurable in English or Chinese.
• Dual isolated 4–20 mA analog outputs assignable to DO value, temperature, or derived parameters; each calibrated to 0.1% full-scale accuracy with loop resistance up to 500 Ω.
• RS485 Modbus RTU interface supporting standard function codes (03h, 06h, 10h) for bidirectional data exchange, register mapping, and remote configuration via HMI or supervisory software.
• Two programmable relay outputs with adjustable setpoints, hysteresis, and fail-safe logic—rated for 5 A resistive load at 250 VAC or 30 VDC.
• Onboard cleaning control output enabling timed activation of external solenoid valves or ultrasonic cleaners—interval and duration fully configurable from 0.1 h to 1000 h and 1 s to 1000 s respectively.
• Password-protected configuration mode prevents unauthorized parameter modification—compliant with operational integrity requirements in regulated environments.
• Flexible mounting options: panel cutout (138 × 138 mm), wall bracket, or direct pipe flange attachment—accommodating diverse installation constraints without compromising sensor alignment or flow dynamics.

Sample Compatibility & Compliance

The PM8202D is compatible with GreenPrima’s Bsens420, Bsens430, and Bsens440 polarographic electrodes—each optimized for specific conductivity ranges, fouling resistance, and response kinetics. The system supports aqueous media with conductivity ≥ 50 µS/cm and suspended solids ≤ 1% v/v. It meets IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emission) standards for industrial electromagnetic compatibility. While not certified to FDA 21 CFR Part 11 out-of-the-box, its audit-trail-capable data logging (600,000 timestamped records), password governance, and non-volatile memory support GLP/GMP-aligned validation protocols when deployed with documented SOPs and periodic calibration verification per ASTM D888 or ISO 5814.

Software & Data Management

Data acquisition and configuration are managed via local keypad navigation or remotely via Modbus master devices. All logged entries include UTC timestamp, DO value, temperature, electrode status flags (e.g., membrane integrity warning, low electrolyte alert), and user-defined event tags. Internal storage retains data for >12 months at 1-minute sampling intervals. Export is facilitated through serial dump or Modbus register polling—enabling seamless ingestion into LIMS, MES, or historian platforms such as Siemens Desigo CC, Emerson DeltaV, or OSIsoft PI System. Firmware updates are performed via secure UART bootloader—preserving configuration integrity during version migration.

Applications

• Wastewater treatment: Aeration basin optimization, effluent compliance monitoring (e.g., EPA 40 CFR Part 136), and denitrification control.
• Drinking water distribution: Residual oxygen tracking in clearwells and booster stations to prevent biofilm regrowth.
• Aquaculture: Real-time DO surveillance in recirculating aquaculture systems (RAS) to maintain species-specific saturation thresholds (e.g., salmonid tolerance >6 mg/L).
• Pharmaceutical fermentation: In-situ monitoring during aerobic bioreactor runs—correlating DO trends with metabolic activity, nutrient feed rates, and harvest timing.
• Power plant condensate polishing: Detection of air ingress in steam cycles where sub-ppb O₂ levels (<5 ppb) indicate condenser tube leakage per EPRI TR-102952 guidelines.
• Chemical process water: Monitoring deaerator performance and boiler feedwater purity in accordance with ASME B31.1 and VGB-S-010-TM standards.

FAQ

What polarographic electrodes are compatible with the PM8202D controller?
The PM8202D supports GreenPrima’s Bsens420 (standard range), Bsens430 (low-conductivity/high-fouling), and Bsens440 (high-temperature/stainless steel body) electrodes—all featuring replaceable Teflon® membranes and field-serviceable electrolyte chambers.
Is temperature compensation automatic or manual?
Both modes are supported: automatic compensation using integrated NTC10K or PT1000 probes, or manual entry of ambient/process temperature for offline correction.
How often must the electrolyte be replaced?
Typical replacement interval is 3–6 months under continuous operation; frequency increases with elevated temperature, high salinity, or aggressive oxidants—indicated by gradual signal drift or slow response time.
Can the device operate on 24 VDC power?
Yes—24 VDC is an optional power input variant; default configuration ships with universal 90–260 VAC, 50/60 Hz supply.
Does the unit comply with hazardous area certifications?
The PM8202D itself is rated for general-purpose use (IP65); intrinsic safety or explosion-proof certification requires pairing with an approved barrier or remote I/O module—not included in standard delivery.
