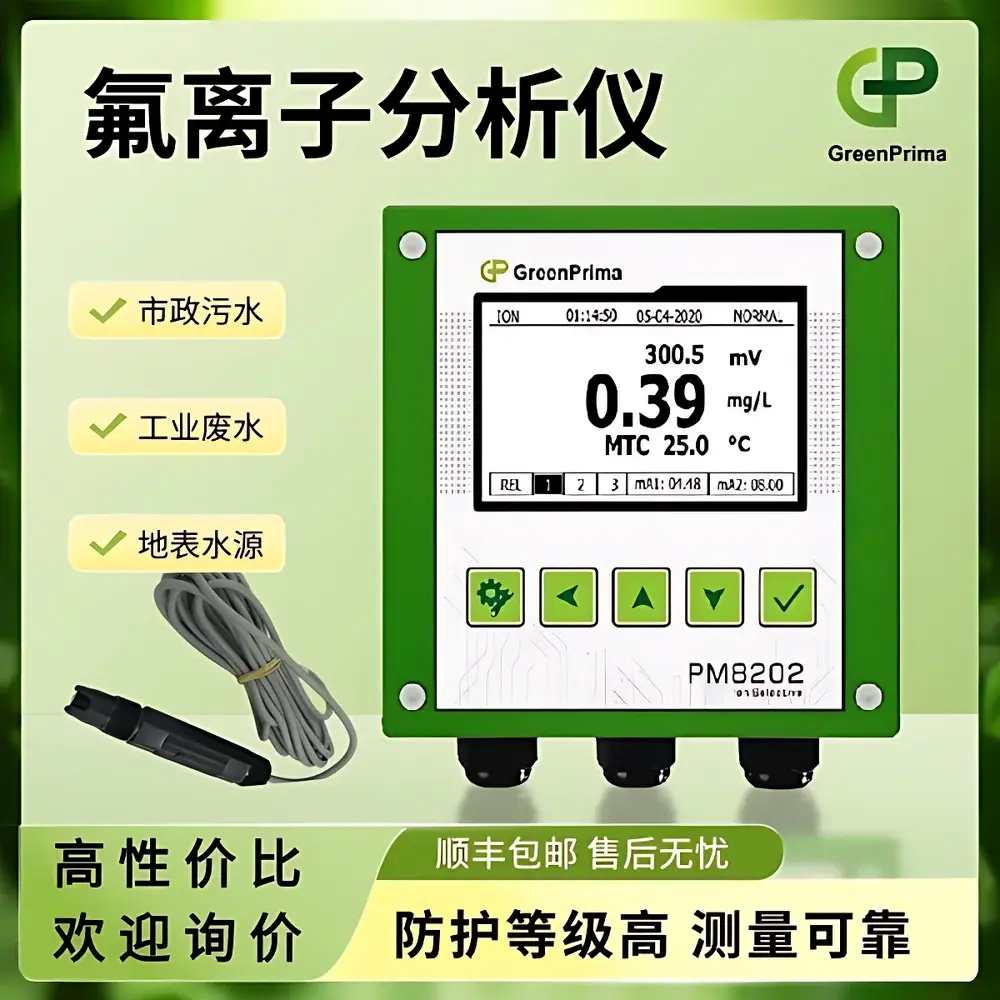

GreenPrima PM8202I Fluoride Ion Analyzer

Overview

The GreenPrima PM8202I Fluoride Ion Analyzer is a dedicated online ion-selective electrode (ISE)-based measurement system engineered for continuous, real-time monitoring of fluoride ion concentration in aqueous environments. Operating on the principle of potentiometric detection, the analyzer measures the thermodynamic activity of F⁻ ions via a solid-state or crystalline membrane electrode (Bsens710), generating a Nernstian voltage response proportional to the logarithm of fluoride activity. Integrated temperature compensation—using either NTC30k or PT1000 sensors—ensures traceable accuracy across wide thermal gradients (-10 to 130 °C). Designed for industrial and municipal water infrastructure, the PM8202I delivers stable, low-drift performance in raw water intakes, drinking water distribution networks, wastewater treatment effluents, and high-purity process streams where fluoridation control, corrosion mitigation, or regulatory compliance (e.g., WHO Guideline Values, EPA Method 300.0, ISO 10304-1) is required.

Key Features

• IP67-rated fully sealed, corrosion-resistant enclosure suitable for outdoor or wet-location installation without additional enclosures
• Large backlit dot-matrix LCD with dual-language (English/Chinese) interface, supporting intuitive navigation and real-time visualization of F⁻ concentration, temperature, timestamp, and relay status
• Dual isolated 4–20 mA analog outputs—configurable independently for fluoride concentration and/or temperature—with ±0.1% full-scale accuracy and 500 Ω maximum loop resistance
• RS485 serial interface compliant with Modbus RTU protocol for seamless integration into SCADA, DCS, or PLC-based supervisory systems
• Onboard data logging capacity of up to 600,000 timestamped records (concentration, temperature, calibration events, alarm flags)
• Password-protected configuration mode prevents unauthorized parameter changes or calibration resets—supporting operational accountability under GLP and GMP-aligned workflows
• Modular electrode architecture: compatible with GreenPrima’s Bsens710 fluoride ISE, as well as Bsens720 (chloride) and Bsens730 (ammonia nitrogen) electrodes for multi-parameter expansion without controller replacement

Sample Compatibility & Compliance

The PM8202I is validated for use with potable water, surface water, groundwater, secondary-treated wastewater, and industrial process water—including cooling tower make-up, semiconductor rinse water, and pharmaceutical purified water (PW) loops. It meets mechanical and electrical requirements per IEC 60529 (IP67), IEC 61000-6-2 (EMC immunity), and IEC 61000-6-4 (EMC emissions). While not a certified reference method instrument, its measurement methodology aligns with ASTM D511-20 (Standard Test Methods for Chloride, Fluoride, and Sulfate Ions in Water) and supports data integrity practices consistent with FDA 21 CFR Part 11 when paired with audit-trail-enabled SCADA systems. Electrode calibration follows standard two-point bracketing procedures using NIST-traceable fluoride standards (e.g., 0.1 ppm and 10 ppm NaF solutions).

Software & Data Management

No proprietary PC software is required for basic operation; all configuration, calibration, and diagnostics are performed locally via the front-panel interface. For centralized data aggregation, the RS485 Modbus RTU port enables direct polling by third-party historian platforms (e.g., Ignition, Siemens Desigo, or OSIsoft PI System). Logged data can be exported via Modbus register reads or retrieved manually using the built-in USB service port (firmware-dependent). The device maintains a non-volatile event log—including calibration timestamps, sensor deviation alerts, and output saturation warnings—to support preventive maintenance scheduling and regulatory review. All user actions requiring password entry are time-stamped and retained in memory for ≥30 days.

Applications

• Fluoride dosing control in municipal drinking water plants to maintain 0.7–1.2 mg/L (ppm) per U.S. Public Health Service recommendations
• Effluent monitoring at aluminum smelters, phosphate fertilizer facilities, and glass manufacturing sites where fluoride discharge must comply with local limits (e.g., <2 ppm per EU Industrial Emissions Directive)
• Process water quality assurance in lithium-ion battery cathode material synthesis, where residual fluoride impairs electrochemical stability
• Environmental monitoring of groundwater near landfill leachate plumes or hydrothermal mineral deposits
• Validation of reverse osmosis and ion exchange resin performance in high-purity water generation systems

FAQ

What electrode types are supported for fluoride measurement?
The PM8202I is designed exclusively for use with the GreenPrima Bsens710 fluoride-selective electrode—a lanthanum fluoride (LaF₃) crystal membrane sensor optimized for long-term stability in low-ionic-strength and variable-pH matrices.
Is automatic temperature compensation mandatory?
No—temperature compensation may be configured as manual (fixed value input) or automatic (via integrated NTC30k or external PT1000 probe), depending on installation constraints and accuracy requirements.
Can the unit operate on DC power?
Yes; while the standard power supply is 90–260 VAC, 50/60 Hz, an optional 24 VDC input variant is available for battery-backed or solar-powered remote deployments.
How often must the fluoride electrode be calibrated?
Calibration frequency depends on application severity: weekly for stable municipal water, daily for aggressive industrial effluents, and after any sensor cleaning or replacement—always following a two-point calibration with certified standards.
Does the analyzer support alarm relays?
Yes; the PM8202I includes two programmable SPDT relays (rated 5 A @ 250 VAC) configurable for high/low concentration thresholds, sensor fault conditions, or calibration due alerts.
