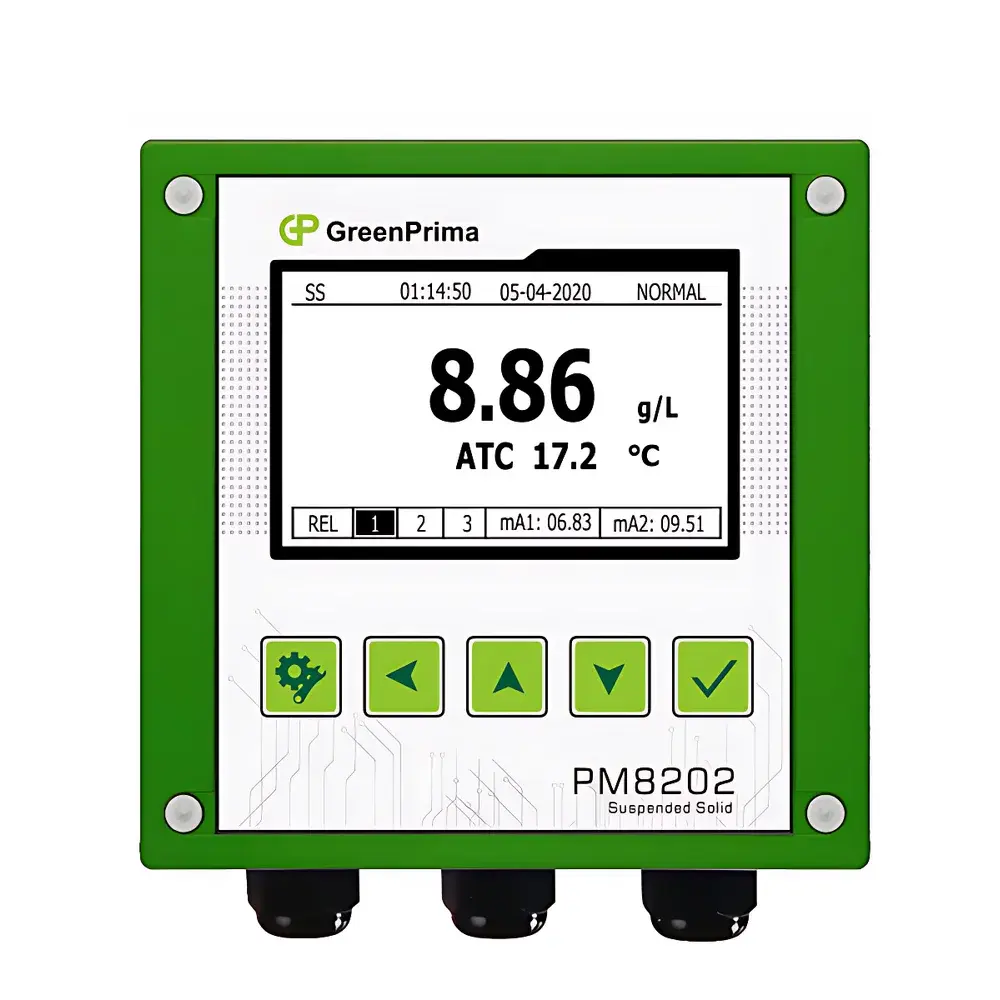

GreenPrima PM8202M Online Sludge Concentration Analyzer

Overview

The GreenPrima PM8202M Online Sludge Concentration Analyzer is an industrial-grade optical instrument engineered for continuous, real-time monitoring of mixed liquor suspended solids (MLSS) in activated sludge processes. It operates on the principle of 90° infrared light scattering—where a collimated IR beam interacts with suspended particles in the aqueous medium, and the intensity of scattered light at a right angle to the incident path is quantitatively correlated to mass concentration (g/L). This non-invasive, membrane-free optical method eliminates consumables such as replacement membranes or electrolyte solutions, and imposes no minimum flow velocity requirements—making it suitable for low-flow or static tank applications common in secondary clarifiers, aeration basins, and thickening zones. Designed for long-term stability, the system exhibits negligible signal drift over extended deployment cycles, reducing reliance on routine calibration interventions while maintaining traceable measurement integrity.

Key Features

• 90° infrared light scattering technology ensures high repeatability and immunity to color interference or bubble artifacts commonly encountered in wastewater matrices
• BSens 550 sensor constructed from corrosion-resistant stainless steel with IP68-rated submersion capability and 5 bar pressure tolerance—validated for direct insertion into process streams up to 60 °C
• Dual-channel 4–20 mA analog outputs support simultaneous transmission of MLSS concentration and integrated temperature readings, each electrically isolated and compliant with IEC 61000-4 electromagnetic compatibility standards
• RS485 Modbus RTU interface enables seamless integration into SCADA, DCS, or PLC-based control architectures for centralized data acquisition and supervisory logic implementation
• ARM-based embedded controller delivers deterministic real-time response, firmware-upgradable via secure serial interface, and supports configurable cleaning interval scheduling (1–999 hours) to mitigate biofilm accumulation on the optical window
• Bilingual (English/Chinese) dot-matrix display with intuitive navigation simplifies local operation and diagnostics without external software tools

Sample Compatibility & Compliance

The PM8202M is validated for use in municipal and industrial wastewater streams containing biological flocs, chemical precipitates, and fibrous particulates typical of activated sludge, anaerobic digesters, and tertiary clarification stages. Its optical design accommodates turbidities exceeding 1000 NTU without saturation, and the IR wavelength minimizes spectral interference from humic substances or dye contaminants. The analyzer complies with IEC 61326-1 (EMC for industrial environments), IEC 61010-1 (safety requirements for electrical equipment), and meets CE marking directives. While not certified to ISO 7027 for turbidity, its 90° scattering geometry aligns with the physical basis of ISO 7027 Annex B for suspended solids correlation studies. For regulated facilities operating under EPA Clean Water Act compliance frameworks or EU Urban Wastewater Treatment Directive (91/271/EEC), the device supports audit-ready data logging when paired with Modbus-enabled historians that enforce time-stamped, write-protected records.

Software & Data Management

No proprietary PC software is required for basic commissioning; all configuration—including relay setpoints, alarm hysteresis, output scaling, and cleaning timers—is performed locally via the front-panel interface. For enterprise-level integration, the Modbus RTU protocol allows bidirectional communication with industry-standard historian platforms (e.g., Ignition, Siemens Desigo CC, Honeywell Experion). When deployed in GxP-regulated environments (e.g., pharmaceutical wastewater pretreatment), the system can be validated per IQ/OQ protocols; though the PM8202M itself does not provide FDA 21 CFR Part 11-compliant electronic signatures, its analog and digital outputs feed into Part 11–enabled control systems that manage user authentication, audit trails, and electronic record retention.

Applications

• Real-time optimization of return activated sludge (RAS) and waste activated sludge (WAS) pumping rates in municipal wastewater treatment plants
• Monitoring sludge blanket depth and compaction efficiency in secondary clarifiers to prevent effluent carryover
• Feedback control of polymer dosing in centrifuge and belt-press dewatering units based on influent sludge concentration
• Process validation and load balancing in pulp & paper mill biological treatment systems handling high-fiber effluents
• Performance trending and predictive maintenance of membrane bioreactors (MBRs) by correlating MLSS dynamics with transmembrane pressure (TMP) profiles

FAQ

Does the PM8202M require periodic calibration with reference slurries?
No—its optical architecture is inherently stable, and field verification is recommended only annually using traceable NIST-traceable slurry standards (e.g., Formazin or AMCO AEPA-1), per ASTM D6920 guidance.
Can the BSens 550 sensor be installed in pressurized pipelines?
Yes—rated for continuous operation at up to 5 bar static pressure and compatible with ANSI Class 150 flanged or threaded process connections (adapter kits available separately).
Is temperature compensation automatic?
Yes—the integrated Pt100 RTD in the sensor head provides real-time thermal correction of scattering coefficients, ensuring consistent g/L output across the full 0–60 °C operational range.
What maintenance intervals are recommended for the optical window?
Mechanical cleaning frequency depends on fouling potential; the system’s programmable auto-clean timer supports scheduled air/water jet activation or manual wipe protocols—no disassembly required.
How is sensor alignment verified during installation?
The BSens 550 features a factory-aligned optical axis with fixed 90° detection geometry; no user adjustment is possible or necessary—mechanical mounting rigidity and perpendicular orientation to flow direction are the only critical mechanical considerations.
