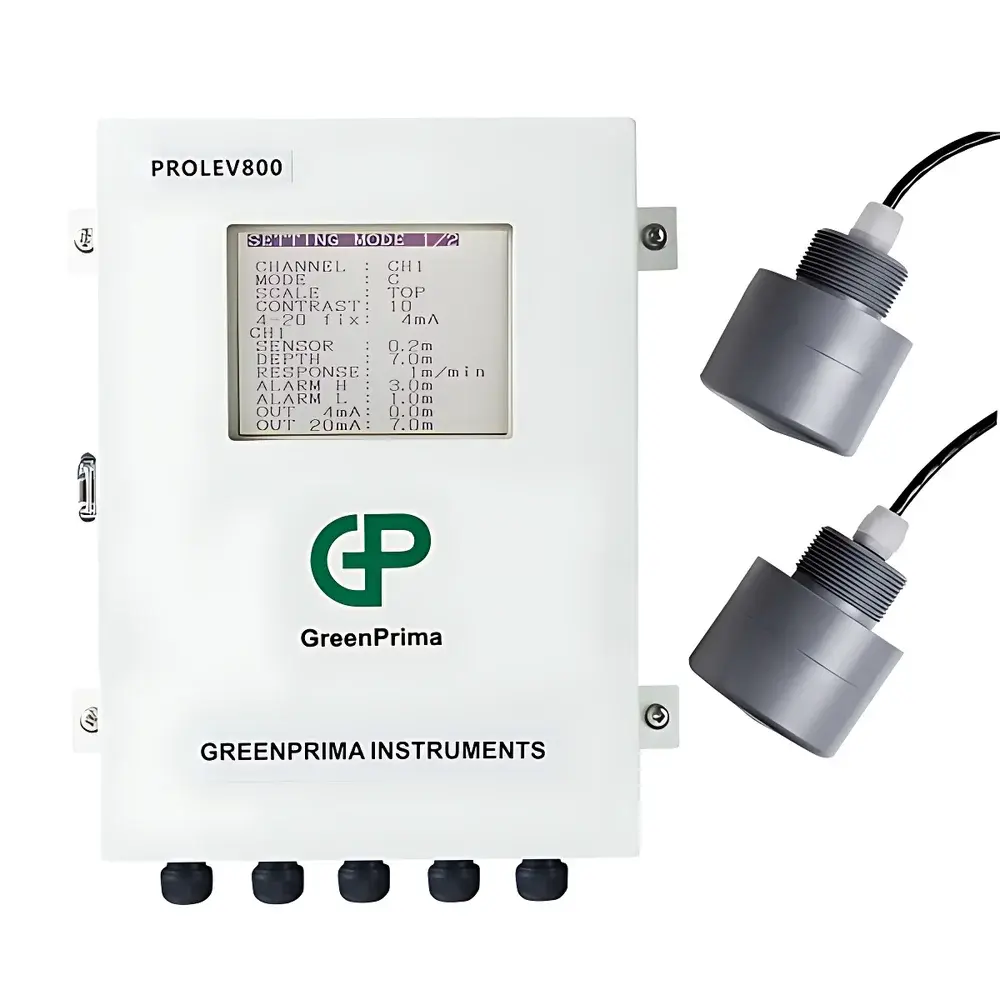

GreenPrima Pro Lev 800 Ultrasonic Sludge Blanket Level Detector

Overview

The GreenPrima Pro Lev 800 Ultrasonic Sludge Blanket Level Detector is an industrial-grade, microprocessor-controlled interface measurement system engineered for continuous, non-contact monitoring of sludge blanket depth in clarifiers, thickeners, and settling basins. It operates on the principle of time-of-flight ultrasonic pulse-echo measurement: a transducer emits a high-frequency acoustic pulse (typically 20–50 kHz) toward the sludge-water interface; the elapsed time between transmission and reception of the reflected signal—correlated with sound velocity in water—is converted into distance. This method enables precise determination of both the supernatant liquid level and the underlying sludge blanket height, thereby quantifying blanket thickness (i.e., the vertical distance between the two interfaces). Designed for robust performance in harsh wastewater environments—including high turbidity, suspended solids, temperature fluctuations, and chemical exposure—the Pro Lev 800 delivers stable, drift-free measurements without mechanical moving parts or immersion into the sludge layer. Its primary engineering objective is to support process optimization in secondary and tertiary treatment stages by enabling real-time feedback control of sludge return rates, underflow pumping, and waste activated sludge (WAS) withdrawal.

Key Features

• Large backlit LCD display with simultaneous numeric depth values, real-time ultrasonic echo waveform visualization, and dynamic trend graphs (configurable from 5 minutes to 48 hours)
• Dual-sensor capability: single transmitter unit supports up to two independently mounted ultrasonic probes—ideal for differential blanket profiling or redundancy in critical applications
• Embedded microprocessor with adaptive signal filtering algorithms to suppress noise from surface turbulence, foam, or floating scum layers
• No moving parts or submerged electronics: probe housing rated IP68 and constructed from corrosion-resistant stainless steel (316L) and PVDF for long-term reliability in aggressive wastewater matrices
• Field-configurable parameters via intuitive menu navigation—including blanking distance, damping, alarm thresholds, and display brightness
• Real-time current output (4–20 mA) proportional to measured sludge blanket height, fully isolated and compatible with PLCs, DCS, and SCADA systems
• Two programmable relay outputs for high/low-level alarms—supporting fail-safe interlocks for pump shutdown or alarm escalation protocols

Sample Compatibility & Compliance

The Pro Lev 800 is validated for use across municipal and industrial wastewater streams—including primary clarifiers, secondary clarifiers (final settlers), gravity thickeners, dissolved air flotation (DAF) units, and ash settling ponds in thermal power plants. It performs reliably in media with total suspended solids (TSS) concentrations up to 50 g/L and ambient temperatures ranging from −20 °C to +60 °C. While not a certified analytical instrument per ISO/IEC 17025, its design adheres to functional safety principles aligned with IEC 61508 (SIL 2 capable when integrated with appropriate safety logic solvers). The device meets electromagnetic compatibility (EMC) requirements per EN 61326-1 and carries CE marking for conformity with EU directives. Its analog output and alarm functions support integration into facilities operating under ISO 9001, ISO 14001, and ISO 45001 frameworks. For regulated utilities subject to EPA Clean Water Act reporting or EU Urban Wastewater Treatment Directive compliance, the Pro Lev 800 provides auditable, timestamped trend data suitable for GLP-aligned operational records.

Software & Data Management

Data acquisition and visualization are handled locally via the integrated LCD interface; no external PC or proprietary software is required for basic operation. However, the RS-232C serial port enables optional connection to supervisory systems for historical data logging, remote configuration, and diagnostic access. When interfaced with industry-standard SCADA platforms (e.g., Ignition, Siemens Desigo, or Schneider EcoStruxure), the device supports Modbus RTU protocol emulation (via ASCII command set) for seamless integration into existing infrastructure. All trend data displayed on-screen—including depth vs. time curves and echo amplitude profiles—are stored in non-volatile memory and persist through power cycles. The system does not implement FDA 21 CFR Part 11 electronic signature or audit trail functionality natively; however, third-party historian systems can capture and archive all transmitted 4–20 mA signals and relay status changes with full traceability for GMP or regulatory review purposes.

Applications

• Optimizing return activated sludge (RAS) flow rates in biological nutrient removal (BNR) trains based on real-time blanket position
• Preventing sludge washout during hydraulic surges by triggering automatic underflow pump modulation
• Monitoring sludge compaction dynamics in gravity thickeners to determine optimal withdrawal timing
• Supporting predictive maintenance of scraper mechanisms by identifying abnormal blanket rise or collapse patterns
• Providing input signals for automated chemical dosing control in coagulation-flocculation units upstream of clarification
• Verifying performance of lamella settlers or tube settlers in compact wastewater treatment plants
• Monitoring ash slurry concentration gradients in coal-fired power plant ash handling systems

FAQ

Can the Pro Lev 800 distinguish between multiple sludge layers (e.g., light and heavy sludge)?
No—it detects the dominant acoustic impedance discontinuity at the primary sludge-water interface. Multi-layer stratification requires complementary techniques such as gamma densitometry or multi-frequency sonar profiling.
Is calibration required after installation?
Field calibration is not necessary; the device uses factory-trimmed transducer timing and fixed speed-of-sound assumptions for water (1480 m/s at 20 °C). Temperature compensation is not implemented, so installations in thermally variable basins may require empirical offset correction.
What is the minimum detectable sludge concentration?
Reliable detection begins at approximately 2–3% w/w solids (≈20–30 g/L TSS), depending on particle size distribution and organic content. Very low-density flocs or colloidal suspensions may yield attenuated echoes.
Can the sensor be mounted on a rotating bridge or traveling suction device?
Yes—provided mechanical vibration is damped and the mounting orientation maintains consistent perpendicular alignment to the expected interface plane. Angular deviation >±5° degrades measurement repeatability.
Does the device comply with ATEX or IECEx for explosive atmospheres?
No—the Pro Lev 800 is not intrinsically safe or explosion-proof certified. It is intended for Zone 2/Class I Division 2 environments only, where flammable gas concentrations are unlikely during normal operation.
