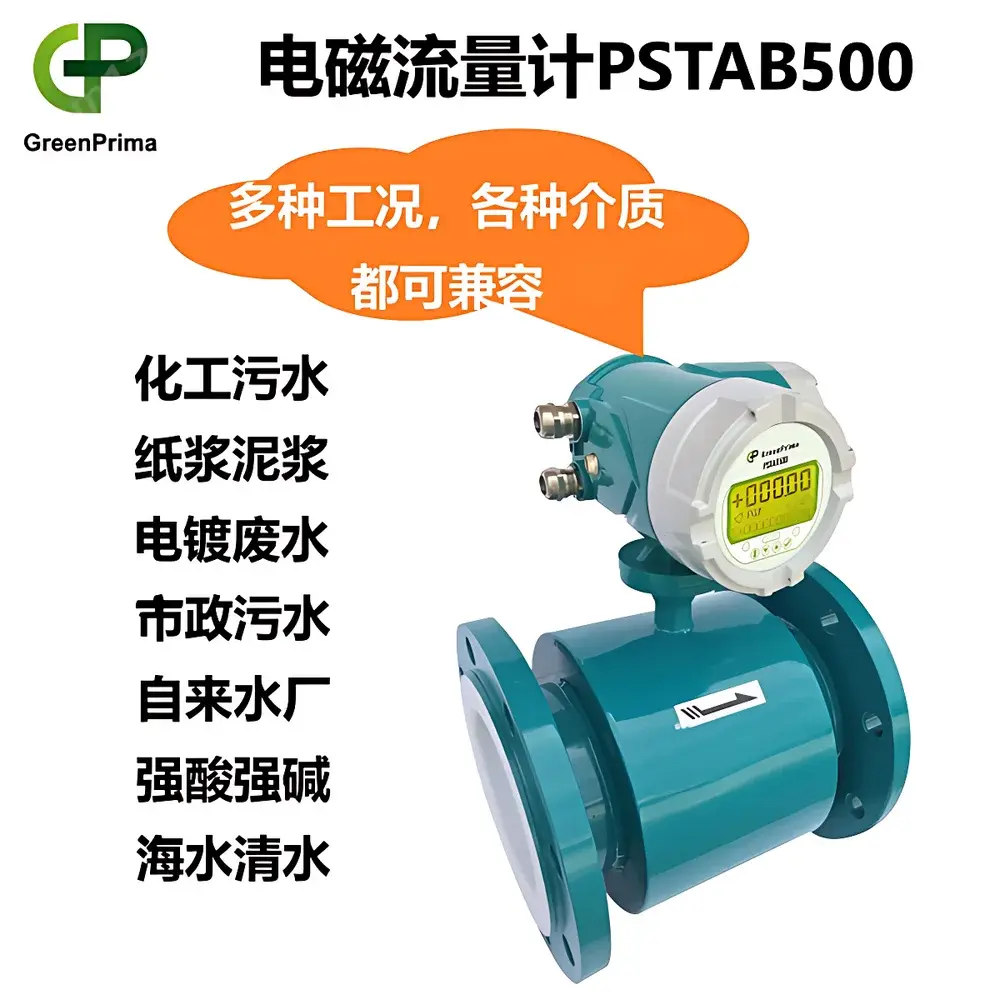

GreenPrima PSTAB500 Electromagnetic Flow Meter for Chemical Wastewater Applications

Overview

The GreenPrima PSTAB500 Electromagnetic Flow Meter is an industrial-grade online flow measurement instrument engineered for continuous, non-intrusive volumetric flow monitoring of conductive liquids in demanding chemical wastewater treatment and process environments. Operating on Faraday’s Law of Electromagnetic Induction, the PSTAB500 induces a voltage proportional to the average fluid velocity across a magnetic field generated perpendicular to the flow direction. This principle ensures measurement independence from fluid density, viscosity, temperature, pressure, and moderate variations in conductivity—making it uniquely suited for aggressive media including concentrated acids, caustic alkalis, slurry, pulp, and mineral suspensions. With no moving parts in the measuring tube, the device delivers zero pressure loss, minimal maintenance requirements, and high long-term stability under fluctuating hydraulic conditions.

Key Features

• Fully configurable sensor design supporting nominal pipe sizes from DN10 to DN2200, enabling scalability across pilot-scale installations and full-scale municipal or industrial effluent treatment plants.
• Electrode materials include 316L stainless steel, Hastelloy B/C, titanium, tantalum, platinum-iridium, and nickel—selected based on electrochemical compatibility with specific corrosive or abrasive media.
• Liner options encompass PTFE (F4), F46 (perfluoroalkoxy), chloroprene rubber, polyurethane, and ceramic—each rated for distinct temperature, abrasion resistance, and chemical exposure profiles.
• Integrated self-diagnostic functions continuously monitor electrode contamination, signal integrity, coil excitation status, and empty-pipe detection—supporting predictive maintenance and reducing unplanned downtime.
• Bi-directional flow measurement capability with real-time polarity reversal logic, essential for recirculation loops, batch transfer validation, and reverse-flush system monitoring.
• IP65/IP67/IP68 ingress protection ratings available depending on housing configuration (integral or remote-mounted transmitter), ensuring operational reliability in humid, dusty, or submersible installation scenarios.
• Wide operating temperature range: fluid –30 °C to +250 °C; ambient –30 °C to +65 °C—validated per IEC 60529 and EN 61000-6-2 for electromagnetic immunity.

Sample Compatibility & Compliance

The PSTAB500 is certified for use with liquids exhibiting minimum conductivity ≥5 µS/cm—covering most industrial wastewater streams, neutralized effluents, and chemically treated process waters. It complies with ISO 4064-2:2014 (water metering accuracy classes), EN 14154-2 (electromagnetic meters for water applications), and meets EMC Directive 2014/30/EU requirements. For regulated pharmaceutical or food-grade applications, optional traceable calibration certificates aligned with ISO/IEC 17025 are available upon request. The instrument supports audit-ready data logging when integrated with systems compliant with FDA 21 CFR Part 11 and EU Annex 11 requirements.

Software & Data Management

The PSTAB500 features dual-mode digital communication: standard Modbus RTU over RS485 (with configurable baud rates up to 115.2 kbps) and optional HART 7 protocol support for configuration, diagnostics, and multi-variable readout (e.g., flow rate, totalized volume, signal quality index). Optional GPRS telemetry enables remote SCADA integration for distributed wastewater networks. Local operation utilizes a high-contrast backlit LCD with intuitive menu navigation, supporting both English and multilingual firmware versions. All configuration changes are timestamped and stored in non-volatile memory, facilitating GLP/GMP-compliant change control documentation.

Applications

• Real-time flow monitoring at influent/effluent points in activated sludge, MBR, and SBR wastewater treatment facilities.
• Chemical dosing verification for pH adjustment, coagulant/flocculant injection, and disinfectant (e.g., chlorine, ozone) feed control.
• Sludge transfer lines handling high-solids-content streams (up to 40% v/v) where mechanical meters suffer wear or clogging.
• Effluent discharge compliance reporting per local environmental regulations (e.g., EPA NPDES permits, EU Urban Wastewater Treatment Directive).
• Process interlocks in chemical manufacturing plants where flow cessation or reversal must trigger safety shutdowns or alarm escalation.

FAQ

What is the minimum required liquid conductivity for accurate measurement?
The PSTAB500 requires a minimum conductivity of 5 µS/cm. Below this threshold, signal-to-noise ratio degrades significantly, affecting repeatability.
Can the PSTAB500 be installed in vertical pipelines with upward flow?
Yes—provided the pipe is fully filled and the sensor is mounted in accordance with IEC 60770-1 guidelines for electromagnetic flowmeters, including adequate upstream/downstream straight-run lengths (typically 5D upstream / 2D downstream for integral units).
Is factory calibration traceable to national standards?
All standard units undergo wet-calibration against master standards accredited to ISO/IEC 17025. Certificate of Calibration (including uncertainty budget) is supplied unless otherwise specified.
How does the empty-pipe detection function operate?
The transmitter monitors electrode impedance and signal amplitude variance. When flow ceases and air/gas pockets form, the algorithm triggers automatic zero-reset or alarms via configurable dry-contact outputs.
Does the PSTAB500 support intrinsically safe operation in hazardous areas?
Yes—explosion-proof variants (ATEX II 2G Ex d IIB T4 Gb / IECEx Ex d IIB T4 Gb) are available for Zone 1 installations, with appropriate barrier certification for analog and digital signal paths.
