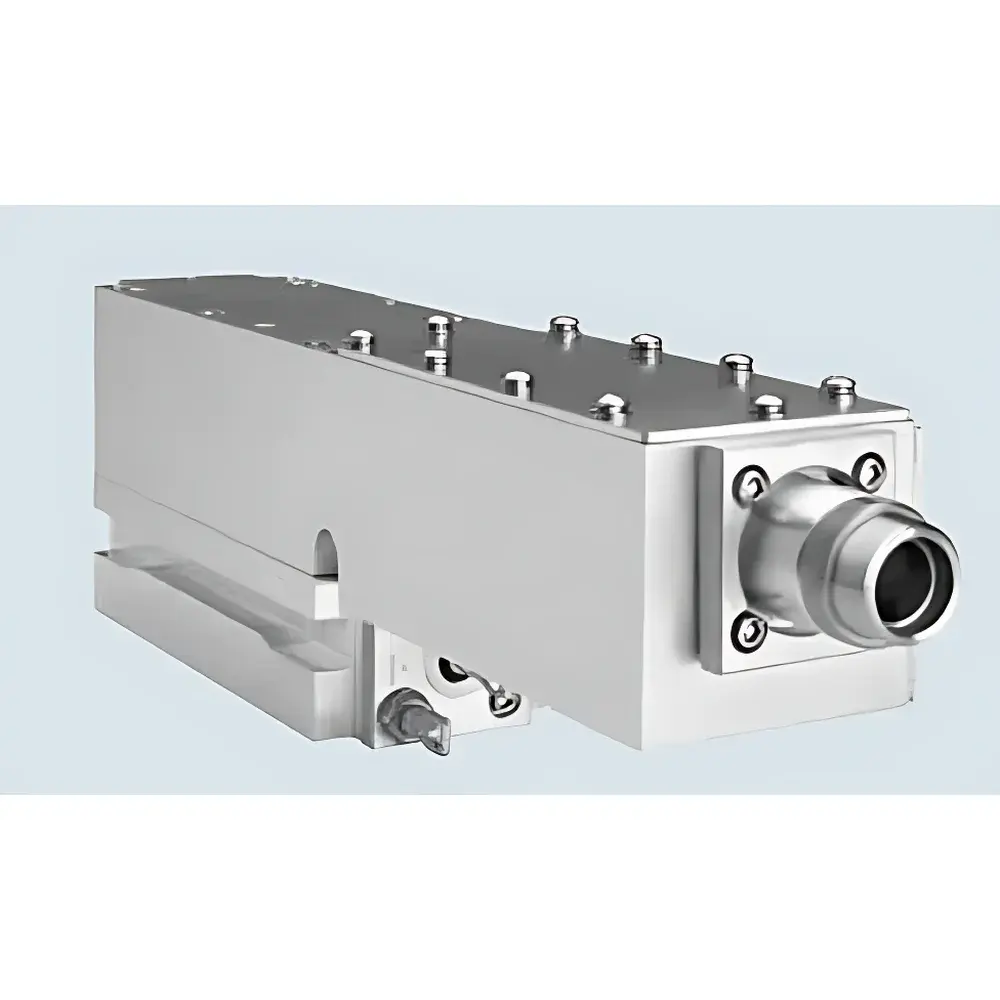

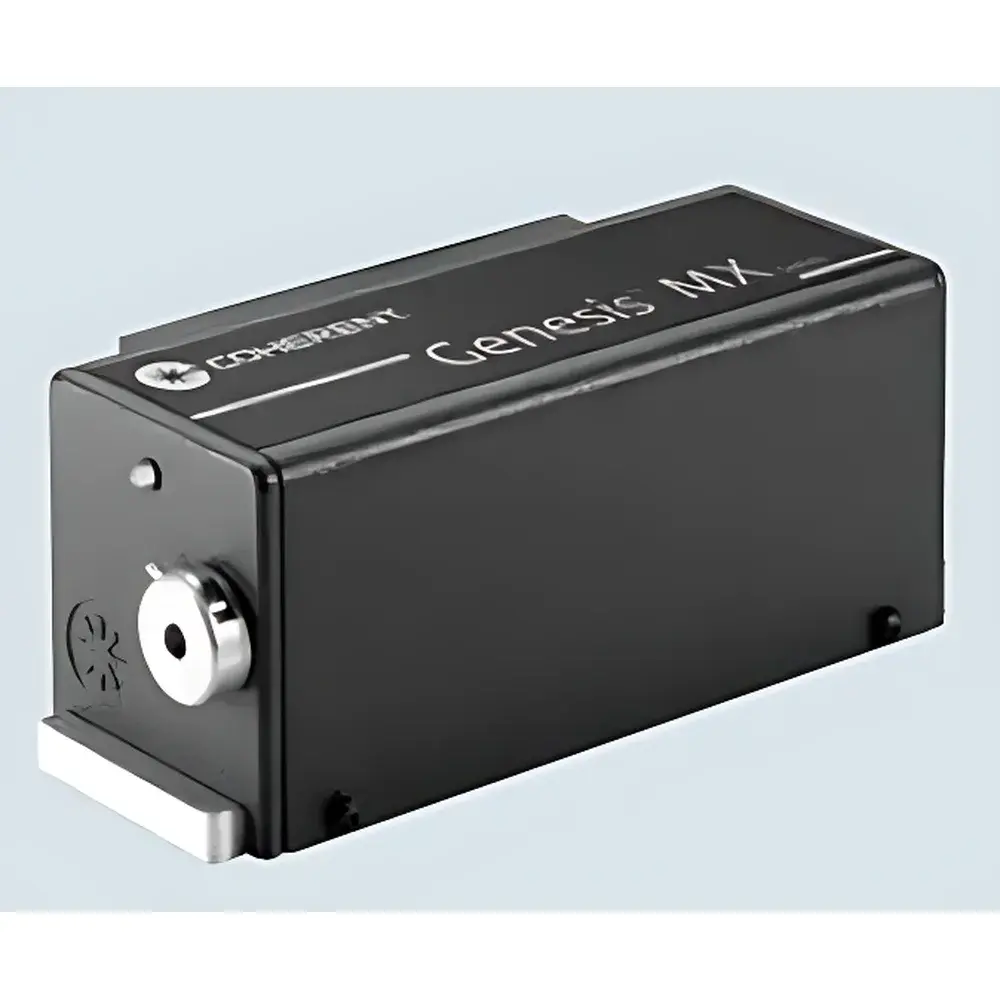

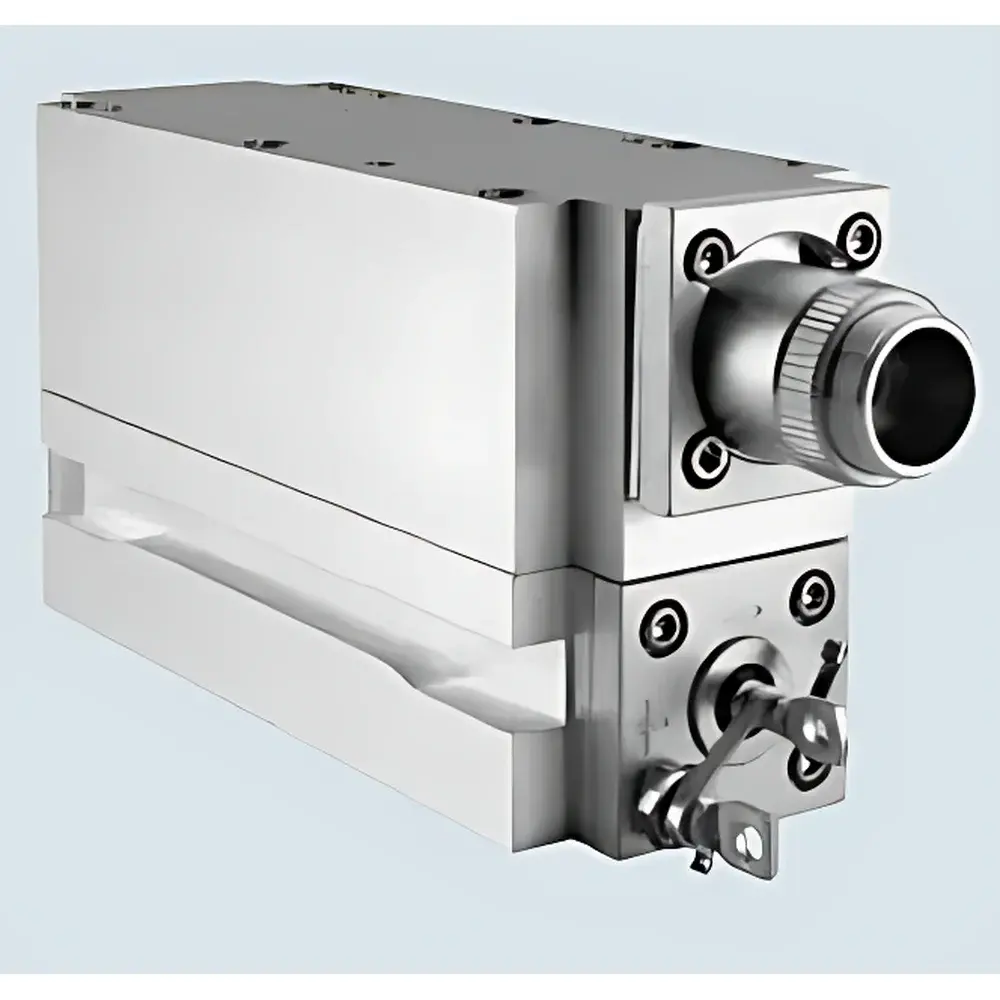

GRINTECH GENESIS MX Series Multi-Transverse-Mode Semiconductor Laser at 460 nm

Overview

The GRINTECH GENESIS MX Series Multi-Transverse-Mode Semiconductor Laser operating at 460 nm is a purpose-engineered solid-state laser source designed for demanding applications in bio-optical imaging, fluorescence excitation, optogenetics, and photobiomodulation research. Unlike single-mode diode lasers, the GENESIS MX leverages controlled multi-transverse-mode emission to deliver higher output power while maintaining beam quality suitable for wide-field illumination and large-area sample excitation. Its 460 nm emission falls within the blue spectral band—optimal for exciting common fluorophores such as CFP, Alexa Fluor 405, DAPI, and Hoechst dyes—and aligns with peak absorption of channelrhodopsin-2 (ChR2), making it especially valuable in neuroscience and cellular physiology workflows. The laser employs thermally stabilized semiconductor gain media with integrated collimation optics and TEC-based temperature regulation to ensure long-term wavelength stability (< ±0.1 nm over 8 hours) and power repeatability (±1.5% RMS over 24 h under constant current drive).

Key Features

• Stable continuous-wave (CW) output at 460 nm with typical power range from 50 mW to 500 mW (model-dependent), scalable via OEM integration
• Multi-transverse-mode architecture engineered for improved brightness-to-divergence ratio versus standard multimode diodes
• Integrated thermoelectric cooler (TEC) and precision current driver enabling active wavelength and power stabilization
• Hermetically sealed TO-3 or butterfly package options compliant with MIL-STD-883 environmental screening protocols
• Beam divergence < 1.2 mrad (full angle, slow axis); ellipticity < 1.8:1 after optional anamorphic correction
• Modulation-ready design supporting analog (0–5 V) and TTL input for external intensity control up to 100 kHz
• Compliant with IEC 60825-1:2014 Class 3B laser safety requirements; includes interlock interface and key switch

Sample Compatibility & Compliance

The GENESIS MX series is routinely deployed in life science instrumentation requiring robust, air-cooled blue excitation sources—including confocal and light-sheet microscopes, flow cytometers, and automated cell sorters. Its spectral output is compatible with standard dichroic mirrors and emission filters used in commercial fluorescence platforms (e.g., Zeiss LSM, Nikon A1R, BD FACSAria). From a regulatory standpoint, the system meets RoHS 2011/65/EU and REACH (EC 1907/2006) material restrictions. Full documentation—including test reports for optical power calibration traceable to NIST standards, laser safety classification verification, and EMC compliance per FCC Part 15 Subpart B and EN 55011 Class B—is supplied with each unit. For GLP/GMP environments, optional firmware logging supports audit-ready operational records aligned with FDA 21 CFR Part 11 principles.

Software & Data Management

GRINTECH provides the GENESIS Control Suite—a cross-platform application (Windows/macOS/Linux) enabling real-time monitoring of laser diode temperature, drive current, photodiode feedback voltage, and output power. The suite supports SCPI command set over USB-CDC or RS-232 interfaces, facilitating seamless integration into LabVIEW, Python (PyVISA), MATLAB, and EPICS-based control architectures. All operational parameters are timestamped and exportable in CSV or HDF5 format. Optional firmware upgrade path enables future support for Ethernet-based remote management and TLS-secured API endpoints compliant with enterprise IT security policies.

Applications

• Fluorescence microscopy: Excitation of blue-sensitive fluorescent proteins and dyes in fixed and live-cell assays
• Optogenetics: Precise temporal stimulation of ChR2-expressing neurons in slice and in vivo preparations
• Flow cytometry: High-throughput cell analysis using 405 nm-compatible scatter and fluorescence channels
• Photodynamic therapy (PDT) research: Dosimetry-controlled irradiation studies targeting porphyrin-based photosensitizers
• Calibration reference source: Stable 460 nm output for spectrometer wavelength validation and detector quantum efficiency mapping
• Industrial inspection: UV-blue induced fluorescence detection in pharmaceutical packaging and polymer defect analysis

FAQ

Is the GENESIS MX laser compatible with standard microscope filter cubes?
Yes—its 460 nm center wavelength and narrow spectral bandwidth (< 2 nm FWHM) match common 405/440/460 nm excitation filters from Semrock, Chroma, and Omega.
What cooling method does the laser require?
Air cooling is sufficient for all standard configurations; no external chiller is needed. Optional water-cooled heatsink mounts are available for high-duty-cycle OEM integration.
Can output power be modulated dynamically during acquisition?
Yes—via analog voltage (0–5 V) or TTL signal with rise/fall times < 1 µs and linearity error < ±2% across full modulation range.
Does GRINTECH provide OEM mechanical and electrical integration support?
Yes—custom mounting flanges, fiber-coupled variants (FC/PC or SMA-905), and embedded driver PCBs are available under NDA.
Is laser power calibration traceable to national standards?
Each unit ships with a certificate of calibration traceable to NIST SRM 2241 (spectral irradiance) and NIST SRM 2034 (power meter responsivity), valid for 12 months.
