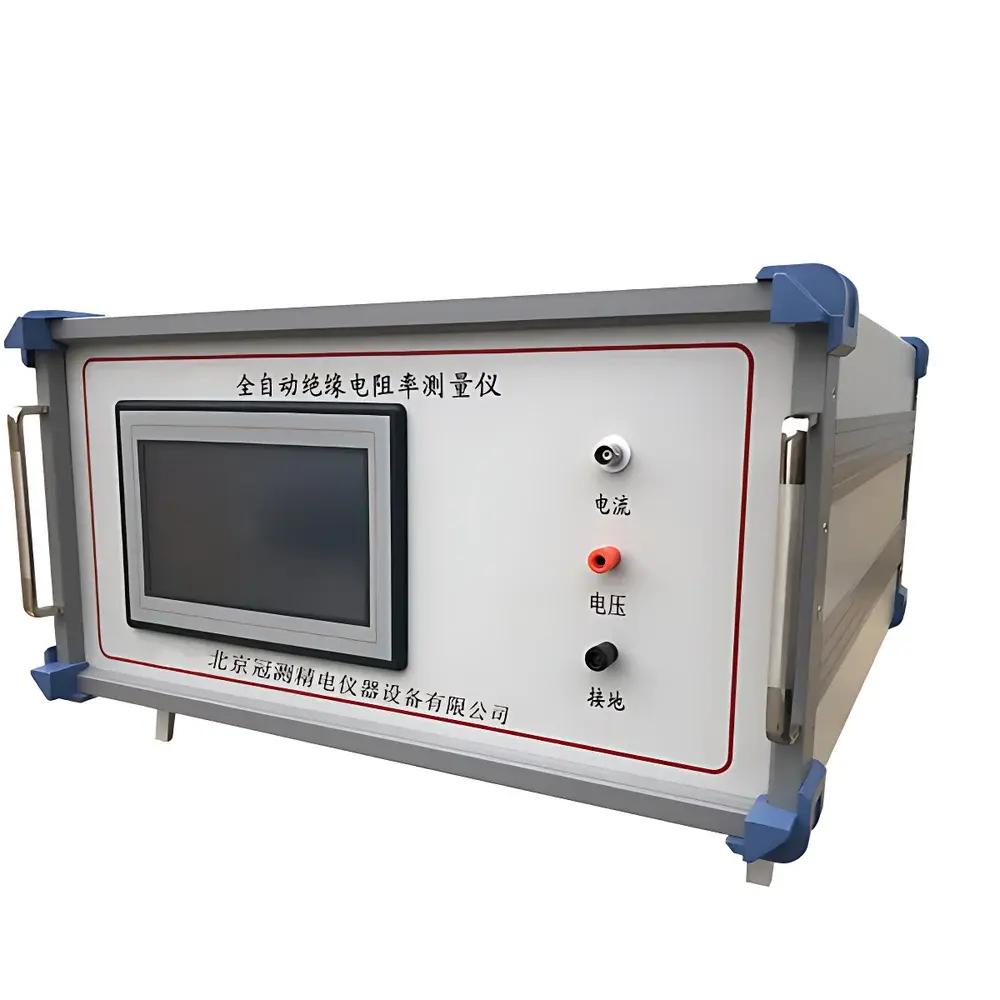

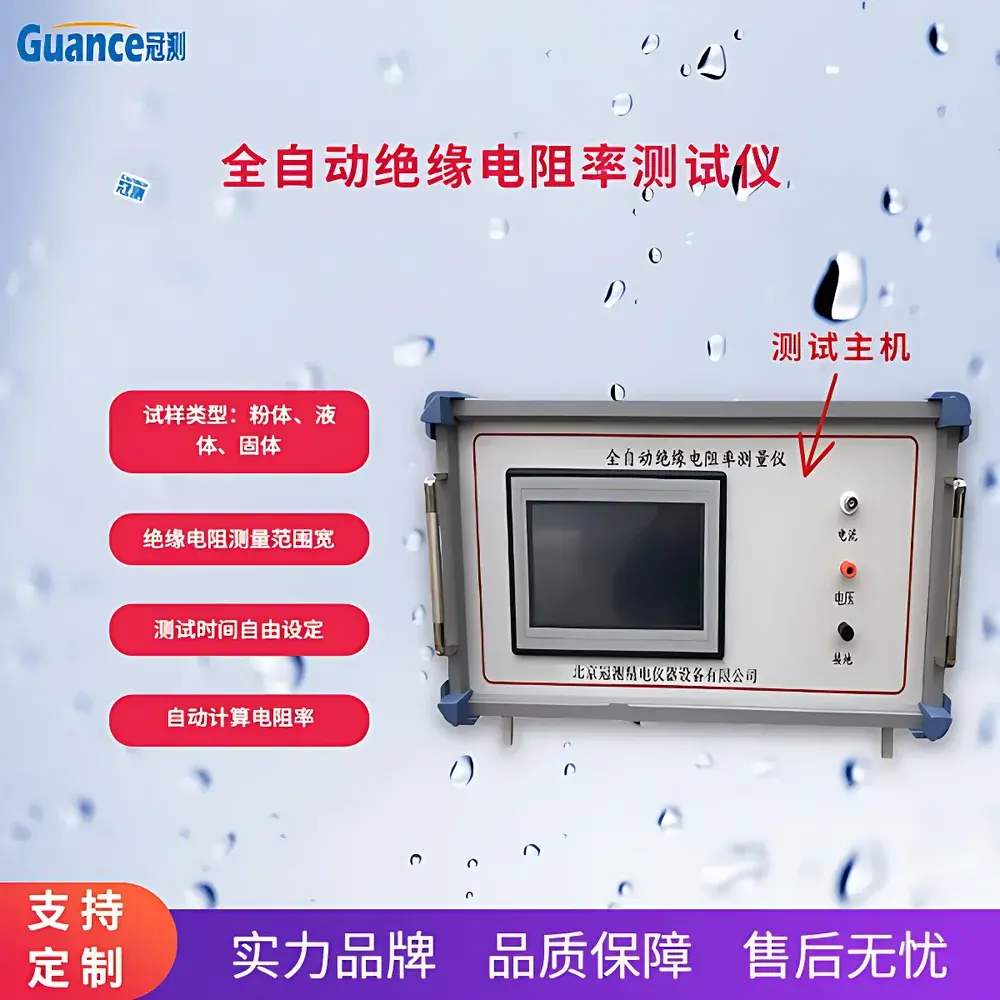

GuanCe GEST-121A Automated High-Resistance & Resistivity Tester

Overview

The GuanCe GEST-121A Automated High-Resistance & Resistivity Tester is a precision digital instrument engineered for the accurate measurement of insulation resistance, volume resistivity, and surface resistivity of dielectric materials. It operates on the principle of constant-voltage DC measurement with guarded electrode configuration, compliant with standardized test methodologies defined in ASTM D257, IEC 60093, and GB/T 1410–2006. The system employs a high-stability, low-noise voltage source (10 V to 1000 V DC, selectable in 10-V increments) and a calibrated electrometer circuit based on a proprietary large-scale integrated architecture derived from Intel’s industrial-grade IC platform. This architecture ensures minimal thermal drift, sub-picoampere current resolution, and stable output under varying ambient conditions—critical for reproducible measurements across extended test durations. Unlike analog or semi-automated meters, the GEST-121A integrates real-time leakage compensation, automatic range selection, and programmable dwell timing, enabling unattended operation during standardized resistivity protocols.

Key Features

• Automated dual-mode measurement: simultaneous or independent determination of volume resistivity (ρ_v, Ω·m) and surface resistivity (ρ_s, Ω/sq) per IEC 60093 Annex A and B
• Wide resistance measurement range: 1 × 10⁴ Ω to 2 × 10¹⁶ Ω, with resolution down to 0.1% of full scale at each decade
• Programmable test voltage: 10 V, 100 V, 250 V, 500 V, and 1000 V DC, with ±1% accuracy and <0.1% ripple
• Microcurrent detection capability: 1 fA to 2 mA full-scale, digitized via 24-bit sigma-delta ADC with auto-zeroing
• Integrated guard terminal and triaxial input architecture to eliminate surface leakage errors during high-resistance testing
• Self-calibrating reference system traceable to NIM (National Institute of Metrology, China) standards, with annual calibration verification support
• Compact benchtop design (280 × 220 × 120 mm), weight < 3.2 kg, suitable for ISO/IEC 17025-accredited labs with space-constrained workbenches

Sample Compatibility & Compliance

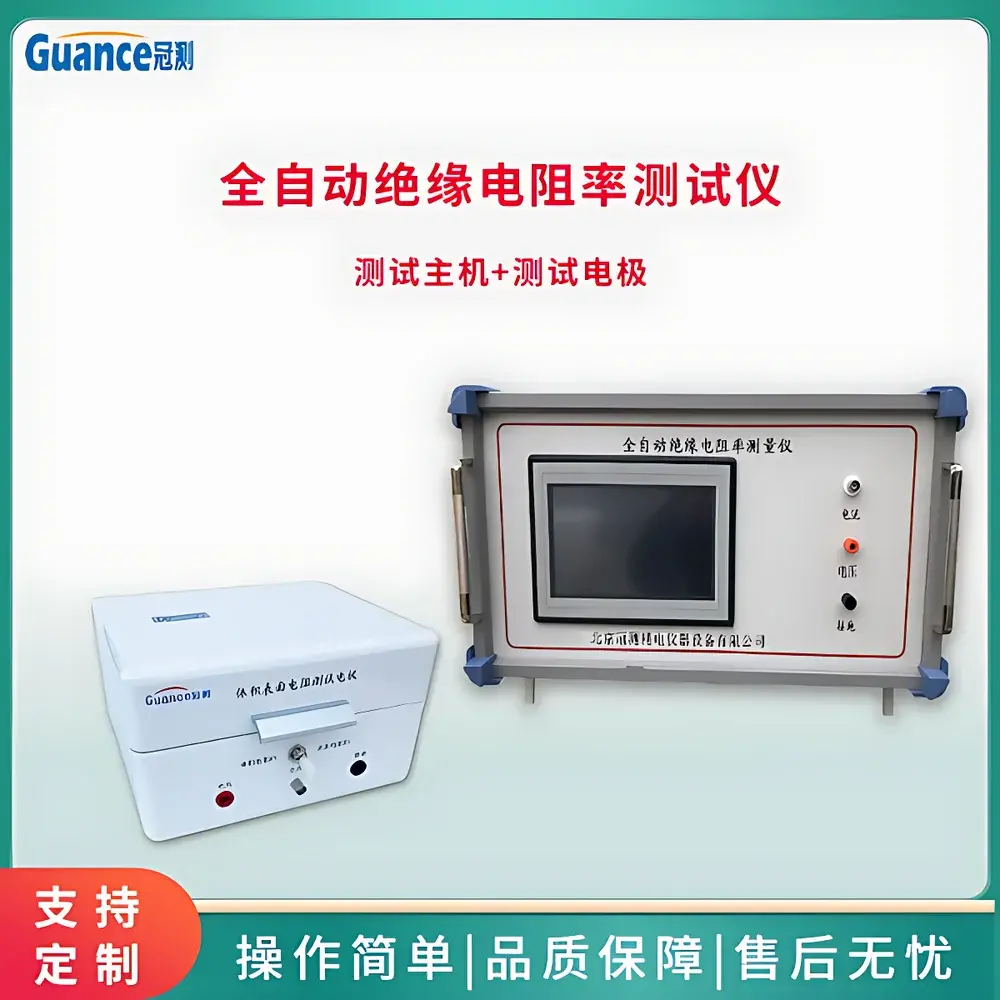

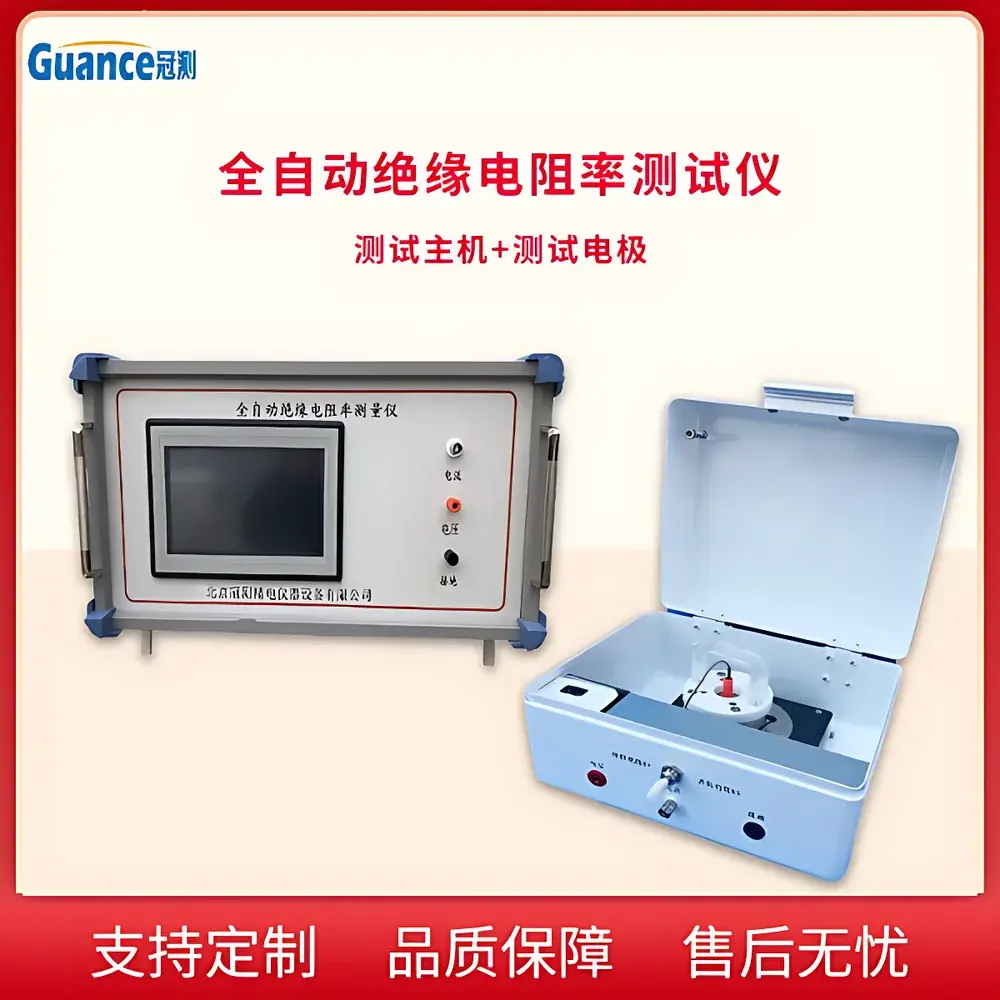

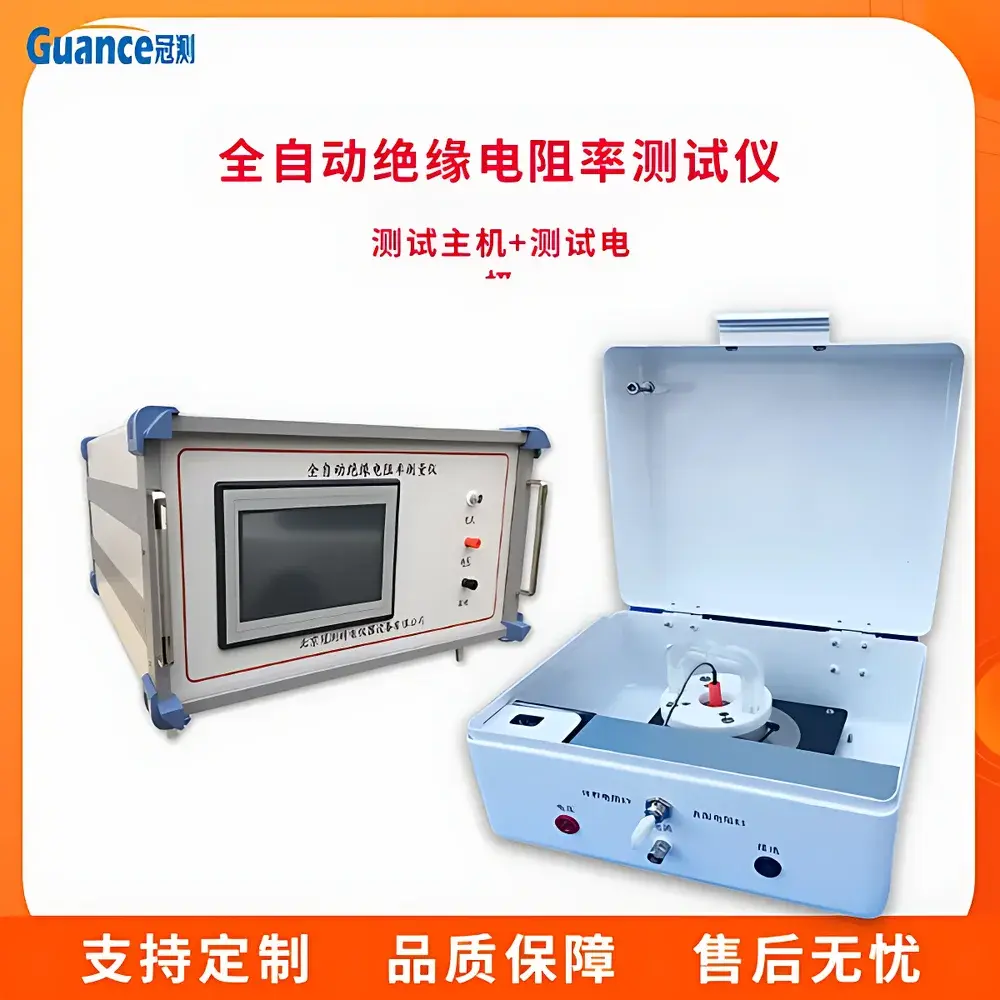

The GEST-121A supports a broad spectrum of solid, semi-solid, and liquid insulating specimens through interchangeable electrode fixtures—including ASTM D257-compliant concentric ring electrodes for surface resistivity, guarded two-terminal probes for bulk films, and liquid cell adapters with platinum-black electrodes for conductive suspensions or polymer solutions. It accommodates samples up to 150 mm × 150 mm × 50 mm (L × W × H) and accepts thicknesses from 0.05 mm (thin films) to 25 mm (rigid composites). All measurement procedures adhere to GLP documentation requirements: test parameters, timestamps, operator IDs, and environmental logs (optional external RH/T sensor input) are embedded into each result record. The instrument meets CE marking requirements for electromagnetic compatibility (EN 61326-1) and electrical safety (EN 61010-1), and its firmware architecture supports audit trails required under FDA 21 CFR Part 11 when paired with validated PC-based data acquisition software.

Software & Data Management

The GEST-121A communicates via USB 2.0 (virtual COM port) or optional RS-232 interface to Windows-based control software (v3.2+, Windows 10/11 64-bit). The software provides full protocol scripting—including stepwise voltage ramping, timed resistance decay analysis, and temperature-compensated resistivity calculation using user-input sample geometry and ambient temperature. All raw current/voltage/time datasets are stored in IEEE-compliant .CSV and encrypted .GDR binary formats, with SHA-256 checksums for integrity verification. Export options include PDF reports conforming to ISO/IEC 17025 clause 7.8.2, Excel-compatible summaries with statistical process control (SPC) charts (X̄-R, Cpk), and direct integration with LIMS platforms via HL7 or ASTM E1384-compliant XML schema.

Applications

• Quality control of polymer insulators (e.g., polyethylene cable jackets, silicone rubber bushings) in power transmission component manufacturing
• R&D evaluation of nanocomposite dielectrics, including carbon-black- or metal-oxide-filled elastomers and ceramic-polymer hybrids
• Compliance testing of medical device packaging materials (ISO 11607-1) for electrostatic discharge (ESD) safety certification
• Characterization of battery separator films (Li-ion, solid-state) for ionic vs. electronic conduction discrimination
• Environmental aging studies—tracking resistivity degradation of outdoor insulators exposed to UV, humidity, and salt fog per IEC 60587
• Validation of antistatic additives in cleanroom garments and semiconductor handling trays per ANSI/ESD S20.20

FAQ

Does the GEST-121A comply with ASTM D257 for volume resistivity reporting?
Yes—the instrument implements the guarded electrode method per Section 11 of ASTM D257, with built-in correction algorithms for electrode geometric factors and ambient humidity effects.
Can it measure resistivity of conductive pastes or greases?
Yes, using the optional liquid-cell electrode kit; viscosity limits apply (≤ 500 Pa·s), and measurements require stabilization time per IEC 60093 Clause 6.2.
Is firmware update supported in-field?
Yes—updates are delivered as signed .BIN packages via USB stick; each release includes version-locked calibration coefficients and change-log documentation.
What is the recommended recalibration interval?
Annually under normal use; more frequently if operated >4 h/day in environments exceeding 30 °C or 70% RH.
Does the system support multi-user access control?
The PC software supports role-based permissions (operator, supervisor, administrator) with password-protected method editing and electronic signature capture for 21 CFR Part 11 compliance.
